Zinyeme 4 Inch Mini Chainsaw Chain Instruction Manual

Introduction

Thank you for choosing the Zinyeme 4 Inch Mini Chainsaw Chain. This manual provides important instructions for the safe and efficient use of your replacement chainsaw chains. Please read this manual thoroughly before installation and operation to ensure proper handling and to maximize the lifespan of your product.

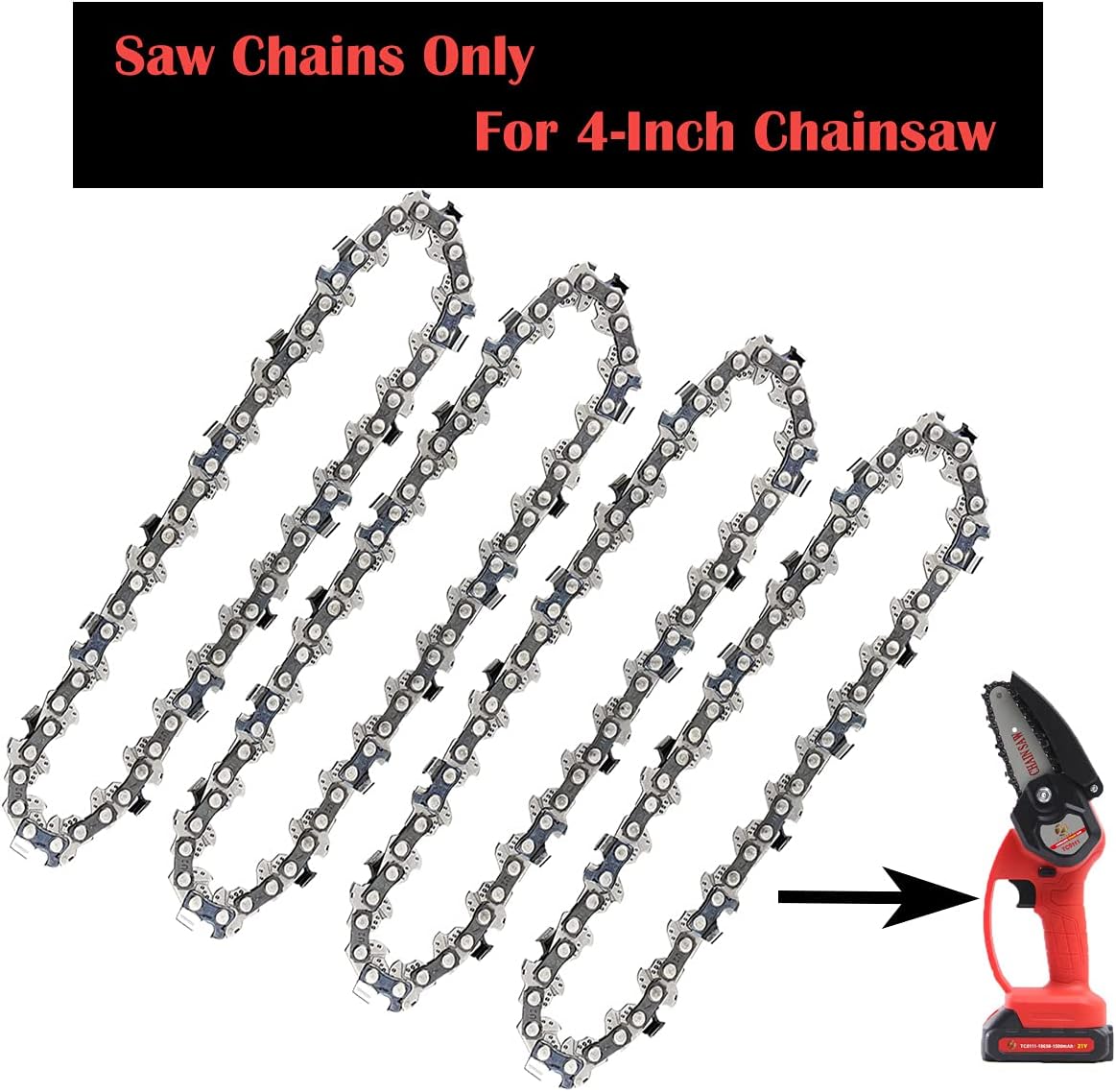

Image: Four Zinyeme 4-inch mini chainsaw chains, ready for use with a compatible mini chainsaw.

Safety Information

Always prioritize safety when handling chainsaw chains and operating any power tool. Failure to follow these safety guidelines may result in serious injury.

• Wear Protective Gear: Always wear safety glasses, gloves, and appropriate protective clothing when installing, removing, or operating a chainsaw.
• Disconnect Power: Before performing any maintenance, installation, or chain replacement, ensure the chainsaw's battery is removed or the power cord is unplugged to prevent accidental startup.
• Inspect Chain: Regularly inspect the chain for damage, dullness, or wear. A damaged chain can be dangerous and reduce cutting efficiency.
• Correct Installation: Ensure the chain is installed correctly and tensioned according to your chainsaw's manufacturer instructions. Incorrect installation can lead to chain derailment or breakage.
• Keep Hands Clear: Never touch the chain when the chainsaw is powered on or during operation.
• Store Safely: Store replacement chains in a safe place, away from children and pets, and protected from moisture.

Package Contents

Your Zinyeme 4 Inch Mini Chainsaw Chain package typically includes:

• 4 x Zinyeme 4 Inch Mini Chainsaw Chains

Note: The mini chainsaw itself is not included with this product.

Installation Instructions

Follow these steps to replace the chain on your 4-inch mini chainsaw. Always refer to your chainsaw's specific manual for detailed instructions on chain replacement and tensioning.

1. Prepare the Chainsaw: Ensure the chainsaw is turned off and the battery is removed (for cordless models) or unplugged (for corded models).
2. Loosen the Bar Cover: Locate the screw or knob that secures the bar cover. Loosen it to remove the cover and expose the guide bar and old chain.
3. Remove Old Chain: Carefully lift the old chain off the guide bar and sprocket. Dispose of the old chain responsibly.
4. Install New Chain: Place the new Zinyeme 4 Inch Mini Chainsaw Chain onto the guide bar, ensuring the drive links fit into the groove of the guide bar.
5. Check Chain Direction: It is critical to install the chain with the correct cutting direction. The long, sharp blade edges should be pointing forward, away from the chainsaw body, in the direction of rotation.

Image: Illustration demonstrating the correct orientation for chain installation, with cutting teeth facing forward.

Image: The Zinyeme 4-inch mini chainsaw chain is compatible with various 4-inch mini chainsaws.

6. Reattach Bar Cover: Once the chain is correctly seated, replace the bar cover and tighten the screw or knob.
7. Adjust Chain Tension: Adjust the chain tension according to your chainsaw's manual. The chain should be snug but still able to be pulled freely around the guide bar by hand. It should not sag underneath the guide bar.
8. Final Check: Before operating, ensure all parts are securely fastened and the chain moves smoothly.

Operating Instructions

The Zinyeme 4 Inch Mini Chainsaw Chain is designed for efficient cutting, trimming, pruning, carving, and shaping of various materials when used with a compatible 4-inch mini chainsaw.

• Material Compatibility: This chain is suitable for cutting wood, plywood, laminated flooring, chipboard, PVC, plastic pipe, ice, and rubber.
• Efficient Cutting: The wooden teeth design allows the chainsaw to strike branches effectively, enhancing cutting efficiency. The pointed, wear-resistant gear teeth contribute to improved work performance.
• Proper Technique: Always hold the chainsaw firmly with both hands (if applicable to your model) and maintain a stable stance. Allow the chain to do the work; do not force it through material.
• Clear Work Area: Ensure your work area is clear of obstructions and bystanders.

Image: Examples of the chain's versatile applications, including wood cutting, PVC cutting, pruning, and woodworking.

Maintenance

Proper maintenance extends the life of your Zinyeme chainsaw chain and ensures consistent performance.

• Cleaning: After each use, clean the chain to remove sawdust, resin, and debris. A stiff brush and appropriate cleaning solution can be used. Ensure the chain is dry before storage.
• Lubrication: Ensure your chainsaw's automatic oiler (if equipped) is functioning correctly, or manually lubricate the chain and guide bar as recommended by your chainsaw's manufacturer.
• Sharpening: Over time, the chain teeth will become dull. Sharpen the chain regularly using a suitable sharpening tool or have it professionally sharpened. A sharp chain cuts efficiently and reduces strain on the chainsaw motor.
• Inspection: Periodically inspect the chain for any signs of damage, cracks, or excessive wear. Replace the chain if any significant damage is found.
• Storage: Store chains in a dry, clean environment to prevent rust and corrosion.

Troubleshooting

If you encounter issues with your chainsaw chain, consider the following common solutions:

• Chain Not Cutting Effectively:
  • Check if the chain is dull and requires sharpening.
  • Verify the chain is installed in the correct cutting direction.
  • Ensure the chain tension is correct; too loose or too tight can affect cutting.
• Chain Derailment:
  • Check chain tension; it might be too loose.
  • Inspect the guide bar for wear or damage.
  • Ensure the chain is properly seated in the guide bar groove and around the sprocket.
• Excessive Vibration or Noise:
  • Check for proper chain tension.
  • Inspect the chain for damaged or broken links.
  • Ensure the guide bar and sprocket are clean and free of debris.

If problems persist, consult your chainsaw's manufacturer manual or contact a qualified service technician.

Specifications

Key specifications for the Zinyeme 4 Inch Mini Chainsaw Chain:

Image: Detailed view of the 4-inch chainsaw chain, showing its length and construction.

Warranty and Support

For specific warranty information regarding your Zinyeme 4 Inch Mini Chainsaw Chain, please refer to the product packaging or contact Zinyeme customer support directly. Keep your purchase receipt as proof of purchase.

If you have any questions or require assistance, please reach out to the retailer where you purchased the product or the manufacturer's customer service department.
