TFCFL 30QT Commercial Electric Dough Mixer User Manual

Brand: TFCFL | Model: 30QT 110V Commercial Electric Dough Mixer

1. Introduction

This manual provides essential information for the safe and efficient operation, maintenance, and care of your TFCFL 30QT 110V Commercial Electric Dough Mixer. Please read this manual thoroughly before operating the machine to ensure proper usage and to prevent injury or damage.

2. Safety Instructions

Adhering to these safety guidelines is crucial for preventing accidents and ensuring the longevity of your dough mixer.

Before running, the machine must be placed on a stable, flat surface.
Never insert hands or any foreign objects into the mixing bucket while the machine is operating.
Avoid touching the control switch with wet hands to prevent electrical shock.
The cover of the mixing bucket must be securely closed when the machine is in operation.
Do not use a spray pipe for cleaning the machine directly. Refer to the maintenance section for proper cleaning procedures.
It is strictly forbidden to mix dough in reverse unless specifically instructed for dough removal.

3. Setup

Proper setup ensures stable and safe operation.

Unpack the dough mixer carefully and inspect for any shipping damage.
Place the machine on a flat, stable, and level ground surface capable of supporting its weight during operation.
Ensure the machine is connected to a power outlet that matches the specified voltage (110V) and current requirements.

4. Operating Instructions

Follow these steps for effective dough mixing:

Preparation: Ensure the mixing bucket is clean and free of debris.
Loading Ingredients: Add the desired amount of flour into the mixing bucket first. Then, add approximately 50% water relative to the flour quantity. Adjust water as needed based on dough consistency.
Mixing: Close the bucket cover securely. Turn the switch clockwise to begin stirring the dough. Allow the machine to run for 8-10 minutes, or until the dough reaches the desired consistency.
Dough Removal: Once mixing is complete, turn off the machine. Rotate the bucket 90 degrees to facilitate easy removal of the dough. For assistance in detaching the dough, turn the switch counterclockwise for a brief period to reverse the dough stick rotation.

5. Maintenance

Regular maintenance ensures optimal performance and extends the life of your mixer.

Cleaning: After each use, disconnect the power. Clean the mixing bucket and dough hook thoroughly. Use a damp cloth to wipe down the exterior. Do not use a spray pipe or high-pressure water for cleaning, as this can damage electrical components.
Inspection: Periodically check all moving parts, belts, and electrical connections for wear or damage.
Lubrication: Consult a qualified technician for any necessary lubrication of internal components.
Storage: Store the mixer in a dry, clean environment when not in use.

6. Troubleshooting

If you encounter issues with your dough mixer, consider the following:

Machine not starting: Ensure the power cord is securely plugged in and the power outlet is functional. Check if the safety cover is properly closed.
Unusual noises: Turn off the machine immediately. Check for any foreign objects in the mixing bucket or around moving parts. If the noise persists, contact customer support.
Dough not mixing properly: Verify the correct ratio of flour to water. Ensure the dough hook is properly installed.

For issues not resolved by these steps, please contact TFCFL customer support.

7. Specifications

Feature	Detail
Brand	TFCFL
Color	Stainless Steel
Blade Material	Stainless Steel
Special Feature	Adjustable Speed Control
Controls Type	Knob
Is Dishwasher Safe	Yes (Container Material)
Container Material	Stainless Steel
Manufacturer	WilkenUS
ASIN	B094C5VXGF
Date First Available	May 7, 2021

8. Product Features

Key features of the TFCFL Commercial Electric Dough Mixer:

Equipped with an inverted electrical switch, allowing the dough stick to rotate in both directions for ideal mixing.
Features a reasonable design, convenient operation, and high working efficiency.
Parts are treated with stainless steel or electroplating to meet sanitary requirements.
Components in contact with food are made of stainless steel or similar food-grade materials.
Utilizes a belt drive system with forward and reverse rotation, double A belt, and double gear for two speed changes and powerful performance.
Suitable for use in restaurants, enterprises, and food processing plants for various dough-based products like steamed bread, cakes, fried dough sticks, buns, snacks, biscuits, and bread.

9. Product Images

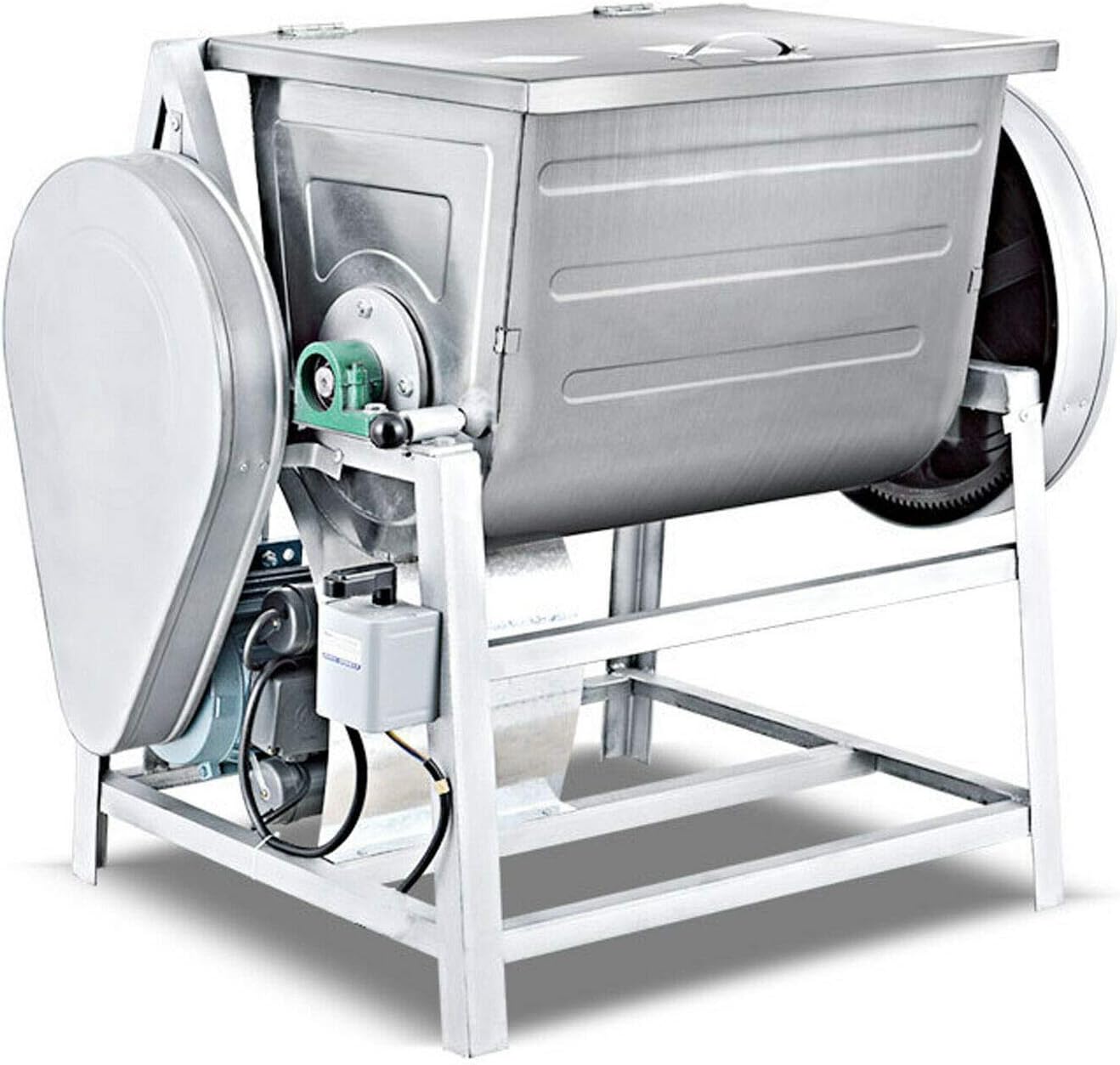

TFCFL 30QT Commercial Electric Dough Mixer, front view — **Figure 1:** This image shows the complete TFCFL 30QT Commercial Electric Dough Mixer, highlighting its robust stainless steel construction and industrial design. The main mixing drum is prominently featured, supported by a sturdy frame.

TFCFL 30QT Commercial Electric Dough Mixer with dough ingredients — **Figure 2:** The dough mixer is shown alongside a bowl of flour and hands kneading dough, illustrating its purpose in a bakery or kitchen setting. This emphasizes the machine's role in dough preparation.

TFCFL 30QT Commercial Electric Dough Mixer with dough texture examples — **Figure 3:** This image displays the dough mixer with circular insets showing different stages and textures of kneaded dough, demonstrating the machine's capability to produce various dough consistencies.

Rear view of the TFCFL 30QT Commercial Electric Dough Mixer — **Figure 4:** A rear view of the dough mixer, showcasing the sturdy frame and the mechanical components that drive the mixing process. This perspective highlights the machine's industrial build.

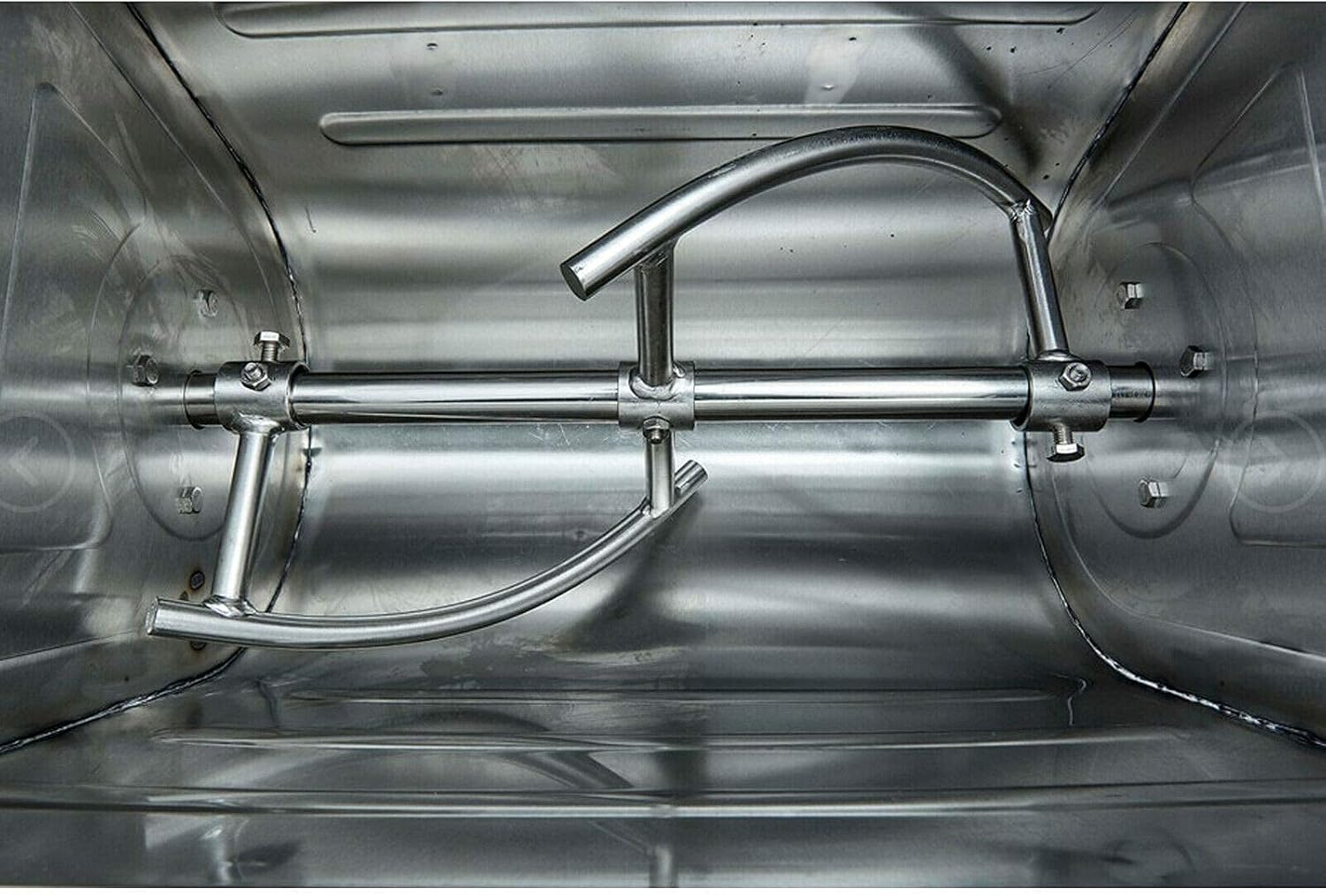

Inside view of the TFCFL 30QT Commercial Electric Dough Mixer mixing bowl and dough hook — **Figure 5:** A close-up view inside the stainless steel mixing bowl, revealing the heavy-duty dough hook and agitator. This illustrates the internal mechanism responsible for efficient dough mixing.

Close-up of the control switch on the TFCFL 30QT Commercial Electric Dough Mixer — **Figure 6:** This detailed shot focuses on the main control switch of the dough mixer, which allows for forward and reverse rotation, crucial for effective dough mixing and removal.

Close-up of the tilt mechanism and locking pin on the TFCFL 30QT Commercial Electric Dough Mixer — **Figure 7:** A close-up of the mechanism that allows the mixing drum to rotate 90 degrees for dough removal, showing the robust locking pin that secures the drum during operation.

10. Warranty and Support

For warranty information, technical support, or service inquiries, please contact the manufacturer or your point of purchase. Keep your purchase receipt as proof of purchase for any warranty claims.
