TOOLCRAFT LSH-880 Digital Hot Air Station User Manual

1. Introduction

Thank you for choosing the TOOLCRAFT LSH-880 Digital Hot Air Station. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your device. Please read this manual thoroughly before use and retain it for future reference.

2. Important Safety Instructions

Always observe the following safety precautions to prevent injury or damage to the device:

• Ensure the power supply matches the voltage specified on the device.
• Operate the hot air station in a well-ventilated area to avoid inhaling fumes.
• The nozzle and heated air can reach very high temperatures. Avoid direct contact with skin or flammable materials.
• Always place the hot air gun in its stand when not in use. The automatic power-saving function will activate.
• Do not use the device near liquids or in damp conditions.
• Keep children and unauthorized persons away from the operating area.
• Disconnect the power plug before cleaning or maintenance.
• Do not operate the device if the power cord or plug is damaged.

3. Package Contents

The package for your TOOLCRAFT LSH-880 Digital Hot Air Station should contain the following items:

• TOOLCRAFT LSH-880 Digital Hot Air Station Main Unit
• Hot Air Solder Gun with Stand
• 4 x Nozzles (various sizes)
• Power Cord
• User Manual (this document)

4. Product Overview

The TOOLCRAFT LSH-880 is a digital hot air station designed for various soldering and desoldering tasks. It features precise temperature and airflow control, a clear LCD display, and an automatic power-saving function.

Main Unit and Components

Below are images illustrating the main components of the hot air station:

Figure 4.1: The complete TOOLCRAFT LSH-880 Digital Hot Air Station, including the main unit, hot air gun, and a set of four interchangeable nozzles.

Figure 4.2: A closer view of the main unit's front panel, highlighting the digital LCD display, temperature and airflow adjustment controls, and the power switch.

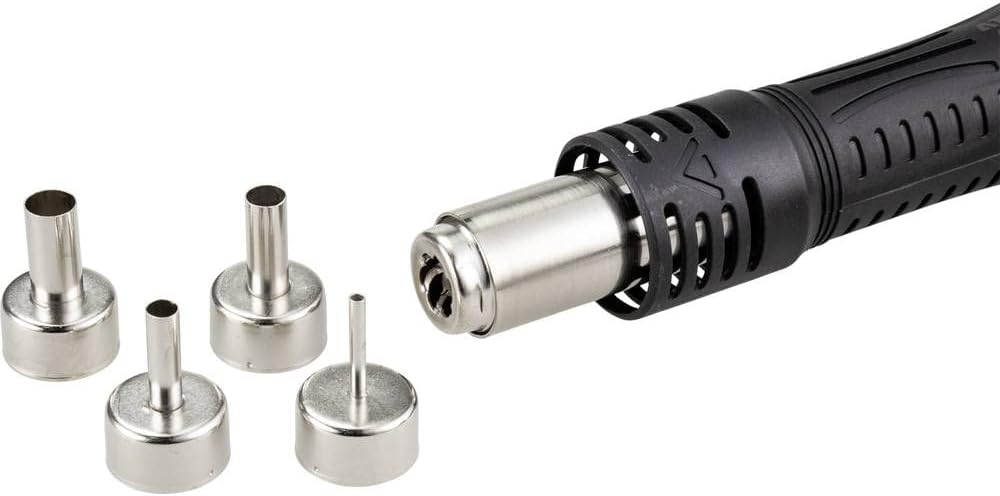

Figure 4.3: Detail of the hot air gun's nozzle attachment point and the four different sized nozzles included for various applications.

5. Setup

Follow these steps for the initial setup of your hot air station:

1. Unpack the Device: Carefully remove all components from the packaging. Retain the packaging for future transport or storage.
2. Placement: Place the main unit on a stable, heat-resistant, and non-flammable surface. Ensure adequate clearance for ventilation around the unit.
3. Connect the Hot Air Gun: Insert the hot air gun's connector securely into the designated port on the main unit.
4. Attach a Nozzle: Select the appropriate nozzle for your task and securely attach it to the hot air gun. Ensure it is firmly seated to prevent air leakage.
5. Connect Power: Ensure the power switch on the main unit is in the OFF position. Connect the power cord to the main unit and then to a grounded electrical outlet.

6. Operating Instructions

6.1 Powering On/Off

• To power on the device, flip the POWER switch on the front panel to the 'ON' position. The LCD display will illuminate.
• To power off, flip the POWER switch to the 'OFF' position. The hot air gun will enter a cooling cycle before completely shutting down.

6.2 Adjusting Temperature and Airflow

• Temperature Adjustment: Use the 'TEMP' up/down buttons to set the desired temperature. The digital display shows the current temperature, which can be adjusted from 100°C to 500°C.
• Airflow Adjustment: Rotate the 'AIR' knob to adjust the airflow rate. The display will show the airflow percentage.
• Preselection Buttons: The three numbered buttons (1, 2, 3) allow for quick recall of pre-set temperature and airflow configurations. To save a setting, adjust the temperature and airflow, then press and hold one of the numbered buttons until a confirmation sound or display change occurs.

6.3 Using the Hot Air Gun

• Once the desired temperature and airflow are set, remove the hot air gun from its stand. The heating element will activate.
• Direct the hot air stream carefully towards the workpiece.
• Automatic Power Saving: When the hot air gun is placed back into its stand, the unit will automatically enter a power-saving mode, reducing the temperature and airflow to prolong the life of the heating element and handle.
• Automatic Air Volume Cooler: This feature automatically cools down the heating element when the gun is placed in its stand or when the unit is powered off, extending component lifespan.
• Independent Cold Air Function: This function allows for rapid cooling of components or the hot air gun itself. Refer to the device interface for activation (usually a dedicated button or a specific combination of controls).

7. Maintenance

Regular maintenance ensures the longevity and optimal performance of your hot air station:

• Cleaning: Ensure the device is unplugged and cooled down before cleaning. Wipe the main unit and hot air gun with a soft, dry cloth. Do not use abrasive cleaners or solvents.
• Nozzle Care: Periodically inspect nozzles for blockages or damage. Clean any residue from the nozzles. Replace damaged nozzles to maintain optimal airflow.
• Ventilation: Keep the ventilation openings on the main unit clear of dust and debris to prevent overheating.
• Storage: When not in use, store the hot air station in a dry, dust-free environment, preferably in its original packaging.

8. Troubleshooting

Refer to the table below for common issues and their potential solutions:

9. Technical Specifications

10. Warranty and Support

Warranty Information: The TOOLCRAFT LSH-880 Digital Hot Air Station comes with an EU Spare Part Availability Duration of 1 year from the date of purchase. Please retain your proof of purchase for warranty claims.

Customer Support: For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please contact your retailer or the TOOLCRAFT customer service department. Refer to the product packaging or the official TOOLCRAFT website for contact details.
