Klein Tools 56411 Rechargeable Pocket Flashlight User Manual

Product Overview

The Klein Tools 56411 Rechargeable Waterproof Pocket Flashlight is a compact and versatile lighting tool designed for everyday use. It features multiple light modes, a durable construction, and convenient charging capabilities, making it suitable for various jobsite and personal applications.

Safety Information

WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

• Do not look directly into the flashlight beam.
• Keep out of reach of children.
• Do not attempt to disassemble or modify the flashlight.
• Use only the provided USB-C cable for charging.

Key Features

• Four Light Modes: High (275 lumens), Medium (100 lumens), Eco (12 lumens), and Strobe (15 lumens).
• Removable Lanyard: For convenient carrying and to keep the light close by.
• Versatile Dual-Direction Pocket Clip: Allows secure attachment to a pocket or the bill of a cap for hands-free use.
• Durable Construction: IP67 waterproof and dustproof, with a 10-foot drop rating.
• USB-C Rechargeable: Easily charges via the included USB-C cable.
• Last Mode Memory: Turns on in the same mode it was last turned off.
• Battery Life Indicator: A tri-color LED indicates the remaining battery life.

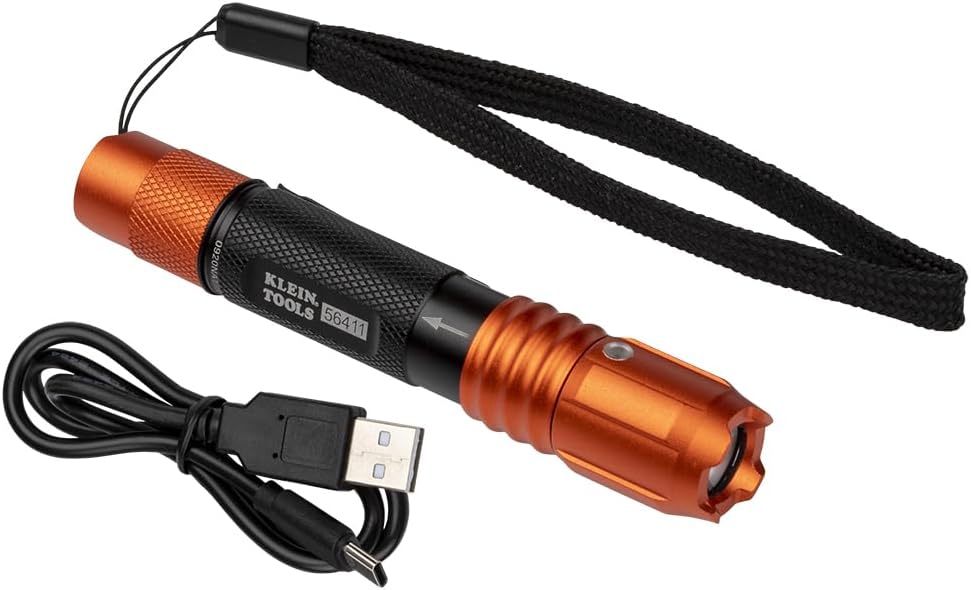

Components

The Klein Tools 56411 Rechargeable Pocket Flashlight package includes:

• Klein Tools 56411 Flashlight
• USB-C Charging Cable
• Removable Lanyard

Setup

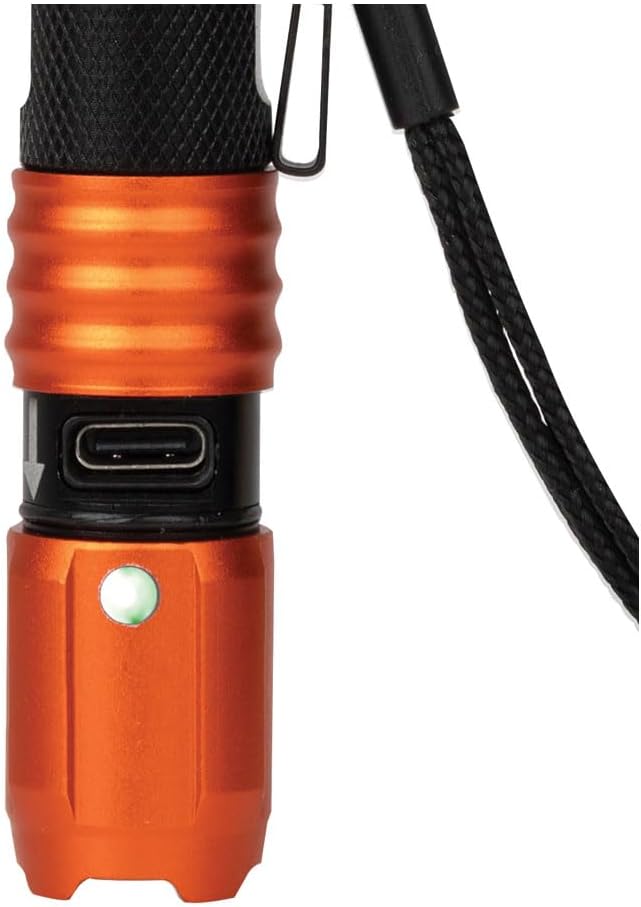

Charging the Flashlight

Before first use, or when the battery indicator shows low charge, fully charge the flashlight. To charge:

1. Locate the charging port collar on the flashlight body.
2. Slide the collar down to reveal the USB-C charging port.
3. Insert the included USB-C cable into the flashlight's port and connect the other end to a compatible USB power source (e.g., wall adapter, computer USB port).
4. The battery life indicator will show charging status. Once fully charged, disconnect the cable and slide the collar back up to protect the port.

Operating Instructions

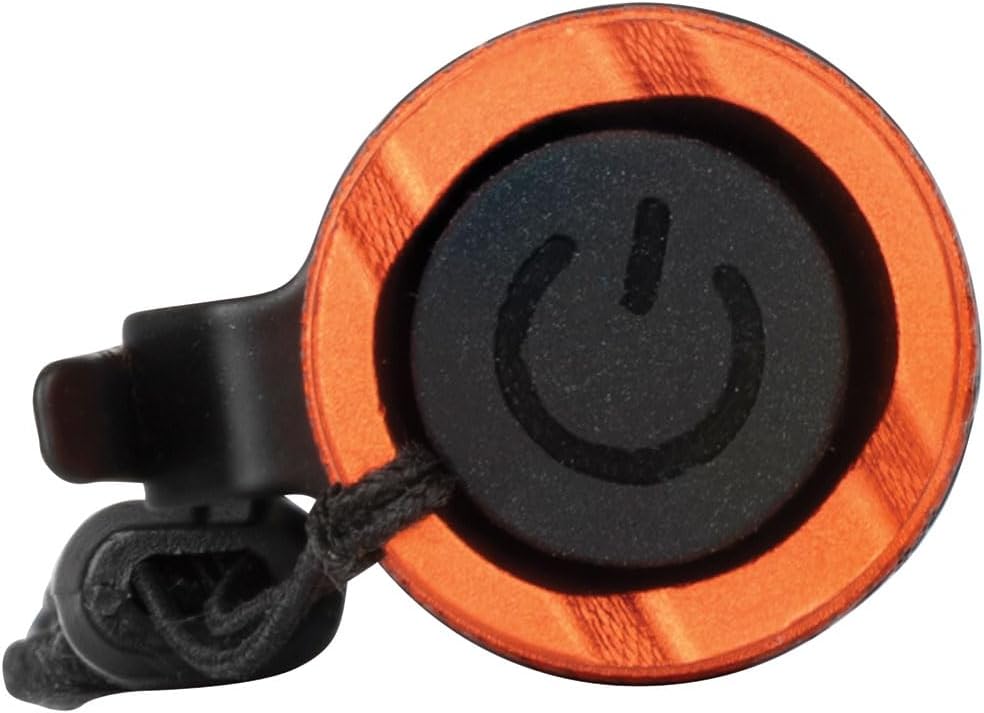

Powering On/Off and Changing Modes

The flashlight features a single power button for all operations. It also has a 'Last Mode Memory' feature, meaning it will turn on in the last used mode.

1. To Turn On: Press the power button once. The flashlight will activate in the last used mode.
2. To Cycle Modes: While the flashlight is on, press the power button repeatedly to cycle through the modes: High → Medium → Eco → Strobe.
3. To Turn Off: Press the power button after cycling through all modes, or press and hold the button for approximately 2 seconds from any mode.

Using the Dual-Direction Pocket Clip

The versatile dual-direction pocket clip allows for multiple hands-free lighting options:

• Pocket Carry: Securely clip the flashlight into a pocket for easy access.
• Cap Attachment: Clip the flashlight to the bill of a cap to use it as a headlamp.
• Vest/Strap Attachment: The clip can also be used to attach the flashlight to straps or loops on vests or bags.

Product Video

Maintenance

The Klein Tools 56411 flashlight is designed for durability and requires minimal maintenance. It is IP67 waterproof and dustproof, meaning it can withstand immersion in water up to 1 meter for 30 minutes and is fully protected against dust ingress. It also has a 10-foot (3-meter) drop rating.

• Keep the charging port clean and free of debris.
• Ensure the charging port collar is fully closed when not charging to maintain waterproof and dustproof integrity.
• Clean the exterior with a soft, damp cloth as needed. Do not use abrasive cleaners or solvents.

Troubleshooting

If you experience issues with your Klein Tools 56411 flashlight, consider the following:

• Flashlight not turning on: Ensure the battery is charged. Connect to a power source using the USB-C cable and check the battery indicator.
• Light output is dim: The battery may be low. Recharge the flashlight.
• Charging issues: Verify the USB-C cable is properly connected and the power source is functional. Ensure the charging port is clean.

For persistent issues or further assistance, please contact Klein Tools customer support.

Specifications

Warranty and Support

Warranty Information

This product is covered by the manufacturer's warranty. Please refer to the official Klein Tools website or contact their customer service for detailed warranty terms and conditions.
