1. Important Safety Instructions
Please read these instructions carefully before using the appliance and keep them for future reference. Incorrect use may lead to electric shock, fire, or serious injury.
- Ensure the voltage indicated on the rating label corresponds to your mains voltage.
- Do not immerse the appliance, plug, or cord in water or any other liquid.
- Unplug the fan from the outlet when not in use, before cleaning, or before moving.
- Keep fingers, pencils, or any other objects out of the fan grille when it is running.
- Do not operate the fan with a damaged cord or plug, or after the appliance malfunctions or has been dropped or damaged in any manner.
- Place the fan on a stable, flat surface to prevent it from tipping over.
- Do not use the fan near windows, as rain may create an electrical hazard.
- This appliance is for household use only.
2. Product Overview
The Jocca 1463N Pedestal Fan is designed to provide efficient air circulation with adjustable settings for optimal comfort.
Key Features:
- Power: 40W for energy-efficient operation.
- Speed Settings: 3 adjustable speeds to control airflow intensity.
- Oscillation: 90° oscillation for wide area coverage.
- Adjustable Head: Tiltable fan head to direct airflow.
- Adjustable Height: Telescopic pole for customizable height.
- Quiet Operation: Operates at approximately 52.6 dB.
- Safety: Protective mesh grille and stable cross base.
Components:
- Front Grille
- Fan Blades
- Rear Grille
- Motor Housing
- Control Panel/Buttons
- Adjustable Height Pole
- Cross Base
Figure 2.1: Front view of the fan head, showing the blades and protective grille.
Figure 2.2: The Jocca pedestal fan positioned in a room, illustrating its overall design and size.
3. Assembly Instructions
The fan arrives disassembled and requires basic assembly. Follow these steps carefully:
- Assemble the Base:
Attach the two parts of the cross base together. Secure the main pole to the assembled cross base using the provided screw and washer. Ensure it is stable. - Attach the Adjustable Pole:
Insert the adjustable height pole into the base assembly. Tighten the locking knob on the pole to secure it at the desired initial height. - Mount the Motor Housing:
Place the motor housing unit onto the top of the adjustable pole. Secure it with the provided screw or locking mechanism. - Install the Rear Grille:
Position the rear protective grille onto the motor housing, aligning the mounting holes. Secure it with the retaining nut. - Attach the Fan Blades:
Slide the fan blades onto the motor shaft. Ensure they are correctly oriented and secured with the blade cap/spinner. - Install the Front Grille:
Place the front protective grille over the blades and align it with the rear grille. Secure both grilles together using the clips or screws provided around the rim.
Figure 3.1: Fan cross base assembly.
Figure 3.2: Adjustable height pole.
4. Operating Instructions
Once assembled, position the fan on a stable surface and plug it into a suitable electrical outlet.
Power On/Off and Speed Selection:
- Locate the control buttons on the motor housing.
- Press the '0' button to turn the fan off.
- Press '1', '2', or '3' to select the desired fan speed (1 for low, 2 for medium, 3 for high).
Oscillation Function:
- To activate the 90° oscillation, press down the oscillation knob located on top of the motor housing.
- To stop oscillation and fix the fan in one direction, pull the oscillation knob up.
Head Tilt Adjustment:
- To adjust the vertical angle of the fan head, loosen the tilt adjustment knob located on the side of the motor housing.
- Tilt the fan head to the desired angle and then tighten the knob to secure it.
Figure 4.1: Fan head tilt adjustment knob.
Height Adjustment:
- To adjust the fan's height, loosen the height adjustment knob on the main pole.
- Raise or lower the inner pole to the desired height.
- Tighten the knob firmly to secure the fan at the new height.
5. Maintenance
Regular cleaning and proper storage will ensure the longevity and efficient operation of your fan.
Cleaning:
- Always unplug the fan before cleaning.
- Use a soft, damp cloth to wipe the exterior surfaces of the fan. Do not use abrasive cleaners or solvents.
- To clean the fan blades and inside the grilles, you may need to carefully remove the front grille. Refer to the assembly instructions for reverse steps. Use a soft cloth or a vacuum cleaner with a brush attachment to remove dust.
- Ensure all parts are completely dry before reassembling and plugging in the fan.
Storage:
- When not in use for extended periods, unplug the fan and clean it thoroughly.
- Store the fan in its original packaging or a suitable box in a cool, dry place, away from direct sunlight and moisture.
6. Troubleshooting
If you encounter any issues with your fan, please refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Fan does not turn on. | No power supply. Fan not plugged in correctly. | Check if the power cord is securely plugged into a working outlet. Ensure the power switch is in the 'ON' position or a speed setting is selected. |
| Weak or no airflow. | Low speed setting. Grilles are blocked by dust. | Increase the speed setting. Clean the fan grilles and blades as per maintenance instructions. |
| Fan is noisy. | Loose parts. Fan not on a stable surface. | Check all screws and connections to ensure they are tight. Place the fan on a flat, stable surface. |
| Oscillation not working. | Oscillation knob not engaged. | Press down the oscillation knob firmly to engage the function. |
If the problem persists after trying these solutions, please contact customer support.
7. Specifications
Technical details for the Jocca 1463N Pedestal Fan:
| Feature | Detail |
|---|---|
| Brand | Jocca |
| Model Number | 1463N |
| Power | 40 Watts |
| Noise Level | 52.6 Decibels |
| Number of Speeds | 3 |
| Oscillation | 90 degrees |
| Fan Diameter | 40 cm |
| Power Source | Electric Cable |
| Product Weight | 2.5 kg |
| Approximate Dimensions (Max Height) | 60 cm (base width) x 60 cm (base depth) x 119 cm (height) |

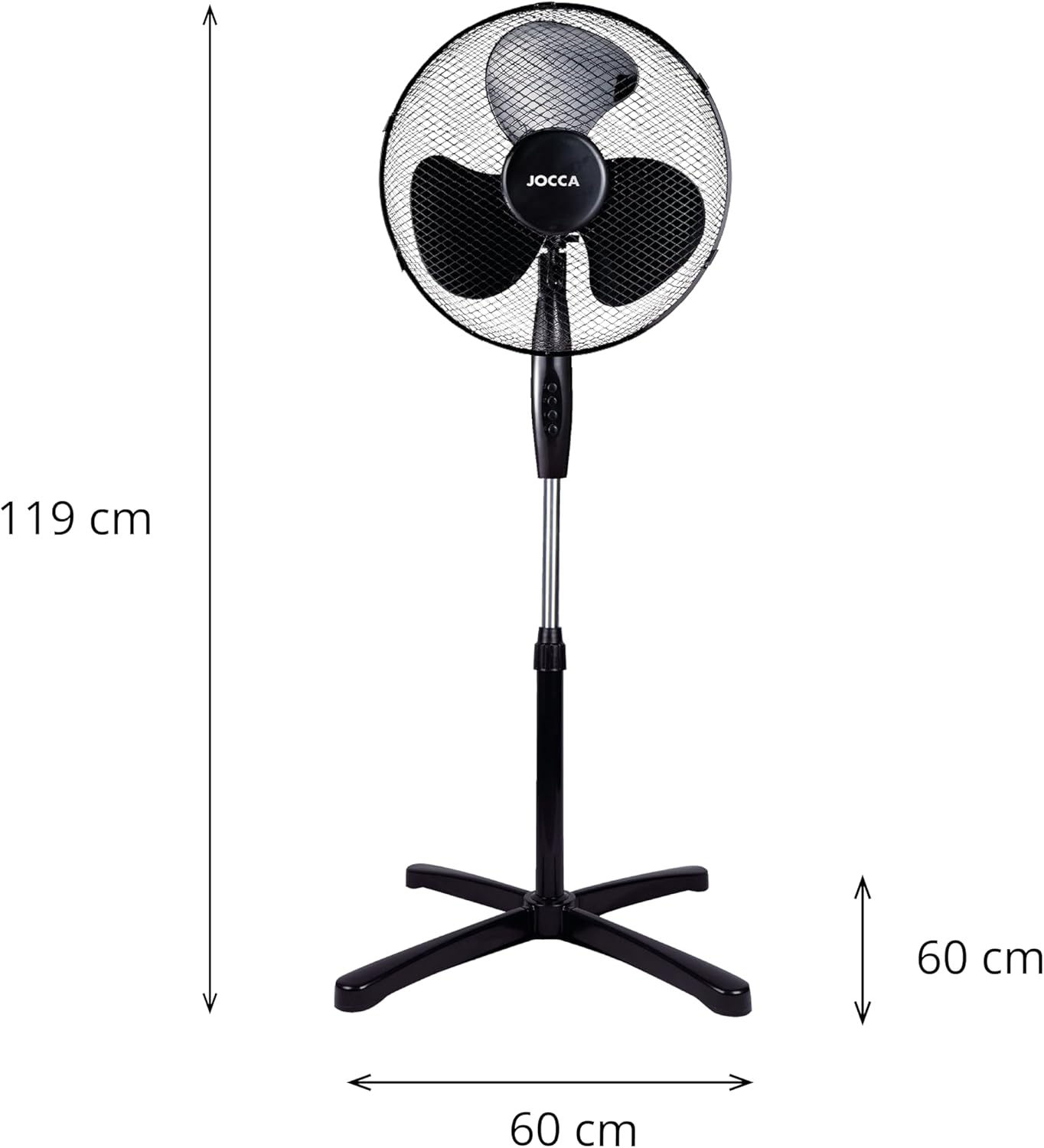

Figure 7.1: Fan dimensions.
8. Warranty and Customer Support
Jocca products are manufactured to high-quality standards. For information regarding warranty coverage, please refer to the warranty card included with your purchase or contact your retailer.
For technical assistance, spare parts, or any questions regarding your Jocca 1463N Pedestal Fan, please contact Jocca customer support through their official website or the contact information provided in your product packaging.
