1. Introduction
The HASWING Protruar 5.0 Electric Trolling Motor is a high-performance, 24V 5 HP brushless motor designed for efficient and quiet operation in both freshwater and saltwater environments. This manual provides essential information for the safe and effective use, setup, operation, and maintenance of your trolling motor.
Image: The HASWING Protruar 5.0 Electric Trolling Motor, showcasing its overall design including the handle, shaft, and propeller.
2. Product Features
- Efficient Electric Motor: The Protruar Transom 24V 5HP Trolling Motor system is engineered for high efficiency and quiet operation, ensuring minimal disturbance to marine life.
- Stepless Speed Control: Features advanced digital technology for stepless forward and reverse speed control, accessible directly from the handle for precise adjustments. This eliminates the need for external foot pedals.
- Folding & Tilting Functions: The trolling handle can fold 180 degrees and features an expanding extension of 400mm. The motor offers 7 levels of tilting positions for versatile operation and storage.
- Brushless Motor Design: Equipped with a durable brushless motor for enhanced performance and longevity. Includes an anti-impact propeller and a prop-clutch ability to prevent damage from obstructions.
- Battery Meter & Power Display: A convenient power display on top of the unit shows 3 levels of battery power, allowing for easy monitoring of your deep cycle battery status.
- Magnetic Kill Switch: For ultimate safety, a magnetic kill switch is included. Activating it immediately stops the motor, providing emergency protection and preventing damage.
Image: Close-up view of the motor's handle, highlighting the stepless speed control dial for precise adjustments.
Image: Illustration demonstrating the folding and expanding capabilities of the motor handle for compact storage and extended reach.
Image: Diagram illustrating the seven distinct tilting positions available for the motor, allowing for depth adjustment and propeller clearance.
Image: Detailed view of the brushless motor housing and propeller, designed for durability and efficient propulsion.

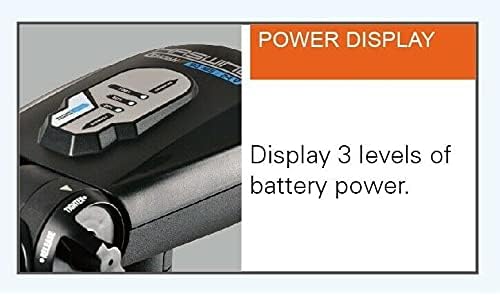

Image: Close-up of the integrated power display on the motor, indicating current battery charge levels.
Image: Detail of the magnetic kill switch, a crucial safety feature that instantly deactivates the motor when removed.
3. Setup
3.1 Unpacking
Carefully remove all components from the packaging. Verify that all parts listed in the packing list are present and undamaged. Retain packaging for future storage or transport.
3.2 Transom Mounting
- Ensure your boat's transom is suitable for mounting a trolling motor.
- Position the motor's transom mount bracket securely on the boat's transom.
- Tighten the mounting clamps firmly to prevent any movement during operation. Ensure the motor is vertical and the propeller is clear of any obstructions.
- Connect the motor's power cables to a compatible 24V deep cycle battery system. Ensure correct polarity (red to positive, black to negative).
3.3 Depth Adjustment
Adjust the motor's shaft depth using the depth collar to ensure the propeller is submerged sufficiently for optimal thrust and efficiency, typically at least 6-12 inches below the water surface.
4. Operating Instructions
4.1 Power On/Off
To power on the motor, ensure the magnetic kill switch is properly seated on the handle. To power off, remove the magnetic kill switch or turn the speed control to the 'OFF' position.
4.2 Speed Control
The motor features stepless speed control. Rotate the handle grip forward for increasing forward speed and backward for increasing reverse speed. Adjust gradually to find your desired propulsion.
4.3 Steering
Steer the boat by rotating the motor handle left or right. The motor offers 360-degree steering control for full maneuverability.
4.4 Tilting the Motor
To tilt the motor, locate the tilt release mechanism on the bracket. Engage the mechanism and adjust the motor to one of the 7 available tilting positions. This is useful for shallow water operation, propeller clearance, or trailering.
4.5 Folding the Handle
The handle can be folded 180 degrees for compact storage. Simply release the handle lock and fold it down. The handle also extends up to 400mm for comfortable operation.
5. Maintenance
5.1 After Each Use
- Rinse the motor, especially the lower unit and propeller, with fresh water after each use, particularly in saltwater.
- Inspect the propeller for any fishing line, weeds, or debris. Remove any obstructions to prevent damage to the motor shaft seal.
- Check all electrical connections for corrosion or looseness. Clean and tighten as necessary.
5.2 Periodic Checks
- Inspect the propeller for nicks, cracks, or bends. Replace if damaged.
- Check the mounting bracket for wear or damage.
- Ensure the battery is fully charged before each outing.
6. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Motor does not run | Magnetic kill switch not engaged; Battery low or disconnected; Loose electrical connections; Blown fuse/circuit breaker. | Ensure kill switch is properly seated; Check battery charge and connections; Inspect and tighten all wiring; Check and replace fuse/reset breaker if necessary. |
| Reduced thrust/power | Propeller fouled with weeds/line; Damaged propeller; Low battery voltage. | Clear propeller of obstructions; Replace damaged propeller; Recharge battery. |
| Excessive vibration or noise | Bent or damaged propeller; Debris wrapped around propeller shaft. | Inspect and replace propeller if bent; Remove any debris from propeller shaft. |
7. Specifications
| Specification | Value |
|---|---|
| Model | Protruar 5.0 (50719-PROTRUAR-5.0) |
| Shaft Power | 5 HP |
| Peak Thrust | 160 Lbs |
| Max Voltage | DC 24V |
| Power - Max | 2520W |
| Amp - Max | 105A |
| Depth Adjustment | Depth Collar |
| Prop Type/Size | 3 Blade Prop / 10.7 In. Diam |
| Pro Speed at Full Power | Max. 1450rpm underwater |
| Battery Type | 2 x 120 AH Deep Cycle |
| Steering Ratio | 360 Degree Control |
| Decibel Level (db) | ≤55db |
| Weight | 14kg / 30.8lb |
| Shaft Type | Stainless Steel |
| Shaft Length | 1000mm / 39.4 Inch |
| Max Boat Length & Load | 8m / 26.2ft |
8. Warranty and Support
For warranty information and technical support, please refer to the documentation provided with your purchase or visit the official HASWING website. Keep your proof of purchase for any warranty claims.
For further assistance, you may contact HASWING customer service through their official channels.
