Introduction
The MAD HI-T PRO 3+1 Wireless Bite Alarm Set is designed for modern anglers, offering advanced features and user-friendly operation. This set includes three bite alarms and one wireless receiver, providing reliable bite indication in various fishing conditions. Its robust IP66 waterproof rating ensures dependable performance in challenging weather.
Safety Information
- Keep batteries out of reach of children.
- Dispose of batteries responsibly according to local regulations.
- Do not expose the devices to extreme temperatures or direct sunlight for prolonged periods.
- Ensure proper sealing of battery compartments to maintain water resistance.
- Do not attempt to open or modify the devices, as this will void the warranty and may cause damage.
Package Contents
The MAD HI-T PRO 3+1 Wireless Bite Alarm Set includes the following items:
- 3 x MAD HI-T PRO Bite Alarms
- 1 x MAD HI-T PRO Wireless Receiver
- 1 x Protective Carrying Case
- 1 x Receiver Lanyard
Note: 2 AAA batteries are required for each bite alarm and the receiver (total 8 AAA batteries). Batteries are not included in the package.

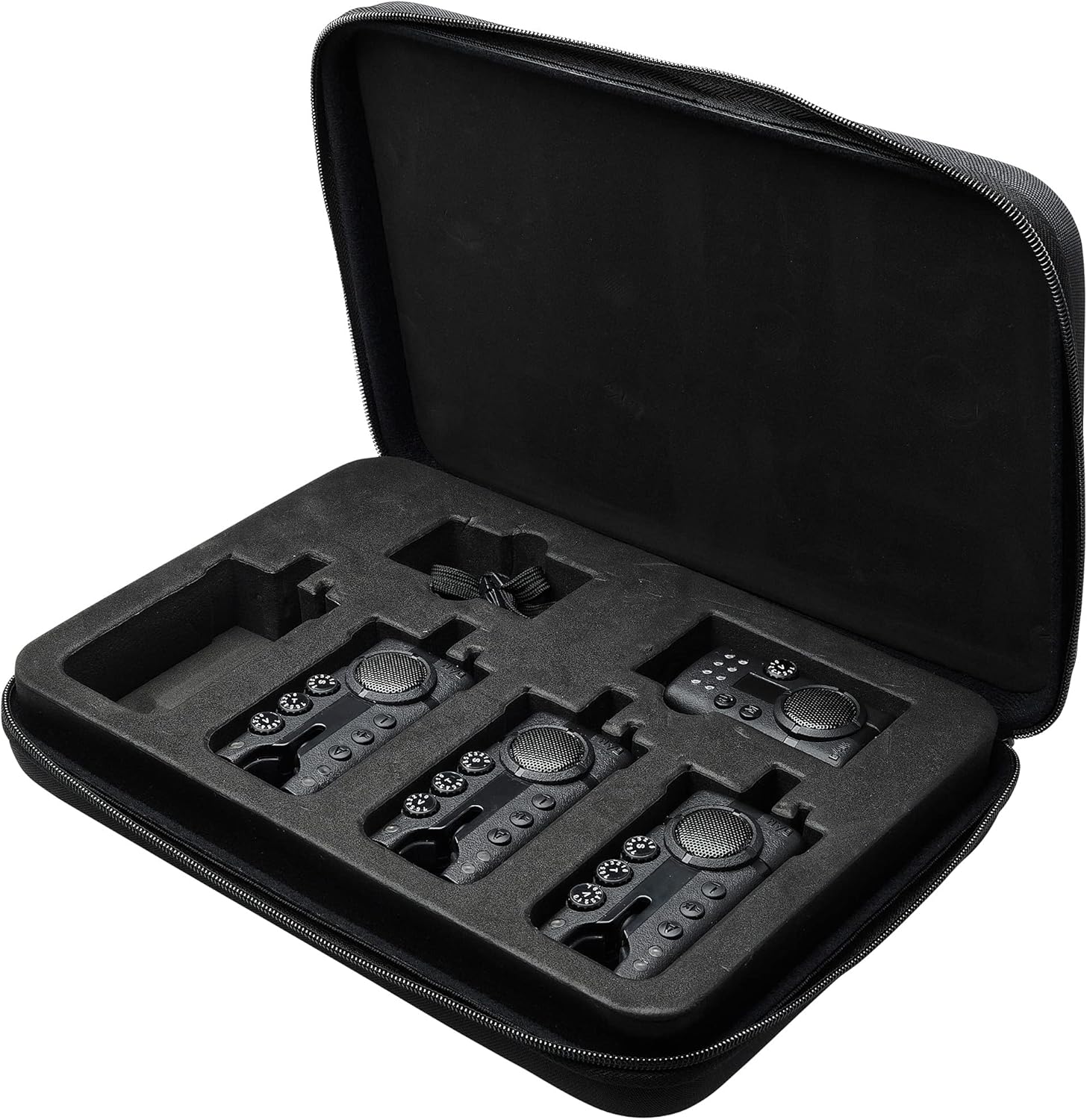

Image: The complete MAD HI-T PRO 3+1 Wireless Bite Alarm Set neatly organized within its black protective carrying case.
Product Overview
Bite Alarm Features:
- Multi-color LED: Indicates a forward bite.
- White LED: Indicates a dropback bite.
- Red LED: Located at the rear of the device for additional visibility.
- Click-Dial Knobs: Separate controls for Volume (V), Tone (T), and Sensitivity (S).
- Mute Function: Temporarily silences sound and/or light.
- Double Tone: Distinct audio alert for dropbacks.
- Telescopic Snag-Ears: Extendable arms to secure the rod.
- Anti-Slip Rubber Inserts: Provides a secure grip for the fishing rod.
- 2.5mm Jack: For connecting illuminated hangers or swingers.
Image: A detailed view of a single MAD HI-T PRO Bite Alarm, highlighting its control knobs for volume, tone, and sensitivity, along with the LED indicators and telescopic snag-ears.
Receiver Features:
- Volume Control: Adjustable sound output.
- Out-of-Range Alarm: Alerts when a bite alarm is too far away.
- Anti-Theft Alarm: Notifies if a bite alarm is tampered with or moved.
- Low Battery Alarm: Indicates when receiver batteries are low.
Image: A close-up of the MAD HI-T PRO Wireless Receiver, showing its power button, mode button, and volume dial, along with LED indicators.
General Features:
- IP66 Waterproof Rating: Protected against dust ingress and powerful water jets (heavy rain).
- Operating Range: Up to 150 meters between bite alarms and receiver.
Setup
1. Battery Installation
- Locate the battery compartment on the rear of each bite alarm and the wireless receiver.
- Open the battery compartment cover.
- Insert 2 AAA batteries into each device, ensuring correct polarity (+/-) as indicated inside the compartment.
- Securely close the battery compartment cover. This is crucial for maintaining the IP66 waterproof rating.
2. Powering On/Off
- To power on each bite alarm or the receiver, press and hold the power button until the indicator lights illuminate.
- To power off, press and hold the power button again until the indicator lights turn off.
3. Pairing (if necessary)
The MAD HI-T PRO set is typically pre-paired from the factory. If you need to re-pair or add new alarms, refer to the detailed instructions provided in the full product manual or contact MAD customer support. Generally, pairing involves putting both the alarm and receiver into a pairing mode simultaneously.
Operating Instructions
Bite Alarm Controls:
- Volume (V) Adjustment: Rotate the 'V' dial knob to select one of seven volume levels (0-7). Level 0 is completely silent.
- Tone (T) Adjustment: Rotate the 'T' dial knob to select one of seven tone pitches (0-7), from very low to very high.
- Sensitivity (S) Adjustment: Rotate the 'S' dial knob to select one of seven sensitivity levels (0-7). Level 0 is very sensitive, while level 7 is very insensitive, useful for windy conditions or strong currents.
- Mute Function: Press the dedicated mute button (if present) to temporarily silence the alarm's sound and/or light.
- Dropback Indication: A distinct double tone and a white LED will illuminate to indicate a dropback bite.
- Telescopic Snag-Ears: Pull the snag-ears upwards to extend them, providing additional security for your rod during aggressive bites. Push them down for compact storage.
- External Hanger/Swinger: Connect your illuminated hanger or swinger to the 2.5mm jack for synchronized light indication.
Receiver Functions:
- Volume Control: Adjust the receiver's volume using its dedicated dial knob.
- Out-of-Range Alarm: If a bite alarm moves beyond the 150-meter operating range, the receiver will emit an alert. Ensure you stay within this range for optimal performance.
- Anti-Theft Alarm: This feature activates if a paired bite alarm is disturbed or removed from its position, providing an audible alert on the receiver.
- Low Battery Alarm: Both the bite alarms and the receiver will provide an indication when their batteries are running low. Replace batteries promptly to avoid interruption.
Maintenance
- Cleaning: Wipe the devices with a soft, slightly damp cloth. Do not use harsh chemicals, abrasive cleaners, or solvents, as these can damage the casing or electronics.
- Storage: When not in use, store the entire set in its protective carrying case in a dry, cool place, away from direct sunlight and extreme temperatures.
- Battery Care: If storing the set for an extended period (more than a month), remove all batteries from both the bite alarms and the receiver to prevent potential leakage and damage.
- Water Resistance: Always ensure that the battery compartment covers are securely fastened after battery changes to maintain the IP66 water and dust resistance.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Device does not power on. | Dead or incorrectly inserted batteries. | Check battery installation and replace with fresh AAA batteries, ensuring correct polarity. |
| No signal or poor range between alarm and receiver. | Out of range, obstructions, low batteries. | Ensure devices are within 150 meters. Minimize physical obstructions. Replace low batteries in both units. |
| False alarms or over-sensitivity. | Sensitivity set too high, environmental factors (wind, current). | Adjust the sensitivity (S) dial knob on the bite alarm to a lower setting. |
| No sound from bite alarm or receiver. | Volume set to silent, mute function active, speaker obstruction. | Check volume (V) dial knob on both devices. Deactivate mute function. Ensure speaker is clear of debris. |
| Water inside battery compartment. | Battery cover not properly sealed. | Immediately remove batteries. Allow the device to dry completely in a warm, dry place for several days. Ensure cover is sealed correctly next time. If issues persist, contact support. |
Specifications
- Model: MAD HI-T PRO 3+1 Wireless Bite Alarm Set
- Manufacturer: MAD
- Part Number: 70596
- ASIN: B093X1XYZY
- Item Weight (Set): 800 g
- Power Source: 2x AAA batteries per device (not included)
- Waterproof Rating: IP66 (Dust tight and protected against heavy seas or powerful jets of water)
- Maximum Wireless Range: 150 meters
- Control Method: Rotary knobs and push buttons
- Mounting Type: Rod Mount
- Features: 7 Volume levels, 7 Tone pitches, 7 Sensitivity levels, Mute function, Double tone for dropbacks, Multi-color LED for bites, White LED for dropbacks, Red LED at rear, Anti-theft alarm, Out-of-range alarm, Low battery alarm, Telescopic snag-ears, Anti-slip rubber inserts, 2.5mm jack for illuminated hangers/swingers.
Warranty and Support
For warranty claims, technical assistance, or any product-related inquiries, please contact your original retailer or the manufacturer, MAD. It is recommended to retain your proof of purchase for warranty validation.
