1. Product Overview
This manual provides essential information for the proper handling, installation, and maintenance of the Iveco Stralis 360 Fan Belt, part number 5801496097. This is a genuine Iveco product, ensuring quality and certified origin.
Figure 1.1: The Iveco Stralis 360 Fan Belt (Part No. 5801496097). This image shows the multi-ribbed belt with part numbers and branding visible on its surface.
2. Specifications
| Attribute | Value |
|---|---|
| Part Number | 5801496097 |
| Brand | Iveco |
| Weight | 0.273 Kg (273 g) |
| Dimensions (L x W x H) | 42 cm x 15 cm x 6 cm (packaging) |
| Application | New Stralis Ecoline Euro V (from 2012 onwards), specifically for Model 360. |
3. Installation
For the correct and adequate functioning of this product, its installation must be performed by an authorized Iveco dealership or a certified professional technician. Improper installation can lead to product failure and void the warranty.
3.1. Pre-Installation Checks
- Ensure the engine is off and cooled down.
- Verify that the new fan belt matches the specifications of the original part.
- Inspect all pulleys and tensioners for wear or damage. Replace any worn components before installing the new belt.
3.2. Installation Procedure (General Guidelines)
While professional installation is recommended, the general steps involve:
- Loosen the tensioner pulley to relieve tension on the old belt.
- Remove the old fan belt from all pulleys.
- Carefully route the new fan belt around all pulleys according to the vehicle's belt routing diagram.
- Apply tension to the tensioner pulley until the belt is properly tensioned. Refer to the vehicle's service manual for specific tensioning values.
- Double-check that the belt is correctly seated in all pulley grooves.

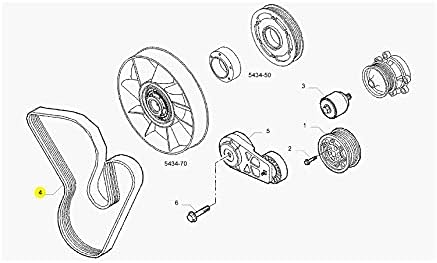

Figure 3.1: Example diagram of a fan belt system. This schematic illustrates the various components involved in the fan belt system, including pulleys, tensioners, and the belt itself (highlighted as item 4).
4. Operating Considerations
Once installed, the fan belt operates continuously with the engine. No specific user operation is required beyond ensuring proper installation.
4.1. Initial Operation
After installation, start the engine and allow it to run for a few minutes. Observe the belt for any signs of misalignment, slipping, or unusual noise. If any issues are detected, immediately shut off the engine and re-inspect the installation.
5. Maintenance
Regular inspection of the fan belt is crucial for vehicle reliability and safety.
5.1. Inspection Schedule
- Inspect the belt every 15,000 km or 12 months, whichever comes first.
- Check for cracks, fraying, glazing, or missing ribs.
- Verify proper belt tension. A loose belt can slip, while an overly tight belt can damage bearings.
5.2. Cleaning
Keep the belt and pulleys free from oil, grease, and dirt. Contaminants can cause premature wear and slippage. Use a clean cloth to wipe down accessible surfaces if necessary.
5.3. Replacement
Replace the fan belt immediately if any signs of significant wear or damage are observed. Refer to the vehicle's maintenance schedule for recommended replacement intervals, typically between 60,000 to 100,000 km, or as specified by Iveco for the Stralis 360 model.
6. Troubleshooting
Common issues related to fan belts and their potential causes:
| Symptom | Possible Cause | Action |
|---|---|---|
| Squealing noise | Loose belt, worn belt, misaligned pulleys, contaminated belt. | Check tension, inspect belt for wear, check pulley alignment, clean belt. |
| Cracks or fraying | Aging, excessive heat, improper tension. | Replace belt. |
| Loss of power steering/alternator function | Broken belt, severely slipping belt. | Replace belt immediately. Do not drive the vehicle. |
If troubleshooting steps do not resolve the issue, or if you are unsure, consult an authorized Iveco service center.
7. Warranty and Support
This genuine Iveco product comes with a factory warranty. For correct application of the warranty, installation must be performed at an authorized Iveco dealership.
- Warranty Period: 12 months from the invoice date, specifically when installed by an authorized Iveco dealership.
- Warranty Conditions: Valid according to the conditions found in the factory Warranty Manual.
- Support: For any questions regarding installation, maintenance, or warranty claims, please contact your nearest authorized Iveco service center or the official Iveco support channels.
Note: Prices for end consumers. For legal entities, subject to taxes. Consult conditions.
