1. Introduction
This manual provides essential information for the safe and efficient installation, operation, and maintenance of your Ferroli TITANO TWIN GRZ56JKA 80 Liters Electric Water Heater. Please read these instructions carefully before installation and use, and keep them for future reference.
The Ferroli TITANO TWIN is a slim, compact electric water heater featuring a dual tank system designed for improved efficiency and comfort. Its ultra-slim profile allows for flexible installation in various spaces, supporting both horizontal and vertical mounting. It incorporates a SMART electronic control system for optimized energy consumption and a built-in Wi-Fi module for remote management via the 'Egea Smart' App. The BLUE FOREVER electric resistance and internal tank are treated to reduce scale buildup, ensuring durable and efficient performance.

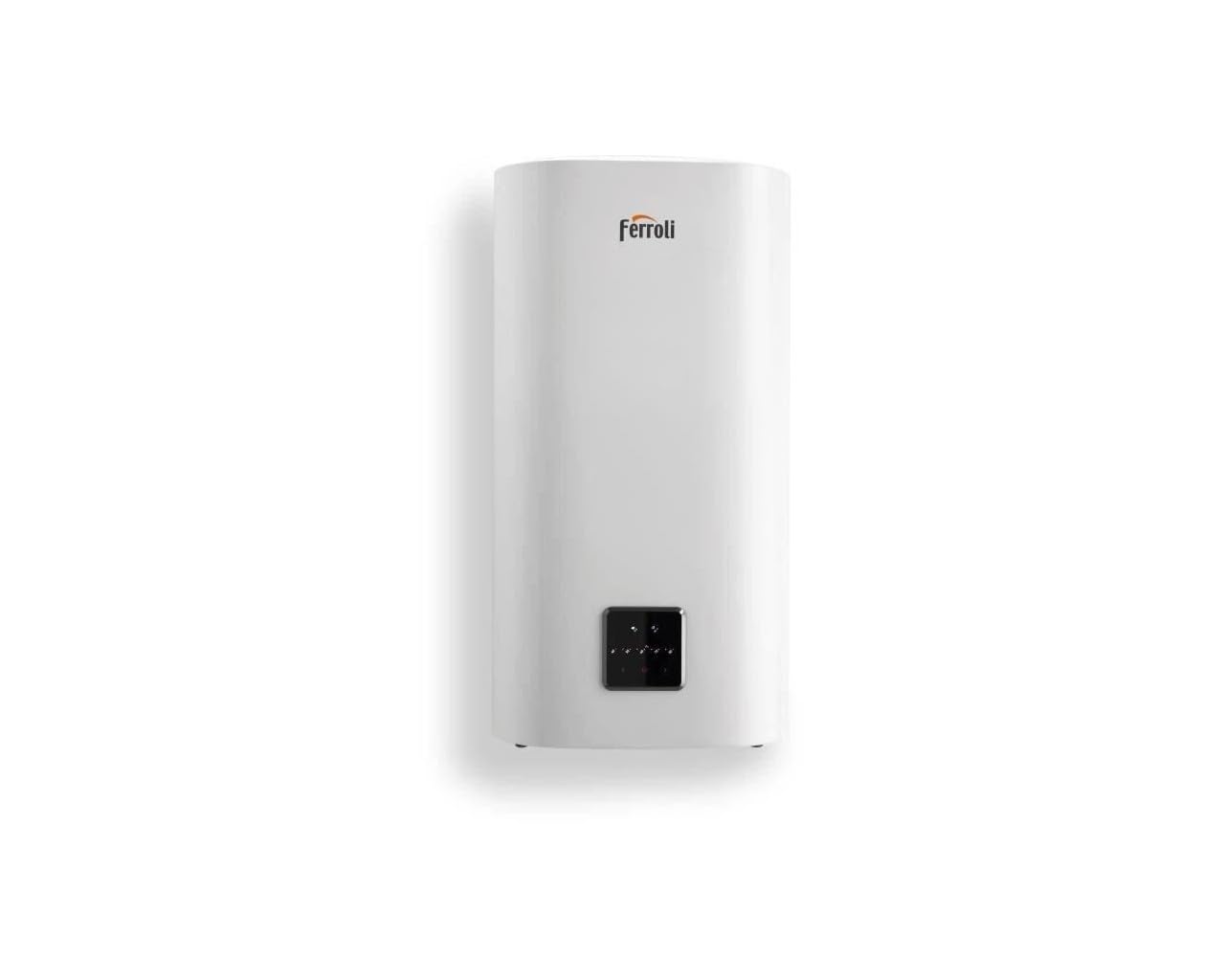

Figure 1: Ferroli TITANO TWIN GRZ56JKA 80 Liters Electric Water Heater.
2. Safety Information
Important: Read all safety warnings and instructions before installing or using this appliance. Failure to follow these instructions may result in electric shock, fire, or serious injury.
- Installation and maintenance must be performed by qualified personnel only, in accordance with local regulations and standards.
- Ensure the power supply matches the specifications indicated on the appliance's rating plate.
- Always disconnect the power supply before performing any maintenance or repair work.
- Do not operate the water heater if it is damaged or malfunctioning.
- Keep flammable materials away from the appliance.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
- Children should be supervised to ensure that they do not play with the appliance.
- Do not block ventilation openings.
- Ensure proper grounding of the appliance.
3. Setup and Installation
3.1 Unpacking
Carefully remove the water heater from its packaging. Inspect the appliance for any signs of damage during transit. Report any damage to your supplier immediately. Retain packaging materials for potential future transport or disposal.
3.2 Installation Location
- The Ferroli TITANO TWIN is designed for both horizontal and vertical wall-mounted installations.
- Choose a location that can support the weight of the water heater when full (31.5 kg dry weight + 80 liters of water = approx. 111.5 kg).
- Ensure adequate space for maintenance and ventilation.
- Avoid locations exposed to freezing temperatures.
- The ultra-slim design facilitates installation in confined spaces.
3.3 Plumbing Connections
Connect the water inlet and outlet pipes according to the markings on the appliance. Use appropriate fittings and sealants to prevent leaks. A pressure relief valve must be installed on the cold water inlet line.
3.4 Electrical Connection
The appliance requires a wired electric power source. Ensure the electrical installation complies with local electrical codes. Connect the water heater to a dedicated circuit with appropriate overcurrent protection. Verify that the voltage and frequency match the appliance's requirements.
3.5 Wi-Fi Module Setup
The integrated Wi-Fi module allows for remote control. Download the 'Egea Smart' App from your device's app store. Follow the in-app instructions to connect your water heater to your home Wi-Fi network and register the device. This will enable remote monitoring and control of settings.
4. Operating Instructions
4.1 Initial Start-up
- Ensure the water heater is completely filled with water before switching on the power. Open a hot water tap to allow air to escape until water flows steadily.
- Connect the appliance to the electrical supply.
- The water heater will begin heating the water to the default temperature setting.
4.2 SMART Electronic Control
The SMART electronic control system automatically optimizes energy consumption based on your usage patterns. It learns your hot water demands and adjusts heating cycles to provide hot water when needed, reducing energy waste. You can typically override or adjust these settings via the control panel on the unit or through the 'Egea Smart' App.
4.3 Remote Management with Egea Smart App
Once connected to Wi-Fi, use the 'Egea Smart' App to:
- Monitor the current water temperature.
- Adjust the desired temperature setting.
- Set heating schedules.
- Activate special modes (e.g., Eco mode, Boost mode).
- Receive notifications and status updates.
Refer to the 'Egea Smart' App's help section for detailed instructions on its features and functionalities.
5. Maintenance
Regular maintenance ensures the longevity and efficient operation of your Ferroli water heater. Always disconnect the power supply before performing any maintenance.
5.1 Scale Reduction (BLUE FOREVER Technology)
The BLUE FOREVER electric resistance and internal tank feature a special surface treatment designed to significantly reduce the buildup of limescale. While this technology minimizes maintenance, periodic inspection is still recommended, especially in areas with hard water.
5.2 General Cleaning
- Clean the exterior of the water heater with a soft, damp cloth. Do not use abrasive cleaners or solvents.
- Ensure that the area around the water heater is kept clean and free from obstructions.
5.3 Periodic Inspection
It is recommended to have a qualified technician inspect the water heater annually. This inspection should include:
- Checking the pressure relief valve for proper operation.
- Inspecting electrical connections for tightness and corrosion.
- Checking for any signs of leaks or corrosion on the tank and pipes.
- Draining and flushing the tank to remove sediment, if necessary (even with scale reduction technology, some sediment may accumulate over time).
6. Troubleshooting
This section provides solutions to common issues you might encounter. For problems not listed here, or if the issue persists, contact qualified service personnel.
| Problem | Possible Cause | Solution |
|---|---|---|
| No hot water | No power supply; thermostat tripped; heating element failure. | Check power breaker; reset thermostat (if accessible); contact service technician. |
| Insufficient hot water | Temperature setting too low; high hot water demand; sediment buildup. | Increase temperature setting; allow more recovery time; consider professional descaling. |
| Water leaking from unit | Loose plumbing connections; pressure relief valve discharge; tank leak. | Tighten connections; check pressure relief valve operation; contact service technician for tank leaks. |
| Wi-Fi connection issues | Router issues; incorrect Wi-Fi password; distance from router. | Restart router; re-enter Wi-Fi credentials in Egea Smart App; move router closer or use a Wi-Fi extender. |
7. Technical Specifications
| Brand | Ferroli |
| Model Number | GRZ56JKA |
| Capacity | 80 Liters |
| Power Source | Wired Electric |
| Special Features | SMART Electronic Control, Wi-Fi Module |
| Color | White |
| Thermal Power (Electrical Input) | 18 Kilowatts (Note: This value is as provided in source data. Typical domestic water heaters have lower electrical power.) |
| Standby Mode Shutdown | High |
| Installation Type | Wall-mounted (Vertical or Horizontal) |
| Item Weight (Empty) | 31.5 Kilograms |
| Item Depth | 50-60 centimeters |
| Material Type(s) | Titanium |
| GTIN | 06938771353558 |
7.1 Energy Efficiency
Figure 2: Energy label for Ferroli TITANO TWIN 80 Liters. Indicates an energy efficiency class B, annual energy consumption of 1316 kWh, and a sound power level of 15 dB.
- Energy Class: B
- Annual Energy Consumption: 1316 kWh/annum
- Sound Power Level: 15 dB
8. Warranty and Support
8.1 Product Warranty
The Ferroli TITANO TWIN GRZ56JKA electric water heater comes with a 5-year warranty. This warranty covers manufacturing defects and material faults under normal use and service. Please retain your proof of purchase for warranty claims. The warranty terms and conditions are subject to local regulations and Ferroli's official warranty policy.
8.2 Customer Support
For technical assistance, spare parts, or warranty service, please contact Ferroli customer support or an authorized service center.
Ferroli Official Website: www.ferroli.com (Please visit the official website for country-specific contact information and support resources.)
