Introduction
Thank you for choosing the Moen Belfield 7260ORB Pulldown Kitchen Faucet. This manual provides essential information for the proper installation, operation, and maintenance of your new faucet. Please read these instructions carefully before beginning installation or use to ensure safe and efficient operation. Keep this manual for future reference.

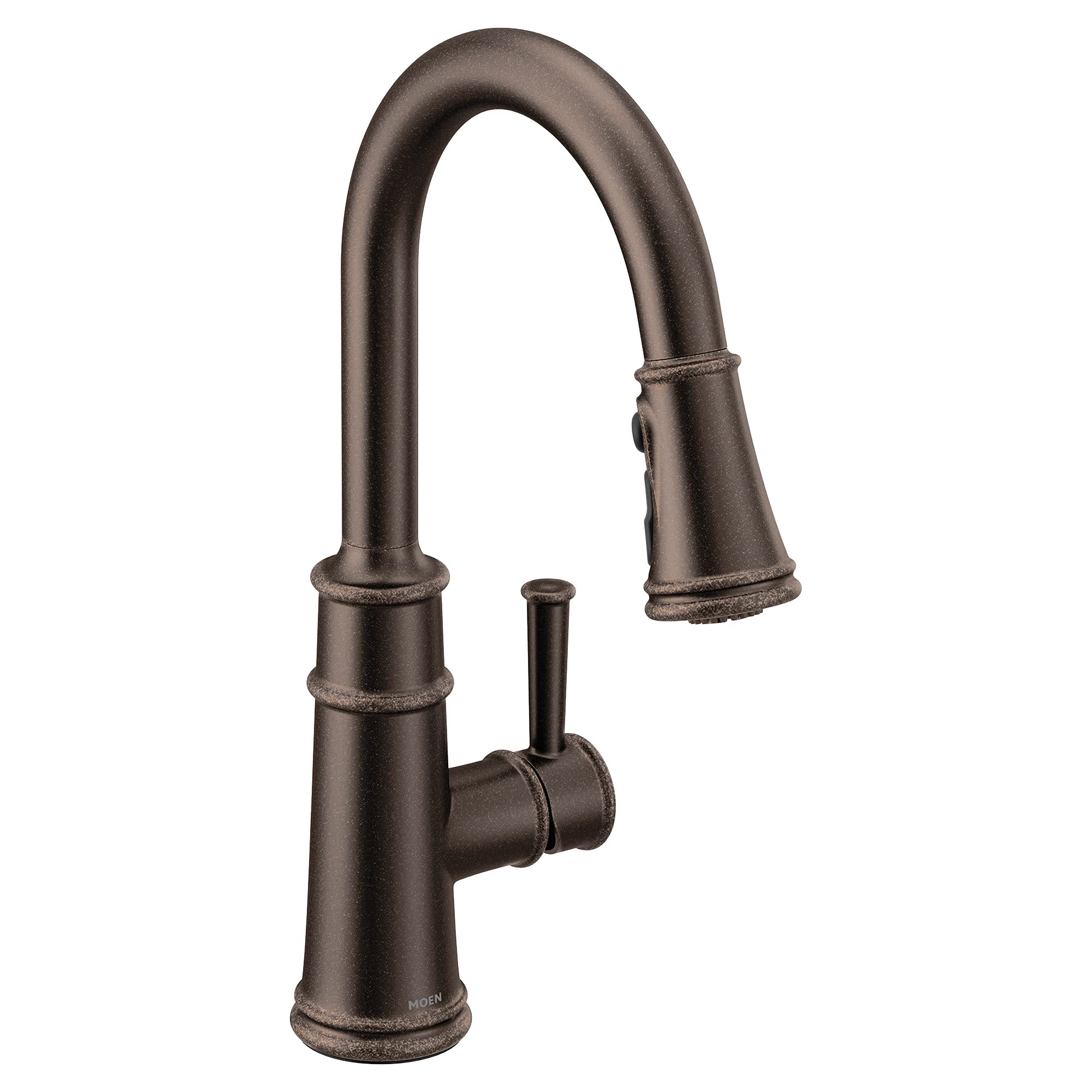

Image: Moen Belfield 7260ORB Pulldown Kitchen Faucet in Oil Rubbed Bronze.
Product Features
- Power Boost Technology: Offers a faster clean and faster fill with the push of a button, enhancing water performance.
- Reflex System: Ensures smooth operation, easy movement, and secure docking of the spray head.
- Oil Rubbed Bronze Finish: Delivers a rich, dark brown, Old World finish with striking light and dark accents.
- Flexible Design: Designed for installation through 1 or 3 holes, with an optional deckplate included.
- Certified Safe: Complies with the Federal Safe Drinking Water Act and NSF 61 standards for clean drinking water.
- Easy Installation: Features the Duralock quick connect system for simplified setup.
- Durable Construction: Backed by Moen’s Warranty for long-term reliability.
Image: The Reflex system allows the spray wand to retract automatically and dock securely.
Power Boost in Action
Video: Demonstrates Moen's Power Boost technology for faster cleaning and filling.
Dimensions and Installation Fit
The Moen Belfield faucet is designed for versatile installation. It can be installed in either a one-hole or three-hole sink configuration. An optional deckplate is included to accommodate three-hole installations.
Image: Faucet dimensions, including 15.63" height and 7.70" spout reach.
Image: This faucet is compatible with both one-hole and three-hole sink setups.
Setup and Installation
Installation of the Moen Belfield faucet is made easier with the Duralock quick connect system. While specific steps are detailed in the included printed guide, general installation involves:
- Preparing the sink hole(s) and countertop.
- Mounting the faucet body and securing it from underneath the sink.
- Connecting the water supply lines using the Duralock system.
- Attaching the spray wand hose and weight.
- Testing for leaks and proper function.
Always ensure water supply is turned off before beginning installation. If you are unsure about any step, consult a qualified plumber.
Operating Instructions
Your Moen Belfield faucet offers intuitive operation for daily kitchen tasks.
Water Flow and Temperature Control
- The single lever handle controls both water flow and temperature.
- Lift the handle to increase water flow.
- Move the handle left for hot water and right for cold water.
Spray Wand Functions
The pulldown spray wand features multiple functions:
- Stream Mode: Provides a steady, aerated stream for everyday cleaning.
- Spray Mode: Delivers a powerful spray for rinsing and stubborn messes. Toggle between stream and spray using the button on the spray head.
- Power Boost: Activate this feature by pressing the dedicated button on the spray head for increased water pressure and faster task completion.
Reflex System
The Reflex system ensures that the spray wand extends and retracts smoothly, docking securely back into the faucet spout when not in use.
Maintenance
To maintain the appearance and performance of your Moen Belfield faucet, follow these simple guidelines:
- Clean regularly with a soft, damp cloth and mild soap.
- Avoid abrasive cleaners, harsh chemicals, or scouring pads, as these can damage the finish.
- Periodically check connections for any signs of leaks and tighten if necessary.
- For hard water areas, regularly clean the spray head nozzles to prevent mineral buildup.
Troubleshooting
If you encounter any issues with your faucet, refer to the following common troubleshooting tips:
| Problem | Possible Cause | Solution |
|---|---|---|
| Low Water Flow | Clogged aerator or mineral buildup in spray head. | Remove and clean the aerator/spray head nozzles. Ensure water supply valves are fully open. |
| Leaking from Handle | Worn cartridge or loose connections. | Tighten handle screw. If problem persists, the cartridge may need replacement (refer to Moen support). |
| Spray Wand Does Not Retract Fully | Improperly positioned hose weight or obstruction. | Check the position of the hose weight under the sink and ensure there are no obstructions. |
For more complex issues or if troubleshooting does not resolve the problem, please contact Moen customer support.
Specifications
- Brand: Moen
- Model Name: Belfield
- Model Number: 7260ORB
- Color: Oil Rubbed Bronze
- Material: Metal (Brass handle)
- Mounting Type: Countertop
- Number of Handles: 1 (Lever)
- Hole Count: 1 or 3 (Optional deckplate included)
- Flow Rate: 1.5 Gallons Per Minute
- Valve Type: Disc Valve
- Spout Design: Pull Down
- Spout Height: 15.62 Inches
- Spout Reach: 7.7 Inches
- Item Weight: 5.75 Pounds
- Included Components: Kitchen Faucet, Braided Supply Lines
- GTIN: 026508337714
Warranty and Support
Your Moen Belfield faucet is backed by a Limited Lifetime Warranty. This warranty covers defects in material and manufacturing workmanship for the original consumer purchaser. For detailed warranty information, claims, or technical support, please visit the official Moen website or contact Moen customer service directly.
Moen Incorporated
Manufacturer
