Introduction
Welcome to the Mompush Wiz 2-in-1 Baby Stroller instruction manual. This versatile stroller is designed to adapt to your child's growth, offering both bassinet and toddler seat modes. It features a reversible seat, advanced suspension, and a large UPF 50+ canopy for comfort and safety. Please read this manual thoroughly before assembly and use to ensure proper operation and maintenance.
Figure 1: The Mompush Wiz 2-in-1 Baby Stroller in its standard configuration.
Product Features
2-in-1 Convertible Design
The Mompush Wiz stroller seamlessly transitions from a comfortable bassinet mode for newborns to a secure toddler seat as your child grows. This adaptability ensures a secure ride throughout early development.
Figure 2: Illustration of the stroller's four versatile modes, including bassinet and toddler seat configurations.
Reversible Seat
Customize your child's view with the reversible seat. Position it parent-facing for reassurance and bonding, or outward-facing for visual stimulation and exploration of the world around them.
Smooth Maneuverability & Suspension
Equipped with omnidirectional luxury stroller wheels, the Wiz offers effortless 360-degree maneuvering. The sturdy advanced suspension provides exceptional cushioning, ensuring a smooth ride on various terrains. The faux leather stroller handle offers enhanced grip and comfort.
Figure 3: Key improvements and features including the advanced 4-wheel suspension system.
Large UPF 50+ Canopy
The zip-out UPF 50+ canopy provides maximum coverage, protecting your child from the sun. Ventilation panels on the side ensure optimal airflow and natural light, keeping your child comfortable.
Compact Design & Storage
This stroller features a compact design with maximum storage capability. A spacious storage basket located under the seat allows you to carry all necessary items for all-day outings. The stroller folds up easily for convenient transport and storage.
Car Seat Compatibility
The Mompush Wiz stroller is compatible with Maxi-Cosi and Nuna car seats. Please note that the car seat adapter is sold separately and is not included with the stroller.
Figure 4: The stroller frame demonstrating compatibility with major infant car seats (adapter sold separately).
Setup
Before first use, ensure all components are present and undamaged. Assembly typically involves attaching the wheels, seat unit, and canopy to the frame. Refer to the included quick-start guide for detailed visual instructions on initial assembly.
- Unpack all components from the box.
- Attach the rear wheels by pushing them onto the axle until they click into place.
- Attach the front swivel wheels. Ensure they are securely locked if you prefer non-swivel mode.
- Attach the seat unit to the frame. Ensure it clicks securely into place.
- Install the canopy by attaching it to the designated points on the seat unit.
- Verify all connections are secure before placing your child in the stroller.
Operating Instructions
Adjusting Seat Recline
The seat offers multiple recline positions for customized comfort, from upright to a near-flat lie-flat position suitable for newborns in bassinet mode. To adjust the recline, locate the buckle mechanism at the back of the seat. Pull down on the plastic piece to release and adjust the seat to your desired angle. Release the buckle to lock the position.
Figure 5: Demonstrating the near-flat seat recline for optimal comfort.
Reversing the Seat Unit
To change the direction of the seat unit (parent-facing or world-facing), locate the release buttons on both sides of the seat attachment points. Press these buttons simultaneously and lift the seat unit off the frame. Rotate the seat unit to the desired direction and reattach it to the frame until it clicks securely into place.
Folding and Unfolding the Stroller
The Mompush Wiz stroller features a compact fold for easy transport and storage. Ensure the seat is in forward-facing toddler mode before folding. To fold, slide the button on the handle and press the release mechanism. The stroller will fold down. To unfold, release the lock on the side of the frame and pull the handle upwards until the frame locks into place.
Brake Operation
To engage the brake, firmly press down on the brake pedal located on the rear axle with your foot. To release the brake, lift the pedal upwards with your foot.
Maintenance & Care
- Cleaning: Wipe clean with a damp cloth. For specific care instructions regarding polyester and faux leather materials, refer to the manufacturer's guidelines.
- Wheels: Regularly check wheels for debris and clean as needed. Ensure wheels spin freely.
- Frame: Inspect the alloy steel frame periodically for any signs of damage or wear.
- Storage: Store the stroller in a dry, cool place away from direct sunlight to prevent material degradation.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Stroller difficult to fold/unfold | Seat not in correct position (forward-facing toddler mode) or lock engaged. | Ensure seat is forward-facing in toddler mode. Check that the side lock is disengaged before unfolding. |
| Wheels not swiveling smoothly | Swivel lock engaged or debris in wheel mechanism. | Disengage the swivel lock on the front wheels. Clean any debris from the wheel axles. |
| Harness difficult to buckle/unbuckle | Mechanism may be stiff or misaligned. | Ensure all buckle components are aligned. Apply a small amount of silicone spray if stiffness persists. |
If issues persist, please contact Mompush customer support for further assistance.
Specifications
| Attribute | Value |
|---|---|
| Brand | mompush |
| Model Number | T629 |
| Age Range Description | 0-36 months |
| Maximum Weight Recommendation | 50 Pounds |
| Item Weight | 23.1 Pounds |
| Item Dimensions (L x W x H) | 36.8"L x 24"W x 41.3"H |
| Folded Size (L x W x H) | 43.4" L X 24.4" W X 14.2" H |
| Frame Material | Alloy Steel |
| Material Type | Polyester |
| Tire Material | Rubber |
| Front Wheel Diameter | 6.3 Inches |
| Back Wheel Diameter | 9.4 Inches |
| Harness Type | 5 Point, adjustable |
| Number of Cup Holders | 1 |
| Basket Weight Capacity Maximum | 10 Pounds |

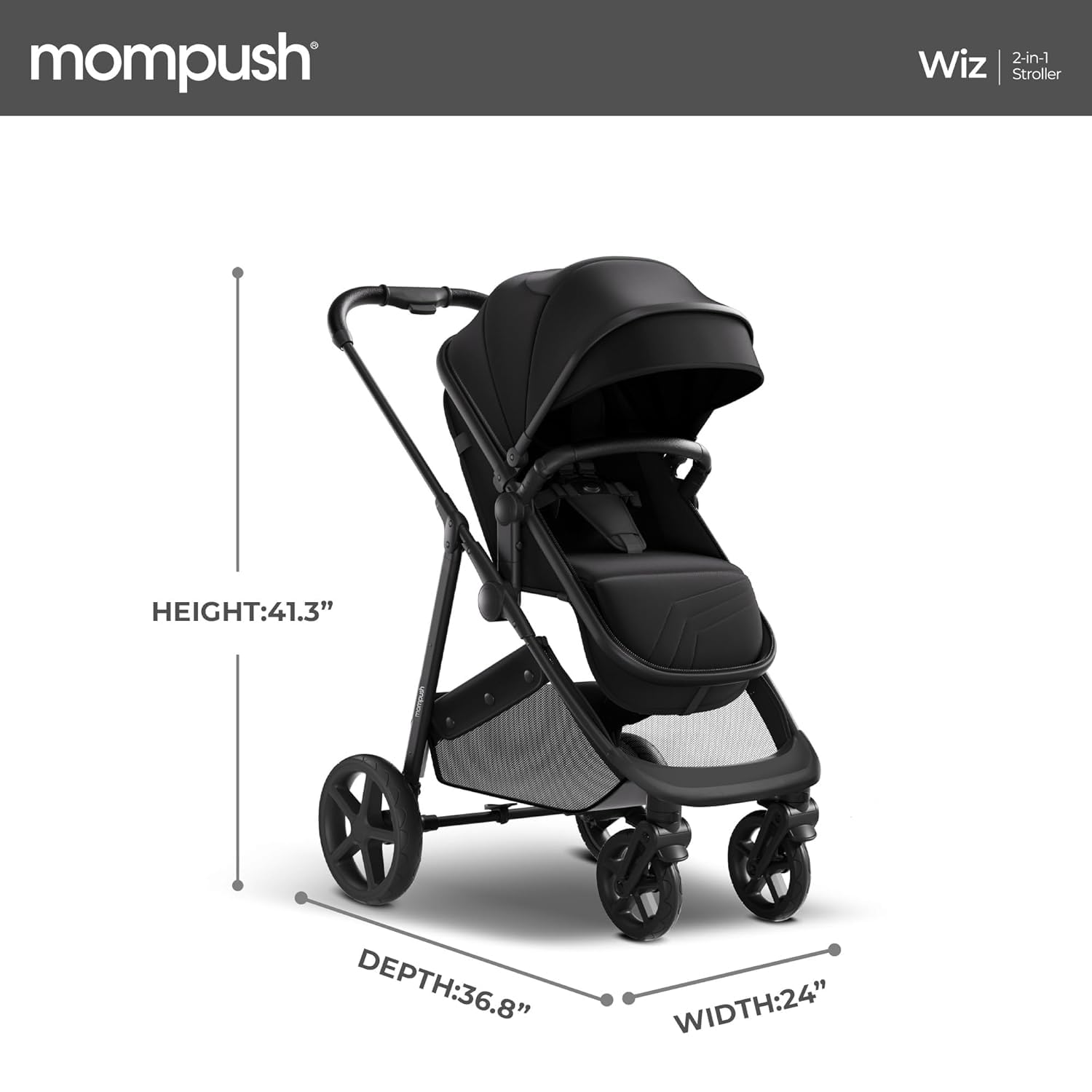

Figure 6: Stroller dimensions for reference.
What's in the Box
- Mompush Wiz 2-in-1 Stroller Frame
- Convertible Seat Unit (Bassinet & Toddler Seat)
- UPF 50+ Canopy
- Storage Basket
- Rain Cover
- Foot Cover
- Cup Holder
Warranty & Support
Mompush products are designed for durability and reliability. For warranty information, product registration, or technical support, please refer to the warranty card included with your purchase or visit the official Mompush website. Keep your proof of purchase for any warranty claims.
For additional assistance, you may also refer to the User Guide (PDF) available online.
