Introduction
This manual provides comprehensive instructions for the installation, operation, maintenance, and troubleshooting of your DASAN DA-SS03BN-S10W Brushed Nickel Tub Shower Faucet System. Please read this manual thoroughly before installation and use to ensure proper function and longevity of the product. Retain this manual for future reference.
Image: Overview of the DASAN DA-SS03BN-S10W Brushed Nickel Tub Shower Faucet System components.
Package Contents
Verify that all components are present before beginning installation:
- 10-inch Shower Head
- Handheld Shower
- Shower Valve & Trim Kit
- Tub Spout
- Shower Arm
- Cover Plate for Shower Arm
- Diverter Knob
- On/Off Knob
- Cover Plate for Handheld
- 59-inch Shower Hose
- Mounting Hardware
- Installation Instructions (this manual)
Image: Exploded view of all included components with corresponding labels for easy identification.
Safety Information
Please observe the following safety precautions during installation and use:
- Always turn off the main water supply before beginning any plumbing work.
- Wear appropriate personal protective equipment, such as safety glasses and gloves.
- If you are unsure about any part of the installation process, consult a qualified plumber.
- Ensure all connections are secure to prevent leaks.
- Do not overtighten components, as this may cause damage.
- Test for leaks thoroughly after installation is complete.
Installation Instructions
Professional installation is recommended. Follow these steps carefully:
Tools Required:
- Adjustable Wrench
- Pipe Thread Sealant Tape (Teflon Tape)
- Screwdriver (Phillips and Flathead)
- Drill (if required for mounting)
- Level
- Measuring Tape
Step-by-Step Installation:
- Prepare the Installation Area: Turn off the main water supply. Clear the wall area where the faucet system will be installed.
- Install the Rough-in Valve: Mount the rough-in valve body (#3 in the package contents diagram) into the wall. Ensure it is level and at the correct depth (2-1/2'' to 3-1/8'' min. to max., 2-3/4'' recommended). Connect the hot and cold water lines to the appropriate inlets on the valve. Connect the shower head, handheld shower, and tub spout lines to their respective outlets. All interfaces utilize US standard NPT thread and 1/2'' connection.
Image: Detailed diagram of the rough-in valve, showing hot/cold water inlets, and outlets for shower head, handheld, and tub spout.
- Install the Shower Arm and Head: Apply thread sealant tape to the threads of the shower arm. Securely screw the shower arm into the wall connection. Attach the 10-inch rainfall shower head to the shower arm.
- Install the Tub Spout: Apply thread sealant tape to the threads of the tub spout connection. Securely screw the tub spout into the wall connection. Ensure the spout is oriented correctly.
- Install the Handheld Shower Holder and Handheld: Mount the handheld shower holder to the wall at a convenient height. Connect the shower hose to the handheld shower and the wall outlet. Place the handheld shower in its holder.
- Install the Trim Kit: Install the cover plate (#4), diverter knob (#9), and on/off knob (#10) onto the rough-in valve according to the included instructions.
- Test for Leaks: Turn on the main water supply slowly. Check all connections for any signs of leaks. If leaks are detected, turn off the water supply and tighten the connections as needed.
Installation Overview Video:
Video: An overview demonstrating the installation and functional aspects of the Dasan Tub Shower Faucet Set.
Operating Instructions
Your DASAN Tub Shower Faucet System offers three water output functions: the main shower head, the handheld shower, and the tub spout. The system also features a single handle for temperature and flow control.
Temperature and Flow Control:
- The main handle controls both water flow and temperature.
- Lift the handle to turn on the water and increase flow. Push down to turn off.
- Rotate the handle left for hot water and right for cold water. The ceramic cartridge balances water pressure and protects against sudden temperature changes.
Function Diverter:
The small knob above the main handle is the diverter, allowing you to switch between the three water outputs.
- Shower Head: Rotate the diverter knob to the shower head icon to activate the 10-inch rainfall shower head. This head features Air-Water Mixing Technology for high pressure and is angle-adjustable.
Image: The 10-inch rainfall shower head delivering a consistent water flow.
- Handheld Shower: Rotate the diverter knob to the handheld shower icon to activate the handheld sprayer. This sprayer provides powerful rinsing and is also angle-adjustable.

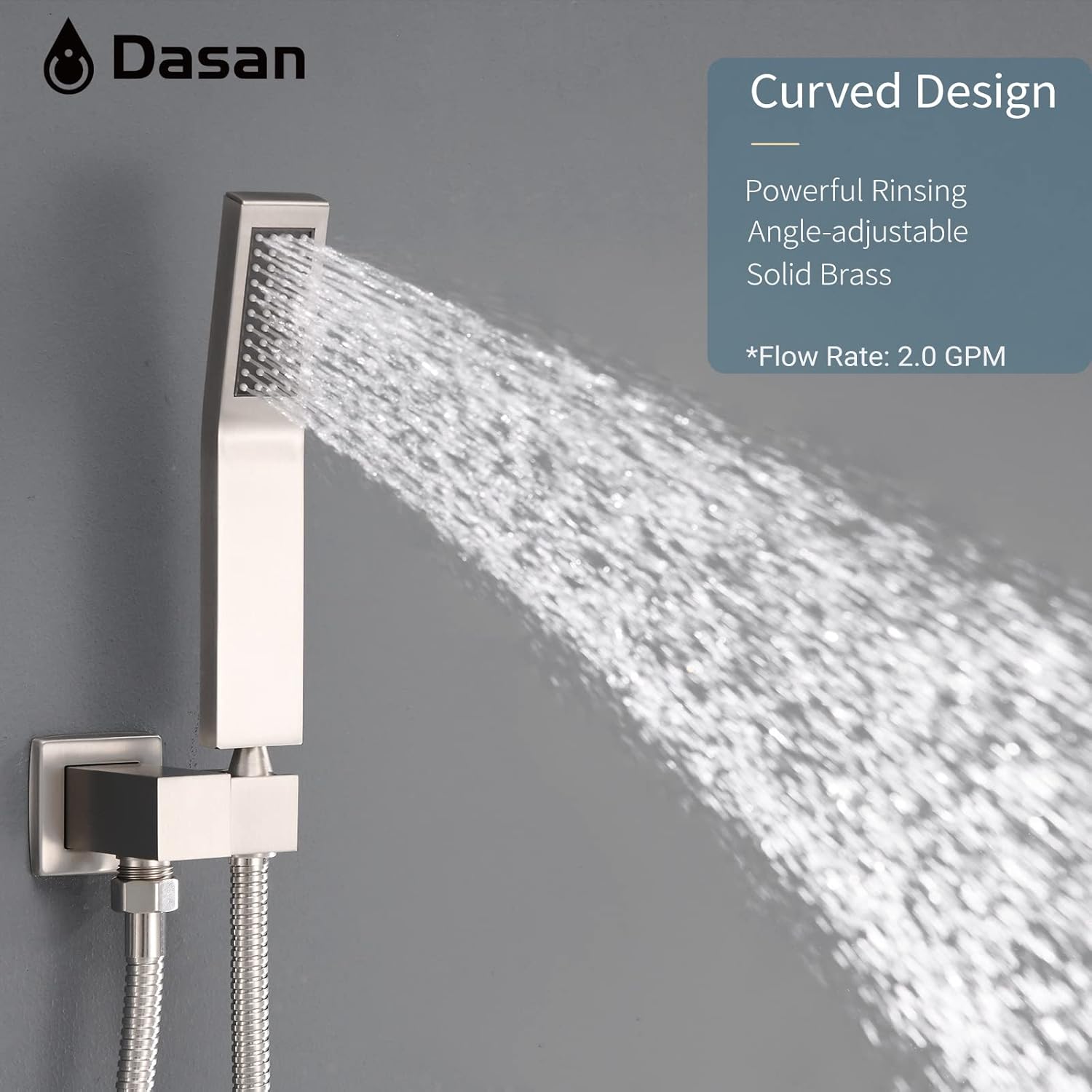

Image: The handheld shower delivering a focused spray, demonstrating its use.
- Tub Spout: Rotate the diverter knob to the tub spout icon to activate the tub spout. The tub spout is designed to swivel 180 degrees for convenience and features an aerated spout for smooth, splash-free water flow.
Image: The swiveling tub spout, highlighting its design and functionality.
Maintenance and Care
Proper care will help maintain the finish and performance of your faucet system.
- Cleaning the Finish: Clean the faucet regularly with a soft cloth and mild soap. Avoid abrasive cleaners, harsh chemicals, or scouring pads, as these can damage the brushed nickel finish. The Oil Sealing Surface Process helps reduce watermarks and fingerprints.
- Cleaning Nozzles: The shower head and handheld shower feature easy-to-clean rubber nozzles. To remove mineral buildup, gently rub the nozzles with your finger or a soft brush while water is flowing.
- General Care: Periodically check all connections for tightness. If any drips or leaks occur, tighten the connections carefully.
Troubleshooting
Refer to the following table for common issues and their solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Low Water Pressure | Clogged nozzles; partially closed shut-off valve; mineral buildup in lines. | Clean shower head/handheld nozzles. Ensure shut-off valves are fully open. Consult a plumber if issue persists. |
| Leaks from Connections | Loose connections; worn out O-rings/gaskets; insufficient thread sealant. | Tighten connections. Apply more thread sealant tape. Replace O-rings/gaskets if damaged. |
| Water Temperature Fluctuations | Issues with water heater; pressure imbalance; faulty cartridge. | Check water heater settings. Ensure proper water pressure to the valve. If necessary, replace the ceramic cartridge. |
| Diverter Not Switching Functions | Mineral buildup; internal mechanism issue. | Flush the system. If the issue persists, the diverter mechanism may need inspection or replacement by a professional. |
Specifications
| Feature | Detail |
|---|---|
| Brand | Dasan |
| Model Number | DA-SS03BN-S10W |
| Color | Brushed Nickel |
| Material | Brass, Stainless Steel |
| Finish Type | Brushed |
| Number of Handles | 1 |
| Mounting Type | Wall Mount |
| Shower Head Size | 10 inches |
| Flow Rate | 2.5 Gallons Per Minute (GPM) |
| Hose Length | 58.25 Inches |
| Spout Reach | 10 Inches |
| Temperature Range | 32-194 Degrees Fahrenheit |
| Special Features | Angle Adjustable, Anti-fingerprint, Anti-watermark |
| Rough-in Valve Depth | 2-1/2'' to 3-1/8'' (Min. to Max.), 2-3/4'' Recommended |
Warranty and Support
Dasan provides the following warranty for this product:
- Residential Use: 10-year limited warranty.
- Commercial Use: 5-year limited warranty.
Additionally, Dasan offers a 30-day hassle-free return and replacement policy. For any questions, technical assistance, or warranty claims, please contact Dasan customer support. We are committed to standing behind our product.
