Introduction
This manual provides essential instructions for the safe and efficient installation, operation, and maintenance of your Dometic CRX-1080S refrigerator. Please read this manual thoroughly before using the appliance and keep it for future reference.

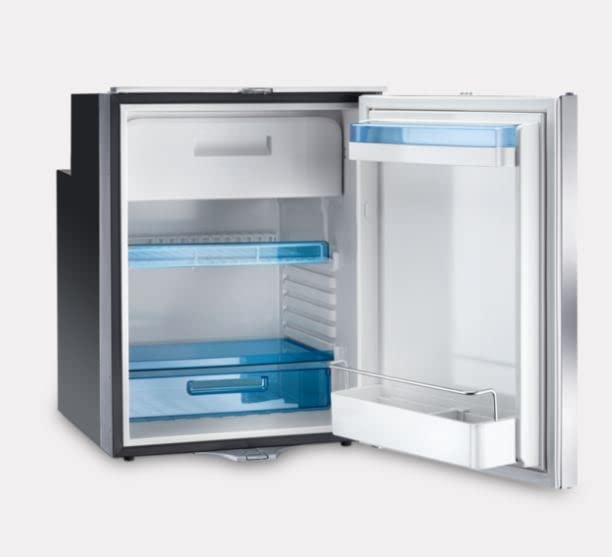

Image: The Dometic CRX-1080S built-in refrigerator featuring a stainless steel door and right-hand hinges.
Safety Information
Please observe all safety instructions and guidelines provided in this manual to prevent injury or damage to the appliance. Keep children away from the refrigerator and packaging materials. Ensure proper ventilation and electrical connections.
- Electrical Safety: Connect the appliance to a suitable 12V DC or AC power source as specified. Ensure wiring is correctly installed by a qualified technician.
- Ventilation: Maintain adequate ventilation around the refrigerator to ensure efficient operation and prevent overheating.
- Flammable Materials: Do not store explosive substances or flammable materials inside the refrigerator.
- Cleaning: Disconnect power before cleaning. Use only recommended cleaning agents.
Setup
1. Unpacking
Carefully remove the refrigerator from its packaging. Inspect the appliance for any signs of damage during transit. Retain packaging materials for potential future transport or warranty claims.
2. Installation
The Dometic CRX-1080S is designed for built-in installation. Ensure the installation location provides sufficient space for ventilation and access to electrical connections.
- Location: Choose a stable, level surface. Ensure adequate clearance around the unit for air circulation.
- Mounting: Secure the refrigerator firmly into its designated cabinet opening using appropriate fasteners.
- Door Hinges: This model features right-hand door hinges. Ensure there is sufficient clearance for the door to open fully.
3. Electrical Connection
The CRX-1080S operates on both AC and 12V DC power. Connect the refrigerator to a suitable power supply according to local regulations and the appliance's specifications.
- DC Connection: Connect to a 12V DC power source. Ensure correct polarity (+ to + and - to -).
- AC Connection: If using AC power, connect to a grounded AC outlet.
- Voltage: Verify that the supply voltage matches the refrigerator's operating voltage (12 Volts DC).
4. Initial Power-Up
After installation and electrical connection, power on the refrigerator. Allow several hours for the internal temperature to stabilize before loading with food items.
Operation
1. Temperature Control
The refrigerator features an electronic thermostat for temperature adjustment. Refer to the control panel for specific settings.
- Setting Temperature: Use the control buttons to select the desired cooling level.
- Monitoring: The display (if present) will show the current temperature or setting.
2. Door Operation
The door is equipped with a secure latching mechanism. Ensure the door is fully closed to maintain optimal cooling efficiency.
- Opening: Gently pull the door handle to open.
- Closing: Push the door firmly until the latch engages.
3. Internal Storage
Arrange food items to allow for proper air circulation inside the refrigerator. Avoid blocking the internal fan or vents.
Maintenance
1. Cleaning
Regular cleaning helps maintain hygiene and efficiency.
- Interior: Disconnect power. Use a mild detergent and warm water. Wipe dry thoroughly.
- Exterior: Clean the stainless steel door and exterior surfaces with a soft cloth and a suitable cleaner for stainless steel. Avoid abrasive cleaners.
- Condenser: Periodically clean the condenser fins (located at the rear or bottom) with a soft brush or vacuum cleaner to ensure efficient heat dissipation.
2. Defrosting
If ice builds up excessively, defrost the unit. Disconnect power, remove all contents, and leave the door open to allow ice to melt naturally. Collect melted water and wipe the interior dry.
3. Storage (When Not in Use)
If the refrigerator will not be used for an extended period, disconnect power, clean the interior, and leave the door slightly ajar to prevent odors and mold growth.
Troubleshooting
Before contacting service, review the following common issues and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Refrigerator not cooling | No power, faulty connection, thermostat set too high, poor ventilation. | Check power supply and connections. Adjust thermostat. Ensure adequate ventilation. |
| Excessive noise | Loose components, unit not level, fan obstruction. | Check for loose parts. Ensure the unit is level. Clear any fan obstructions. |
| Water accumulation inside | Blocked drain hole, door not sealing properly. | Clear the drain hole. Check door seal for damage or obstruction. |
| Door not closing properly | Obstruction, misaligned hinges, damaged seal. | Remove obstructions. Check hinge alignment. Inspect and replace damaged door seal. |
Specifications
| Feature | Detail |
|---|---|
| Brand | Dometic |
| Model Name | CRX-1080S |
| Part Number | 75502.307.40 |
| Installation Type | Built-In |
| Color | Stainless Steel |
| Door Material Type | Stainless Steel |
| Door Hinges | Right |
| Voltage | 12 Volts (DC) |
| Item Weight | 58 Pounds |
Warranty and Support
Dometic products are covered by a manufacturer's warranty. For specific warranty terms and conditions, please refer to the warranty card included with your product or visit the official Dometic website.
For technical assistance, spare parts, or service inquiries, please contact Dometic customer support. Contact information can typically be found on the Dometic website or in the documentation supplied with your appliance.
Online Resources: www.dometic.com
