Introduction
This manual provides detailed instructions for the installation, operation, and maintenance of your LogiLink BP0144 Monitor Wall Bracket. Please read this manual thoroughly before installation to ensure correct setup and safe use. This wall bracket is designed to securely mount 17-32 inch flat or curved monitors, offering flexible positioning with its gas lift mechanism.
Safety Information
Before installation, ensure you have read and understood all instructions. Failure to do so may result in personal injury, property damage, or voiding of warranty.
- Weight Capacity: Do not exceed the maximum load capacity of 9 kg (19.8 lbs).
- Wall Type: Ensure the mounting surface can safely support the combined weight of the bracket and your monitor. Consult a professional if unsure.
- Tools: Use appropriate tools for installation.
- Children: Keep children away during installation.
- Moving Parts: Be aware of moving parts during adjustment to avoid pinching.
- Gas Spring: Do not attempt to disassemble the gas spring mechanism.
- Tightening: Do not overtighten screws, as this may cause damage.
Package Contents
Please verify that all components are present before beginning installation.
- 1 x LogiLink BP0144 Monitor Wall Mount
- 1 x Screw Set (various screws, washers, anchors for different wall types)
- 1 x User Manual (this document)
Image: LogiLink BP0144 Monitor Wall Bracket product packaging, showing the box with product features.
Setup and Installation
Note: Installation requires drilling into a wall. Ensure you have the necessary tools and expertise. If you are unsure, seek professional assistance.
- Prepare the Wall: Choose a suitable location on a solid wall (e.g., concrete, brick, or wood stud). Use a stud finder to locate wood studs if mounting to drywall. Mark the drilling points according to the wall plate dimensions.
- Attach Wall Plate: Drill pilot holes at the marked locations. Secure the wall plate to the wall using the appropriate screws and anchors from the provided screw set. Ensure it is level and firmly attached.
- Assemble Arm: Attach the monitor arm to the wall plate. Follow the specific instructions in the included diagram for your model to ensure correct orientation and secure fastening.
- Attach VESA Plate to Monitor: Locate the VESA mounting holes on the back of your monitor (75x75mm or 100x100mm). Attach the VESA plate from the bracket to your monitor using the appropriate screws. Do not overtighten.
Image: Front view of the LogiLink BP0144 Monitor Wall Bracket, showing the wall plate, arm, and VESA mounting plate.
- Mount Monitor: Carefully lift the monitor with the attached VESA plate and slide it onto the arm's mounting head. Secure it with the locking mechanism or screws as indicated in the instructions.
Image: Rear view of a monitor with the VESA plate of the LogiLink BP0144 bracket attached, ready for mounting.
Image: Close-up view of the VESA plate connection point on the LogiLink BP0144 arm, showing how the monitor attaches.
- Adjust Gas Spring Tension: The gas spring tension may need adjustment to properly counterbalance your monitor's weight. Use the provided Allen key to turn the adjustment screw (usually located on the arm) until the monitor stays at the desired height without drifting up or down. Turn clockwise to increase tension for heavier monitors, counter-clockwise for lighter monitors.
- Cable Management: Route monitor cables through the integrated cable management channels on the arm for a tidy appearance.
Image: Side view of the LogiLink BP0144 Monitor Wall Bracket with a monitor securely attached, demonstrating its profile.
Operating Instructions
Your LogiLink BP0144 Monitor Wall Bracket offers versatile adjustments for optimal viewing comfort.
- Height Adjustment (Gas Lift): Gently push or pull the monitor to the desired height. The gas spring mechanism will hold it in place once adjusted correctly.
- Tilt Adjustment: The monitor can be tilted -45° to +90° (upwards/downwards). Loosen the tilt screw slightly, adjust the angle, and then retighten to secure.
- Swivel Adjustment: Swivel the monitor -90° to +90° (left/right) for collaborative viewing or to change orientation.
- Rotation (Portrait/Landscape): The front panel allows for 360° rotation, enabling you to switch between landscape and portrait modes without removing the monitor.

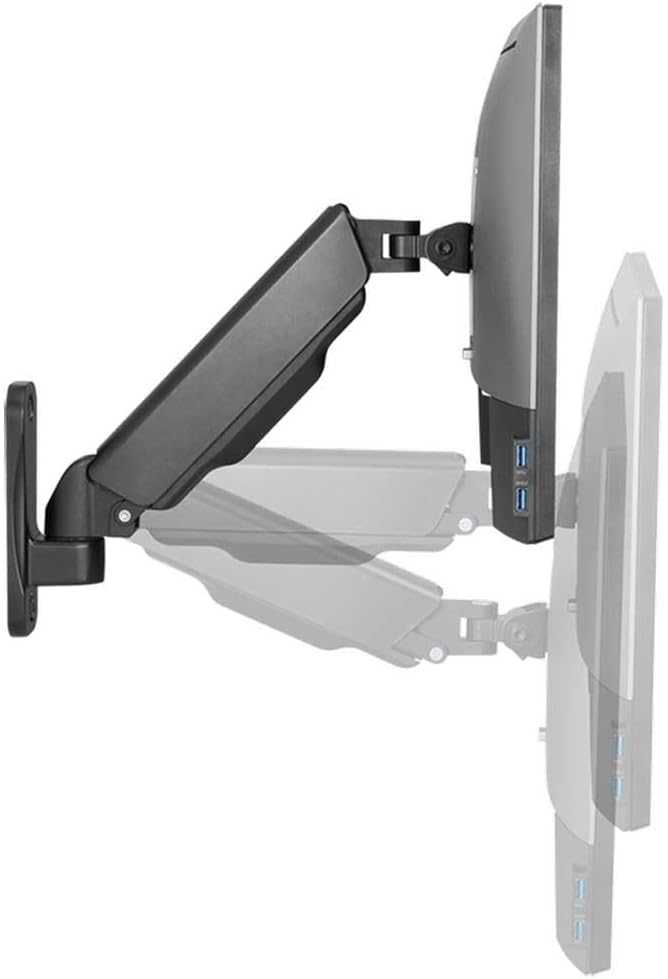

Image: The LogiLink BP0144 Monitor Wall Bracket with a monitor, illustrating the range of tilt and swivel motion.
Image: Side view of the LogiLink BP0144 Monitor Wall Bracket, showing a cable routed through its integrated management system.
Maintenance
Regular maintenance ensures the longevity and safe operation of your monitor wall bracket.
- Cleaning: Wipe the bracket with a soft, damp cloth. Avoid abrasive cleaners or solvents.
- Inspection: Periodically check all screws and connections to ensure they are tight and secure. Retighten if necessary.
- Gas Spring: The gas spring is maintenance-free. Do not attempt to lubricate or disassemble it.
Troubleshooting
If you encounter issues with your monitor wall bracket, refer to the following common solutions:
- Monitor drifts down/up: The gas spring tension needs adjustment. Refer to the 'Adjust Gas Spring Tension' step in the Setup section.
- Difficulty moving the arm: Check if any screws are overtightened, especially at the joints. Loosen slightly if movement is restricted. Ensure the gas spring tension is not too high for a light monitor.
- Bracket feels unstable: Re-check all wall mounting screws and monitor attachment screws. Ensure the wall type is appropriate and the anchors are correctly installed. Do not exceed the maximum weight capacity.
Specifications
| Feature | Detail |
|---|---|
| Model | BP0144 |
| Brand | Logilink |
| Compatible Screen Sizes | 17 - 32 inches (flat/curved) |
| Maximum Load Capacity | 9 kg (19.8 lbs) |
| Mounting Type | Wall mounting |
| VESA Compatibility | 75x75mm, 100x100mm |
| Distance from Wall | 90 - 380 mm |
| Tilt Range | -45° / +90° |
| Swivel Range | -90° / +90° |
| Screen Rotation | 360° (portrait/landscape) |
| Arm Length | 290 mm max. |
| Movement Type | Rotate, Swivel, Tilt (Gas Lift) |
| Material | Edelstahl (Stainless Steel) |
| Color | Black |
| Item Weight | 2 Kilograms |
| Manufacturer | 2direct GmbH |
Warranty Information
No specific warranty information is provided in the product data. Please refer to your purchase documentation or contact the retailer for warranty details.
Support Information
No specific customer support contact information is provided in the product data. For assistance, please contact your retailer or visit the LogiLink official website.
