1. Introduction
The VENTISOL 14 Inch Shutter Exhaust Fan is engineered to provide effective ventilation, helping to remove excess heat, humidity, and stale air from various spaces. Its robust design and powerful airflow contribute to a healthier and more comfortable environment. This manual provides essential information for the safe and efficient operation, installation, and maintenance of your exhaust fan.
This fan is suitable for a wide range of applications, including:
- Home attics
- Workshops
- Welding rooms
- Factories
- Warehouses
- Barns
- Greenhouses

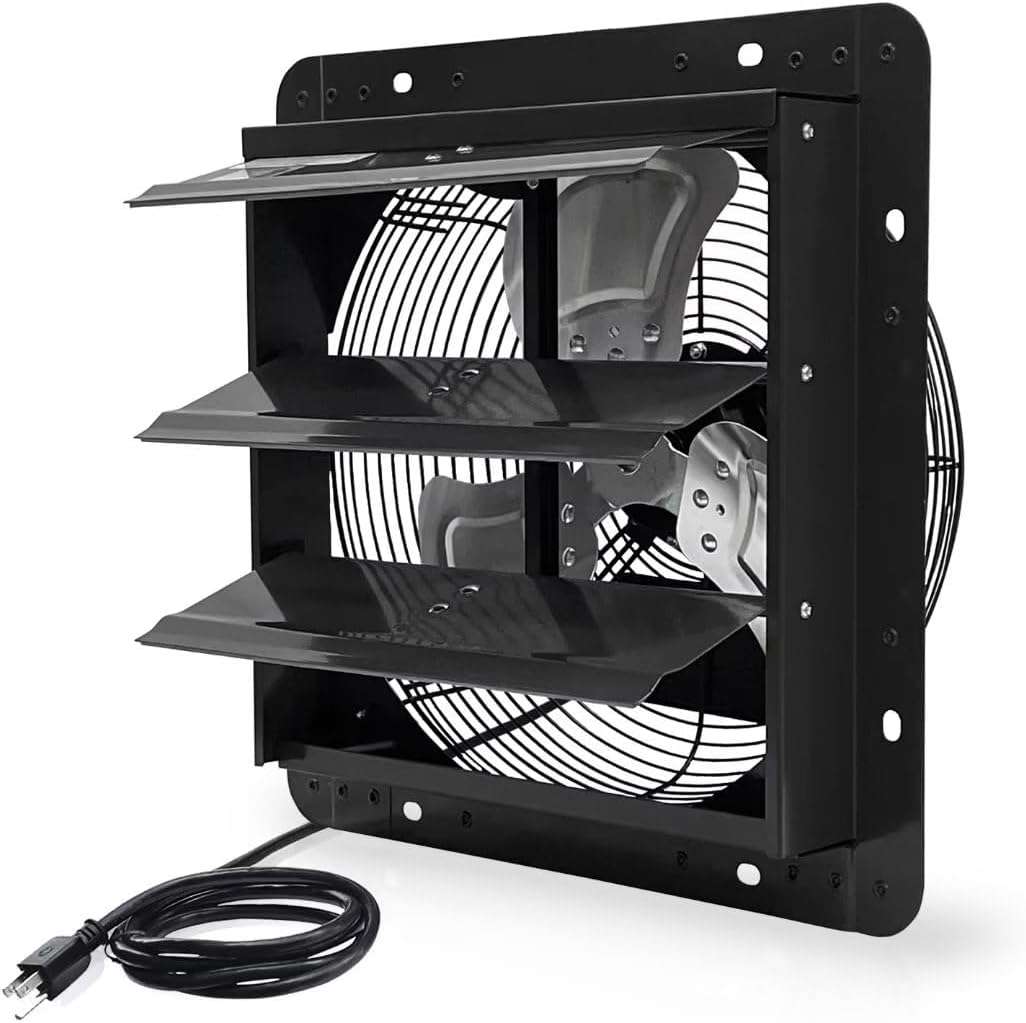

Figure 1: Front view of the VENTISOL 14 Inch Shutter Exhaust Fan.
2. Product Features
- Multipurpose Design: Effectively removes excess heat and moisture, suitable for various environments.
- Power Cord Kit: Includes a 6-foot universal extension power cord for easy installation.
- Sturdy & Durable: Features rugged all-metal structure, corrosion-resistant aluminum fan blades, shutters, and steel wire guards for enhanced longevity.
- Automatic Aluminum Shutters: Gravity-operated shutters open when the fan is on and close when off, protecting against elements.
- Powerful Airflow: Operates at 1590 RPM, delivering up to 1950 CFM for superior air circulation.

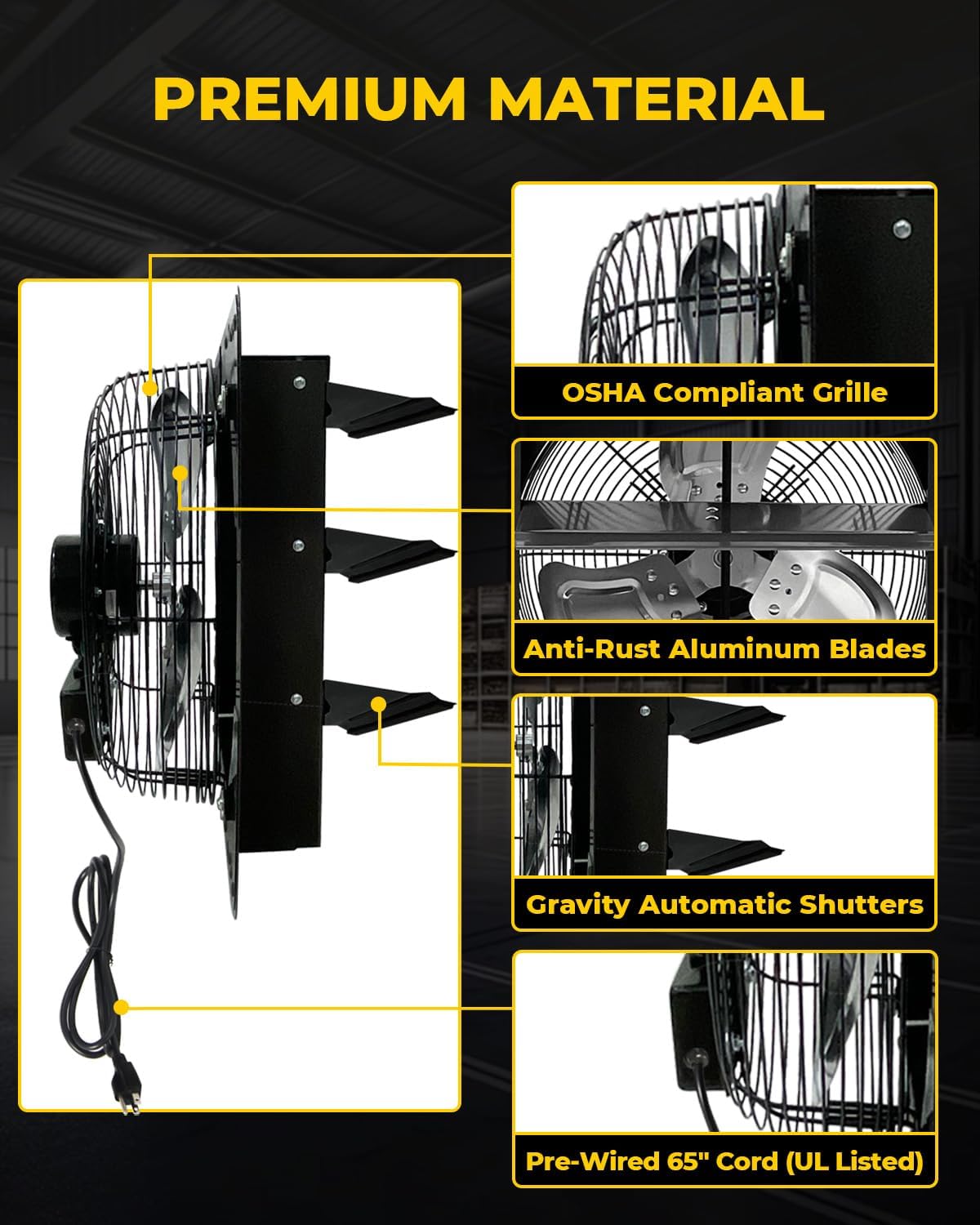

Figure 2: Illustration of the fan's premium material components.
Figure 3: Details of the heavy-duty enclosed motor.
3. Setup and Installation
Before installation, ensure the mounting surface is sturdy enough to support the fan's weight and operation. The fan is designed for wall-mounted installation.
3.1 Unboxing and Inspection
Carefully unbox the fan and inspect for any damage during shipping. Ensure all components are present.
Video 1: Unboxing the 14 Inch Shutter Fan. This video demonstrates the unboxing process and initial inspection of the fan.
3.2 Mounting Location and Dimensions
Choose a location that allows for optimal airflow and is free from obstructions. The fan requires an opening of approximately 14.96 inches (depth) x 14.96 inches (width) x 11.85 inches (height) for proper fit. Refer to the product parameter image for detailed dimensions.
Figure 4: Detailed product parameter diagram with dimensions.
3.3 Installation Steps
- Prepare the opening in the wall according to the fan's dimensions.
- Insert the fan into the opening, ensuring the shutters face outwards.
- Secure the fan to the wall using appropriate screws (screws are not included and must be purchased separately based on your wall material).
- Connect the pre-wired 6-foot power cord to a suitable power outlet (120 Volts).
Figure 5: Back view of the fan, showing the fan blades and protective grille.
4. Operating Instructions
The VENTISOL exhaust fan is designed for simple operation. Once properly installed and connected to power, it will begin to operate.
4.1 Automatic Shutters
The fan features automatic gravity shutters. When the fan is turned on, the airflow will push the shutters open. When the fan is turned off, the shutters will automatically close, providing protection from external elements like rain and debris.
4.2 Airflow and Ventilation
The fan provides a powerful airflow of up to 1950 CFM, effectively exhausting stale air, removing floating dust, and venting unpleasant odors. This helps to circulate fresh air and maintain a comfortable environment.
Video 2: Demonstration of the Exhaust Shutter Fan's operation and features.
Figure 6: Illustration of powerful exhaust capabilities.
Figure 7: High performance features of the fan.
Video 3: Visual demonstration of the 14-inch exhaust fan's air movement.
Video 4: Another demonstration of the 14-inch shutter exhaust fan's functionality.
Video 5: A short clip showcasing the shutter exhaust fan in action.
5. Maintenance
Regular maintenance ensures optimal performance and extends the lifespan of your VENTISOL exhaust fan.
- Cleaning: Periodically clean the fan blades and shutters to prevent dust and debris buildup, which can reduce efficiency. Use a soft cloth and mild detergent if necessary. Ensure the fan is disconnected from power before cleaning.
- Inspection: Regularly check the fan blades, motor, and housing for any signs of wear, damage, or loose connections. Ensure the steel wire guards are intact.
- Lubrication: The motor is fully enclosed and sealed, typically not requiring lubrication. Refer to the motor specifications for any specific lubrication requirements if applicable.
6. Troubleshooting
If you encounter issues with your VENTISOL exhaust fan, refer to the following common troubleshooting steps:
| Problem | Possible Cause | Solution |
|---|---|---|
| Fan does not turn on | No power supply | Check if the power cord is securely plugged in and the outlet is functional. Check circuit breaker. |
| Low airflow | Blocked intake/exhaust or dirty blades | Clear any obstructions from the fan's intake or exhaust path. Clean fan blades and shutters. |
| Unusual noise or vibration | Loose components or foreign objects | Inspect for loose screws or foreign objects caught in the blades or grille. Ensure the fan is securely mounted. |
| Shutters not opening/closing properly | Obstruction or damage to shutters | Check for debris or damage preventing the shutters from moving freely. Clean or adjust as needed. |
7. Specifications
Detailed technical specifications for the VENTISOL 14 Inch Shutter Exhaust Fan (Model G-14EF):
| Feature | Specification |
|---|---|
| Brand | VENTISOL |
| Model Name | G-14EF |
| Color | Black |
| Electric Fan Design | Exhaust Fan |
| Power Source | AC |
| Product Dimensions (D x W x H) | 14.96"D x 14.96"W x 11.85"H |
| Room Type | Attic, Garage, Kitchen |
| Special Feature | Exhausting |
| Recommended Uses | Exhausting, Ventilating, Cooling, Air Circulation |
| Wattage | 55 watts |
| Number of Blades | 3 |
| Air Flow Capacity | 1950 Cubic Feet Per Minute (CFM) |
| Speed | 1590 RPM |
| Voltage | 120 Volts |
| Item Weight | 10.8 Pounds |
| Included Components | Cord |
| Indoor/Outdoor Usage | Indoor |
| Blade Material | Aluminum |
8. Warranty and Support
For information regarding product warranty, please refer to the documentation provided with your purchase or contact VENTISOL-USA directly. Additional protection plans may be available for purchase to extend coverage beyond the standard warranty period.
For customer support, technical assistance, or inquiries about replacement parts, please contact the seller, VENTISOL-USA, through their official channels or the platform where the product was purchased.
