Introduction
This manual provides essential information for the safe and efficient use of your SHELANDY Electric Pet Grooming Table. Please read these instructions carefully before assembly and operation to ensure proper function and longevity of the product.
Safety Instructions
- Always ensure the table is placed on a stable, level surface.
- Do not exceed the maximum weight capacity of 250 lbs (113 kg).
- Keep hands and feet clear of moving parts during operation.
- Unplug the table from the power source when not in use or during cleaning.
- Supervise pets at all times while on the grooming table.
- Do not allow children to operate or play near the grooming table.
- Inspect the power cord and foot pedals regularly for damage.
Package Contents
Verify that all components are present before beginning assembly:
- Electric Grooming Table Base
- Tabletop (45" L x 25" W)
- Grooming Arm (Overhead)
- Grooming Restraints (2)
- Foot Pedals for Height Adjustment
- Adjustable Leveling Feet (4)
- Power Cord
Setup and Assembly
- Unpacking: Carefully remove all components from the packaging. Place the table base on a flat, stable surface.
- Install Leveling Feet: Screw the four adjustable leveling feet into the designated points on the bottom of the table base. Adjust them to ensure the table is stable and does not wobble.
Figure 1: Adjustable threaded levelers for stability.
- Attach Grooming Arm: Insert the grooming arm into the slots on the side of the tabletop. Secure it using the provided clamps. Ensure the clamps are tightened firmly to prevent movement.

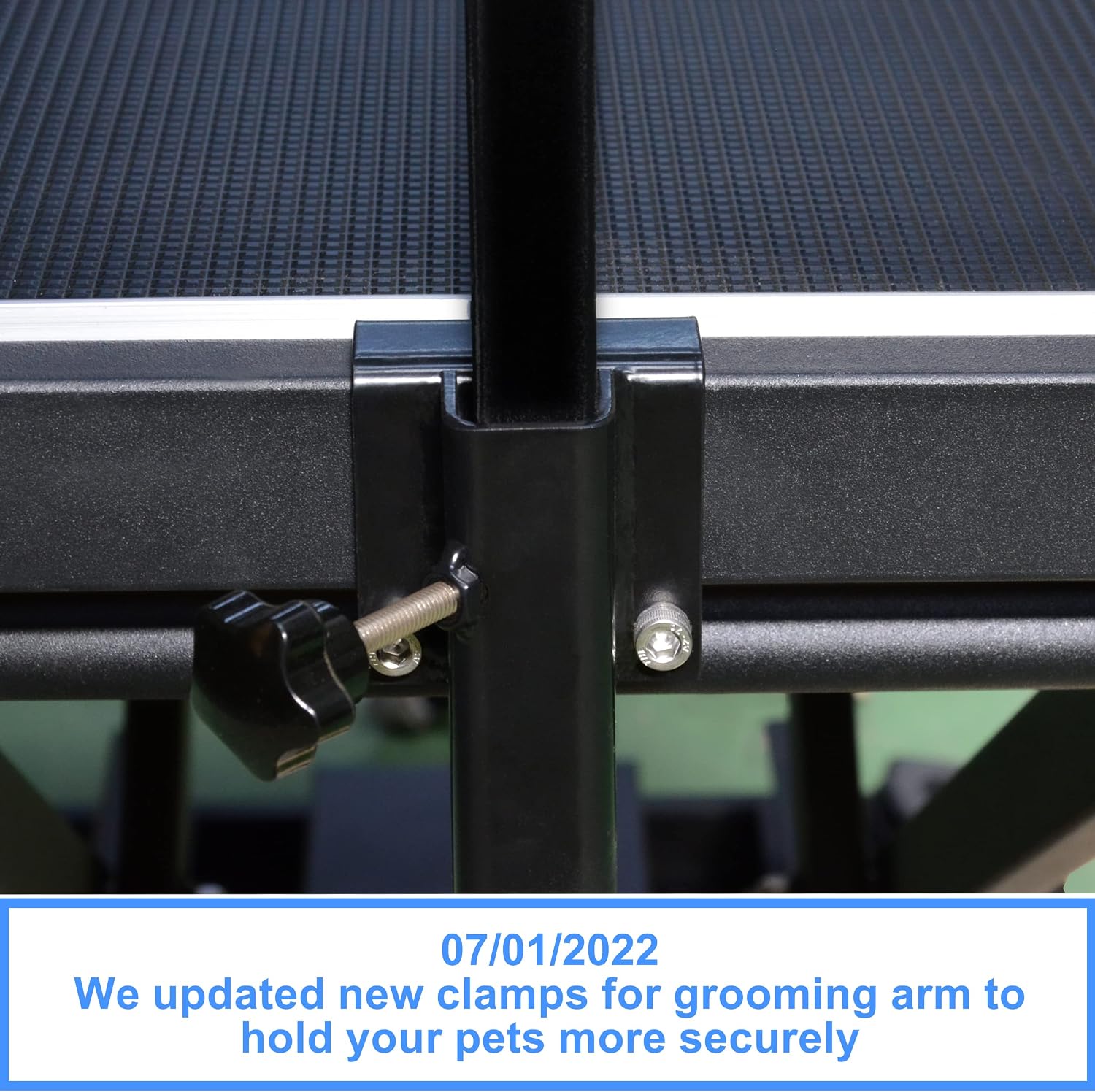

Figure 2: Updated clamps for securing the grooming arm.
- Connect Power: Plug the foot pedal unit into the table's power port, then connect the main power cord to a standard electrical outlet.

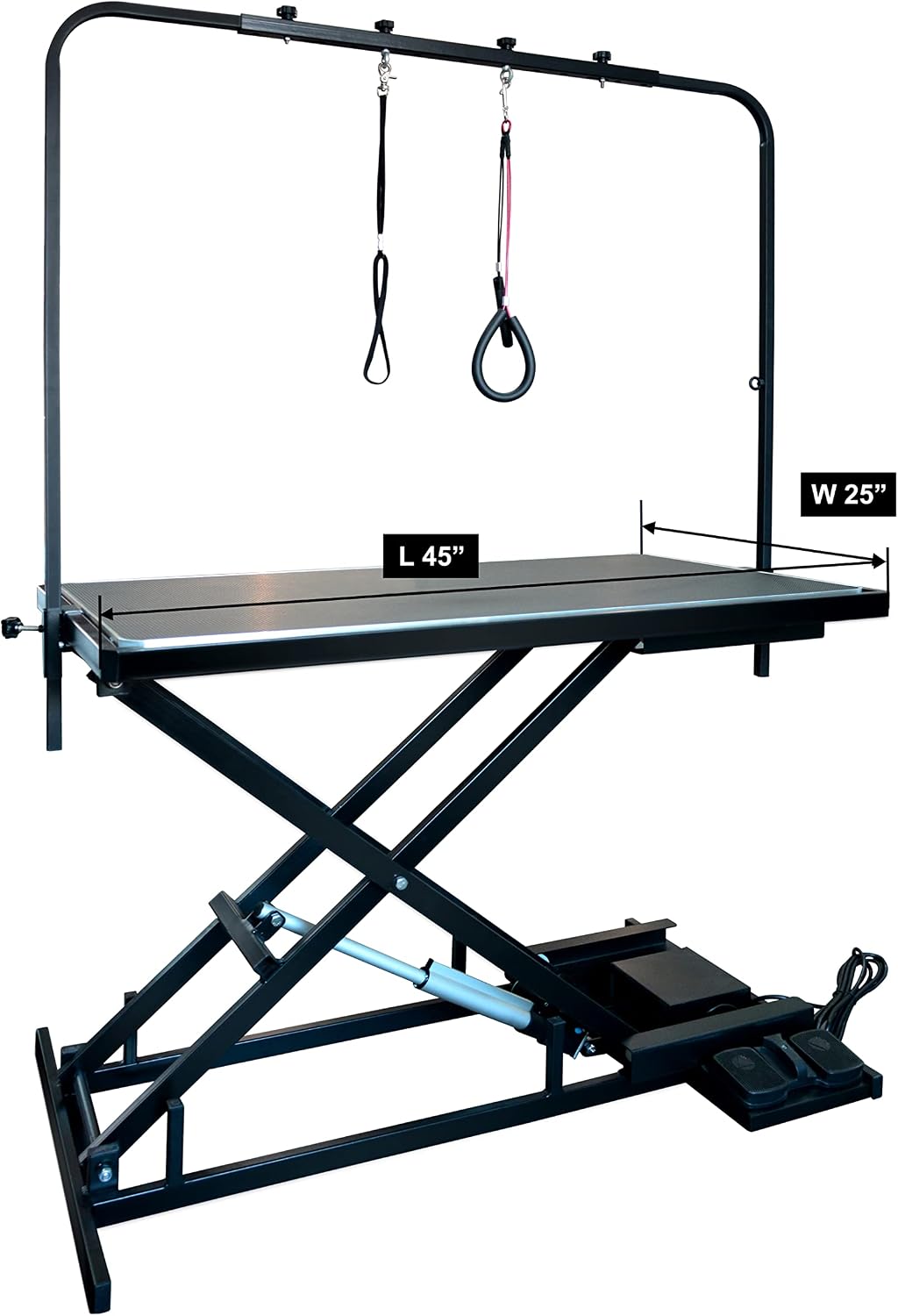

Figure 3: Assembled grooming table with dimensions.
Operating Instructions
Height Adjustment
The table's height is adjusted using the foot pedals located at the base. This electric lift system allows for smooth and precise positioning.
- To raise the table, press the "Lift Up" pedal.
- To lower the table, press the "Lift Down" pedal.
Figure 4: Foot pedals for electric height adjustment.
Figure 5: Table height adjustment range.
Using the Grooming Arm and Restraints
The overhead grooming arm provides a secure point for attaching restraints, helping to keep pets safely positioned during grooming. Adjust the height of the restraints as needed for different pet sizes.
Figure 6: Grooming arm and restraints in use.
Maintenance
- Cleaning: Wipe the tabletop and frame with a dry cloth after each use. For deeper cleaning, use a mild, pet-safe cleaner and a damp cloth, then dry thoroughly. The tabletop is slip-resistant and water-proof.
Figure 7: Anti-slip and dotted tabletop surface.
- Inspection: Regularly check all bolts, screws, and connections to ensure they are tight. Pay particular attention to the grooming arm clamps and leveling feet.
- Electrical Components: Keep the foot pedals and power cord free from damage and moisture. Do not attempt to repair electrical components yourself.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Table does not lift or lower. | Power cord unplugged; foot pedal connection loose; power outage. | Ensure power cord is securely plugged into outlet and table. Check foot pedal connection. Verify power supply. |
| Table is wobbly or unstable. | Uneven floor; leveling feet not adjusted; loose frame connections. | Adjust the threaded leveling feet until the table is stable. Check and tighten all frame bolts. |
| Grooming arm moves or is loose. | Clamps not tightened sufficiently; damaged clamps. | Ensure grooming arm clamps are fully tightened. If clamps are damaged, contact customer support for replacements. |
Specifications
- Table Top Size: 45 inches (L) x 25 inches (W)
- Height Range: 11 inches (min) to 37 inches (max)
- Weight Capacity: Up to 250 lbs
- Product Dimensions: 25"D x 45"W x 37"H (at max height)
- Item Weight: 105 pounds
- Frame Material: Iron
- Tabletop Material: PVC (slip-resistant, water-proof)
- Color: Black
Product Video
Official product video demonstrating the SHELANDY electric dog grooming table's features and suitability for pet groomers.
Warranty and Support
For customer support or inquiries regarding your SHELANDY Electric Pet Grooming Table, please contact the seller directly. The product is eligible for 30-day easy returns.
For additional protection, consider available protection plans.
