1. Introduction
Thank you for choosing the De'Longhi Tasciugo AriaDry Pure DDSX220WFA Dehumidifier. This appliance is designed to effectively reduce humidity levels in your home, improve air quality, and assist with laundry drying. With its integrated Wi-Fi connectivity, anti-allergy function, and portable design, it offers a comprehensive solution for a healthier and more comfortable living environment.
2. Safety Information
Please read all safety instructions carefully before using the appliance. Keep this manual for future reference.
- Always ensure the appliance is placed on a stable, flat surface.
- Do not block the air inlets or outlets. Maintain at least 20 cm clearance around the unit.
- Do not immerse the appliance, power cord, or plug in water or other liquids.
- Unplug the appliance from the power outlet before cleaning or maintenance.
- Keep children and pets away from the appliance during operation.
- Do not use the appliance outdoors or in wet environments where water may splash.
- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard.
3. Product Overview
The De'Longhi DDSX220WFA is a versatile dehumidifier designed for optimal performance in rooms up to 90m³. It can remove up to 21 liters of moisture per day (at 30°C/80% R.H.).
Control Panel
The control panel is located on the top of the unit and features intuitive buttons for various functions, including power, mode selection, fan speed, and Wi-Fi indicator.
Components
- Control Panel: For setting and monitoring operations.
- Air Filter: Located at the rear, essential for air purification.
- Water Tank: Transparent and easily removable for emptying.

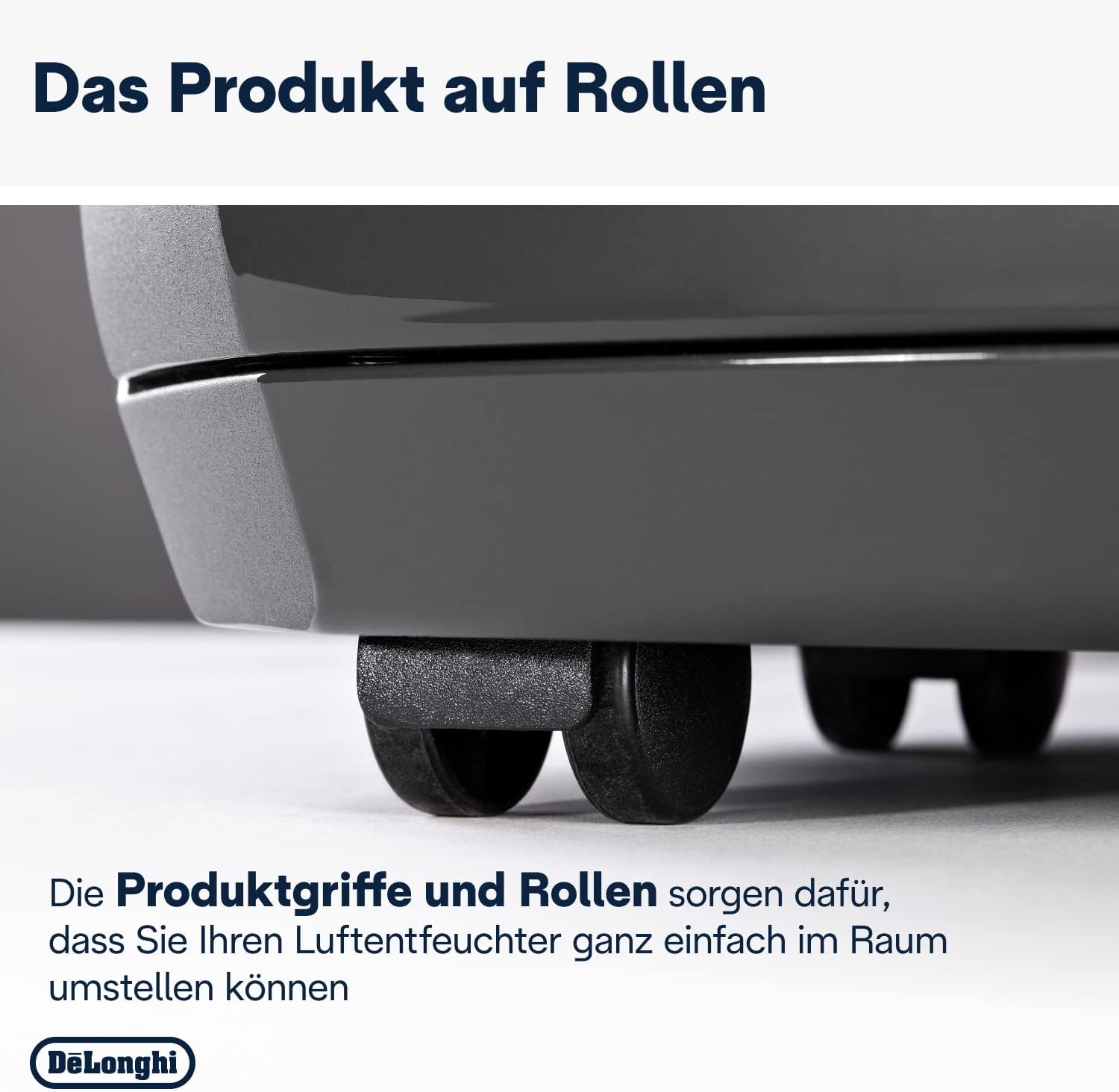

- Handles and Wheels: Integrated for easy portability.
4. Setup
- Unpacking: Carefully remove the dehumidifier from its packaging. Retain packaging for future storage or transport.
- Placement: Place the unit upright on a stable, level surface. Ensure there is at least 20 cm of free space around the appliance to allow for proper airflow. Avoid placing it near heat sources or in direct sunlight.
- Power Connection: Plug the power cord into a suitable grounded electrical outlet.
- Water Tank: Ensure the water tank is correctly inserted into the unit.
5. Operating Instructions
Basic Operation
- Power On/Off: Press the power button on the control panel to turn the unit on or off.
- Setting Humidity: Use the mode selection buttons to choose your desired humidity level. The unit will automatically operate to maintain this level.

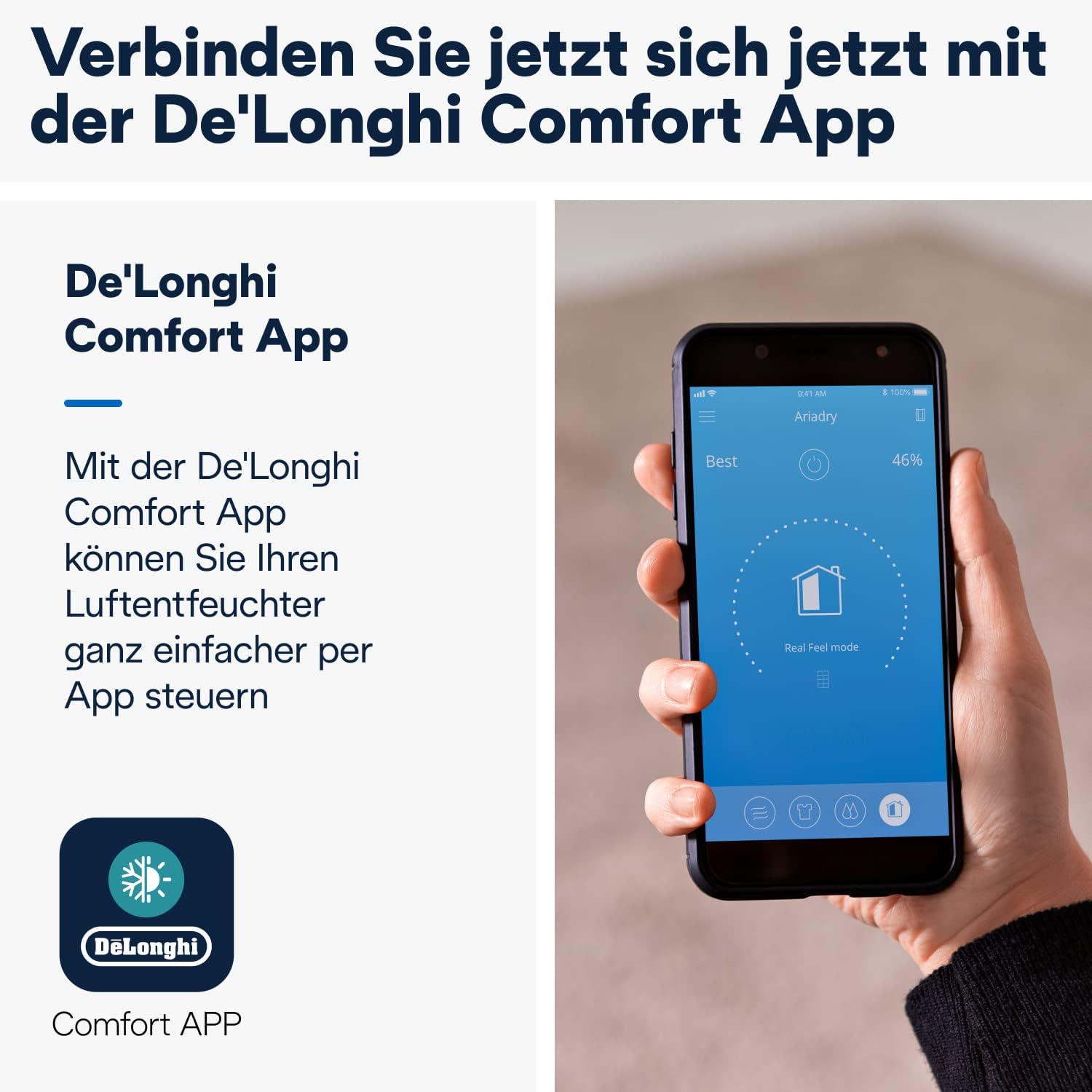

Wi-Fi Connectivity (De'Longhi Comfort App)
This model features integrated Wi-Fi, allowing you to control and monitor the dehumidifier remotely via the De'Longhi Comfort App.
- Download the De'Longhi Comfort App from your smartphone's app store.
- Follow the in-app instructions to pair your dehumidifier with your home Wi-Fi network.
- Once connected, you can adjust settings, monitor humidity, and schedule operations from anywhere.
Anti-Allergy Function
The anti-allergy function helps to neutralize harmful bacteria and allergens in the air while removing excess moisture. This feature contributes to a healthier indoor environment, especially beneficial for allergy sufferers.
Laundry Function
The dedicated Laundry Function significantly speeds up the drying process of wet clothes indoors.
Place the dehumidifier in the room with your drying laundry and activate the Laundry mode. The unit will operate at maximum dehumidification to efficiently remove moisture from the clothes and the air.
Continuous Drainage
For continuous operation without needing to empty the water tank, you can set up continuous drainage.
Connect a suitable drainage hose (not included) to the continuous drainage outlet at the back of the unit. Ensure the hose is sloped downwards to allow gravity to drain the water into a floor drain or larger container.
Product Video
Official product video demonstrating the features and operation of the De'Longhi Tasciugo AriaDry Pure DDSX220WFA Dehumidifier.
6. Maintenance
Cleaning the Air Filter
Regular cleaning of the air filter is crucial for maintaining the dehumidifier's efficiency and air purification capabilities.
- Turn off and unplug the dehumidifier.
- Remove the filter cover at the rear of the unit.
- Gently remove the filter.
- Clean the filter with a vacuum cleaner or wash it with lukewarm water. Allow it to dry completely before reinserting.
- Reinsert the dry filter and close the cover.
Emptying the Water Tank
When the water tank is full, the unit will stop operating and an indicator light will illuminate. The transparent tank allows for easy monitoring of the water level.
- Carefully pull out the water tank from the front of the unit.
- Empty the collected water.
- Slide the empty tank back into its position until it clicks securely.
General Cleaning and Storage
- Wipe the exterior of the unit with a soft, damp cloth. Do not use abrasive cleaners or solvents.
- Before long-term storage, ensure the water tank is empty and the unit is clean and dry. Store in a cool, dry place.
7. Troubleshooting
If you encounter any issues with your dehumidifier, please refer to the table below for common problems and solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Unit does not turn on | No power supply; Water tank full or incorrectly inserted. | Check power plug and outlet; Empty and reinsert water tank correctly. |
| No dehumidification | Air filter clogged; Room temperature too low; Humidity setting too high. | Clean the air filter; Ensure room temperature is above 5°C; Lower the humidity setting. |
| Unusual noise | Unit not on a level surface; Obstruction in fan. | Place unit on a flat, stable surface; Check for and remove any obstructions. |
| Wi-Fi connection issues | Incorrect Wi-Fi password; Router too far; App not updated. | Verify Wi-Fi password; Move unit closer to router; Update De'Longhi Comfort App. |
If the problem persists after trying these solutions, please contact De'Longhi customer support.
8. Specifications
- Model Number: DDSX220WFA
- Brand: De'Longhi
- Dimensions (L x W x H): 26 cm x 38 cm x 60 cm
- Weight: 13.5 Kilograms
- Dehumidification Capacity: Up to 21 Liters/day (at 30°C/80% R.H.)
- Suitable Room Volume: Up to 90 m³
- Power Consumption: 490 Watts
- Special Features: Portable, Wi-Fi enabled, Anti-Allergy, Laundry Function
- Water Tank Capacity: 5 Liters (approx.)
9. Warranty and Support
Your De'Longhi Tasciugo AriaDry Pure DDSX220WFA Dehumidifier comes with a manufacturer's warranty. Please refer to the warranty card included in your product packaging for specific terms and conditions.
For technical assistance, spare parts, or further information, please visit the official De'Longhi website or contact their customer service department. You can find more information and support at the De'Longhi Store on Amazon.
