Introduction
The iDOO Hydroponics Growing System Kit is designed for indoor plant cultivation, allowing you to grow various herbs, vegetables, fruits, and flowers without soil. This system utilizes an integrated water pump for aeration, a fan for air circulation, and adjustable LED lights to promote rapid plant growth.
Key features include:
- Integrated Water Pump for efficient water circulation and aeration.
- Built-in Fan to simulate natural breeze, aiding pollination and heat dispersion.
- Large Water Tank for sustained hydration.
- Adjustable LED Lights with specific growing modes for different plant types.
- Faster growth compared to traditional soil planting methods.

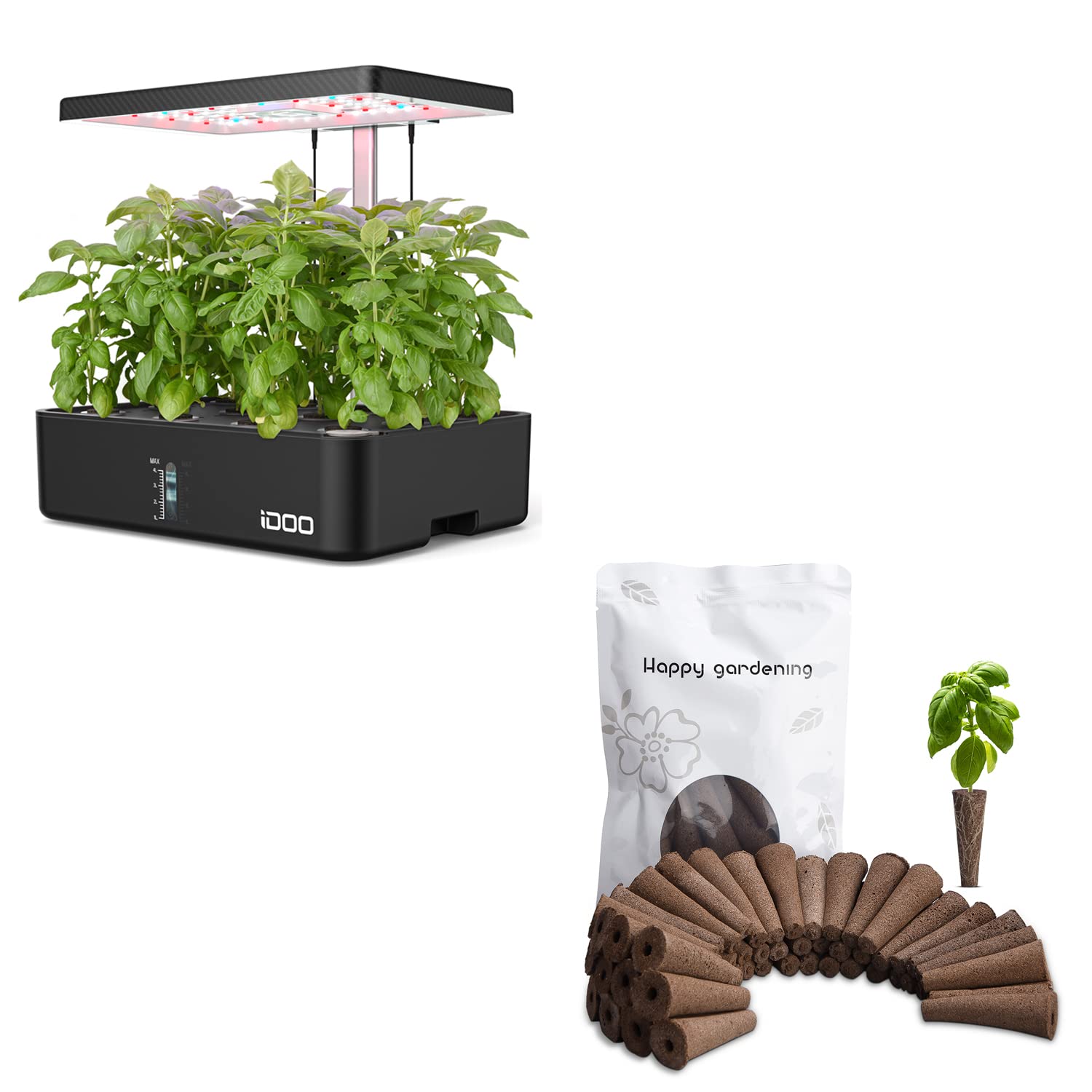

Image: The iDOO Hydroponics Growing System Kit, showcasing its compact design and thriving plants.
Image: A visual comparison highlighting the benefits of hydroponic gardening, such as no soil, no pests, and faster growth, versus traditional soil planting.
Package Contents
Before beginning setup, please ensure all components are present:
- Hydroponics Growing System Base with Water Tank
- Adjustable LED Grow Light Panel
- Grow Domes
- Sponges (60 pieces)
- Plant Food (A & B Nutrients)
- Sponges Baskets
- Cleaning Brush (if included)
- Instruction Manual
Image: An annotated diagram illustrating the various components of the iDOO Hydroponics System, including the LED light, fan, A&B nutrient bottles, grow domes, water hole, sponges basket, water pump, and visual water level window.
Setup
- Assemble the System: Place the LED grow light panel onto the adjustable pole and secure it to the base unit. Ensure all connections are firm.
- Prepare Sponges: Insert one seed into each sponge. Place the seeded sponges into the provided sponges baskets.
- Insert Sponges: Place the sponges baskets into the designated holes on the top tray of the hydroponics system. Cover with grow domes if desired for initial germination.
- Fill Water Tank: Open the water-hole cover and fill the water tank with clean water up to the 'MAX' line indicated on the visual window.
- Add Nutrients: Refer to the plant food instructions for the correct ratio of A & B nutrients. Add the recommended amount to the water tank. Mix gently.
- Connect Power: Plug the power adapter into the system and then into a standard electrical outlet.
Image: A collection of hydroponic sponges, ready for seed placement, demonstrating the medium used for plant support in the system.
Image: A hand carefully inserting a young plant, rooted in a sponge, into one of the growing slots of the hydroponic system.
Operating Instructions
LED Grow Light Operation
The system features adjustable LED lights with different modes to optimize plant growth:
- Vegetables & Fruits & Flowers Mode: This mode typically runs for 16 hours per day and uses a combination of red, far-red, blue, and white lights. Ideal for most leafy greens, fruiting plants, and flowering plants.
- Flowering/Fruiting Mode: This mode might emphasize red and far-red lights with white light, suitable for the flowering and fruiting stages of plants. Consult the specific button functions on your unit for mode selection.
Adjust the height of the LED light panel as your plants grow to maintain an optimal distance for light exposure.
Image: Illustration of two distinct growing modes for the LED lights: one for vegetables, fruits, and flowers (16 hours/day with red, far-red, blue, and white lights), and another for flowering/fruiting (with red, far-red, and white lights).
Water Pump and Fan Operation
The integrated water pump and fan operate automatically according to a pre-set schedule to ensure proper water circulation, nutrient delivery, and air movement for your plants. These components are designed for low-noise operation.
Image: A close-up view of the built-in fan within the LED light panel, illustrating its function in spreading pollen during florescence and dispersing heat during germination.
Nutrient Management
Monitor the water level regularly using the visual window. When the water level drops, replenish with fresh water and add nutrients as per the plant food instructions. The frequency of nutrient addition depends on the plant type and growth stage.
Maintenance
- Water Level: Check the water level daily. Refill with water when it reaches the 'MIN' line.
- Nutrient Solution Change: It is recommended to change the entire nutrient solution every 2-4 weeks, depending on plant growth and water clarity. Drain the old solution, clean the tank, and refill with fresh water and nutrients.
- Cleaning: Periodically clean the water tank, pump, and other components to prevent algae growth and mineral buildup. Use the provided cleaning brush (if applicable) and a mild, non-toxic cleaning solution. Rinse thoroughly before refilling.
- Pruning: Prune your plants as needed to encourage bushier growth and prevent overcrowding.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Plants not growing or growing slowly |
|
|
| Fan not working or making unusual noise |
|
|
| Water pump not circulating water |
|
|
| Algae growth in water tank |
|
|
Specifications
- Brand: iDOO
- Model: Hydroponics Growing System Kit
- Material: Plastic
- Color: Black
- Special Features: Integrated Water Pump, Fan, Large Water Tank, Adjustable LED Lights
- Planter Form: Box
- Shape: Rectangular
- Indoor/Outdoor Usage: Indoor
- Number of Pieces (Sponges): 60
- Number of Levels: 1
- Compatible Plant Types: Herb, Vegetable, Flower, Succulent, Bonsai, Fruit
- Mounting Type: Floor Standing, Tabletop
Warranty and Support
Specific warranty information for the iDOO Hydroponics Growing System Kit is not available in the provided product data. Please refer to the manufacturer's official website or the product packaging for detailed warranty terms and conditions.
For technical support, troubleshooting assistance beyond this manual, or to inquire about replacement parts, please contact iDOO customer service through their official channels.
