COOCHEER 16-in-1 24QT Air Fryer Oven Instruction Manual

Introduction

Thank you for choosing the COOCHEER 16-in-1 24QT Air Fryer Oven. This appliance combines the functions of an air fryer, convection oven, and toaster oven, offering a versatile cooking experience. It features 16 preset cooking functions, a 24-quart capacity, and a 1700W heating system for efficient and healthy cooking. Please read this manual thoroughly before use to ensure safe and optimal operation.

Image: The COOCHEER 16-in-1 24QT Air Fryer Oven in stainless steel, showcasing a whole roasted chicken cooking inside its illuminated interior. The digital control panel is visible above the door.

Important Safety Instructions

• Read all instructions before using the appliance.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against electrical shock, do not immerse cord, plugs, or the appliance body in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
• The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
• Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to 'off', then remove plug from wall outlet.
• Do not use appliance for other than intended use.
• Ensure adequate ventilation around the appliance during operation.

Image: An illustration highlighting the safety features of the air fryer oven, including overheat protection, automatic shutoff, and a thermal protective door.

Product Components and Accessories

The COOCHEER Air Fryer Oven comes with several accessories to enhance your cooking versatility:

• Rotisserie Holder: For securing rotisserie items.
• Rotisserie Spit: For roasting whole chickens or other large cuts of meat.
• Wire Rack: For general baking, toasting, or cooling.
• Tong: For safely handling hot accessories and food.
• Food Basket: Ideal for air frying smaller items like fries or chicken wings.
• Crumb Tray: Collects crumbs and drips for easy cleaning.
• Oil Tray: Catches excess oil during cooking.
• Baking Pan: For baking various dishes.
• Grill: For grilling and searing.

Image: A visual representation of all included accessories: rotisserie holder, rotisserie spit, wire rack, tong, food basket, crumb tray, and oil tray, displayed alongside the air fryer oven.

Setup and First Use

1. Unpacking: Carefully remove all packaging materials, stickers, and labels from the appliance and its accessories.
2. Cleaning: Wipe the exterior of the oven with a damp cloth. Wash all removable accessories (food basket, wire rack, crumb tray, etc.) in warm, soapy water. Rinse thoroughly and dry completely before placing them back into the oven.
3. Placement: Place the air fryer oven on a stable, heat-resistant, and level surface. Ensure there is at least 4 inches (10 cm) of clearance on all sides and above the appliance for proper ventilation.
4. First Use Burn-in: Before cooking food, operate the oven empty for approximately 15-20 minutes at 400°F (200°C) to burn off any manufacturing residues. A slight odor or smoke may be present during this initial use; this is normal. Ensure the area is well-ventilated.
5. Power Connection: Plug the power cord into a grounded electrical outlet.

Operating Instructions

The COOCHEER Air Fryer Oven features an intuitive LED display and control knobs for easy operation.

Control Panel Overview

Image: A detailed view of the digital control panel, displaying the LED screen with temperature and time, a function knob, and buttons for temperature/time adjustment, fan speed, and power. The 16 preset cooking modes are clearly listed.

• Function Knob: Rotate to select from the 16 preset cooking functions. Press to confirm selection.
• LED Display: Shows selected function, temperature, time, and fan speed.
• TEMP/TIME Buttons: Use the up/down arrows to adjust temperature and cooking time.
• Fan Speed Button: Adjusts the convection fan speed.
• Light Button: Turns the interior oven light on/off to view cooking progress.
• ON/OFF Button: Powers the appliance on or off.
• START/CANCEL Button: Initiates or stops the cooking process.

Using Preset Functions

1. Place food and desired accessories inside the oven.
2. Press the ON/OFF button to power on the oven.
3. Rotate the Function Knob to cycle through the 16 preset options (e.g., Airfry, Toast, Bagel, Bake, Broil, Dehydrate, Pizza, Roast, Proof, Low, Vegetables, Fries, Snacks, Reheat, Warm, Nuggets).
4. Once the desired preset is highlighted, press the Function Knob to select it. The display will show the default temperature and time for that preset.
5. If desired, use the TEMP/TIME buttons to adjust the temperature or time.
6. Press the START/CANCEL button to begin cooking.

Manual Operation

1. Place food and desired accessories inside the oven.
2. Press the ON/OFF button.
3. Use the TEMP/TIME buttons to set your desired cooking temperature and time.
4. Press the START/CANCEL button to begin cooking.

Cooking Functions and Tips

This air fryer oven utilizes 360° hot air circulation for even and efficient cooking, reducing the need for excessive oil.

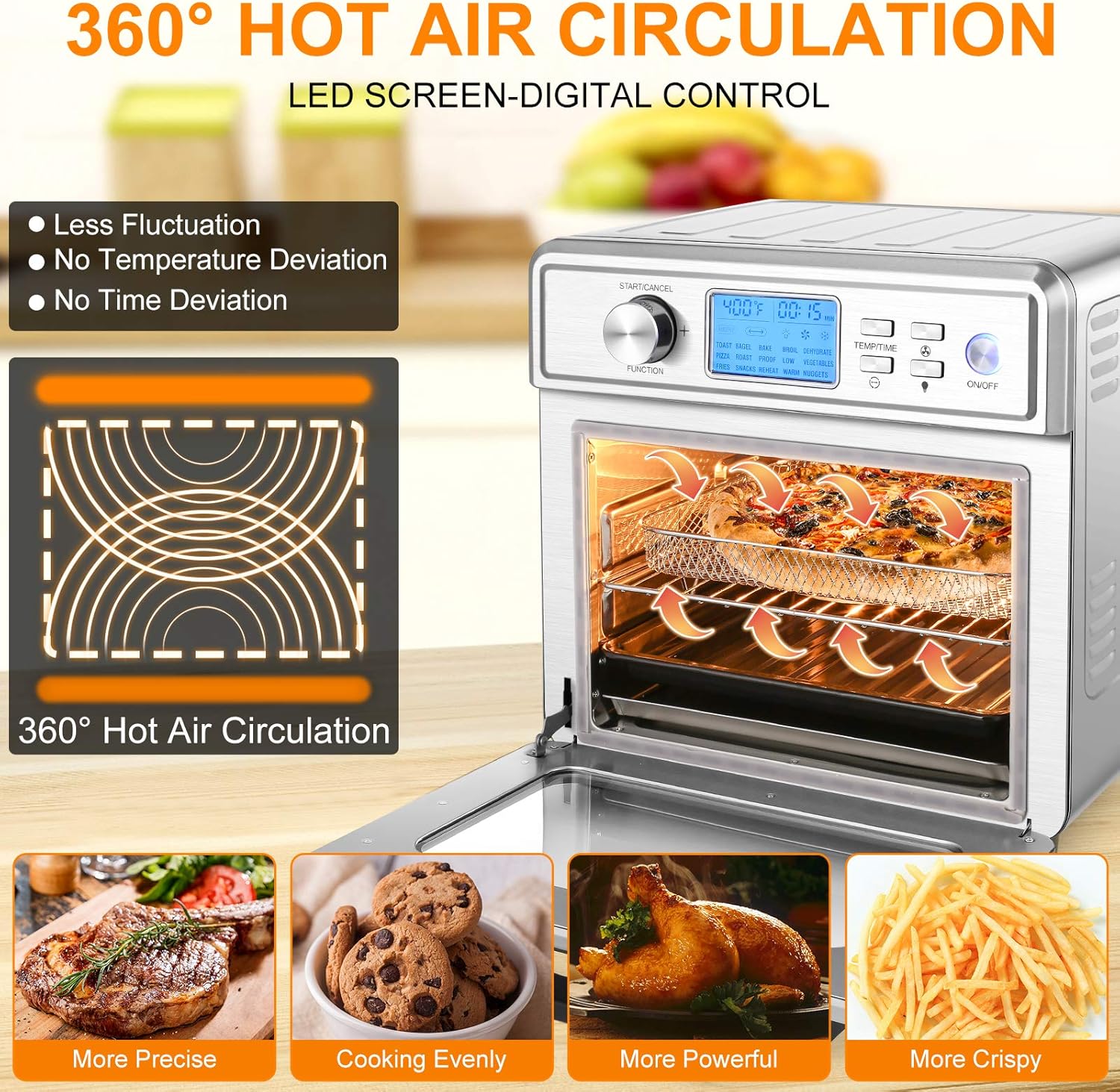

Image: A diagram illustrating the 360-degree hot air circulation system within the air fryer oven, ensuring even cooking and consistent results.

Air Frying

Air frying uses rapid hot air circulation to cook food, resulting in a crispy exterior with significantly less oil compared to traditional deep frying. This method can reduce fat by up to 85%.

Image: A visual comparison demonstrating the difference between deep-fried food (submerged in oil) and air-fried food (cooked with hot air), highlighting the significant reduction in oil usage with air frying.

• Use the food basket for best air frying results.
• Shake the basket halfway through cooking for even browning.
• A light spray of oil can enhance crispiness for some foods.

Roasting and Baking

The oven's convection feature ensures even heat distribution for roasting meats and baking various dishes.

• Use the rotisserie spit for whole chickens or roasts.
• Place items on the wire rack or baking pan as appropriate.

Dehydrating

The dehydrate function allows for low-temperature, long-duration cooking to dry fruits, vegetables, and make jerky.

Maintenance and Cleaning

Regular cleaning will ensure the longevity and optimal performance of your air fryer oven.

1. Unplug and Cool: Always unplug the appliance from the power outlet and allow it to cool completely before cleaning.
2. Exterior: Wipe the exterior with a soft, damp cloth. Do not use abrasive cleaners or scouring pads, as they may damage the stainless steel finish.
3. Interior: Wipe the interior walls with a damp cloth and mild detergent. For stubborn food residue, a non-abrasive sponge can be used. Ensure the interior is dry before next use.
4. Accessories: All removable accessories (food basket, wire rack, crumb tray, baking pan, oil tray, rotisserie parts) can be washed in warm, soapy water. They are generally dishwasher safe, but hand washing is recommended for best care.
5. Crumb Tray: Empty and clean the crumb tray regularly to prevent grease buildup and potential fire hazards.
6. Door: Clean the glass door with a soft cloth and glass cleaner.

Image: A hand wiping the interior of the air fryer oven with a green cleaning cloth, demonstrating the ease of cleaning the stainless steel surfaces.

Troubleshooting

If you encounter issues with your COOCHEER Air Fryer Oven, please refer to the following common problems and solutions:

Specifications

• Brand: COOCHEER
• Model Name: 16 in 1 Air Fryer Oven
• Item Model Number: 545deaf2-f7ae-40e6-8ada-ec3144c72f1e
• Material: Stainless Steel
• Power: 1700W
• Voltage: 120V 60Hz
• Capacity: 24 Quart (23 Liters)
• Temperature Range: 50°F - 430°F
• Control Type: Knob with LED Display
• Product Dimensions: 15.35"D x 15.74"W x 12.59"H (39cm D x 40cm W x 32cm H)
• Item Weight: 24.5 pounds

Image: A diagram illustrating the physical dimensions of the COOCHEER 24QT Air Fryer Oven, including depth, width, and height, along with its 24-quart capacity.

Warranty and Support

For warranty information or technical support, please refer to the warranty card included with your purchase or contact COOCHEER customer service directly. Keep your purchase receipt as proof of purchase for any warranty claims.

Manufacturer: COOCHEER
