Numark Party Mix Live DJ Controller User Manual

1. Introduction

The Numark Party Mix Live is an all-in-one compact DJ controller designed for intuitive mixing and dynamic performance. It features built-in speakers, integrated lighting effects, and seamless integration with Serato DJ Lite, making it suitable for both beginners and experienced DJs. This manual provides essential information for setting up, operating, and maintaining your device.

Figure 1: Numark Party Mix Live DJ Controller overview.

2. Setup

2.1 Package Contents

• Party Mix Live DJ Controller
• USB Cable
• Power Adapter
• Software Download Card (for Serato DJ Lite)
• Quickstart Guide

2.2 Connecting the Controller

1. Power Connection: Connect the included power adapter to the Party Mix Live and then to a power outlet.
2. USB Connection: Connect the Party Mix Live to your computer (Mac or Windows) using the provided USB cable. This connection facilitates data transfer and control.
3. Audio Output:
   • Main Output: Use a 1/8-inch (3.5mm) stereo cable to connect the main output of the Party Mix Live to your external speakers or sound system.
   • Headphone Output: Plug your DJ headphones into the 1/8-inch (3.5mm) headphone jack for private monitoring.

Figure 2: Rear view showing USB and audio connections.

2.3 Software Installation

The Party Mix Live includes Serato DJ Lite software. Follow these steps to install:

1. Visit the Serato website (serato.com/dj/lite/downloads) and download the latest version of Serato DJ Lite.
2. Install the software by following the on-screen instructions.
3. Once installed, launch Serato DJ Lite. The software should automatically detect your Party Mix Live controller.

3. Operating the Party Mix Live

The Party Mix Live offers a comprehensive set of controls for mixing and performance. Familiarize yourself with the layout:

Figure 3: Detailed view of the controller's top panel with labeled controls.

3.1 Basic DJ Controls

• Jog Wheels: Large, touch-sensitive jog wheels allow for scratching, nudging, and track searching.
• Play/Pause & Cue Buttons: Control track playback and set cue points.
• Sync Button: Automatically matches the BPM (beats per minute) of tracks for seamless transitions.
• Pitch Sliders: Adjust the tempo of each track manually.

3.2 Mixer Functions

• 2-Band EQ: Adjust the high and low frequencies for each deck to shape your sound.
• Filter Knobs: Apply high-pass or low-pass filters to create dynamic effects.
• Crossfader: Blend between the two decks.
• Level Knobs: Control the individual volume of each deck.
• Main Gain Control: Adjust the overall output volume of the controller.

3.3 Performance Pads

The Party Mix Live features four performance pads per deck, offering various functions:

• Hot Cue: Set and trigger instant cue points in your tracks.
• Loop: Create and trigger automatic loops of various lengths.
• Sampler: Trigger pre-loaded samples or create your own.
• Effect: Apply various effects to your tracks.

3.4 Integrated Lighting Effects

The built-in multi-colored LEDs provide a beat-synced light show, enhancing your performance environment.

• Light Mode Switch: Cycle through different lighting modes to suit your preference.
• The lights automatically sync to the beat of your music.

Figure 4: Close-up of the integrated multi-colored LED lights.

3.5 Built-in Speakers

The Party Mix Live includes 10W stereo speakers for immediate audio playback, ideal for practice or small gatherings.

• Speaker On/Off Switch: Allows for private headphone monitoring without external sound.

Figure 5: Detail of the built-in stereo speakers.

3.6 Music Streaming

Serato DJ Lite provides access to millions of tracks from leading streaming platforms:

• Apple Music
• TIDAL
• SoundCloud GO
• Beatport Link
• Beatsource Link

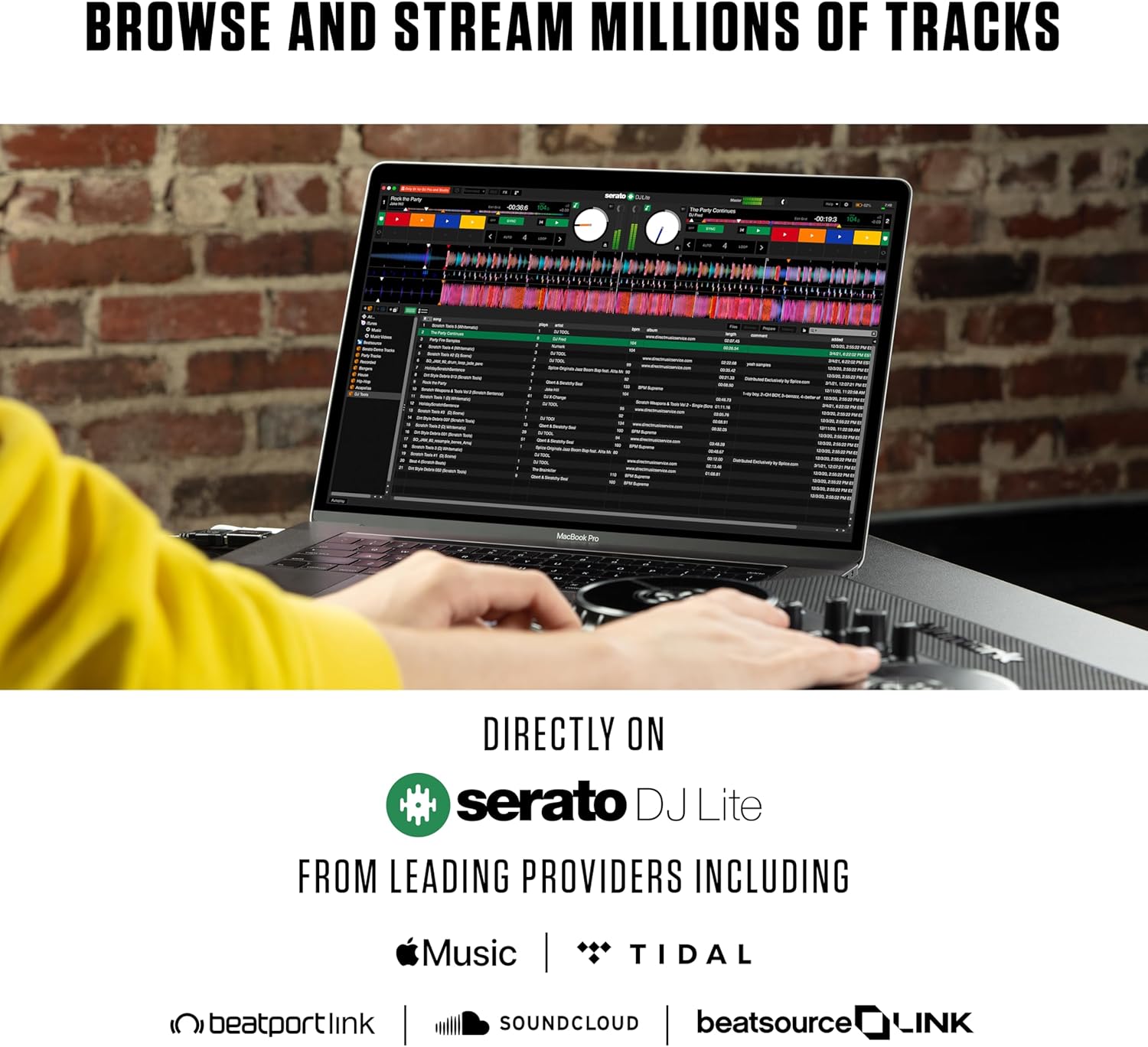

Figure 6: Serato DJ Lite interface showing integrated streaming services.

3.7 Official Product Video: DJ Controller with Lights & Speakers

Video 1: An official video from inMusic Brands Inc. showcasing the Numark Party Mix Live DJ Controller, highlighting its built-in lights and speakers. This video demonstrates the product's features and functionality in a dynamic setting.

3.8 Official Product Video: DJ Set for Beginners with Built-In DJ Lights

Video 2: An official video from inMusic Brands Inc. demonstrating the Numark Party Mix Live as a beginner-friendly DJ set, emphasizing its ease of use and integrated lighting features.

4. Maintenance

Proper maintenance ensures the longevity and optimal performance of your Party Mix Live.

• Cleaning: Use a soft, dry cloth to clean the exterior of the controller. Avoid abrasive cleaners or solvents.
• Storage: Store the controller in a cool, dry place away from direct sunlight and extreme temperatures.
• Cable Care: Avoid bending or crimping cables excessively to prevent damage.

5. Troubleshooting

If you encounter issues with your Party Mix Live, refer to the following common solutions:

• No Power: Ensure the power adapter is securely connected to both the controller and a working power outlet.
• No Sound:
  • Check all audio cable connections (main output to speakers, headphones).
  • Verify that the volume levels on the controller, software, and external speakers are turned up.
  • Ensure the built-in speaker switch is in the correct position if using internal speakers.
• Software Not Recognizing Controller:
  • Ensure the USB cable is securely connected.
  • Restart Serato DJ Lite and/or your computer.
  • Check for updated drivers for the controller on the Numark website.
• Lights Not Working: Ensure the controller is powered on and check the light mode switch.

6. Specifications

7. Warranty and Support

The Numark Party Mix Live DJ Controller comes with a manufacturer's warranty. Please refer to the warranty card included in your package for specific terms and conditions.

For technical support, product registration, or additional resources, please visit the official Numark website or contact their customer service department.

• Official Website: www.numark.com
• Support: Refer to the support section on the official website for FAQs, troubleshooting guides, and contact information.
