1. Introduction
This manual provides comprehensive instructions for the proper installation, operation, and maintenance of your EASWEL Metal Sewing Machine Bobbin Case. This bobbin case is specifically designed for compatibility with Brother sewing machine models LS-1717 and LS-2125. Please read this manual thoroughly before use to ensure optimal performance and longevity of the product.
2. Product Overview
The EASWEL Metal Sewing Machine Bobbin Case is a durable replacement or spare part for compatible Brother sewing machines. It is constructed from high-quality metal to ensure reliable performance and a long service life. The bobbin case holds the bobbin and regulates the lower thread tension, which is crucial for balanced stitches.

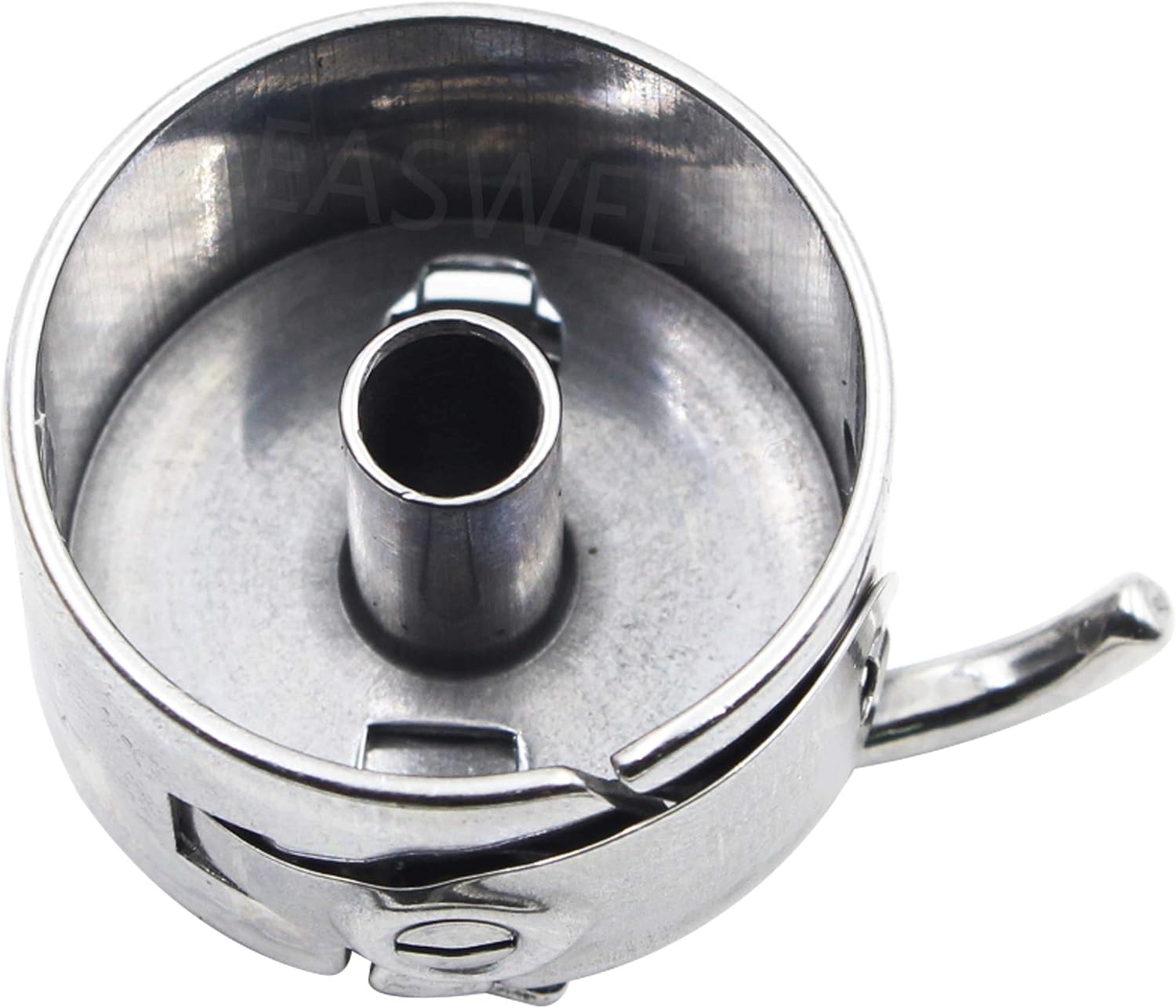

Figure 2.1: Top-down view of the bobbin case. This image displays the interior of the metal bobbin case, highlighting the central spindle where the bobbin is placed and the tension spring mechanism.
Figure 2.2: Side view of the bobbin case. This image shows the exterior of the bobbin case, including the latch or finger that helps secure it within the sewing machine's shuttle hook assembly.
3. Setup and Installation
- Power Off: Ensure your Brother sewing machine (LS-1717 or LS-2125) is turned off and unplugged from the power outlet for safety.
- Access Bobbin Area: Open the bobbin cover plate on your sewing machine. This is typically located on the flatbed area or in the front access panel, depending on your specific model.
- Remove Old Bobbin Case (if applicable): If replacing an existing bobbin case, carefully remove it. Note its orientation for easier installation of the new one.
- Insert Bobbin: Place a wound bobbin into the new EASWEL bobbin case. Ensure the thread unwinds in the correct direction (usually counter-clockwise when viewed from the top, but refer to your sewing machine's main manual for precise guidance).
- Thread Bobbin Case: Guide the bobbin thread through the tension spring slot on the side of the bobbin case. Pull the thread gently to ensure it moves smoothly and has appropriate tension.
- Install Bobbin Case: Hold the bobbin case by its latch/finger and insert it into the shuttle hook assembly of your sewing machine. The latch should align with the notch in the machine's bobbin area. Push firmly until it clicks securely into place.
- Close Cover: Close the bobbin cover plate.
4. Operating Instructions
Once the bobbin case is installed with a threaded bobbin, you can proceed with normal sewing operations. The bobbin case works in conjunction with the upper thread to form stitches.
- Raise Needle: Turn the handwheel towards you to raise the needle to its highest position.
- Lower Presser Foot: Place your fabric under the presser foot.
- Bring Up Bobbin Thread: Hold the upper thread tail lightly. Turn the handwheel towards you slowly, allowing the needle to go down and then come back up. As the needle rises, it will catch the bobbin thread, forming a loop. Gently pull the upper thread to bring the bobbin thread loop up through the needle plate.
- Position Threads: Pull both the upper and bobbin threads towards the back of the machine, under the presser foot.
- Begin Sewing: You are now ready to begin sewing. Ensure your upper thread tension is correctly set for your fabric and thread type to achieve balanced stitches.
5. Maintenance
- Regular Cleaning: Periodically remove the bobbin case from your machine. Use a small brush or lint remover to clean any lint, dust, or thread fragments that may accumulate around the bobbin case and in the shuttle hook area. Accumulation can affect thread tension and stitch quality.
- Inspect for Damage: Regularly inspect the bobbin case for any signs of wear, nicks, or burrs, especially on the tension spring and edges. Damaged areas can snag thread and cause stitching problems. Replace the bobbin case if significant damage is observed.
- Lubrication: Refer to your sewing machine's main manual for specific lubrication instructions for the bobbin area. Some machines require a drop of sewing machine oil in the shuttle hook assembly. Do not oil the bobbin case directly unless specified by your machine's manufacturer.
6. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Skipped Stitches | Incorrectly installed bobbin case, bent needle, or improper threading. | Re-install bobbin case, replace needle, re-thread machine (both upper and bobbin). |
| Thread Breakage (Bobbin) | Bobbin thread tension too tight, burr on bobbin case, or bobbin wound unevenly. | Adjust bobbin tension (small screw on bobbin case), inspect bobbin case for damage, re-wind bobbin. |
| Uneven Stitches / Looping | Incorrect bobbin tension, lint in bobbin case, or upper thread tension imbalance. | Clean bobbin case, adjust bobbin tension, adjust upper thread tension. |
| Bobbin Case Not Seating Properly | Obstruction in the bobbin area, incorrect orientation, or damage to the bobbin case. | Remove any lint or debris, ensure correct alignment, inspect for damage. |
For further troubleshooting, consult your Brother sewing machine's main instruction manual or contact a qualified sewing machine technician.
7. Specifications
- Brand: EASWEL
- Material: Metal
- Compatible Sewing Machine Models: Brother LS-1717, Brother LS-2125
- Model Number (EASWEL): LS 2125 (referring to the compatible machine model)
- UPC: 717664266528
8. Warranty and Support
For information regarding warranty coverage or technical support for your EASWEL Metal Sewing Machine Bobbin Case, please refer to the seller's policies or contact the manufacturer directly through their official channels. Keep your purchase receipt as proof of purchase.
