Introduction
This manual provides detailed instructions for the assembly, operation, and maintenance of your Lifetime 60296 Horizontal Storage Shed. Designed for durability and convenience, this shed offers a practical solution for outdoor storage. Please read these instructions carefully before beginning assembly and retain them for future reference.
The Lifetime Horizontal Storage Shed features a compact footprint with ample internal volume, constructed from UV-protected, weather-resistant, steel-reinforced, rigid dual-wall high-density polyethylene. It includes lockable doors and a spring-hinge lid for secure and easy access.
Safety Information
Always prioritize safety during assembly and use. Follow all instructions to prevent injury or damage to the product.
- Ensure all parts are present and undamaged before assembly.
- Wear appropriate safety gear, such as gloves and eye protection, during assembly.
- Do not overtighten screws, especially when fastening into plastic components, to avoid stripping threads.
- Assemble on a level, stable surface.
- Keep children and pets away from the assembly area.
- Do not store flammable liquids or hazardous materials inside the shed unless properly contained and ventilated.
- Secure the shed to the ground if required by local building codes or if located in windy areas.
Setup and Assembly
Careful assembly is crucial for the shed's stability and weather resistance. Follow the steps below.
1. Site Preparation
The shed must be installed on a level and well-drained surface to ensure proper function and longevity. Suitable foundations include:
- Concrete Pad
- Wood Platform
- Steel Platform
It is NOT recommended to use dirt, grass, woodchips, gravel, hillsides, or unlevel ground as a foundation.
Image: Recommended surface types for shed installation. A level and well-drained foundation is essential for stability and water resistance.
2. Unpacking and Part Identification
Carefully unpack all components and verify against the parts list provided in your packaging. Separate similar parts to avoid confusion during assembly.
3. Base and Floor Assembly
Assemble the base frame and attach the high-density polyethylene (HDPE) floor panels. Ensure the floor is securely fastened and level. The HDPE floor is designed to be oil, stain, and slip-resistant.
4. Wall Panel Installation
Attach the steel-reinforced dual-wall HDPE panels to the base. Ensure panels are correctly aligned and secured. Be cautious not to overtighten screws, as they fasten into plastic components.
Image: Illustration of the shed's Weather Double Wall System (DWS), demonstrating its robust construction for strength and impact resistance.
5. Roof and Lid Assembly
Install the roof panels and the spring-hinge lid. The controlled hinge prevents accidental closures. It is recommended to apply a bead of silicone sealant between the two halves of the roof during assembly to enhance weatherproofing and prevent water ingress.
6. Door Installation
Attach the lockable doors. Ensure they open and close smoothly and the external latching mechanism functions correctly.
Image: Detail of the shed's lockable doors, featuring black handles and a secure latch mechanism for a padlock (padlock not included).
Operation
The Lifetime Horizontal Storage Shed is designed for straightforward use.
Opening and Closing
- To open the lid, lift it upwards. The spring-hinge mechanism will assist in holding it open.
- To close the lid, gently pull it down until it rests securely.
- To open the doors, unlatch them and pull outwards.
- To close the doors, push them shut and engage the external latching mechanism.
Locking the Shed
The shed features lockable doors for enhanced security. A padlock (not included) can be attached to the external latching mechanism to secure the contents.
Image: Demonstrates the ease of placing large items, such as garbage cans, into the shed with its wide-opening lid and doors.
Image: Shows the shed accommodating garden equipment like a lawnmower and gas can, highlighting its versatility.
Maintenance
The Lifetime Horizontal Storage Shed is designed for low maintenance, thanks to its durable materials.
- Cleaning: The rough cut texture polyethylene plastic is easy to clean. Use mild soap and water with a soft brush or cloth. Avoid abrasive cleaners or harsh chemicals that could damage the surface.
- No Painting Required: The shed's material never needs to be painted.
- Inspection: Periodically check all fasteners to ensure they remain tight. Inspect the lid hinges and door latches for smooth operation.
- Weatherproofing: If water ingress is observed, inspect the roof seams and apply additional silicone sealant as needed.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Water leaking into shed | Improperly sealed roof seams; uneven foundation. | Apply silicone sealant to roof seams, especially where the two halves meet. Ensure the shed is on a level surface. |
| Doors or lid do not close properly | Misalignment during assembly; obstruction. | Check for obstructions. Re-align door hinges or lid if necessary. Ensure the shed is on a level foundation. |
| Screws stripping during assembly | Overtightening, especially into plastic. | Use hand tools for final tightening. Do not use power tools on low-torque plastic connections. If stripped, consider using slightly larger screws or plastic anchors if appropriate. |
Specifications
| Feature | Detail |
|---|---|
| Model Number | 60296U |
| Dimensions (L x W x H) | 191.5 x 109 x 132 cm (75.24"L x 42.52"W x 52.05"H) |
| Material | High-Density Polyethylene (HDPE) with Steel Reinforcement |
| Color | Storm Dust |
| Item Weight | 146 Pounds |
| Water Resistance Level | Water Resistant |
| Special Features | Impact Resistant, UV Protection, Lockable Doors, Spring-Hinge Lid |
| Recommended Use | Outdoor Storage (e.g., garbage cans, garden tools, firewood) |

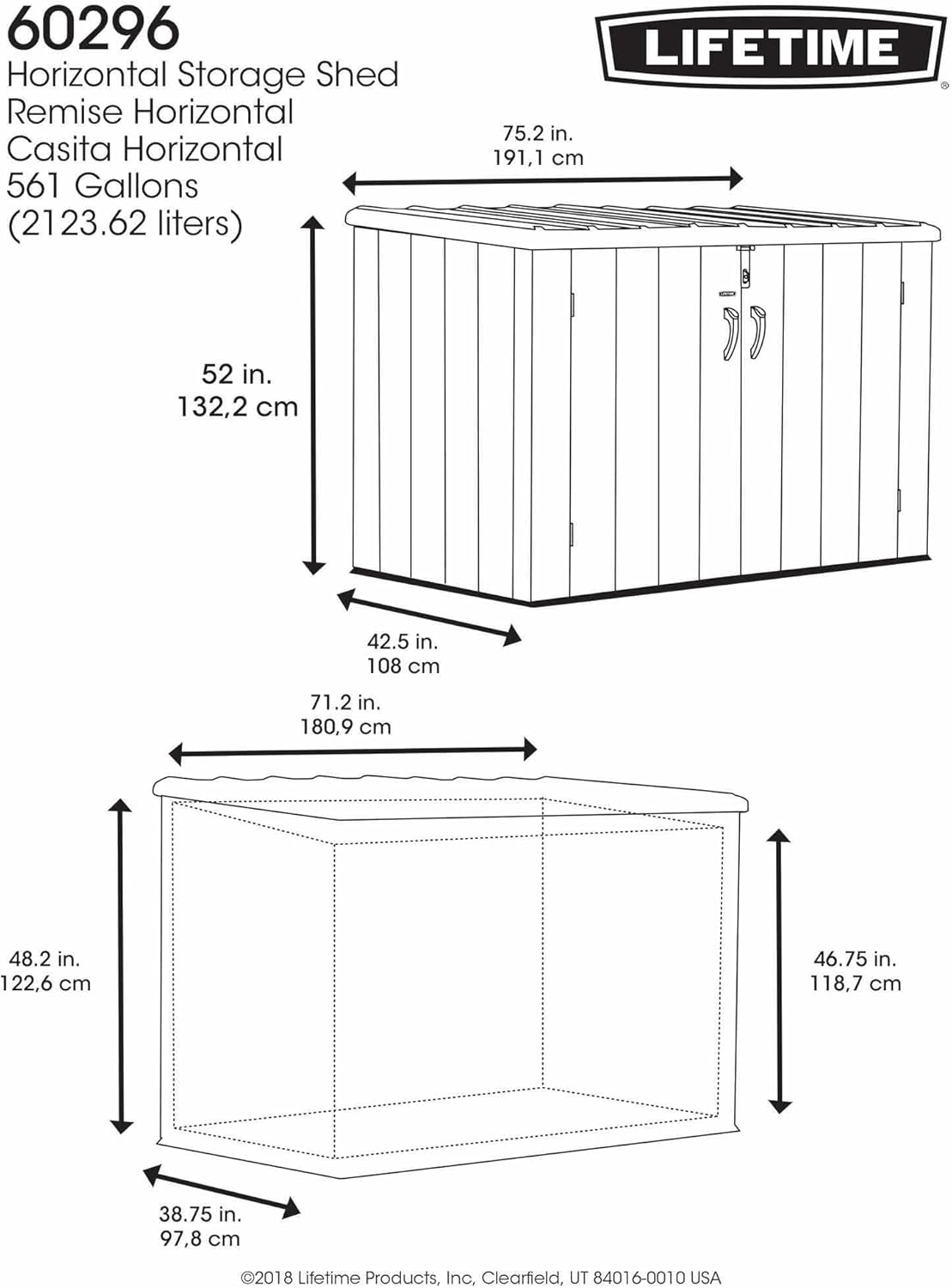

Image: Detailed dimensional drawing of the Lifetime 60296 Horizontal Storage Shed, including overall measurements and internal capacity.
Customer Support
For further assistance, parts replacement, or warranty inquiries, please contact Lifetime Products customer support. Refer to your product packaging or the Lifetime website for the most current contact information.
Warranty: Information regarding product warranty can typically be found on the manufacturer's official website or within the product packaging. Please retain your proof of purchase for warranty claims.
