Orbegozo Air 35 3-in-1 Evaporative Air Conditioner User Manual

Introduction

Thank you for choosing the Orbegozo Air 35 3-in-1 Evaporative Air Conditioner. This appliance is designed to provide a comfortable indoor environment by offering three functions: cooling, humidifying, and air purifying. Its efficient design helps eliminate dust and unpleasant odors, ensuring fresh and pleasant air circulation. This manual provides detailed instructions for safe operation, setup, maintenance, and troubleshooting to ensure optimal performance and longevity of your unit.

Important Safety Instructions

Please read all instructions carefully before using the appliance and keep this manual for future reference. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• Always ensure the appliance is placed on a stable, flat surface.
• Do not immerse the appliance, cord, or plug in water or other liquids.
• Unplug the appliance from the power outlet before cleaning, filling, or performing any maintenance.
• Keep the appliance out of reach of children and pets.
• Do not block the air inlets or outlets. Ensure adequate ventilation around the unit.
• Do not use the appliance if the power cord or plug is damaged. Contact qualified service personnel for repair.
• Only use the appliance indoors. Do not use it in bathrooms or other humid environments.
• Do not place objects on top of the appliance.
• Use only clean tap water in the water tank. Do not add any chemicals or additives other than those specifically recommended by the manufacturer.
• Ensure the water tank is properly seated before operating the unit.

Product Features

The Orbegozo Air 35 is equipped with several features designed for your comfort and convenience:

• 3-in-1 Functionality: Provides cooling, humidification, and air purification.
• Powerful Performance: 60W motor for effective air circulation.
• Adjustable Fan Speeds: Three fan speeds (Low, Medium, High) to suit your preference.
• Large Water Tank: Removable 3-liter water tank for extended operation.
• Washable Filter: Easy-to-clean filter for improved air quality.
• Adjustable Louvers: External louvers can be adjusted for optimal air distribution and can be fully closed.
• Portable Design: Equipped with swivel wheels and locks for easy movement between rooms.
• Cold Accumulators: Includes ice packs to enhance cooling performance.
• Quiet Operation: Designed for silent operation, ensuring undisturbed rest.

Figure 1: Front view of the Orbegozo Air 35 Evaporative Air Conditioner, showcasing its compact design and integrated wheels.

Package Contents

Please check the package contents upon unpacking:

• 1 x Orbegozo Air 35 Evaporative Air Conditioner Unit
• 2 x Cold Accumulators (Ice Packs)
• 1 x User Manual (This document)

Setup

1. Unpacking

Carefully remove the appliance and all accessories from the packaging. Retain the packaging for future storage or transport.

2. Placement

Place the unit on a firm, level surface. Ensure there is at least 20 cm (8 inches) of clear space around the unit for proper airflow. The swivel wheels allow for easy positioning.

3. Filling the Water Tank

1. Pull out the water tank from the bottom rear of the unit.
2. Fill the tank with clean tap water. Do not exceed the "MAX" fill line indicated on the tank.
3. Carefully slide the water tank back into the unit until it clicks into place.

Figure 2: Illustration of the removable water tank being pulled out for filling.

4. Inserting Cold Accumulators (Optional)

For enhanced cooling, you can use the included cold accumulators:

1. Place the cold accumulators in a freezer for several hours until completely frozen.
2. Open the top cover of the unit.
3. Place the frozen cold accumulators into the designated slots in the water tank.
4. Close the top cover securely.

Figure 3: View of the top compartment showing the placement of the cold accumulators.

Operating Instructions

1. Control Panel Overview

The control panel is located on the top of the unit and features two rotary knobs:

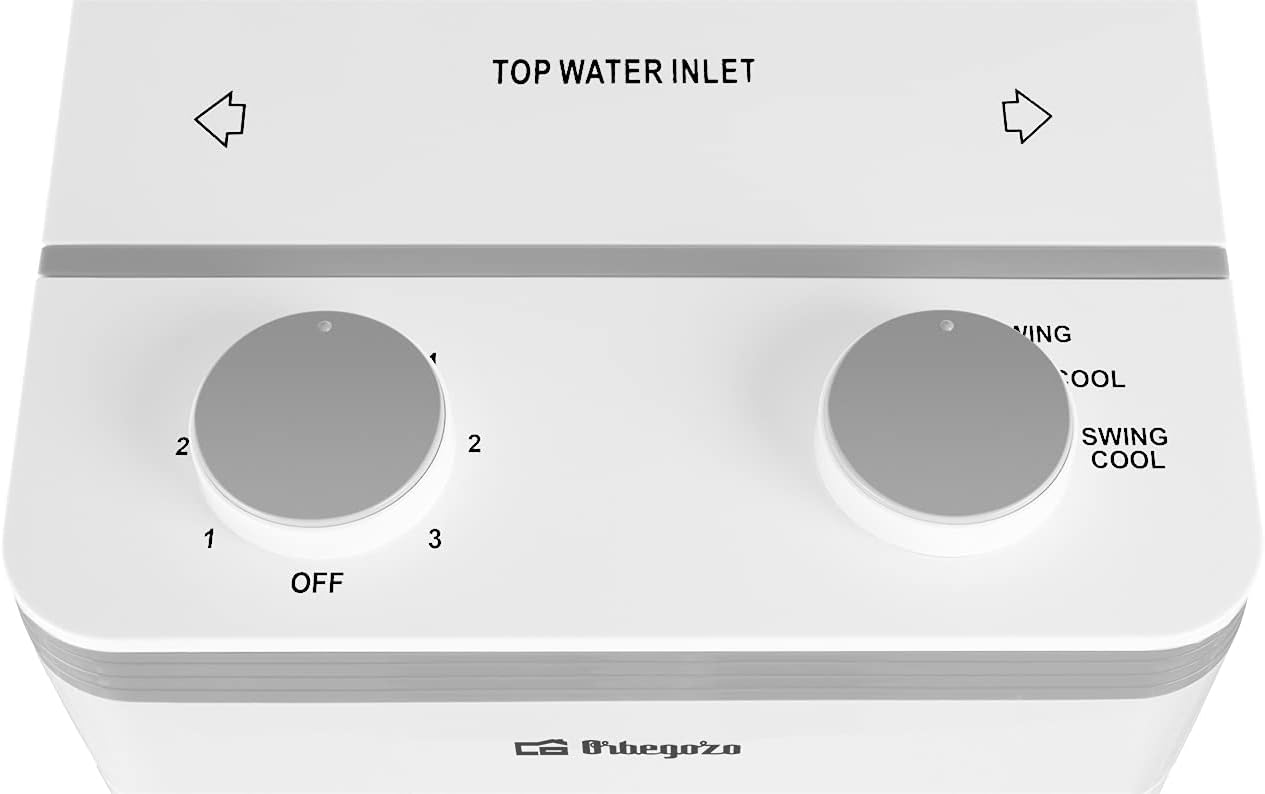

Figure 4: Close-up of the control panel, showing the fan speed and mode selection knobs.

• Left Knob (OFF/1/2/3): Controls the fan speed.
  • OFF: Turns the unit off.
  • 1: Low fan speed.
  • 2: Medium fan speed.
  • 3: High fan speed.
• Right Knob (SWING/COOL/SWING COOL): Selects the operating mode.
  • SWING: Activates the automatic oscillation of the internal louvers for wider air distribution.
  • COOL: Activates the evaporative cooling function. Ensure the water tank is filled.
  • SWING COOL: Activates both oscillation and evaporative cooling simultaneously.

2. Power On/Off

To turn the unit ON, rotate the left knob from OFF to your desired fan speed (1, 2, or 3). To turn the unit OFF, rotate the left knob back to OFF.

3. Adjusting Fan Speed

Rotate the left knob to select between Low (1), Medium (2), or High (3) fan speeds.

4. Evaporative Cooling Function (COOL Mode)

Ensure the water tank is filled with water. Rotate the right knob to "COOL" or "SWING COOL" to activate the evaporative cooling. The unit will draw water from the tank and evaporate it to cool the air.

5. Air Purification Function

The unit continuously purifies the air by filtering out dust and odors as it operates in any mode. Regular cleaning of the filter is recommended for optimal performance.

6. Adjusting Air Direction (Louvers)

The external louvers can be manually adjusted vertically to direct airflow. For automatic horizontal oscillation, select "SWING" or "SWING COOL" mode using the right knob.

Maintenance

Regular maintenance ensures the longevity and efficient operation of your Orbegozo Air 35.

1. Cleaning the Air Filter

The air filter should be cleaned regularly, especially if the unit is used frequently or in dusty environments.

1. Unplug the unit from the power outlet.
2. Locate the filter panel at the rear of the unit.
3. Carefully remove the filter.
4. Wash the filter with mild soap and water. Rinse thoroughly and allow it to air dry completely before reinserting.
5. Reinsert the dry filter back into its slot.

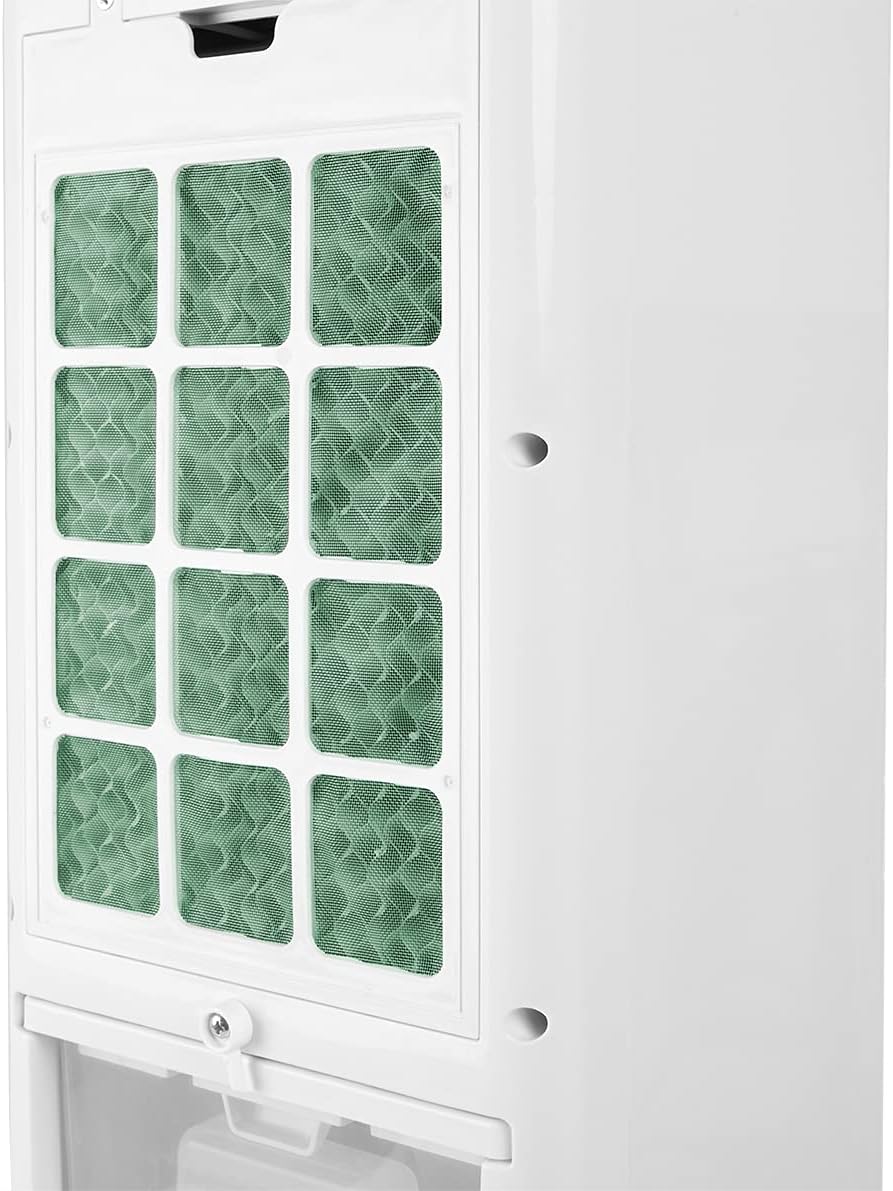

Figure 5: The washable air filter located at the back of the unit.

2. Draining and Cleaning the Water Tank

To prevent mold and mildew growth, drain and clean the water tank regularly, especially if the unit will not be used for an extended period.

1. Unplug the unit.
2. Pull out the water tank from the bottom rear.
3. Empty any remaining water.
4. Clean the tank with a soft cloth and mild detergent. Rinse thoroughly.
5. Allow the tank to air dry completely before reinserting it.

3. Exterior Cleaning

Wipe the exterior of the unit with a soft, damp cloth. Do not use abrasive cleaners or solvents.

4. Storage

If storing the unit for a long period, ensure the water tank is empty and dry, and the filter is clean. Store the unit in a cool, dry place, preferably in its original packaging.

Troubleshooting

Before contacting customer support, please refer to the following table for common issues and their solutions:

Specifications

Warranty and Support

Orbegozo products are manufactured to the highest quality standards. This product is covered by a manufacturer's warranty against defects in materials and workmanship from the date of purchase. Please retain your proof of purchase for warranty claims.

For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please contact Orbegozo customer support. Contact information can typically be found on the official Orbegozo website or on the product packaging.

Website: www.orbegozo.com (Please check the official website for your region's specific contact details.)
