1. Introduction
Thank you for choosing the Tornado RF-58T-BK No Frost Inverter Refrigerator. This appliance is designed to provide efficient and reliable food storage. This manual contains important information regarding the installation, operation, maintenance, and troubleshooting of your refrigerator. Please read it thoroughly before using the appliance and keep it for future reference.
The Tornado RF-58T-BK refrigerator features a 450-liter capacity and two doors. It comes in a black finish and includes an odor-removing filter with nano silver particles, a hybrid cooling system, and an automatic defrost system (No Frost). The interior is equipped with solid glass shelves and a double twist ice tray. Designed for tropical climates, it features a low-noise operation and is CFC-free. It boasts an A-class energy efficiency rating, ensuring high performance with lower electricity consumption. Dimensions (Width x Depth x Height): 700 x 720 x 1670 mm.
2. Safety Information
To ensure safe operation, please observe the following safety precautions:
- Electrical Safety: Ensure the refrigerator is connected to a grounded power outlet with the correct voltage. Do not use extension cords or adapters. Unplug the appliance before cleaning or performing any maintenance.
- Ventilation: Allow adequate space around the refrigerator for proper ventilation. Blocked vents can lead to overheating and reduced efficiency.
- Flammable Materials: Do not store explosive substances or highly flammable materials inside or near the refrigerator.
- Child Safety: Keep children away from the appliance, especially when the door is open. Ensure children do not play with the refrigerator.
- Handling: When moving the refrigerator, use appropriate lifting techniques and ensure it is transported upright to prevent damage to the cooling system.
- Repairs: All repairs should be performed by qualified service personnel. Unauthorized repairs can be dangerous and void the warranty.
3. Product Overview and Features
Your Tornado RF-58T-BK refrigerator is equipped with several features designed for convenience and optimal food preservation:
- No Frost System: Prevents ice build-up in the freezer, eliminating the need for manual defrosting.
- Inverter Technology: Optimizes compressor speed for energy efficiency and stable temperature control.
- Nano Silver Odor Filter: Helps to neutralize odors and maintain a fresh environment inside the refrigerator.
- Hybrid Cooling System: Ensures even and consistent cooling throughout both compartments.
- Durable Glass Shelves: Heavy-duty shelves provide robust storage and are easy to clean.
- Double Twist Ice Tray: Conveniently produces and dispenses ice cubes.
- LED Interior Lighting: Provides bright and energy-efficient illumination of the refrigerator compartment.
- Low-Noise Design: Operates quietly, minimizing disturbance in your home.
- CFC-Free: Environmentally friendly design, free from harmful chlorofluorocarbons.
Product Views
Figure 3.1: Front view of the Tornado RF-58T-BK refrigerator, showcasing its black finish and two doors.

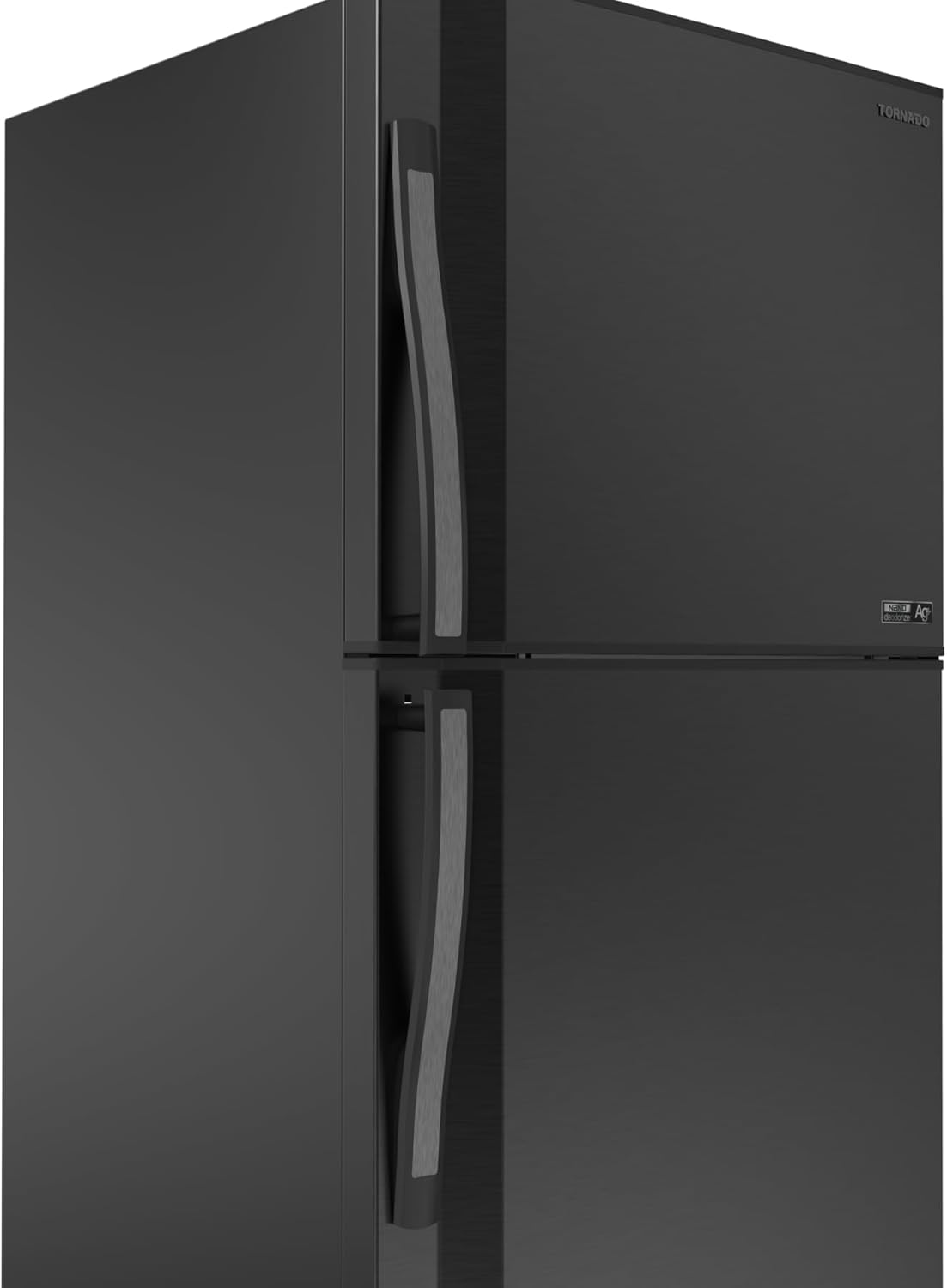

Figure 3.2: Angled front view of the refrigerator, highlighting the door handles and overall design.

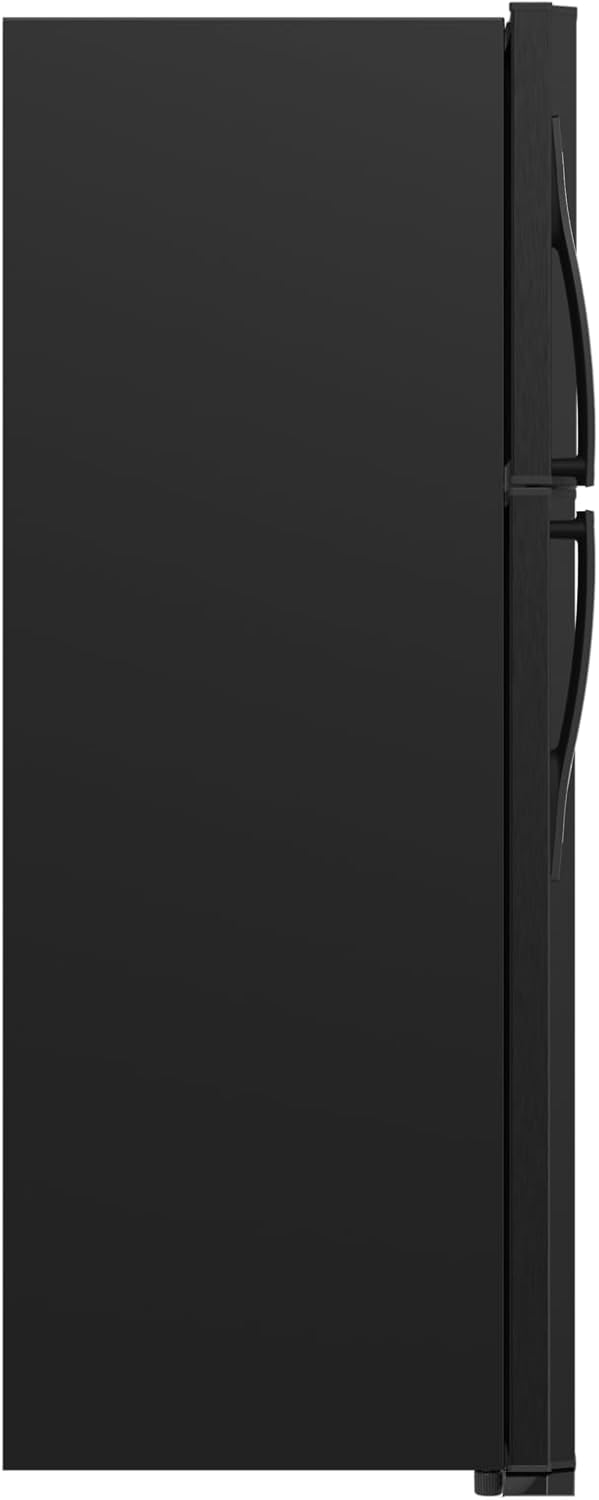

Figure 3.3: Side view of the refrigerator, showing its depth and sleek profile.
Figure 3.4: Back view of the refrigerator, illustrating the condenser coils and power cord connection area.
Figure 3.5: Interior view of the refrigerator, showing the arrangement of glass shelves, door bins, and the twist ice tray in the freezer compartment.
4. Setup and Installation
Proper installation is crucial for the performance and longevity of your refrigerator. Follow these steps carefully:
- Unpacking: Remove all packaging materials, including tape and protective films. Inspect the refrigerator for any damage during transit.
- Placement: Choose a location with a solid, level floor that can support the weight of the refrigerator when fully loaded. Avoid direct sunlight or heat sources (e.g., oven, radiator). Ensure there is at least 10 cm (4 inches) of space behind and on the sides of the refrigerator for adequate air circulation.
- Leveling: Use the adjustable leveling feet at the bottom front of the refrigerator to ensure it is stable and level. A level appliance prevents vibrations and ensures proper door sealing.
- Cleaning: Before first use, clean the interior and exterior of the refrigerator with a mild detergent and warm water. Wipe dry thoroughly.
- Power Connection: Plug the refrigerator into a dedicated, grounded electrical outlet. Do not share the outlet with other appliances.
- Initial Operation: After plugging in, allow the refrigerator to run for at least 2-4 hours before placing food inside. This allows the internal temperature to stabilize.
5. Operating Instructions
Familiarize yourself with the controls and functions of your refrigerator:
- Temperature Control: The temperature control dial or digital panel (if applicable) is usually located inside the refrigerator compartment. Adjust the setting to achieve your desired cooling level. A medium setting is typically recommended for general use.
- No Frost System: This refrigerator features an automatic defrost system. You will not need to manually defrost the freezer compartment.
- Twist Ice Tray: To make ice, fill the ice tray with water and place it in the freezer. Once frozen, twist the knobs on the tray to release the ice cubes into the storage bin below.
- Food Storage: Arrange food items to allow for proper air circulation. Avoid blocking air vents. Store raw meats on lower shelves to prevent dripping onto other foods.
- Door Usage: Avoid opening the doors frequently or for extended periods to maintain internal temperature and energy efficiency.
6. Maintenance and Care
Regular maintenance helps ensure optimal performance and extends the life of your appliance:
- Cleaning the Interior: Unplug the refrigerator. Remove all food items and removable parts (shelves, drawers). Wash with a solution of mild detergent and warm water. Rinse and dry thoroughly. Do not use abrasive cleaners or harsh chemicals.
- Cleaning the Exterior: Wipe the exterior surfaces with a soft cloth dampened with mild detergent. For the black finish, use a non-abrasive cleaner to avoid scratches.
- Door Gaskets: Regularly check and clean the door gaskets (seals) to ensure they are free from food particles and remain flexible. A tight seal is essential for energy efficiency.
- Condenser Coils: The condenser coils are typically located at the back or bottom of the refrigerator. Dust and debris can accumulate on them, reducing efficiency. Periodically clean them with a soft brush or vacuum cleaner. Ensure the refrigerator is unplugged before cleaning the coils.
- Odor Filter: The nano silver odor filter may require periodic cleaning or replacement. Refer to specific instructions for filter maintenance if provided with the appliance or contact customer support.
7. Troubleshooting
Before contacting customer service, try these troubleshooting steps for common issues:
| Problem | Possible Cause | Solution |
|---|---|---|
| Refrigerator does not operate. | No power supply; power cord not plugged in; circuit breaker tripped. | Check power connection; reset circuit breaker. |
| Refrigerator is not cooling sufficiently. | Temperature setting too high; door not closed properly; excessive door openings; warm food placed inside; poor ventilation. | Adjust temperature setting; ensure door is sealed; reduce door openings; allow hot food to cool before storing; ensure proper clearance around the unit. |
| Unusual noises. | Refrigerator not level; items vibrating inside; normal operating sounds (e.g., refrigerant flow, compressor). | Level the refrigerator; rearrange items; normal sounds are expected. |
| Water on the floor. | Drain tube clogged; drip tray overflowing. | Clear the drain tube; empty and clean the drip tray. |
| Odor inside the refrigerator. | Food items not properly sealed; odor filter needs cleaning/replacement. | Seal food containers; clean interior; check/replace odor filter. |
If the problem persists after attempting these solutions, please contact authorized service personnel.
8. Specifications
| Feature | Detail |
|---|---|
| Brand Name | Tornado |
| Model Information | RF-58T-BK |
| Product Dimensions (W x D x H) | 70 x 72 x 167 cm |
| Item Weight | 50 Kilograms |
| Capacity | 450 Liters |
| Fresh Food Capacity | 320 Liters |
| Freezer Capacity | 130 Liters |
| Energy Efficiency | A+ |
| Installation Type | Freestanding |
| Configuration | Side-by-Side (Two-door) |
| Color | Black |
| Defrost System Type | Automatic (No Frost) |
| Door Hinges | Right |
| Door Material Type | Stainless Steel |
| Shelf Type | Glass |
| Material Type | Metal |
| Special Features | Portable (Note: This feature might refer to ease of movement with wheels, not a small portable unit) |
9. Warranty and Support
Your Tornado RF-58T-BK refrigerator comes with a manufacturer's warranty. Please refer to the separate warranty card included with your purchase for specific terms and conditions, including warranty period and coverage details. For technical support, service requests, or inquiries about spare parts, please contact Tornado customer service through their official channels. Keep your purchase receipt as proof of purchase for warranty claims.
