SABYDICAR 16-inch Bladeless Tower Fan User Manual

1. Introduction

This manual provides detailed instructions for the safe and efficient operation and maintenance of your SABYDICAR 16-inch Bladeless Tower Fan. Please read this manual thoroughly before use and retain it for future reference.

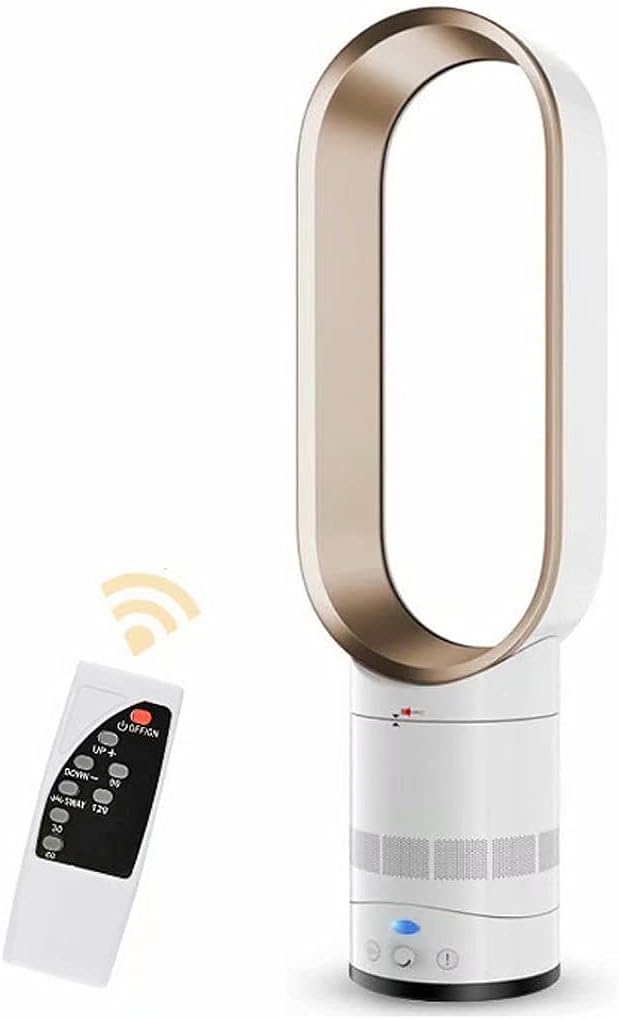

Figure 1.1: SABYDICAR 16-inch Bladeless Tower Fan with remote control.

2. Safety Instructions

To ensure safe operation, please observe the following precautions:

• Child and Pet Safety: The bladeless design eliminates fast-rotating blades, making it safe for children and pets. However, always supervise children around the appliance.
• Airflow Obstruction: Do not cover the air inlet or outlet during operation to prevent overheating and ensure proper airflow.
• Power Source: Ensure the power supply matches the voltage specified for the fan. Unplug the fan when not in use or before cleaning.
• Cleaning: Do not immerse the fan in water. Clean only with a damp cloth as instructed in the maintenance section.
• Remote Control Battery: If using USB power, remove the battery from the remote control.

Figure 2.1: The bladeless design ensures safety for children and pets by eliminating exposed rotating blades.

3. Product Overview

The SABYDICAR 16-inch Bladeless Tower Fan is designed for efficient air circulation and purification. Its innovative design provides a smooth, consistent airflow without traditional blades, contributing to a safer and quieter environment.

Key Features:

• Bladeless Design: Enhanced safety and easy cleaning.
• Air Purification: Built-in HEPA filter for filtering small particles.
• Remote Control: Convenient operation from a distance.
• Oscillation: 90-degree oscillation for wide area coverage.
• Quiet Operation: Optimized air channels reduce noise levels.

Figure 3.1: The fan provides 90-degree super wide-angle air supply, circulates fresh air, and operates with low noise.

Figure 3.2: Internal components and materials, including the high-quality copper motor and ABS plastic casing.

4. Setup

Setting up your bladeless tower fan is straightforward:

1. Unpack the fan and its components from the packaging.
2. Place the fan on a stable, flat surface.
3. Connect the power cord to the fan and then plug it into a suitable electrical outlet.

5. Operating Instructions

Your SABYDICAR Bladeless Tower Fan can be operated using the touch controls on the unit or the included remote control.

Remote Control Functions:

• ON/OFF: Powers the fan on or off.
• Wind Speed (UP+/DOWN-): Adjusts the airflow intensity. The fan features stepless speed regulation.
• Oscillation (SWAY 120): Activates or deactivates the 90-degree oscillation function.
• Timer (30/60/90/120 min): Sets the fan to automatically turn off after a preset interval (30, 60, 90, or 120 minutes).

The remote control has an effective range of 5 meters.

Figure 5.1: The remote control allows for convenient adjustment of fan settings, including power, wind speed, oscillation, and timer functions.

6. Maintenance

Regular cleaning will help maintain the performance and longevity of your fan:

• Cleaning: The fan is designed for easy cleaning. Simply wipe the exterior surfaces with a soft, damp cloth. There is no need to disassemble the unit for cleaning.
• Storage: When not in use for extended periods, store the fan in a cool, dry place, away from direct sunlight and moisture.

7. Troubleshooting

If you encounter any issues with your fan, please refer to the following common solutions:

• Fan Not Turning On: Ensure the power cord is securely plugged into both the fan and a working electrical outlet. Check if the power button on the fan or remote control has been pressed.
• Weak Airflow: Verify that the air inlet and outlet are not obstructed. Adjust the wind speed setting to a higher level using the remote control or touch panel.
• No Oscillation: Ensure the oscillation function is activated via the remote control. Check for any physical obstructions preventing rotation.
• Remote Control Not Working: Check the battery in the remote control and replace if necessary. Ensure there are no obstructions between the remote and the fan's sensor.

If the problem persists after attempting these solutions, please contact customer support.

8. Specifications

Detailed technical specifications for the SABYDICAR 16-inch Bladeless Tower Fan:

Figure 8.1: Visual representation of product dimensions and key parameters.

9. Warranty and Support

For warranty information or technical support, please refer to the purchase documentation or contact your retailer. Our customer service team is available to assist with any questions or concerns you may have regarding your SABYDICAR Bladeless Tower Fan.
