User Manual: For Sany Excavator SY215-8 Mitsubishi Engine 6D34 Throttle Motor

1. Introduction

This manual provides essential information for the installation, operation, and maintenance of the NC B220502000001 Throttle Motor. This component is specifically designed for use with Sany Excavator SY215-8 models equipped with the Mitsubishi 6D34 Engine. Please read this manual thoroughly before installation and operation to ensure proper function and safety.

2. Product Overview

The throttle motor is a critical component in the excavator's engine control system, responsible for precisely adjusting the engine's throttle position based on operator input and system requirements. It ensures optimal engine performance and fuel efficiency.

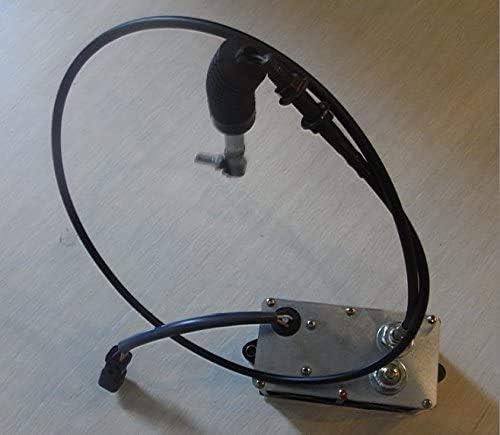

Figure 2.1: The NC B220502000001 Throttle Motor. This image shows the main throttle motor unit, including its integrated wiring harness and control box, designed for precise engine throttle control in compatible Sany excavators.

3. Setup and Installation

Safety First: Always ensure the excavator is turned off, the engine is cool, and the battery is disconnected before beginning any installation or maintenance work. Wear appropriate personal protective equipment (PPE).

1. Preparation: Park the excavator on a level surface and engage the parking brake. Allow the engine to cool down completely. Disconnect the negative terminal of the battery to prevent accidental starts or electrical shorts.
2. Locate Existing Throttle Motor: Identify the current throttle motor on your Sany SY215-8 excavator's Mitsubishi 6D34 engine. Refer to your excavator's service manual for exact location if unsure.
3. Disconnect Wiring and Linkages: Carefully disconnect all electrical connectors and mechanical linkages (e.g., throttle cables, rods) attached to the old throttle motor. Note their positions for reinstallation.
4. Remove Old Motor: Unbolt and remove the old throttle motor from its mounting bracket. Keep all fasteners for reuse if they are in good condition.
5. Install New Motor: Position the new NC B220502000001 throttle motor onto the mounting bracket. Secure it with the appropriate bolts, ensuring it is firmly seated.
6. Reconnect Wiring and Linkages: Reattach all electrical connectors and mechanical linkages to the new throttle motor. Ensure all connections are secure and properly aligned. Verify that the throttle linkage moves freely without binding.
7. Final Checks: Reconnect the battery's negative terminal. Before starting the engine, perform a visual inspection to ensure all tools are removed and all connections are secure.

4. Operating Instructions

The NC B220502000001 Throttle Motor operates as an integral part of the Sany SY215-8 excavator's engine management system. Its function is automatically controlled by the excavator's onboard computer (ECU) based on operator input (e.g., accelerator pedal position) and various sensor readings.

• Ensure the throttle motor is correctly installed and all connections are secure before starting the engine.
• Upon engine start-up, the ECU will perform a self-check of the throttle motor.
• The motor will adjust the engine RPM automatically in response to the operator's commands and load conditions.
• No direct manual operation of the throttle motor is required or recommended during normal operation.

5. Maintenance

Regular inspection and basic maintenance can extend the lifespan of your throttle motor and ensure reliable operation.

• Visual Inspection: Periodically inspect the throttle motor, its wiring, and linkages for any signs of wear, damage, corrosion, or loose connections.
• Cleaning: Keep the motor and its surrounding area clean from dirt, dust, and debris. Use a soft, dry cloth. Avoid using high-pressure water or harsh chemicals directly on the motor.
• Connection Check: Ensure all electrical connectors are firmly seated and free from corrosion.
• Linkage Lubrication: If applicable, ensure any mechanical linkages connected to the throttle motor are properly lubricated according to the excavator's maintenance schedule.

6. Troubleshooting

If you experience issues with the throttle motor, consider the following common problems and solutions. For complex issues, consult a qualified technician or the excavator's service manual.

7. Specifications

8. Warranty and Support

Specific warranty terms and support contact information are not provided within this manual. For details regarding warranty coverage, technical support, or replacement parts, please refer to the original purchase documentation or contact the seller/manufacturer directly.
