Armocity 5BC-O Tall 5-Tier Bookshelf Instruction Manual

Product Overview

The Armocity 5BC-O Tall 5-Tier Bookshelf is designed to provide versatile storage and display solutions for various rooms, including living rooms, bedrooms, kitchens, study rooms, and entryways. This industrial-style bookcase features a sturdy construction of high-quality wooden boards and a metal frame, offering ample space for books, decorative items, and other essentials.

Image: The fully assembled Armocity 5-Tier Bookshelf, showcasing its design and potential use in a living room.

Safety Information

• Ensure the shelf is leveled and not overloaded to prevent tipping.
• Use the provided wall mounting hardware to secure the bookshelf to a wall, especially in households with children or pets, to prevent accidental falls.
• Do not climb on the bookshelf.
• Distribute weight evenly across all shelves.

Package Contents

Before assembly, verify that all components listed below are present and undamaged.

• High-quality Wooden Boards (for shelves and dividers)
• Sturdy Metal Frame components
• Metal X-frame Crossbars (for back stability)
• Adjustable Foot Pads
• Assembly Hardware (screws, Allen key wrench)
• Wall Mounting Hardware
• Instruction Manual

Assembly Instructions

Assembly is designed to be straightforward and typically takes less than 30 minutes. An Allen key wrench is the only tool required and is included.

1. Unpack and Identify Parts: Carefully unpack all components. Lay them out and identify each part using the provided labels and the parts list in the manual.
2. Assemble Metal Frame: Connect the top and bottom metal frame pieces using the provided screws and Allen key wrench. Ensure all connections are secure.
3. Install Shelves and Dividers: Insert the wooden shelves and dividers into the designated slots within the metal frame. Note that vertical segments are generally the same, but top and bottom horizontal segments may differ (e.g., 2 holes instead of 4).
4. Attach Crossbars: Secure the metal X-frame crossbars to the backside of the bookshelf. It is recommended to attach the crossbeams to each other first before attaching them to the main frame for easier alignment. These crossbars enhance stability.
5. Install Adjustable Foot Pads: Screw the adjustable foot pads into the bottom of the metal frame. These pads help stabilize the bookshelf on uneven surfaces and protect your flooring.
6. Wall Mounting (Recommended): For added safety and stability, especially in homes with children or pets, use the provided wall mounting hardware to secure the top of the bookshelf to a wall.

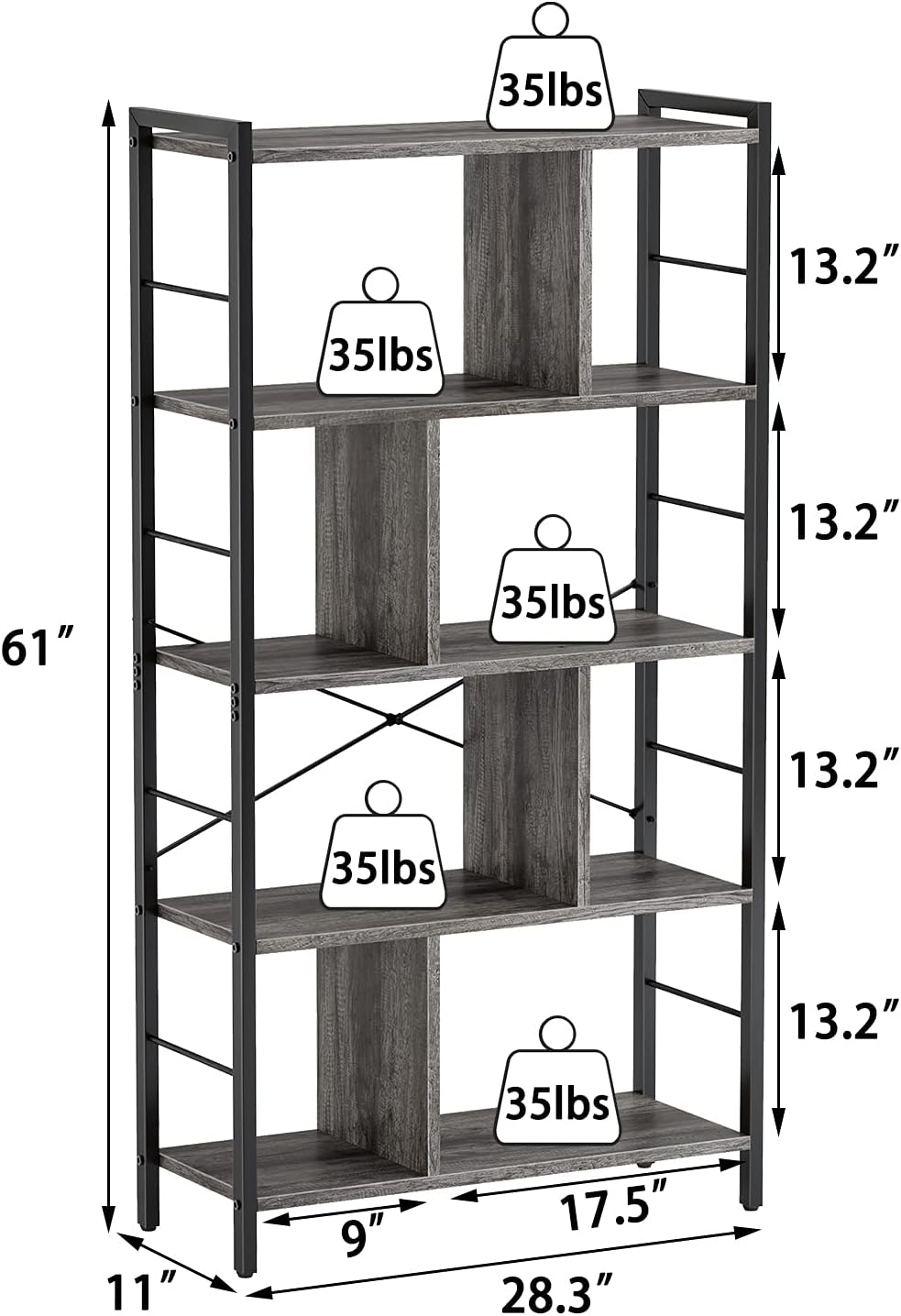

Image: Detailed dimensions of the bookshelf (61"H x 28.3"W x 11"D) and individual shelf weight capacity (35 lbs).

Image: Key features highlighted, including the asymmetrical design, sturdy structure, metal X-frame crossbars for stability, and adjustable leg pads.

Usage Guidelines

• This bookshelf is suitable for displaying books, family photos, CDs, plants, and other decorative items.
• Each tier is designed to hold a specific weight; avoid exceeding the recommended capacity (e.g., 35 lbs per shelf as indicated in product images).
• The staggered design allows for creative arrangement of items, enhancing the aesthetic appeal of your space.

Maintenance

• Cleaning: Wipe the surfaces with a dry cloth to remove dust and debris. Avoid using harsh chemicals or abrasive cleaners, which may damage the finish.
• Inspection: Periodically check all screws and connections to ensure they remain tight. Retighten if necessary.
• Placement: Avoid placing the bookshelf in direct sunlight or near heat sources to prevent warping or discoloration of the wooden components.

Troubleshooting

Instability / Wobbling

• Check Foot Pads: Ensure all adjustable foot pads are properly installed and adjusted to compensate for uneven flooring.
• Tighten Screws: Verify that all assembly screws are securely tightened. Loose connections can lead to instability.
• Wall Anchoring: Confirm the bookshelf is properly anchored to the wall using the provided hardware.

Difficulty Assembling

• Review Instructions: Double-check the instruction manual to ensure all steps are followed correctly, especially regarding the orientation of metal frame pieces and shelf dividers.
• Identify Parts: Ensure the correct parts are being used for each step, paying attention to labels.
• Crossbar Assembly: If struggling with crossbars, attach them to each other first before securing them to the main frame.

Specifications

Warranty and Support

Armocity provides 24 months of customer support for this product. If you encounter any issues or have questions regarding your industrial bookshelf, please feel free to contact Armocity customer service.

For assistance, refer to the contact information provided with your purchase or visit the official Armocity website.
