KPS-PF740 TRMS Leakage Clamp Meter

1. Introduction

Thank you for choosing the KPS-PF740 TRMS Leakage Clamp Meter. This professional electrical testing tool is designed for precise and reliable measurements in various electrical applications. This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your device. Please read it thoroughly before use and keep it for future reference.

2. Safety Information

Always adhere to basic safety precautions when using this product to reduce the risk of fire, electric shock, or personal injury. This device is rated CAT III 600V, ensuring secure and reliable operation within its specified limits.

• Do not use the meter if it appears damaged or if the insulation is compromised.
• Ensure the test leads are in good condition and properly connected before making any measurements.
• Do not exceed the maximum input values for any function.
• Exercise extreme caution when working with live circuits.
• Always disconnect power to the circuit before making resistance, capacitance, or diode measurements.
• Replace batteries promptly when the low battery indicator appears.
• Refer to local and national safety codes for proper electrical work practices.

3. Product Overview

The KPS-PF740 is a versatile TRMS leakage clamp meter capable of measuring a wide range of electrical parameters. Its robust design and advanced features make it suitable for professional use.

Key Features:

• Precision Leakage Detection: Measures leakage current with minimum resolution of 0.001 mA.
• Comprehensive Testing: Supports AC/DC voltage, AC current, resistance, capacitance, diode, continuity, and temperature measurements.
• Advanced Functionality: Includes True RMS measurements, low pass filter, zero adjustment, and MAX/MIN value recording.
• Intuitive Display: Clear 4000-count LCD display with automatic and manual ranging.
• Enhanced Safety: Rated CAT III 600V ensuring secure and reliable operation.

Device Components:

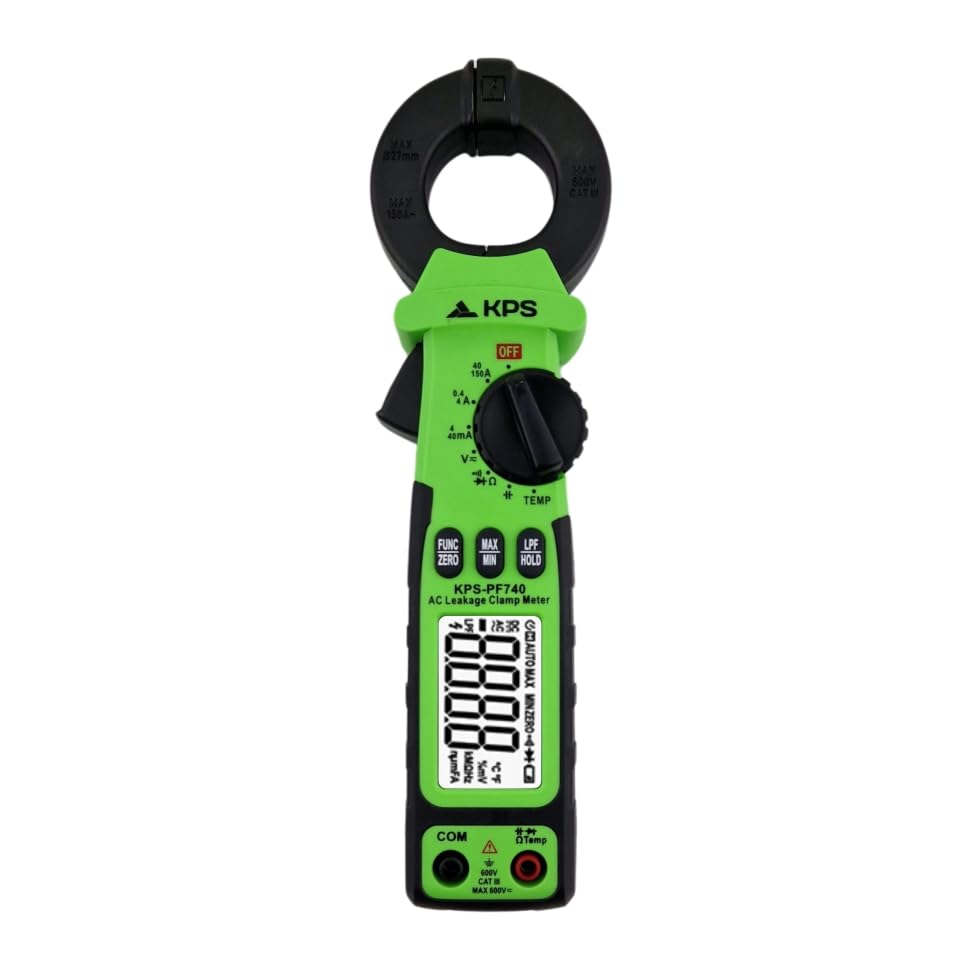

Image of the KPS-PF740 TRMS Leakage Clamp Meter, showing its green casing, display, clamp jaw, and function dial.

4. Setup

4.1 Battery Installation

1. Ensure the meter is powered off.
2. Locate the battery compartment cover on the rear of the meter.
3. Use a screwdriver to loosen the screw(s) and remove the cover.
4. Insert the required batteries (typically AAA or 9V, refer to the compartment label) observing correct polarity.
5. Replace the cover and secure it with the screw(s).

4.2 Initial Power On

Turn the rotary switch to any measurement function to power on the meter. The LCD display will illuminate. To power off, turn the rotary switch to the 'OFF' position.

5. Operating Instructions

This section details how to use the KPS-PF740 for various measurements.

5.1 Basic Measurement Modes

• AC/DC Voltage Measurement: Turn the rotary switch to the 'V~' or 'V=' position. Insert test leads into the appropriate input jacks. Connect the leads in parallel to the circuit under test.
• AC Current Measurement (Clamp): Turn the rotary switch to the 'A~' position. Open the clamp jaw and enclose a single conductor. Ensure the jaw is fully closed for accurate readings.
• Leakage Current Measurement: Turn the rotary switch to the 'mA~' position. Open the clamp jaw and enclose the conductor(s) where leakage current is to be measured. The meter offers high sensitivity for precise leakage detection.
• Resistance Measurement: Turn the rotary switch to the 'Ω' position. Ensure the circuit is de-energized. Insert test leads and connect them across the component to be measured.
• Capacitance Measurement: Turn the rotary switch to the 'F' position. Ensure the capacitor is discharged before connecting test leads.
• Diode Test: Turn the rotary switch to the 'Diode' position. Connect the red lead to the anode and the black lead to the cathode of the diode.
• Continuity Test: Turn the rotary switch to the 'Continuity' position. Connect test leads across the circuit. An audible tone indicates continuity.
• Temperature Measurement: Turn the rotary switch to the '°C/°F' position. Connect the temperature probe to the input jacks.

5.2 Advanced Functions

• True RMS: The meter automatically provides True RMS readings for AC measurements, ensuring accuracy for non-sinusoidal waveforms.
• Low Pass Filter (LPF): Activate the LPF function (if available via a button) to filter out high-frequency noise, useful for measurements on variable frequency drives.
• Zero Adjustment: For precise leakage current measurements, use the 'ZERO' button to nullify any residual readings before clamping.
• MAX/MIN Recording: Press the 'MAX/MIN' button to capture the maximum and minimum values during a measurement session.

5.3 Display Information

The 4000-count LCD display shows measurement values, units, function indicators, and battery status. The meter features both automatic and manual ranging, which can typically be toggled with a 'RANGE' button.

6. Maintenance

6.1 Cleaning

Wipe the meter's casing with a damp cloth and mild detergent. Do not use abrasives or solvents. Ensure the meter is dry before storage or use.

6.2 Storage

When not in use for extended periods, remove the batteries to prevent leakage. Store the meter in a cool, dry place, away from direct sunlight and extreme temperatures.

6.3 Battery Replacement

Replace batteries when the low battery indicator appears on the display. Follow the battery installation steps outlined in Section 4.1.

7. Troubleshooting

If you encounter issues with your KPS-PF740, refer to the table below for common problems and solutions.

8. Specifications

Detailed technical specifications for the KPS-PF740 TRMS Leakage Clamp Meter.

• Brand: KPS
• Model: KPS-PF740
• Power Source: Battery Powered
• Color: Green
• Item Dimensions (L x W x H): 10 x 10 x 10 inches
• Safety Rating: CAT III 600V
• Display: 4000-count LCD
• UPC: 810053670248
• GTIN: 810053670248

9. Warranty and Support

KPS products are manufactured to high-quality standards. For information regarding warranty coverage, technical support, or service, please refer to the warranty card included with your product or visit the official KPS website. Do not attempt to repair the meter yourself, as this may void the warranty and pose safety risks.
