Fafrees 20F054 Electric Folding Bike User Manual

Introduction

Thank you for choosing the Fafrees 20F054 Electric Folding Bike. This manual provides essential information for the safe assembly, operation, maintenance, and troubleshooting of your new e-bike. Please read it thoroughly before your first ride and keep it for future reference.

Important Safety Warnings

• For your safety, always wear a helmet when riding an electric bicycle.
• The Fafrees 20F054 electric bicycle is suitable for riders aged 16 to 65 years.
• The maximum weight capacity for this bicycle is 120 kg. Do not exceed this limit.
• Familiarize yourself with local traffic laws and regulations regarding electric bicycles.
• Perform a pre-ride safety check before each use, including brakes, tires, and battery level.

Product Overview

The Fafrees 20F054 is a 20-inch electric folding bike designed for urban commuting and leisure rides. It features a powerful motor, a removable battery, and a 7-speed Shimano gear system.

Key Components

• Motor: 250W geared hub motor, providing assistance up to 25 km/h.
• Battery: Removable 36V/10Ah lithium-ion battery, offering a range of 45-55 km in electric mode and 50-55 km in pedal-assist mode.
• Gears: Shimano 7-speed transmission for versatile riding on various terrains.
• Brakes: Reliable V-style brakes on both front and rear wheels for effective stopping power.
• Display: Waterproof LCD backlight display showing speed, odometer, time, light status, and battery life.
• Lighting: StVZO standard front and tail LED lights for enhanced night visibility and safety.
• Tires: 20-inch anti-slip and wear-resistant tires with durable mudguards.
• Frame: Foldable aluminum frame for easy storage and transport.

Image: The Fafrees 20F054 Electric Folding Bike in its unfolded state.

Image: Illustration of the Fafrees 20F054 E-bike highlighting its three riding modes: Bicycle Mode, Power Mode, and Moped Mode.

Setup

1. Unpacking and Initial Assembly

Your Fafrees 20F054 bike comes mostly pre-assembled. Carefully remove all packaging materials. You may need to attach pedals, adjust the handlebars, and seat post.

• Unfold the bike frame and secure the folding mechanism.
• Attach the pedals, ensuring they are tightened correctly (left pedal is reverse threaded).
• Adjust the handlebar height (103 cm to 117.5 cm) and angle for comfortable riding.
• Adjust the seat post height (70 cm to 107 cm) to ensure your feet can comfortably touch the ground when stopped.

2. Battery Installation and Initial Charge

The removable battery is located under the standard rear rack. For optimal performance, fully charge the battery before its first use.

• Ensure the bike is powered off.
• Remove the battery from its compartment (if not already installed).
• Connect the charger to the battery charging port, then plug the charger into a power outlet.
• The charging indicator on the charger will change (e.g., from red to green) when fully charged. A full charge typically takes 5-6 hours.
• Once charged, reinstall the battery securely into its compartment.

Image: Illustration showing two methods for charging the Fafrees e-bike battery: direct charging while installed, or disassembling and charging separately.

Operating Instructions

1. Power On/Off

To power on the bike, press and hold the power button on the LCD display. To power off, press and hold the power button again.

2. Riding Modes

The Fafrees 20F054 offers three riding modes:

• Bicycle Mode: Ride as a normal bicycle using pedals only.
• Pedal Assist Mode (PAS): The motor provides assistance as you pedal. Adjust the assistance level (1-5) using the upshift/downshift keys on the display. This mode offers a range of 50-55 km.
• Fully Electric Mode: Use the throttle to engage the motor without pedaling. This mode offers a range of 45-50 km.

3. LCD Display and App Control

The waterproof LCD display provides real-time information. You can also connect your bike to a mobile application (Android & iOS compatible) for advanced settings and data tracking.

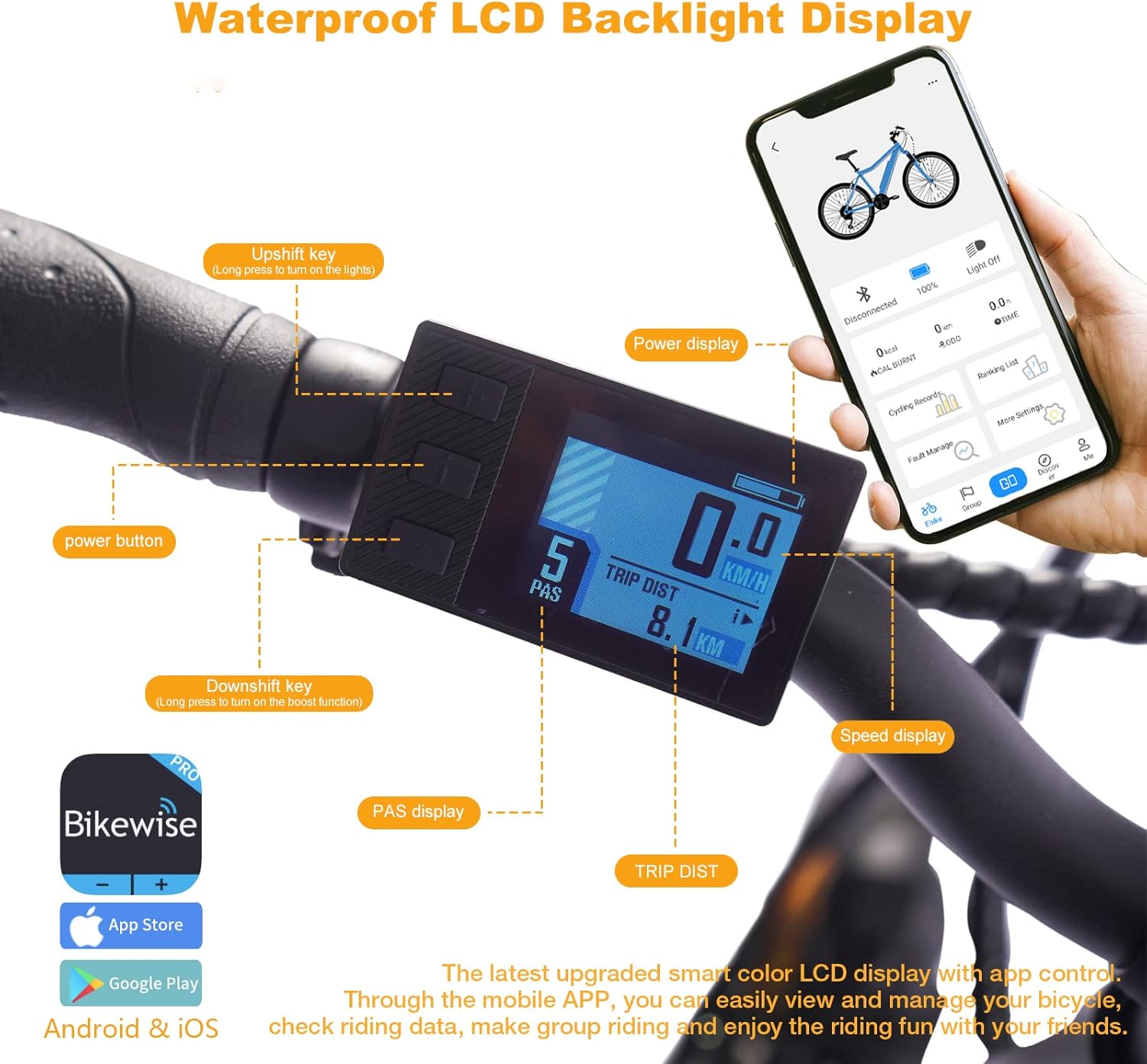

Image: Close-up of the waterproof LCD backlight display on the Fafrees e-bike handlebars, showing speed, trip distance, and PAS level. A smartphone screen displays the companion mobile application.

• Upshift Key: Long press to turn on the lights. Short press to increase PAS level.
• Downshift Key: Long press to turn on the boost function. Short press to decrease PAS level.
• Mobile App: The Bikewise PRO app (available on App Store and Google Play) allows you to view riding data, manage your bicycle settings, and more.

4. Cruise Control System

To activate the intelligent cruise control function, maintain a speed above 20 km/h for 8 seconds in electric mode. This allows you to free your finger from the throttle and maintain a constant speed, saving power.

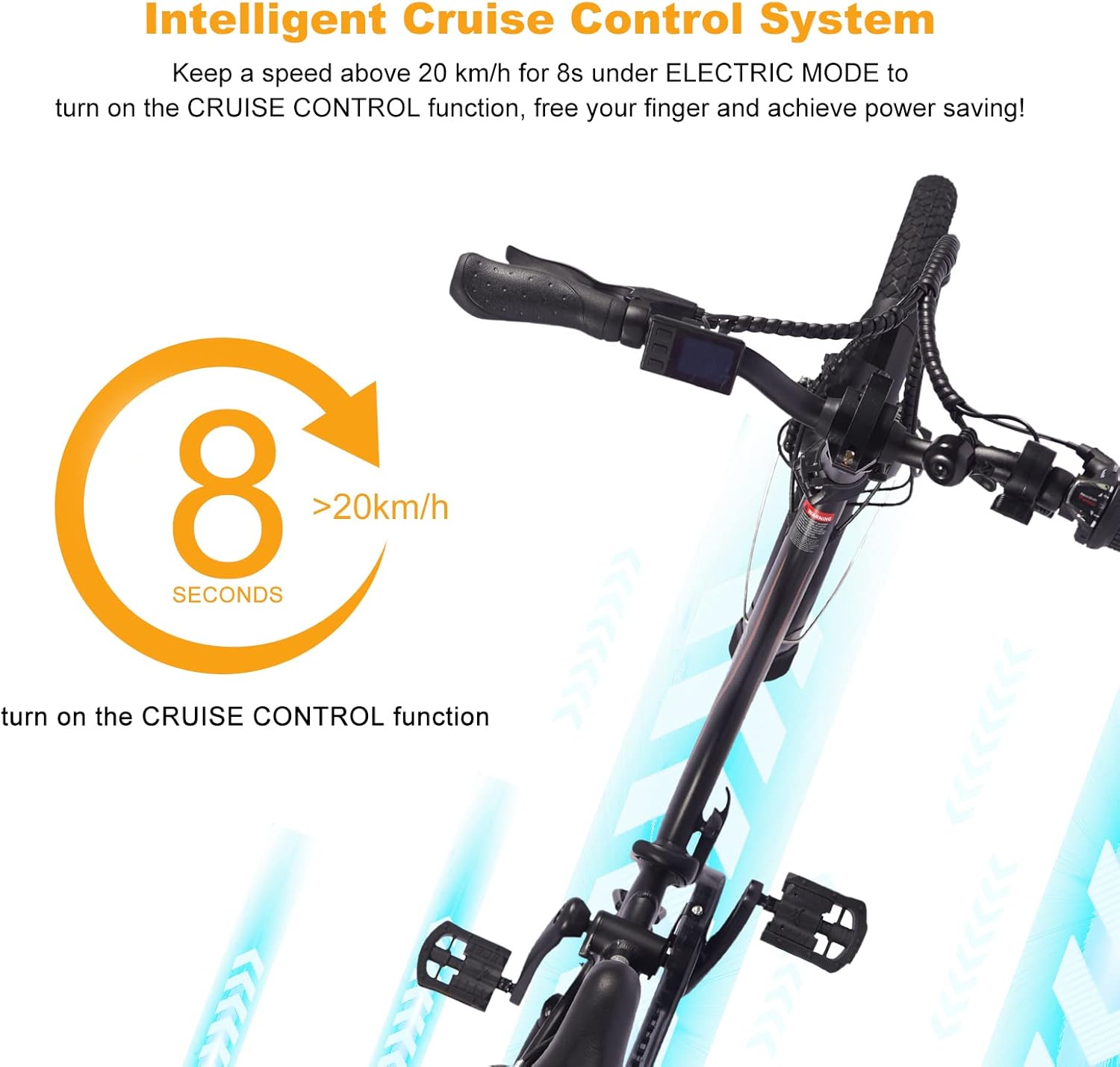

Image: Diagram illustrating the activation of the intelligent cruise control system by maintaining a speed above 20 km/h for 8 seconds.

5. Folding the Bicycle

The Fafrees 20F054 features a compact folding design for easy storage and transport.

• Ensure the bike is powered off.
• Fold the handlebars down.
• Fold the main frame using the quick-release mechanism.
• Fold the pedals inward.
• Use the lowered seat post as a kickstand to keep the folded bike stable.

Image: Visual representation of the Fafrees e-bike's foldable design, showing how the handlebars, frame, and pedals can be folded for compact storage.

Maintenance

Regular maintenance ensures the longevity and safe operation of your Fafrees e-bike.

1. Battery Care

• Charge the battery regularly, even if not in use, to maintain its health.
• Avoid completely draining the battery before recharging.
• Store the battery in a cool, dry place, away from direct sunlight and extreme temperatures.
• The battery has a charging life of over 1000 cycles.

2. Tire Maintenance

• Check tire pressure before each ride. Maintain pressure within the recommended range printed on the tire sidewall.
• Inspect tires for wear, cuts, or punctures regularly.

3. Brake System

• Regularly check the front and rear V-brakes for proper function and responsiveness.
• Ensure brake pads are not excessively worn and replace them as needed.
• Adjust brake cables to ensure proper tension and lever feel.

4. General Cleaning

• Clean your bike regularly with a damp cloth. Avoid using high-pressure washers directly on electrical components.
• Lubricate the chain periodically to ensure smooth operation and prevent rust.

Troubleshooting

If you encounter any issues with your Fafrees 20F054 e-bike, please refer to the common problems and solutions below. For more complex issues, contact customer support.

If you encounter a problem not listed here, or if the suggested solutions do not resolve the issue, please contact Fafrees customer service. When contacting support, provide a precise description of your problem. Photos or videos are highly recommended to help our engineers offer an effective solution within two business days.

Specifications

Warranty and Support

Fafrees is committed to providing excellent customer service. If you have any questions or require assistance, please contact us.

• Customer Service: Expect a response to your inquiries within 24 hours.
• Frame Number: It is highly recommended to photograph and record your bike's unique frame number. This number acts as your bike's identification and is crucial for warranty claims or in case of theft. The frame number is typically located under the bicycle frame.
• Included Items: The product package includes 1 x electric bicycle, 1 x charger, 1 x tool kit, and 1 x user manual.

For detailed warranty information, please refer to the official Fafrees website or contact customer support directly.
