FOXSUR FBC1994 12V/24V Automatic Smart Battery Charger/Maintainer Instruction Manual

1. Introduction

The FOXSUR FBC1994 Automatic Smart Battery Charger/Maintainer is designed for 12V and 24V lead-acid batteries, offering a 3-stage charging process for optimal battery health. It features automatic voltage detection, multiple protection mechanisms, and an intuitive LCD display for easy operation. This manual provides essential information for safe and effective use of your charger.

2. Safety Information

• Always read and understand the entire manual before using the charger.
• Ensure proper ventilation during charging to prevent gas buildup.
• Wear eye protection and gloves when working with batteries.
• Do not charge frozen batteries.
• Avoid sparks or flames near the battery.
• Keep out of reach of children.
• Do not attempt to charge lithium batteries with this device.

3. Package Contents

• 1 x FOXSUR FBC1994 Car Battery Charger
• 1 x Charger Manual

4. Product Features

• 3-Stage Automatic Charging: Delivers fast charge, top-off, and trickle charge automatically.
• Wide Voltage Support: Designed for 12V and 24V batteries, with 110-265V input current.
• Automatic Current Adjustment: Automatically adjusts charging current for efficient charging.

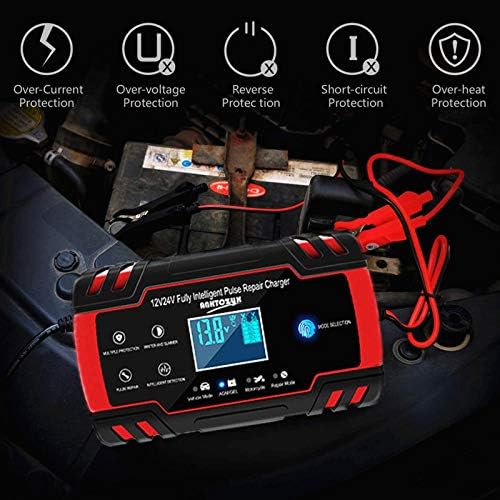

• Multiple Protection: Guards against reverse polarity, sparks, overcharging, over-current, open-circuits, short-circuits, and overheating.
• 6 Working Modes: CAR/TRUCK, Motorcycle, AGM, Repair, Summer, and Winter modes.
• Pulse Repair Function: Helps to repair and extend the life of sulfated batteries (Note: Cannot activate dead batteries or repair severely damaged ones).
• LCD Display: Shows charging voltage, current, internal temperature, charging mode, and error codes.
• Touch Charging Mode Selection: Easy one-button mode switching.
• Wide Application: Suitable for most types of lead-acid batteries including Calcium, Gel, AGM, Wet, and EFB batteries. Compatible with cars, trucks, motorcycles, golf carts, lawn mowers, boats, RVs, SUVs, ATVs, and more.

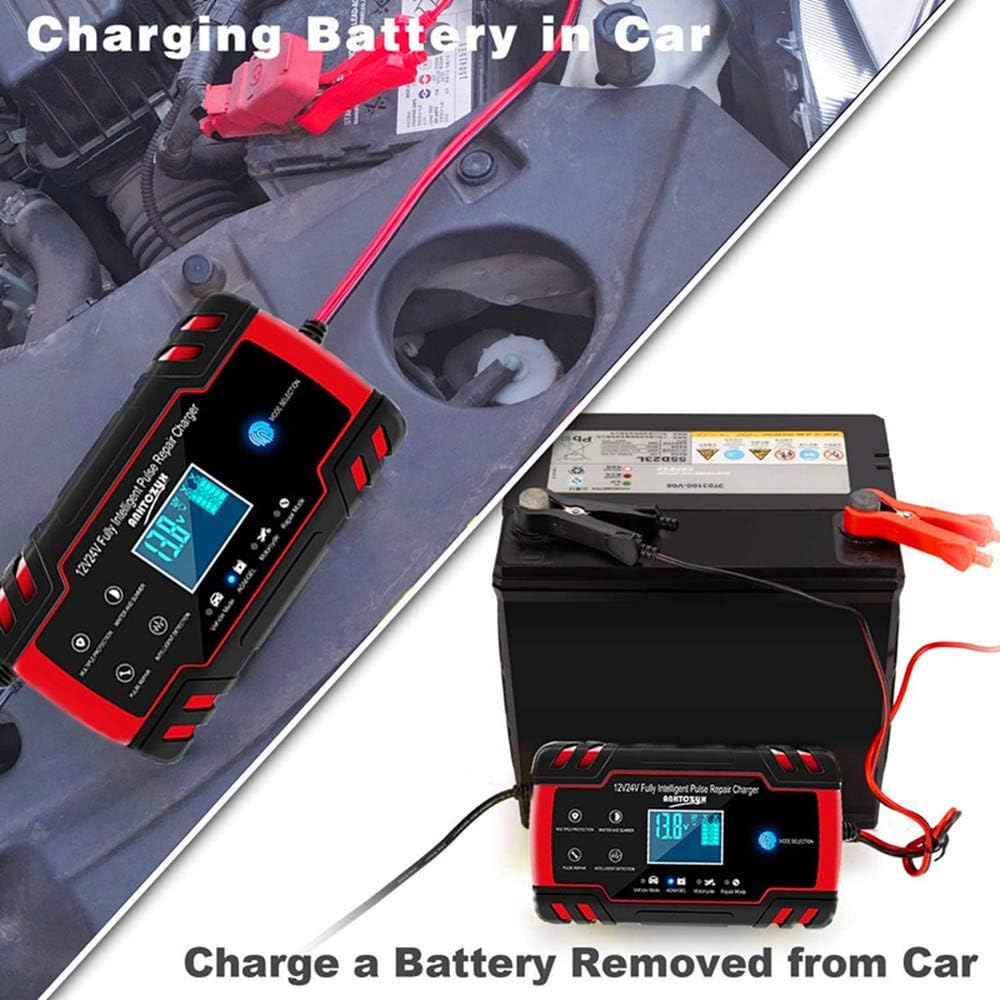

5. Setup

1. Connect Battery Clamps: Attach the red positive (+) clamp to the positive battery terminal. Attach the black negative (-) clamp to the negative battery terminal.
2. Plug into Power: Connect the charger's power cord to a standard 110-265V AC wall outlet.
3. Select Mode: The charger will automatically detect the battery voltage. Use the 'Mode Selection' button to choose the appropriate charging mode (e.g., CAR/TRUCK, Motorcycle, AGM, Repair).

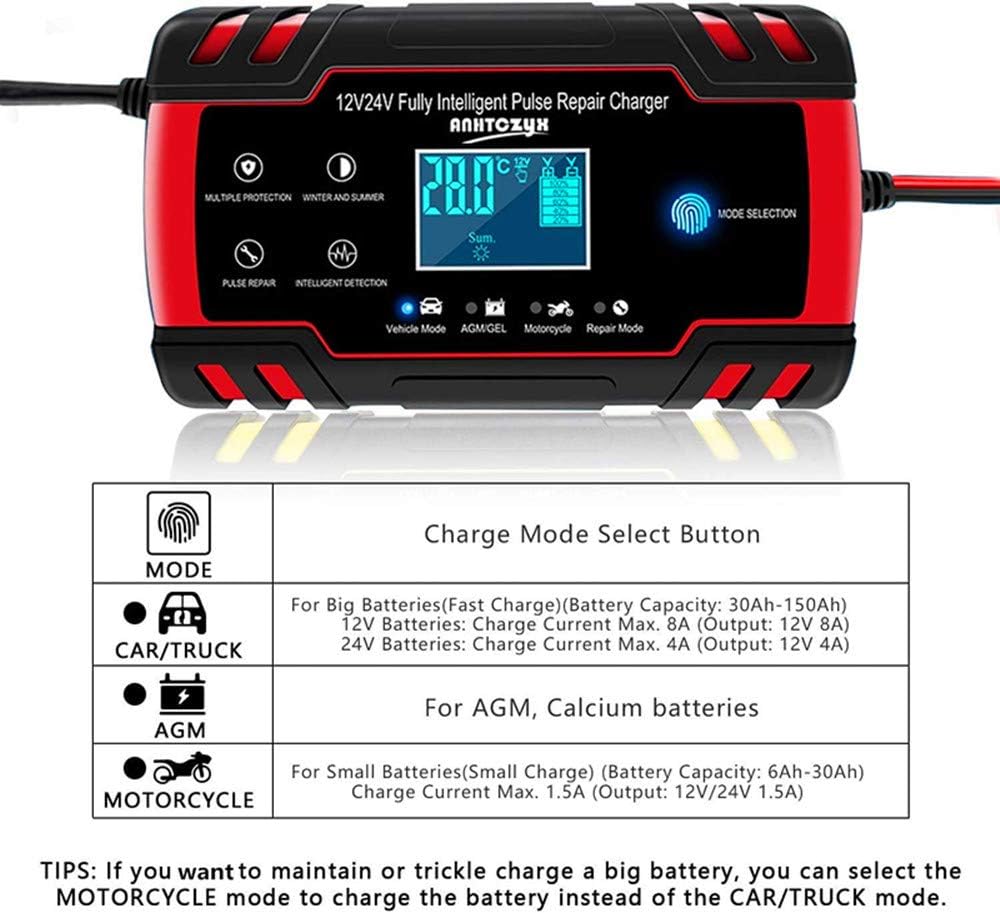

6. Operating Modes

The charger offers 6 distinct operating modes, selectable via the 'Mode Selection' button. The LCD display will indicate the currently active mode.

• CAR/TRUCK Mode: For standard 12V batteries (up to 8A output) and 24V batteries (up to 4A output).
• Motorcycle Mode: For smaller batteries (6Ah-30Ah), providing a lower charge current (1.5A for 12V/24V). This mode can also be used to maintain or trickle charge larger batteries.
• AGM Mode: Specifically designed for AGM and Calcium batteries.
• Repair Mode: Utilizes pulse repair technology to desulfate and recondition batteries that are not holding a charge well. This mode cannot revive completely dead or severely damaged batteries.
• Summer Mode: Automatically adjusts charging parameters for optimal performance in warmer temperatures.
• Winter Mode: Automatically adjusts charging parameters for optimal performance in colder temperatures.

7. Charging Process

Once connected and a mode is selected, the charger will automatically begin its 3-stage charging process: fast charge, top-off, and trickle charge. The LCD display provides real-time information:

• Charging Voltage and Current: Displays the current voltage and amperage being delivered to the battery.
• Internal Temperature: Shows the internal temperature of the charger, which is important for safe operation.
• Charging Mode: Indicates the active charging mode (e.g., Summer, Winter, CAR/TRUCK).
• Battery Level Indicator: A visual representation of the battery's charge status.

8. Maintenance

The FOXSUR FBC1994 acts as a battery maintenance device. Its Pulse Repair function can help to recondition and extend the life of batteries that are showing signs of sulfation. For optimal battery life, it is recommended to use the maintenance function regularly, especially for vehicles stored for extended periods.

Note: The Pulse Repair function cannot activate a completely dead battery or repair a battery that is severely damaged. It also cannot restore a battery to 100% new condition.

9. Troubleshooting

• 'ERO' Display: If the LCD displays 'ERO', this indicates a reverse connection (positive and negative clamps are swapped) or an output short-circuit. Disconnect the charger immediately, correct the connection, and restart the charging process.
• No Display/No Charging: Ensure the charger is properly plugged into a live power outlet and that the battery clamps are securely connected to the correct terminals. Check for any loose connections.
• Charger Overheating: The built-in circuit protection will prevent overheating. If the charger feels excessively hot, disconnect it and allow it to cool down in a well-ventilated area before resuming use.

10. Specifications

11. Warranty and Support

FOXSUR stands behind the quality of its products. If you have any questions or require assistance with your FBC1994 charger, please contact us by email. Refer to the contact information provided in the product packaging or on the official FOXSUR website for support details.

Note: The screen of the car battery charger is covered with a protective film. After removing the protective film, you will see a brand new screen.
