Introduction
Thank you for choosing Olafus Outdoor Bluetooth Speakers. These 40W True Wireless Stereo (TWS) speakers are designed to deliver rich, immersive sound and ambient lighting for your outdoor and indoor spaces. Featuring Bluetooth 5.0 connectivity, long battery life, and warm white LED rhythm lights, they are perfect for patios, gardens, camping, and parties.
What's in the Box
- 2 x Olafus Wireless Bluetooth Speakers
- 1 x 3.5mm Auxiliary Cable
- 1 x User Manual
- 1 x Charging Cable (USB)
Key Features
- True Wireless Stereo (TWS): Easily pair two speakers for a synchronized 40W immersive stereo surround sound experience.
- Loud & Clear Sound: Each speaker features a three-inch mid-bass speaker and a one-inch tweeter for enhanced bass, tight midrange, and crisp, clear highs.
- Warm White Rhythm Lights: 20 bright LED lights create an outstanding rhythm light show that can sync with music or provide constant ambient lighting.
- Extended Playtime: Built-in high-capacity rechargeable battery provides up to 20 hours of continuous music playback.
- Bluetooth 5.0 Connectivity: Ensures stable connection up to 50 feet (15.24 meters) in unobstructed conditions. Also supports 3.5mm auxiliary input.
Figure 2: Immersive True Wireless Stereo Sound
Figure 3: Long-lasting Battery for Extended Enjoyment
Figure 4: Speaker Controls and Lighting Modes
Setup Guide
1. Charging the Speakers
Before first use, fully charge both speakers. Connect the provided USB charging cable to the speaker's USB port and a compatible USB power adapter (not included). The charging indicator light will show charging status.
2. Powering On/Off
Press and hold the Power button (usually located on the top panel) for 3 seconds to power on or off the speaker. A voice prompt will confirm the action.
3. Bluetooth Pairing (Single Speaker)
- Power on the speaker. The Bluetooth indicator will flash, indicating it's in pairing mode.
- On your device (smartphone, tablet, etc.), enable Bluetooth and search for available devices.
- Select "Olafus Speaker" from the list. A voice prompt will confirm successful pairing.
4. True Wireless Stereo (TWS) Pairing (Two Speakers)
- Ensure both speakers are powered off.
- Power on both speakers simultaneously.
- Press the TWS pairing button (often indicated by a chain link icon) on one of the speakers. It will automatically search for and pair with the other speaker.
- Once paired, the Bluetooth indicator on both speakers will remain solid, and a voice prompt will confirm TWS connection.
- Now, connect your device to one of the speakers via Bluetooth as described in step 3. Both speakers will play audio in stereo.
5. Auxiliary (AUX) Connection
For non-Bluetooth devices, use the provided 3.5mm auxiliary cable. Connect one end to the speaker's Audio Port and the other end to your device's audio output. The speaker will automatically switch to AUX mode.

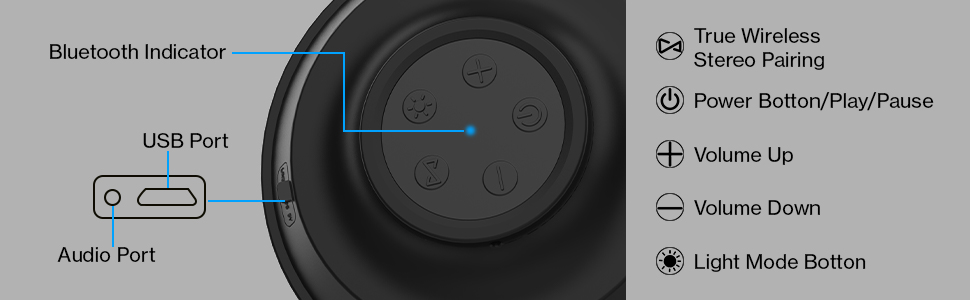

Figure 5: Speaker Control Panel and Ports
Operating Instructions
Music Playback
- Play/Pause: Short press the Power button.
- Volume Up: Short press the Volume Up button (+).
- Volume Down: Short press the Volume Down button (-).
- Next Track: Long press the Volume Up button (+).
- Previous Track: Long press the Volume Down button (-).
Light Modes
Press the Light Mode button (often indicated by a light bulb icon) to cycle through different lighting options:
- Constant Warm White: Provides a steady, ambient glow.
- Rhythm Mode: Lights will flash and change color in sync with the music.
- Off: Turns off the LED lights.
Maintenance
- Cleaning: Wipe the speakers with a soft, dry cloth. Do not use abrasive cleaners or solvents.
- Storage: Store speakers in a cool, dry place when not in use. Avoid extreme temperatures.
- Battery Care: To prolong battery life, fully charge the speakers before long periods of storage and recharge them every 3 months.
- Water Resistance: While designed for outdoor use, these speakers are not fully waterproof. Avoid submerging them in water or exposing them to heavy rain.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Speaker won't turn on | Low battery | Charge the speaker fully. |
| No sound | Volume too low; Not paired; Incorrect input mode | Increase volume; Re-pair Bluetooth; Check AUX connection. |
| Cannot pair Bluetooth | Speaker not in pairing mode; Device too far; Interference | Ensure speaker is flashing indicator; Move device closer; Turn off other Bluetooth devices. |
| TWS pairing fails | Speakers not reset; Too far apart | Ensure both speakers are off before attempting TWS pairing; Keep speakers within close proximity during pairing. |
| Lights not working | Light mode off; Low battery | Press Light Mode button to activate; Charge the speaker. |
Specifications
| Feature | Detail |
|---|---|
| Model Name | A SPEAKER06 |
| Speaker Type | Outdoor |
| Connectivity Technology | Bluetooth 5.0, 3.5mm AUX |
| Speaker Maximum Output Power | 20 Watts (per speaker, 40W TWS total) |
| Battery Life | Up to 20 Hours |
| Battery Capacity | 2600 Milliamp Hours |
| Charging Time | 20 Hours (initial charge, subsequent charges may vary) |
| Product Dimensions (each) | 7.16"D x 7.16"W x 10.55"H |
| Item Weight (each) | Approx. 3.08 lbs (1.4 kg) |
| Maximum Range | 50 Feet (Bluetooth) |
| Material | Plastic, Metal |

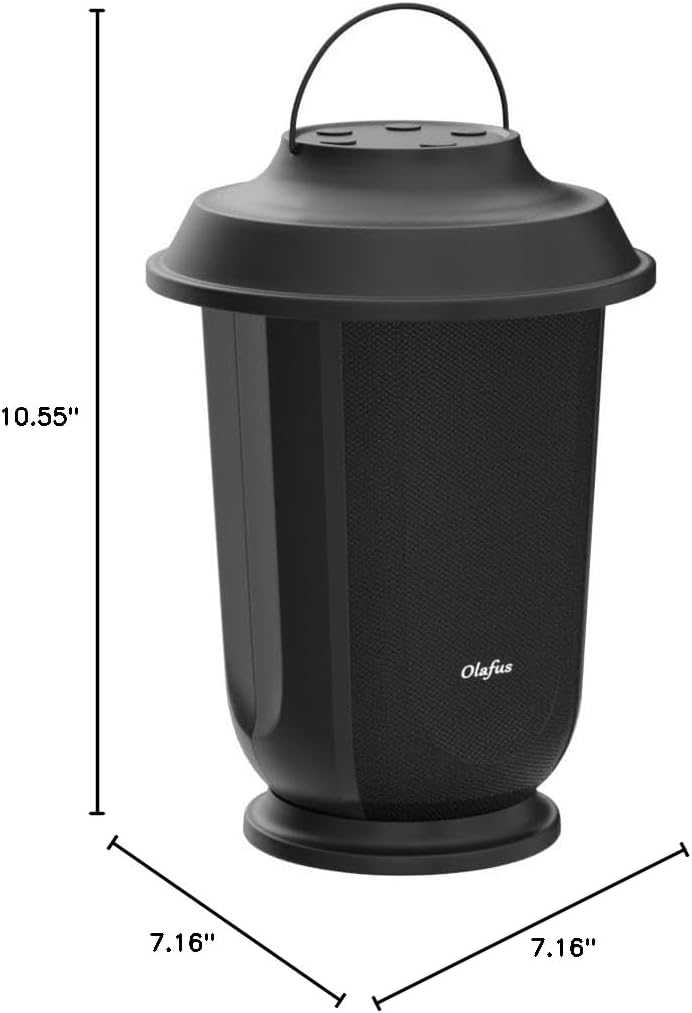

Figure 6: Speaker Dimensions
Product Video
Video 1: Official Olafus demonstration of the 40W True Wireless Stereo Speakers, highlighting sound quality and features.
Warranty & Support
Olafus products come with a limited warranty. For detailed warranty information, product support, or technical assistance, please refer to the warranty card included in your package or visit the official Olafus website. Please retain your proof of purchase for warranty claims.
