Introduction
Thank you for choosing the Lucande Overa Modern Aluminum LED Path Light. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new path light. This modern outdoor fixture is designed for ground mounting and is suitable for various outdoor environments such as patios, gardens, balconies, ponds, gateways, and carports. It features a water-resistant design and uses a standard E27 lamp fitting.
Safety Instructions
- Always disconnect power at the main circuit breaker before installation, maintenance, or bulb replacement.
- Installation should be performed by a qualified electrician to ensure compliance with local electrical codes and safety standards.
- Ensure proper grounding of the fixture.
- Do not exceed the maximum wattage specified for the bulb (40 watts).
- This product is water-resistant (IP44 rated) but should not be submerged in water.
- Keep children and pets away from the installation area.
- Do not modify the product in any way, as this may void the warranty and create safety hazards.
Package Contents
Please check that all components are present and undamaged before proceeding with installation.
- Lucande Overa Path Light Fixture
- E27 Lamp (bulb)
- Mounting Hardware (screws, anchors, etc.)
Image: Exploded view showing the path light fixture, the included E27 bulb, and various mounting components.
Setup and Installation
The Lucande Overa path light is designed for ground mounting. Ensure the installation surface is stable and level.
- Prepare the Installation Area: Choose a suitable location for the path light. Ensure there is access to a 230 Volt wired electrical connection.
- Mount the Base: Secure the base of the path light to the ground using the provided mounting hardware. Depending on the surface (e.g., concrete, paving stones), appropriate drilling and anchoring may be required.
- Connect Electrical Wiring: Carefully connect the electrical wiring from your power supply to the fixture's terminals. Ensure all connections are secure and properly insulated. Follow local electrical codes.
- Install the Bulb: Screw the E27 lamp (bulb) into the lamp fitting. Ensure the bulb does not exceed 40 watts. LED bulbs are recommended for energy efficiency.
- Assemble the Fixture: Secure any covers or protective elements as per the design to ensure the fixture is sealed and water-resistant.
- Test the Light: Restore power at the main circuit breaker and test the functionality of the path light.
Image: Dimensional drawing of the path light, indicating a height of 680mm and a diameter of 167mm.
Image: Detail of the path light's base, highlighting its robust construction for ground mounting.
Operating Instructions
The Lucande Overa path light operates via a wired electrical connection.
- Power On/Off: The light is controlled by an external switch connected to its electrical circuit.
- Dimming Function: If connected to a compatible dimmer switch and using a dimmable E27 bulb, the light intensity can be adjusted.
- Light Color: The light typically emits a Cool White color, depending on the installed E27 bulb.
Image: Close-up of the light source area, showing the E27 bulb fitting and an installed LED bulb.
Maintenance
Regular maintenance ensures the longevity and optimal performance of your path light.
- Cleaning: Clean the fixture regularly with a soft, damp cloth. Do not use abrasive cleaners or solvents, as these can damage the finish.
- Bulb Replacement: Before replacing the bulb, ensure the power supply to the fixture is disconnected. Allow the old bulb to cool completely. Unscrew the old E27 bulb and replace it with a new E27 bulb, ensuring it does not exceed 40 watts.
- Inspection: Periodically inspect the wiring and connections for any signs of wear or damage. If any damage is found, disconnect power immediately and consult a qualified electrician.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on. | No power supply. Faulty bulb. Loose wiring connection. | Check the circuit breaker. Replace the E27 bulb. Inspect and secure wiring (with power off). |
| Light flickers. | Loose bulb. Incompatible dimmer switch. Faulty wiring. | Tighten the bulb. Ensure dimmer is compatible with LED bulbs (if using LED). Consult a qualified electrician. |
| Water inside the fixture. | Improper assembly. Damaged seal. | Ensure all covers and seals are correctly installed. Inspect seals for damage and replace if necessary. |
Specifications
| Feature | Detail |
|---|---|
| Model Number | 9619304 |
| Brand | Lucande |
| Product Dimensions | 16.5 x 16.5 x 68 cm |
| Item Weight | 3.75 Kilograms |
| Material | Aluminum (fixture), Aluminum (shade) |
| Style | Outdoor, Modern |
| Fixture Shape | Path |
| Room Type | Garden |
| Specific Use | Patio, Garden, Balcony, Pond, Gateway, Carport |
| Power Source | Electric with cord (wired) |
| Installation Type | Ground mounting (freestanding) |
| Special Features | Water-resistant |
| Control Method | Touch (external switch) |
| Voltage | 230 Volt |
| Light Color | Cool White (bulb dependent) |
| Number of Light Sources | 1 |
| Wattage | Max 40 watt |
| Lamp Fitting | E27 |
| Switch Type | Dimmer (external, with compatible bulb) |
| Water Resistance Level | Water-resistant (IP44) |
| Assembly Required | No (referring to the main fixture, but installation is required) |
| Finish Type | Metallic |
| Included Components | Lamp (bulb) |
Warranty and Support
For warranty information and customer support, please refer to the documentation provided at the point of purchase or contact your retailer. Keep your proof of purchase for any warranty claims.
Product Overview Images
Image: The Lucande Overa path light illuminated at night, showcasing its modern design in an outdoor setting.
Image: Multiple Lucande Overa path lights installed along a garden path, providing ambient lighting at night.

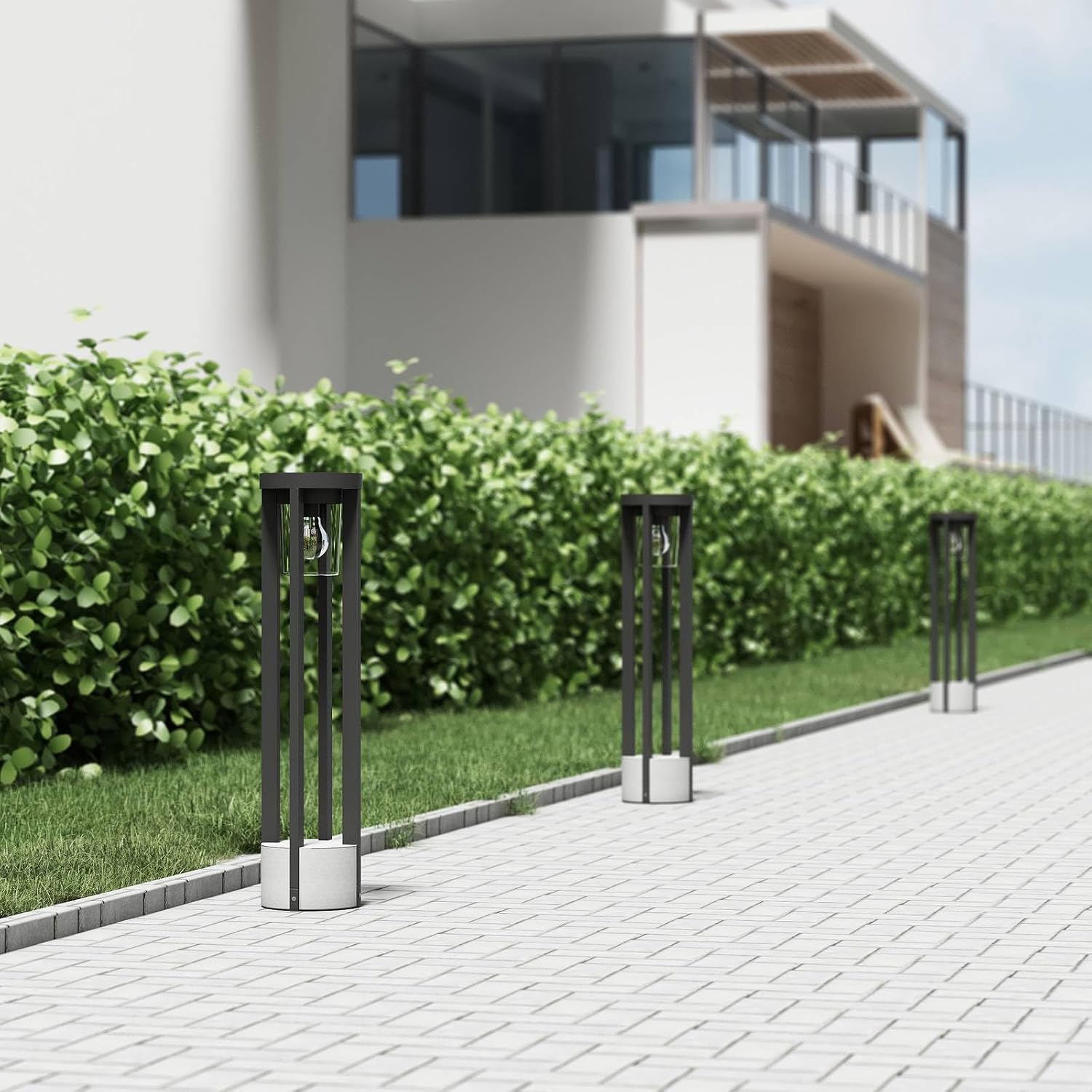

Image: Lucande Overa path lights in a daytime garden setting, demonstrating their aesthetic integration into the landscape.
