Introduction
This manual provides instructions for the safe and efficient use of your iPower Non-Insulated Flex Air Aluminum Ducting. This ducting is designed for various ventilation, circulation, heating, and cooling applications. Please read this manual thoroughly before installation and use to ensure proper function and longevity of the product.
Product Overview and Key Features
The iPower Ventilation Ducting is constructed from high-quality aluminum, offering flexibility and durability during installation. It functions as both intake and exhaust piping for active-cooled fixtures and reflectors, and helps regulate room temperature by storing and dissipating heat at a steady rate.
Key Features
- 3-Layer Thickness: Composed of Aluminum Foil + PET + Aluminum Foil for enhanced durability and performance.
- Reinforced Structure: Features a helically shaped and internally crimped galvanized steel strip with interlocking steel strips, creating an airtight and leak-proof system.
- Easy Installation: Flexible design allows for easy bending and installation in confined spaces such as grow rooms, attics, and crawl spaces. Can be cut with metal snips or a standard wire cutter.
- Corrosion Resistance: Built-in corrosion-resistant wire helix prevents unraveling when cut into smaller pieces.
- Thermal Endurance: Withstands temperatures ranging from 0°F to 185°F (-18°C to 85°C).
- Fire Retardant: Made from high-quality flame-retardant aluminum for increased safety.
- Included Clamps: Each ducting unit includes two stainless steel metal clamps for secure attachment.
This image illustrates the premium material construction of the iPower ducting, emphasizing its high-quality flame-retardant aluminum and the integrated corrosion-resistant wire helix for durability.
This diagram highlights the key features of the ducting, including its three-layer thickness (Aluminum Foil + PET + Aluminum Foil), built-in steel wire for reinforcement, and flexible length.
Package Contents
- iPower 10 Inch x 25 Feet Non-Insulated Flex Air Aluminum Ducting (12 units)
- Stainless Steel Metal Clamps (24 units, 2 per ducting unit)
Specifications
| Property | Value |
|---|---|
| Ducting Size | 10 inches (diameter) x 25 feet (length) |
| Material | Aluminum Foil, PET, Galvanized Steel |
| Thermal Endurance | 0°F ~ 185°F (-18°C ~ 85°C) |
| Structure | 3-layer thickness with spiral steel-wire reinforcement |
| Color | Silver |
| Model Number | GLDUCT10X25CX12 |
| UPC | 840166229279 |
| Item Weight | 66.7 pounds (for 12-pack) |
This image illustrates the key specifications of the iPower ducting, detailing its 10-inch diameter, 25-foot extended length, and the robust aluminum foil and spiral steel-wire construction.
Safety Information
- Always wear appropriate personal protective equipment (PPE) such as gloves and eye protection during installation.
- Handle ducting carefully to avoid sharp edges.
- Ensure proper ventilation in the work area.
- Do not expose ducting to temperatures outside the specified thermal endurance range (0°F ~ 185°F).
- Verify that all connections are secure and airtight to prevent leaks and ensure efficient operation.
- Avoid excessive force or "violent installation" that could damage the ducting material or internal wire.
Installation Instructions
- Prepare the Ducting: Carefully extend the ducting to the desired length. The flexible design allows for easy shaping. If shortening is required, use metal snips or a standard wire cutter to cut the ducting to the appropriate size. The built-in spiral wire is designed to prevent unraveling.
- Attach to Equipment: Slide one end of the ducting over the outlet or inlet of your ventilation equipment (e.g., exhaust fan, inline fan, dryer vent). Ensure a snug fit.
- Secure with Clamps: Place one of the provided stainless steel metal clamps around the ducting where it overlaps the equipment's connection point. Tighten the clamp securely using a screwdriver until the ducting is firmly attached and airtight.
- Repeat for Other End: Attach the other end of the ducting to its destination (e.g., wall vent, another piece of equipment) following the same procedure.
- Check Connections: Ensure all connections are tight and free from kinks or obstructions to maximize airflow efficiency.
This video demonstrates the flexibility and durability of the iPower Non-Insulated Flex Air Aluminum Ducting, showing how it can be bent and cut. It also illustrates the secure attachment process using the included clamps with a ventilation fan.
This image demonstrates the ease of installation, showing the flexible ducting connected to an inline fan. It highlights the product's adaptability for various setups.

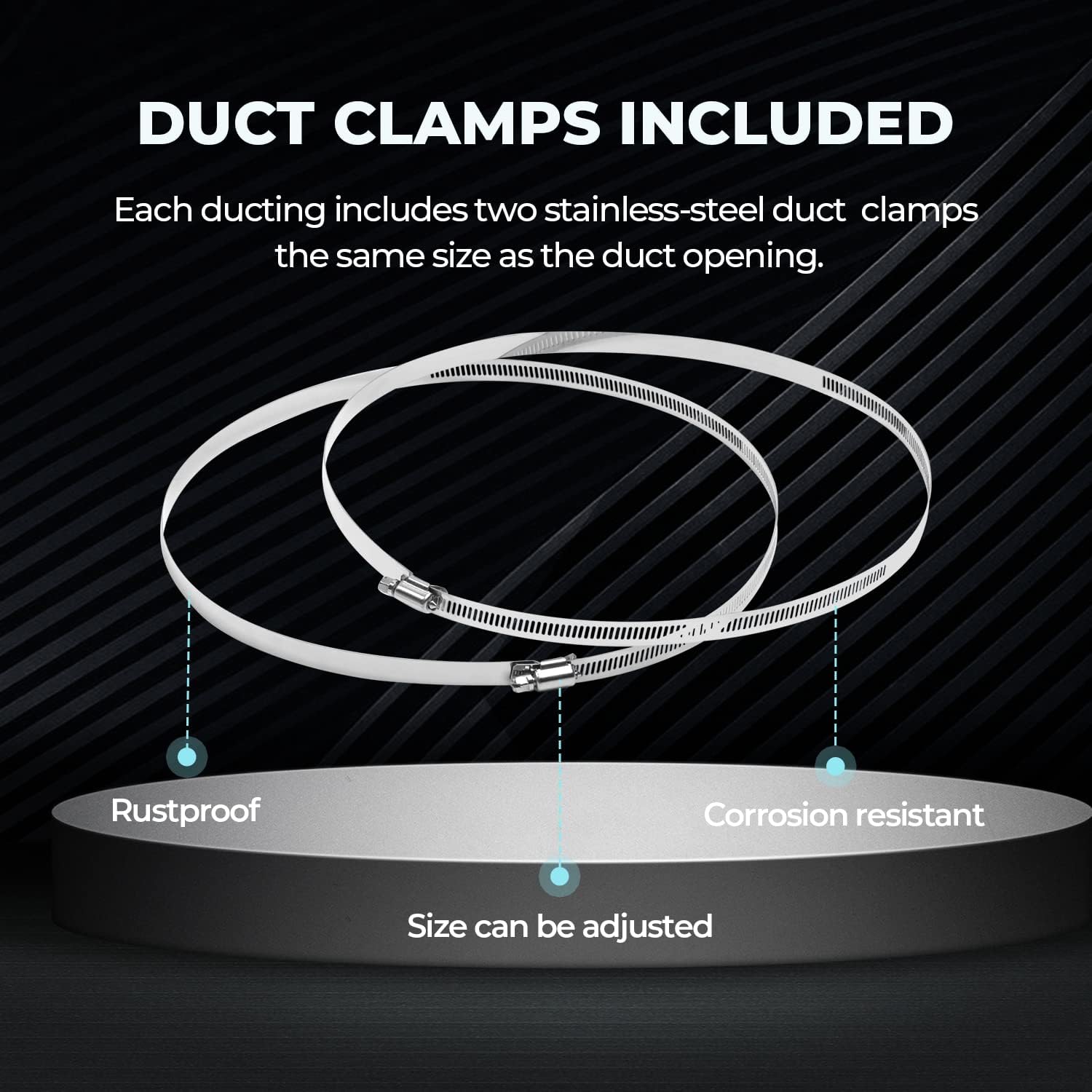

This image displays the two stainless steel duct clamps included with each ducting unit, emphasizing their rustproof, corrosion-resistant, and adjustable features for secure connections.
Operation
Once installed, the iPower Non-Insulated Flex Air Aluminum Ducting operates passively as a conduit for air movement. Its primary function is to direct airflow from one point to another, facilitating ventilation, heating, cooling, or exhaust processes. Ensure that any connected fans or HVAC systems are operating correctly to maintain desired airflow through the ducting.
Maintenance
- Regular Inspection: Periodically inspect the ducting for any signs of damage, kinks, or blockages that could impede airflow.
- Cleaning: If necessary, gently clean the exterior of the ducting with a soft, damp cloth. Avoid using harsh chemicals or abrasive materials that could damage the aluminum surface.
- Check Connections: Ensure that all clamps remain tight and secure. Re-tighten if any looseness is detected to maintain an airtight seal.
- Address Kinks: If kinks occur, gently straighten the ducting to restore optimal airflow. Avoid sharp bends that could permanently restrict air movement.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Reduced Airflow | Kinked or crushed ducting | Inspect the ducting path and gently straighten any kinks or crushed sections. |
| Reduced Airflow | Obstruction inside the duct | Disconnect the ducting and check for internal blockages. Remove any debris. |
| Air Leakage | Loose clamp connection | Tighten all clamps securely at connection points. |
| Air Leakage | Damaged ducting (tears, holes) | Inspect the ducting for physical damage. Replace damaged sections if necessary to maintain efficiency. |
| Ducting Unraveling | Improper cutting or excessive force | Ensure cuts are clean and precise. While the spiral wire prevents unraveling, extreme force can compromise it. |
Typical Applications
The iPower Non-Insulated Flex Air Aluminum Ducting is versatile and suitable for a wide range of applications, including:
- Dryer room vents
- Air conditioning (A/C) or heater ducting
- Kitchen exhaust systems
- Bathroom ventilation
- Grow room ventilation
- Other indoor gardening applications
This image showcases the diverse applications of the iPower ducting, including its use in bathrooms, with dryers, in kitchens, and for greenhouse ventilation systems.
Warranty and Support
For warranty information or technical support regarding your iPower Non-Insulated Flex Air Aluminum Ducting, please refer to the official iPower website or contact their customer service directly. Keep your purchase receipt for any warranty claims.
