vidaXL Shower Door 81x195 cm Tempered Glass Black (Model 148887)

1. Product Overview

This modern vidaXL shower door, measuring 81x195 cm, features 5 mm thick tempered glass and a robust black aluminum frame, bringing an industrial aesthetic to your bathroom. Its adjustable profile allows for a width range of 78 to 81 cm, ensuring a perfect fit for various bathroom layouts. The sleek stainless steel handle adds a touch of industrial charm. Designed for durability and easy cleaning, this shower door includes all necessary mounting materials for installation.

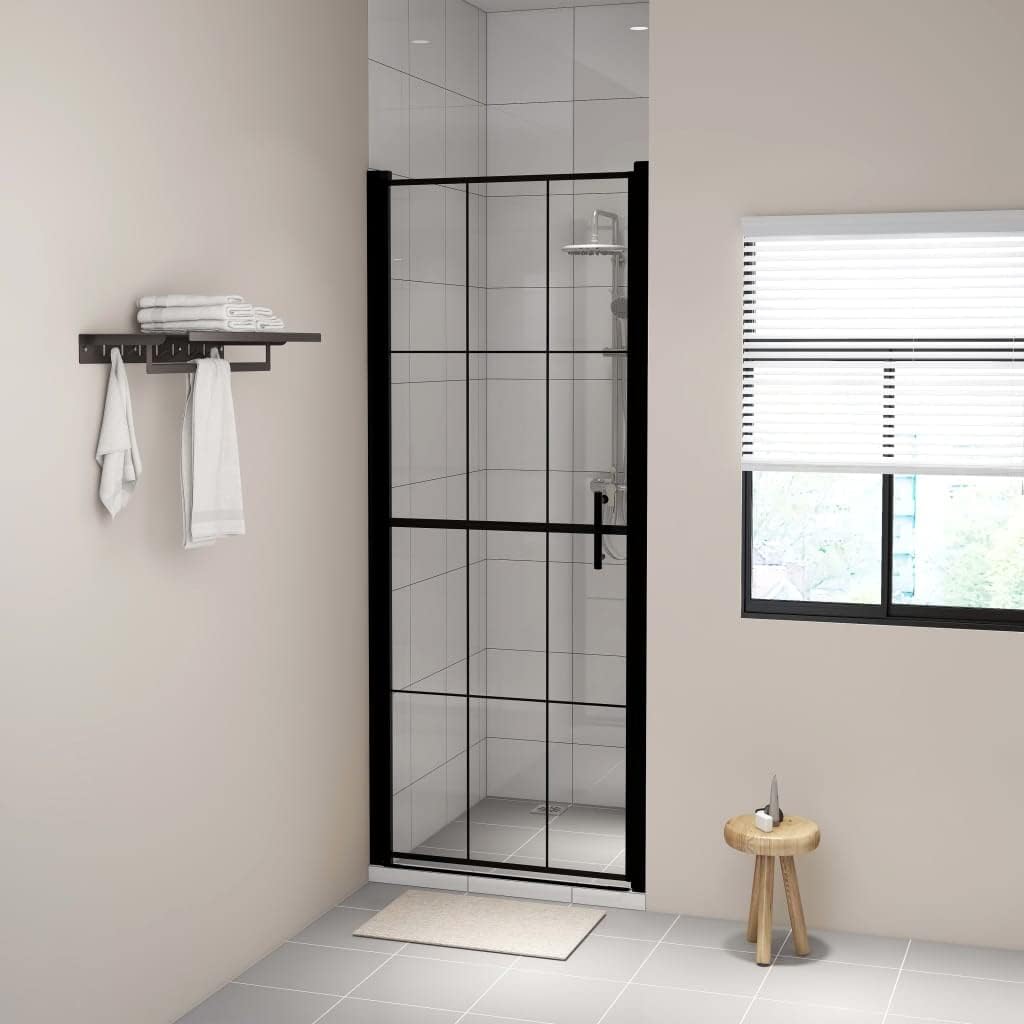

Figure 1: Installed vidaXL Shower Door (Model 148887) in a bathroom setting.

2. Safety Warnings

Please read and understand all safety warnings before proceeding with assembly or use. Retain these instructions for future reference.

• Children must be supervised to ensure they do not play with the shower door or its components.
• Keep children away from the assembly area to prevent accidents.
• Always wear appropriate personal protective equipment (PPE) such as safety glasses and gloves during assembly.
• Handle glass panels with extreme care. Tempered glass, while strong, can shatter into small pieces if damaged at the edges or corners.
• Ensure the mounting surface (wall) is structurally sound and capable of supporting the weight of the shower door.
• Do not use abrasive cleaners or tools on glass or frame surfaces, as this may cause damage.

3. Package Contents

Verify that all components are present and undamaged before beginning assembly. If any parts are missing or damaged, contact vidaXL customer support.

• Tempered Glass Panel (with black grid print)
• Aluminum Frame Components (black finish)
• Zinc Alloy Hinge Set
• Stainless Steel Handle
• Mounting Hardware (screws, wall plugs, seals, etc.)
• Instruction Manual

4. Setup and Assembly Instructions

Assembly requires basic DIY skills and tools. For safety and ease of installation, it is highly recommended that two people perform the assembly.

Required Tools (Not Included):

• Drill
• Drill bits (appropriate for wall material)
• Measuring tape
• Pencil
• Level
• Screwdriver (Phillips head)
• Silicone sealant and gun
• Utility knife

Assembly Steps:

1. Preparation: Clear the installation area. Ensure the floor and walls are clean and level. Unpack all components and verify against the package contents list.
2. Measure and Mark: Determine the exact position for your shower door. Use a measuring tape and level to mark the desired height and width on the wall. The adjustable width range is 78 to 81 cm.

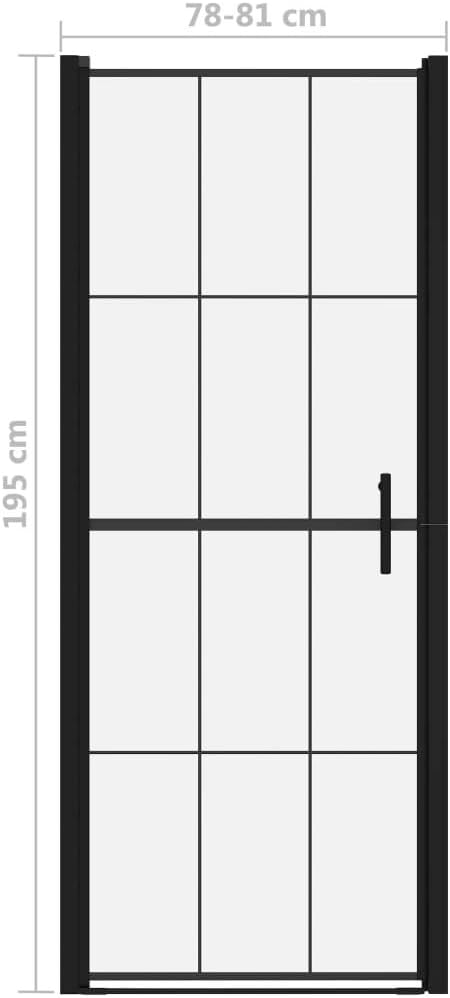

Figure 2: Shower Door Dimensions (Width adjustable from 78 to 81 cm, Height 195 cm).
3. Install Wall Profiles: Position the vertical aluminum wall profiles against your marked lines. Mark the drilling points through the pre-drilled holes in the profiles. Drill holes into the wall, insert wall plugs, and secure the profiles using the provided screws. Ensure they are perfectly vertical using a level.
4. Assemble Frame (if applicable): Depending on the model, some frame components may need to be joined before glass installation. Follow the specific diagrams in the included paper manual for this step.
5. Insert Glass Panel: Carefully lift the tempered glass panel with assistance and slide it into the installed wall profiles and any pre-assembled frame sections. Ensure the glass is seated correctly and securely.


Figure 3: Front view of the shower door, illustrating the glass panel and frame structure.

6. Attach Hinge and Handle: Secure the zinc alloy hinges to the glass panel and frame according to the instructions. Then, attach the stainless steel handle to the designated holes in the glass.


Figure 4: Detail of the stainless steel handle.

7. Final Adjustments and Sealing: Make any necessary adjustments to ensure the door opens and closes smoothly and seals properly. Apply a bead of silicone sealant along the exterior joints between the wall profiles and the wall, and along the bottom edge of the shower door where it meets the shower tray or floor, to prevent water leakage. Allow the sealant to cure completely before using the shower (typically 24-48 hours, refer to sealant manufacturer's instructions).

5. Operating Instructions

The vidaXL shower door is designed for simple and reliable operation.

• To open the door, gently pull the handle towards you.
• To close the door, push the handle until the door fully engages with the magnetic strip or seal, ensuring a watertight closure.
• Avoid slamming the door to prevent damage to the glass or frame.

6. Maintenance

Regular cleaning and maintenance will ensure the longevity and appearance of your shower door.

• Daily Cleaning: After each use, wipe down the glass and frame with a soft cloth or squeegee to remove water spots and soap residue.
• Weekly Cleaning: For a more thorough clean, use a mild, non-abrasive bathroom cleaner specifically designed for glass and aluminum surfaces. Apply with a soft sponge or cloth and rinse thoroughly with water.
• Avoid: Do not use abrasive cleaners, scouring pads, harsh chemicals (e.g., bleach, ammonia-based cleaners), or sharp objects on any part of the shower door, as these can scratch or damage the surfaces.
• Hinge and Seal Check: Periodically inspect hinges for tightness and seals for wear. Tighten any loose screws and replace worn seals as necessary to maintain watertight integrity.

7. Troubleshooting

If you encounter any issues with your shower door, refer to the following common problems and solutions:

8. Specifications

Key technical specifications for the vidaXL Shower Door (Model 148887):

9. Warranty and Support

For warranty information, technical support, or to order replacement parts, please contact vidaXL customer service. Refer to your purchase documentation for specific warranty terms and contact details.

You can typically find support information on the official vidaXL website or through the retailer where you purchased the product.

Website: www.vidaxl.nl (or your regional vidaXL website)
