vidaXL Pull-Out Sofa Bed Frame Instruction Manual

1. Introduction

This manual provides detailed instructions for the assembly, operation, and maintenance of your vidaXL Pull-Out Sofa Bed Frame. This multi-functional frame is designed to serve as both a comfortable sofa and a convenient guest bed, optimizing space in your living area. Please read this manual thoroughly before beginning assembly or use to ensure proper setup and safe operation.

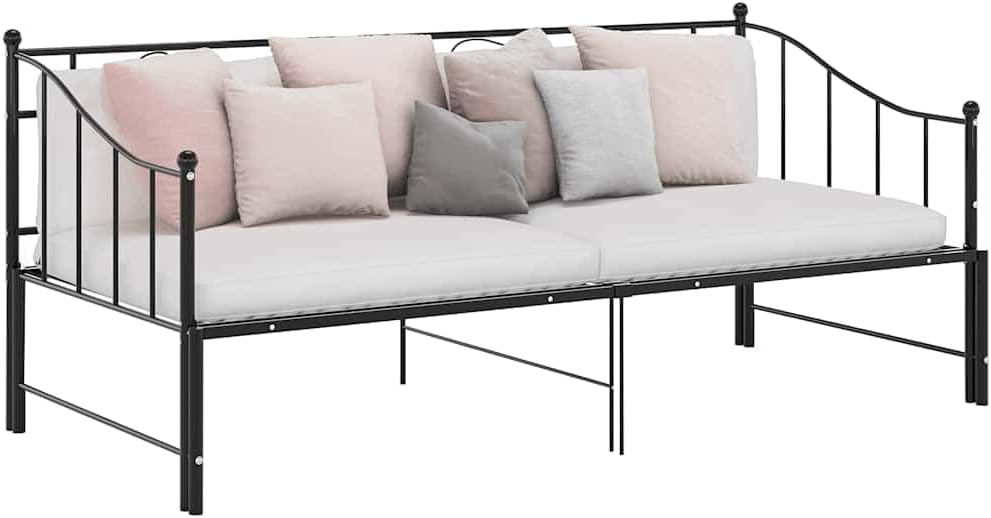

Image 1.1: The vidaXL Pull-Out Sofa Bed Frame in its sofa configuration, complete with decorative cushions.

2. Safety Information

• Read all instructions: Ensure you understand all assembly and usage instructions before proceeding.
• Two-person assembly: Assembly is significantly easier and safer with two adults.
• Keep children away: Small parts and packaging materials can be a choking hazard. Keep them out of reach of children during assembly.
• Level surface: Always assemble and use the bed frame on a flat, stable, and level surface.
• Do not overtighten: Tighten all bolts and screws firmly, but do not overtighten, as this may damage the components.
• Regular checks: Periodically check all connections to ensure they remain tight.
• Weight capacity: Do not exceed the recommended weight capacity for the frame. Specific weight limits are not provided, so exercise caution.
• Mattress not included: Please note that mattresses are not supplied with this frame.

3. Package Contents

Before beginning assembly, verify that all components are present and undamaged. If any parts are missing or damaged, do not proceed with assembly and contact customer support.

• Main frame components (headboard, footboard, side rails)
• Pull-out bed frame section
• Slat supports
• Support legs
• Hardware pack (screws, bolts, washers, Allen key)
• Assembly instructions

4. Setup and Assembly

Assembly is required for this product. Follow these steps carefully. It is highly recommended to have two people for assembly.

1. Unpack and identify parts: Lay out all components on a clean, soft surface (e.g., a blanket or carpet) to prevent scratching. Compare parts with the provided parts list in your package.
2. Assemble the main frame: Attach the side rails to the headboard and footboard using the provided hardware. Ensure all connections are secure but do not fully tighten until the frame is stable.
3. Install slat supports: Secure the metal slat supports to the main frame. These form the base for your mattress.
4. Attach support legs: Fasten any central or additional support legs to the main frame as indicated in your specific assembly diagram.
5. Assemble the pull-out section: Construct the pull-out bed frame section separately, ensuring its wheels or sliding mechanisms are correctly installed.
6. Integrate pull-out section: Carefully slide the assembled pull-out section into the main frame. Ensure it moves smoothly and aligns correctly.
7. Final tightening: Once the entire frame is assembled and stable, go back and fully tighten all screws and bolts.

Image 4.1: The vidaXL Pull-Out Sofa Bed Frame in its empty sofa configuration, ready for mattress placement.

5. Operating Instructions

The vidaXL Pull-Out Sofa Bed Frame is designed for easy conversion between a sofa and a bed.

5.1. Converting from Sofa to Bed

1. Clear the area: Ensure there is sufficient space in front of the sofa bed for the pull-out section to extend fully.
2. Remove cushions: If using the sofa with cushions, remove them to expose the main bed frame.
3. Pull out the bed section: Grasp the front edge of the pull-out section and gently pull it outwards. The section should slide smoothly on its runners or wheels until fully extended.
4. Secure (if applicable): Some models may have a locking mechanism to secure the extended section. Ensure it is engaged if present.

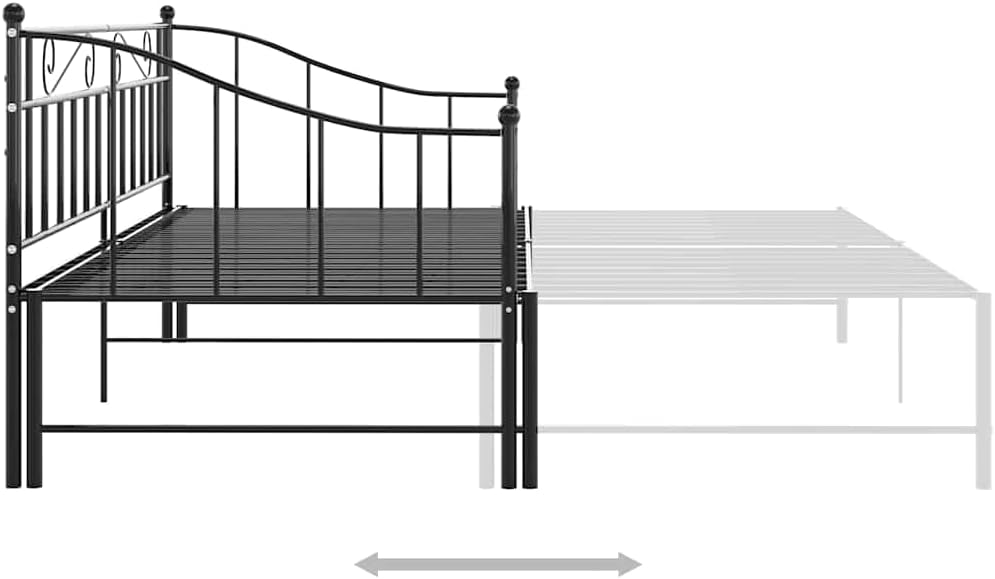

Image 5.1: The pull-out section of the bed frame being extended from its sofa configuration.

Image 5.2: A diagram illustrating the full extension of the pull-out bed section.

5.2. Converting from Bed to Sofa

1. Remove bedding: Clear any bedding or mattresses from the extended section.
2. Unlock (if applicable): Disengage any locking mechanism that secures the extended section.
3. Push in the bed section: Gently push the pull-out section back into the main frame until it is fully retracted.
4. Replace cushions: If desired, place sofa cushions back onto the main frame for sofa use.

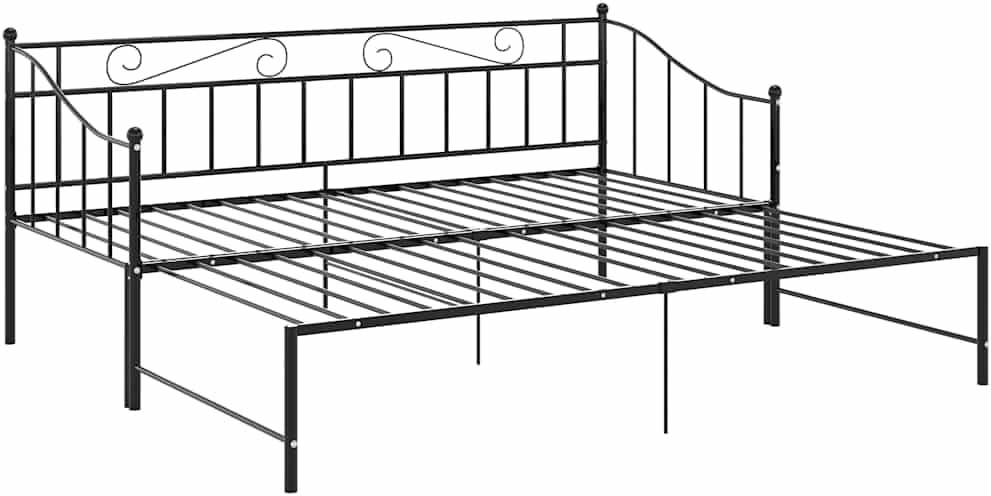

Image 5.3: The vidaXL Pull-Out Sofa Bed Frame in its fully extended bed configuration, without a mattress.

6. Maintenance

• Cleaning: Wipe the metal frame with a soft, damp cloth. Avoid abrasive cleaners or harsh chemicals, as these can damage the finish.
• Regular inspection: Periodically check all bolts, screws, and connections to ensure they are tight. Retighten if necessary to maintain stability and safety.
• Moving the frame: When moving the bed frame, lift it rather than dragging it to prevent damage to the legs and floor.
• Lubrication: If the pull-out mechanism becomes stiff, a small amount of silicone-based lubricant can be applied to the runners or wheels.

7. Troubleshooting

• Instability/Wobbling:
  Solution: Ensure all bolts and screws are fully tightened. Check that the frame is on a level surface. Re-check assembly steps to confirm all parts are correctly installed.
• Difficulty pulling out/pushing in bed section:
  Solution: Check for any obstructions. Ensure the runners or wheels are clean and free of debris. Apply a small amount of silicone lubricant if needed. Verify that the pull-out section is correctly aligned within the main frame.
• Squeaking noises:
  Solution: Tighten all connections. If squeaking persists, disassemble and reassemble the affected section, ensuring all parts are correctly aligned and tightened.

8. Specifications

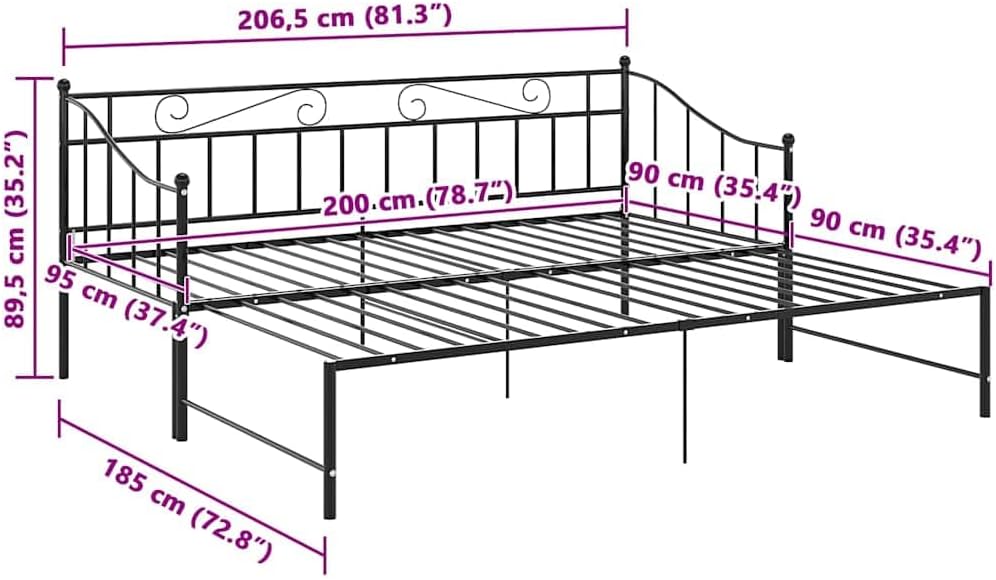

Image 8.1: Detailed dimensions of the sofa bed frame in both sofa and extended bed configurations.

9. Warranty and Support

For warranty information or if you encounter any issues not covered in this manual, please contact vidaXL customer support. Keep your purchase receipt and model number (324776) handy for faster service.

You can typically find support contact information on the manufacturer's official website or through your point of purchase.
