1. Introduction and Safety Information
Thank you for choosing a Beko appliance. This instruction manual provides important information regarding the safe installation, operation, and maintenance of your Beko RFNE312E13S No Frost Deep Freezer. Please read this manual thoroughly before using your appliance to ensure proper function and to prevent potential hazards.
1.1 General Safety Warnings
- Ensure the appliance is unplugged before cleaning or maintenance.
- Do not damage the refrigerant circuit.
- Do not use electrical appliances inside the food storage compartments unless they are of the type recommended by the manufacturer.
- Keep ventilation openings clear of obstruction.
- This appliance is intended for household use only.
- Children should be supervised to ensure they do not play with the appliance.
2. Product Overview
The Beko RFNE312E13S is a 282-liter No Frost deep freezer designed for efficient and convenient frozen food storage. It features a sleek silver finish and a user-friendly design.
2.1 Key Features
- No-Frost Technology: Prevents ice build-up, eliminating the need for manual defrosting.
- LED Illumination: Provides clear visibility inside the freezer compartment.
- Touch Screen Control: Allows for easy temperature adjustment and setting management.
- Antibacterial Internal Repellent: Helps maintain a hygienic environment inside the freezer.
- Reversible Door: The door direction can be changed to suit your kitchen layout.
- Storage Drawers: Equipped with multiple transparent drawers for organized storage.
2.2 External View
Figure 1: Front view of the Beko RFNE312E13S No Frost Deep Freezer.
2.3 Internal Components

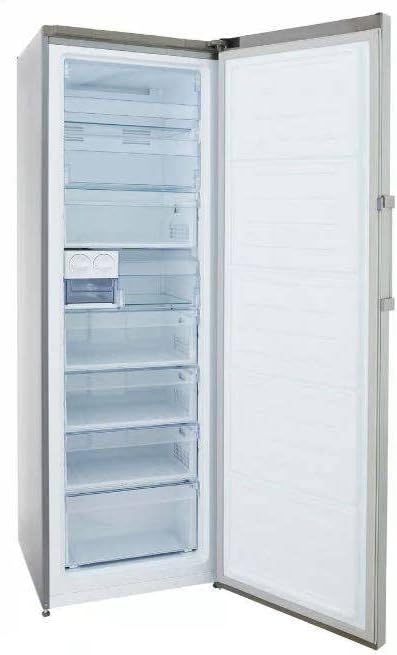

Figure 2: Interior view with transparent storage drawers.
Figure 3: Detail of an internal shelf.
3. Setup and Installation
3.1 Unpacking
Carefully remove all packaging materials. Inspect the appliance for any damage during transit. Report any damage to your retailer immediately. Keep packaging materials away from children.
3.2 Placement
- Place the freezer on a firm, level surface to ensure stability and proper operation.
- Allow adequate ventilation around the appliance. Maintain a minimum clearance of 10 cm (4 inches) from the back and sides to allow for proper air circulation.
- Avoid placing the freezer near heat sources such as direct sunlight, ovens, radiators, or stoves, as this can increase energy consumption.
- Do not install the appliance in areas where the temperature is likely to fall below 5°C (41°F) or rise above 43°C (109°F).
3.3 Electrical Connection
Ensure the voltage and frequency indicated on the rating plate (located inside the appliance) match your household power supply. Plug the appliance into a grounded electrical outlet. Do not use extension cords or multiple socket adapters.
3.4 Door Reversal
The door of your Beko freezer is designed to be reversible, allowing it to open from either the left or right side. If you wish to change the door opening direction, please refer to the detailed instructions provided in the separate installation guide or contact a qualified service technician. This procedure typically involves moving hinges and door stops.
4. Operating Instructions
4.1 Initial Startup
After installation, wait at least 4 hours before plugging in the appliance to allow the refrigerant gases to settle. Once plugged in, the freezer will begin to cool. It may take several hours for the freezer to reach the desired temperature.
4.2 Temperature Control
Your freezer is equipped with a touch screen control panel for easy temperature adjustment.
Figure 4: Touch screen control panel.
- Power Button: Press to turn the appliance on or off.
- Temperature Setting: Use the temperature control icons (e.g., '+' or '-') to set the desired freezing temperature. The recommended temperature for general frozen food storage is -18°C (0°F).
- Fast Freeze Function: If available, activate this function to rapidly freeze fresh food. This helps preserve food quality. Deactivate it once food is frozen.
- Alarm Reset: If an alarm sounds (e.g., high temperature), press the alarm reset button to silence it.
4.3 Food Storage Guidelines
- Always wrap food properly before placing it in the freezer to prevent dehydration and odor transfer.
- Do not place hot food directly into the freezer; allow it to cool down first.
- Avoid overloading the freezer, as this can hinder air circulation and reduce freezing efficiency.
- Label and date frozen food for easy identification and to ensure consumption within recommended storage times.
5. Maintenance and Care
5.1 Cleaning the Interior
Unplug the appliance before cleaning. Clean the interior regularly with a solution of lukewarm water and a mild, non-abrasive detergent. Rinse with clean water and dry thoroughly. Do not use abrasive cleaners, sharp objects, or strong chemicals, as these can damage the interior surfaces.
5.2 Cleaning the Exterior
Wipe the exterior surfaces with a soft cloth dampened with water and a mild detergent. Dry with a soft, clean cloth. Regularly clean the condenser coils at the back of the appliance (if accessible) with a soft brush or vacuum cleaner to ensure efficient operation.
5.3 Door Seal Care
Keep the door seals clean to ensure a tight seal. A dirty or damaged seal can lead to increased energy consumption and ice build-up. Clean with warm soapy water and dry thoroughly.
5.4 No-Frost System
Your Beko freezer features No-Frost technology, which automatically prevents ice accumulation. Therefore, manual defrosting is not required. However, regular cleaning as described above is still important.
6. Troubleshooting
Before contacting service, please check the following common issues and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Appliance does not operate. | No power supply. | Check if the power cord is plugged in securely. Check the fuse or circuit breaker. |
| Temperature inside is not cold enough. | Temperature setting is too high. Door is opened too frequently or for too long. Large amount of warm food placed inside. | Adjust the temperature to a colder setting. Ensure the door is closed properly. Allow warm food to cool before freezing. |
| Excessive noise. | Appliance is not level. Components are loose. | Adjust the leveling feet to ensure the appliance is stable. Check for any loose items inside. |
| Door does not close properly. | Food packages obstructing the door. Door seals are dirty or damaged. | Rearrange food items. Clean or replace door seals if necessary. |
If the problem persists after checking these points, please contact Beko customer service.
7. Technical Specifications
Detailed specifications for the Beko RFNE312E13S No Frost Deep Freezer:
| Specification | Value |
|---|---|
| Brand | Beko |
| Model Info | RFNE312E13S |
| Product Dimensions (D x W x H) | 65 x 70 x 180 cm |
| Item Weight | 55 kg |
| Capacity | 282 Liters |
| Color | Silver |
| Defrost Type | Automatic (No-Frost) |
| Installation Type | Freestanding |
| Voltage | 220V |
| Number of Drawers | 7 |
| Door Orientation | Left (Reversible) |
8. Warranty and Customer Support
8.1 Warranty Information
For detailed information regarding the warranty period and terms for your Beko RFNE312E13S Deep Freezer, please refer to the warranty card included with your appliance or visit the official Beko website. Keep your purchase receipt as proof of purchase for warranty claims.
8.2 Customer Support
If you require technical assistance, spare parts, or have any questions not covered in this manual, please contact Beko customer service. Contact details can typically be found on the Beko official website or on your warranty documentation.
