1. Introduction and Safety Information
This manual provides essential instructions for the safe and efficient operation of your Mabe 17 Kg Automatic Washing Machine, model LMA77113CBAB0. Please read all instructions carefully before using the appliance to ensure proper installation, usage, and maintenance.
Important Safety Instructions:
- Always disconnect the appliance from the power supply before cleaning or performing any maintenance.
- Do not operate the washing machine if it is damaged or malfunctioning. Contact qualified service personnel.
- Keep children and pets away from the appliance during operation.
- Ensure proper grounding to prevent electrical shock.
- Do not wash items that have been cleaned in, washed with, soaked in, or spotted with combustible or explosive substances.
- The lid should remain closed during the wash cycle. The lid features a safety lock.
2. Product Overview
The Mabe LMA77113CBAB0 is a top-loading automatic washing machine designed for efficient and thorough cleaning. It features advanced technologies for water and energy saving, along with multiple wash cycles to suit various fabric types.
Key Features:
- Sanitizing Cycle: Eliminates 99.9% of bacteria for enhanced hygiene.
- Aqua Saver Green Technology: Reduces water consumption by up to 76% and energy consumption by up to 55% per wash.
- 13 Automatic Cycles: A variety of pre-set programs for different laundry needs.
- Soft-Close Glass Lid with Safety Lock: Provides durability and safety during operation.
- Metallic Finishes: Durable and aesthetically pleasing design elements.
- Stainless Steel Drum: Ensures longevity and gentle care for clothes.
Components:

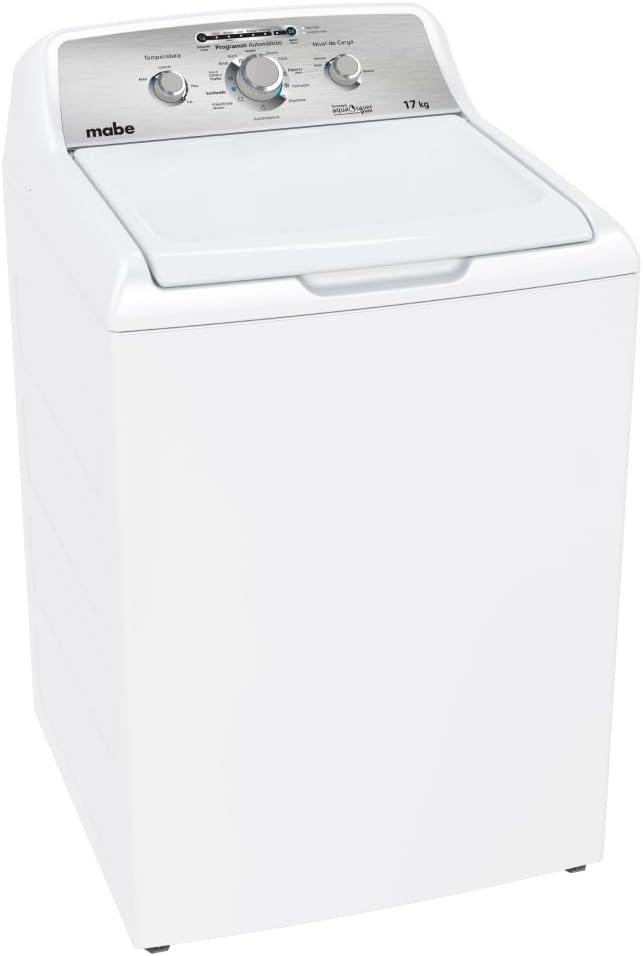

Figure 2.1: Front view of the Mabe 17 Kg Automatic Washing Machine LMA77113CBAB0. This image shows the overall design of the appliance, including the top-loading lid and the control panel.
Figure 2.2: Close-up of the control panel. This image highlights the temperature selection knob, automatic program selector, and load level knob, along with various cycle indicators.
Figure 2.3: View of the washing machine's interior drum. This image shows the stainless steel drum with its agitator and dispenser, designed for effective washing and durability.
3. Setup and Installation
Proper installation is crucial for the optimal performance and safety of your washing machine. It is recommended to have the appliance installed by a qualified technician.
Location Requirements:
- Place the washing machine on a firm, level floor capable of supporting its weight (approximately 49.9 kg).
- Ensure adequate clearance around the appliance for ventilation and maintenance.
- Avoid direct sunlight or extreme temperatures.
Connections:
- Water Supply: Connect the hot and cold water inlet hoses to their respective taps. Ensure connections are tight to prevent leaks.
- Drainage: Position the drain hose securely into a standpipe or laundry tub, ensuring it is not kinked or blocked.
- Electrical Connection: Plug the power cord into a grounded electrical outlet. The appliance requires a dedicated circuit.
Figure 3.1: Dimensional diagram of the Mabe LMA77113CBAB0 washing machine. This illustration provides the height (111.0 cm), width (68.0 cm), and depth (65.5 cm) of the appliance, essential for planning installation space.
4. Operating Instructions
Follow these steps for effective and safe operation of your Mabe washing machine.
Loading Laundry:
- Sort laundry by fabric type, color, and soil level.
- Open the lid and load items loosely into the drum, distributing them evenly around the agitator. Do not overload the machine.
- Add appropriate detergent and fabric softener to the dispenser.
- Close the lid securely.
Selecting a Wash Cycle:
Use the control panel to select your desired settings:
- Temperature: Turn the "Temperatura" knob to select water temperature (Hot, Warm, Cold, Auto).
- Automatic Programs: Turn the "Programas Automáticos" knob to choose from 13 available cycles, including:
- Baby Clothes
- Jeans
- White Clothes
- Color Clothes
- Express (20 min)
- Delicates
- Sportswear
- Sanitized Cycle
- Bulky Items/Comforters
- Towels/Bedding
- Self-Clean
- Load Level: Turn the "Nivel de Carga" knob to select the appropriate water level (Minimum, Auto, Maximum) based on your laundry load.
Starting the Wash:
After selecting your desired settings, press the Start/Pause button to begin the wash cycle. The machine will automatically proceed through the selected stages (Fill, Soak, Wash, Rinse, Spin).
5. Maintenance
Regular maintenance ensures the longevity and optimal performance of your washing machine.
Cleaning the Exterior:
- Wipe the exterior surfaces with a soft, damp cloth and mild detergent.
- Avoid abrasive cleaners or solvents that could damage the finish.
Cleaning the Drum:
- Use the "Self-Clean" cycle periodically to clean the interior of the drum and remove detergent residue or odors.
- Ensure the drum is empty before running the self-clean cycle.
Water Inlet Filters:
Periodically check and clean the water inlet filters to prevent blockages and ensure proper water flow. Turn off the water supply and disconnect the hoses before cleaning.
6. Troubleshooting
Before contacting customer service, refer to the following table for common issues and their solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Washing machine does not start. | Power cord unplugged, lid not closed properly, circuit breaker tripped. | Ensure power cord is securely plugged in. Close the lid completely. Check your home's circuit breaker. |
| No water filling or slow filling. | Water supply taps closed, inlet hoses kinked, water inlet filters clogged. | Open water supply taps. Straighten hoses. Clean water inlet filters. |
| Machine vibrates excessively or is noisy. | Machine not level, load unbalanced, shipping bolts not removed. | Adjust leveling feet. Redistribute laundry evenly. Ensure all shipping bolts are removed (if applicable). |
| Water leaks. | Hose connections loose, drain hose improperly installed. | Tighten all hose connections. Ensure drain hose is securely placed and not blocked. |
If the problem persists after attempting these solutions, please contact Mabe customer support.
7. Specifications
Detailed technical specifications for the Mabe LMA77113CBAB0 Automatic Washing Machine.
| Feature | Detail |
|---|---|
| Brand | Mabe |
| Model Number | LMA77113CBAB0 |
| Capacity | 17 Kilograms |
| Product Dimensions (D x W x H) | 67.8 cm x 68 cm x 111 cm |
| Product Weight | 49.9 Kilograms |
| Access Location | Top Load |
| Finish Type | Stainless Steel |
| Color | White |
| Special Features | Aqua Saver Green, Automatic Cycles |
| Cycle Options | Express Wash, Sanitizing Cycle |
| Control Type | Knob, Buttons |
| Maximum Spin Speed | 800 RPM |
| Number of Standard Cycles | 11 (Note: Product features mention 13 automatic cycles, this refers to the total available programs) |
| Noise Level | 70 Decibels |
| Installation Method | Freestanding |
| Recommended Use | Residential |
| Included Items | Power Cable |
| Drum Material | Stainless Steel |
| UPC | 757638969635 |
8. Warranty and Support
Your Mabe LMA77113CBAB0 washing machine is covered by a manufacturer's warranty. Please refer to the warranty card included with your purchase for specific terms and conditions.
Customer Support:
For technical assistance, service requests, or inquiries regarding your product, please contact Mabe customer support. Contact information can typically be found on the manufacturer's official website or on the warranty documentation.
When contacting support, please have your model number (LMA77113CBAB0) and serial number ready.
