DELTACO GAMING Chair User Manual

Introduction

This manual provides comprehensive instructions for the assembly, operation, maintenance, and troubleshooting of your DELTACO GAMING Chair, model GAM-096. Designed for comfort and durability, this gaming chair features a faux leather finish, adjustable armrests, and supportive cushions for an optimal gaming or work experience.

Please read this manual thoroughly before assembly and use to ensure safe and correct operation. Keep this manual for future reference.

Safety Information

WARNING: This chair requires assembly. Ensure it is fully and correctly assembled before any use. Failure to do so may result in injury or damage to the product.

• Do not exceed the maximum weight recommendation of 120 kg (264 lbs). Overloading the chair can cause structural failure and injury.
• Keep all assembly components and packaging materials away from children.
• Ensure all screws and bolts are tightened securely during assembly. Periodically check and re-tighten as necessary.
• Avoid standing on the chair or using it as a step stool.
• Do not use abrasive cleaners or harsh chemicals on the faux leather finish. Refer to the Maintenance section for cleaning instructions.
• Use the chair on a flat, stable surface to prevent tipping.

Package Contents

Before beginning assembly, verify that all components listed below are present and undamaged. If any parts are missing or damaged, please contact customer support.

• Backrest
• Seat Base
• Armrests (2)
• Gas Lift Cylinder
• Five-Star Base
• Casters (5)
• Mechanism Plate
• Headrest Cushion
• Lumbar Support Cushion
• Hardware Kit (screws, washers, Allen key)
• Instruction Manual (this document)

Assembly Instructions

Follow these steps carefully to assemble your DELTACO GAMING Chair. It is recommended to assemble the chair on a soft, clean surface to prevent scratches.

1. Step 1: Attach Casters to Base

   Insert the five casters into the holes at the end of each leg of the five-star base. Push firmly until they click into place.



   Image: Illustration of the five-star base with casters attached, representing the foundation of the chair.

2. Step 2: Install Gas Lift Cylinder

   Place the gas lift cylinder into the center hole of the five-star base. Ensure it is seated firmly.

3. Step 3: Attach Mechanism Plate to Seat Base

   Align the mechanism plate with the pre-drilled holes on the underside of the seat base. Ensure the front of the mechanism (usually indicated by an arrow or "FRONT" label) faces the front of the seat. Secure with the provided screws and tighten with the Allen key.

4. Step 4: Connect Seat Base to Gas Lift

   Carefully place the assembled seat base (with mechanism plate attached) onto the gas lift cylinder. Press down firmly to secure the connection.

5. Step 5: Attach Backrest to Seat Base

   Align the backrest with the metal brackets on the seat base. Secure with the remaining screws. It may be helpful to have a second person hold the backrest in place during this step.



   Image: Side view of the assembled chair, illustrating the connection points between the backrest and seat base.

6. Step 6: Install Armrests

   Attach the armrests to the designated mounting points on the seat base and/or backrest using the provided screws. Ensure they are securely fastened.

7. Step 7: Attach Cushions

   Attach the headrest cushion and lumbar support cushion using their integrated straps. Adjust their positions for optimal comfort.



   Image: Detailed view of the headrest and lumbar support cushions, showing how they attach to the chair's backrest.

8. Step 8: Final Check

   Once assembled, gently test all functions and ensure all connections are secure before regular use. Verify that the chair is stable and does not wobble.

Operating Instructions

Your DELTACO GAMING Chair offers several adjustment features to customize your seating experience.

• Height Adjustment:

  Locate the lever on the right side, under the seat. To raise the chair, lift the lever while taking your weight off the seat. To lower the chair, lift the lever while seated.

• Backrest Recline:

  Pull the recline lever, typically on the right side of the seat, to adjust the backrest angle. Release the lever at your desired angle to lock it in place. The chair can recline significantly for relaxation.



  Image: The gaming chair shown in a reclined position, demonstrating its adjustable backrest feature.

• Armrest Adjustment:

  The armrests are adjustable. Look for a button or lever on the side of the armrest to adjust its height. Some models may also allow for swivel or forward/backward adjustment.

• Lumbar and Headrest Cushions:

  The headrest and lumbar support cushions are adjustable via their straps. Position them to provide optimal support for your neck and lower back.

Maintenance

Proper care will extend the life and appearance of your DELTACO GAMING Chair.

• Cleaning the Faux Leather:

  Wipe the faux leather surfaces with a soft, damp cloth. For stubborn stains, use a mild soap solution and then wipe clean with a damp cloth, followed by a dry cloth. Do not use abrasive cleaners, solvents, or harsh chemicals, as these can damage the material.

• Frame and Base:

  Clean the metal frame and plastic components with a damp cloth. Avoid excessive moisture.

• Casters:

  Periodically check the casters for accumulated dust, hair, or debris. Clean them to ensure smooth movement and prevent damage to your flooring.

• Tighten Fasteners:

  Every few months, check all screws and bolts and re-tighten them as necessary to maintain the chair's stability and structural integrity.

Troubleshooting

If you encounter any issues with your DELTACO GAMING Chair, refer to the following common problems and solutions:

Specifications

Detailed technical specifications for the DELTACO GAMING Chair GAM-096:

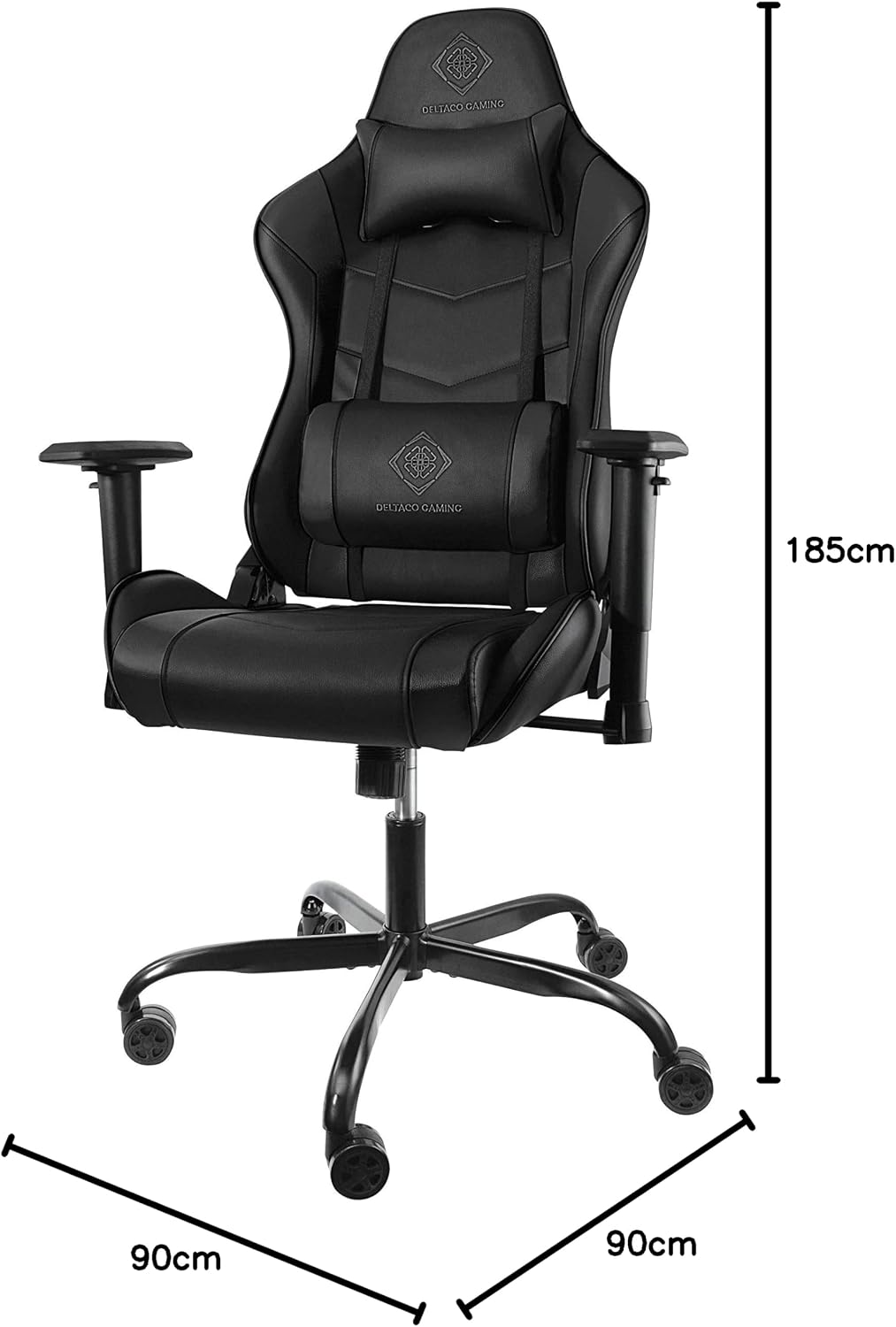

Image: Diagram illustrating the key dimensions of the DELTACO GAMING Chair, including its maximum height of 185 cm.

Warranty and Support

Your DELTACO GAMING Chair GAM-096 comes with a 2-year warranty covering manufacturing defects from the date of purchase.

For warranty claims, technical support, or inquiries regarding missing/damaged parts, please contact DELTACO customer service. Keep your proof of purchase for warranty validation.

For further assistance, please visit the official DELTACO website or contact their support channels directly. Contact information can typically be found on the product packaging or the brand's official website.
