1. Introduction
This manual provides essential instructions for the safe and efficient operation, maintenance, and troubleshooting of your Xilin Electric Powered Pallet Jack, Model CBD15. Please read this manual thoroughly before operating the equipment to ensure proper usage and to prevent injury or damage.
Figure 1: Xilin Electric Powered Pallet Jack CBD15. This image displays the overall design of the pallet jack, highlighting its compact structure and yellow finish.
2. Safety Information
Operating industrial equipment requires strict adherence to safety protocols. Failure to follow these guidelines can result in serious injury or death.
- Always wear appropriate personal protective equipment (PPE), including safety shoes and gloves.
- Ensure the operating area is clear of obstructions and personnel.
- Never exceed the rated load capacity of 3300 lbs.
- Operate the pallet jack on level, stable surfaces. Avoid inclines or uneven terrain when carrying loads.
- Familiarize yourself with all controls, especially the emergency stop button, before operation.
- Do not operate the pallet jack if it is damaged or malfunctioning.
- Keep hands and feet clear of moving parts, especially the forks and wheels.
3. Setup and Initial Preparation
3.1 Unpacking and Assembly
The Xilin CBD15 pallet jack requires partial assembly, primarily the installation of the handle.
- Carefully remove all packaging materials.
- Attach the control handle to the main body of the pallet jack according to the included assembly diagrams. Ensure all fasteners are securely tightened.
3.2 Battery Connection and Initial Charge
Before first use, the battery must be connected and fully charged.
- Locate the battery compartment. Open it to access the battery.
- Connect the red battery connector to the battery terminals.
- Connect the charger to the charging port and plug it into a suitable power outlet. The charging time is approximately 3 hours.
- Once charging is complete, disconnect the charger.
3.3 Activating the Pallet Jack
To power on the unit, the emergency stop button must be engaged correctly.

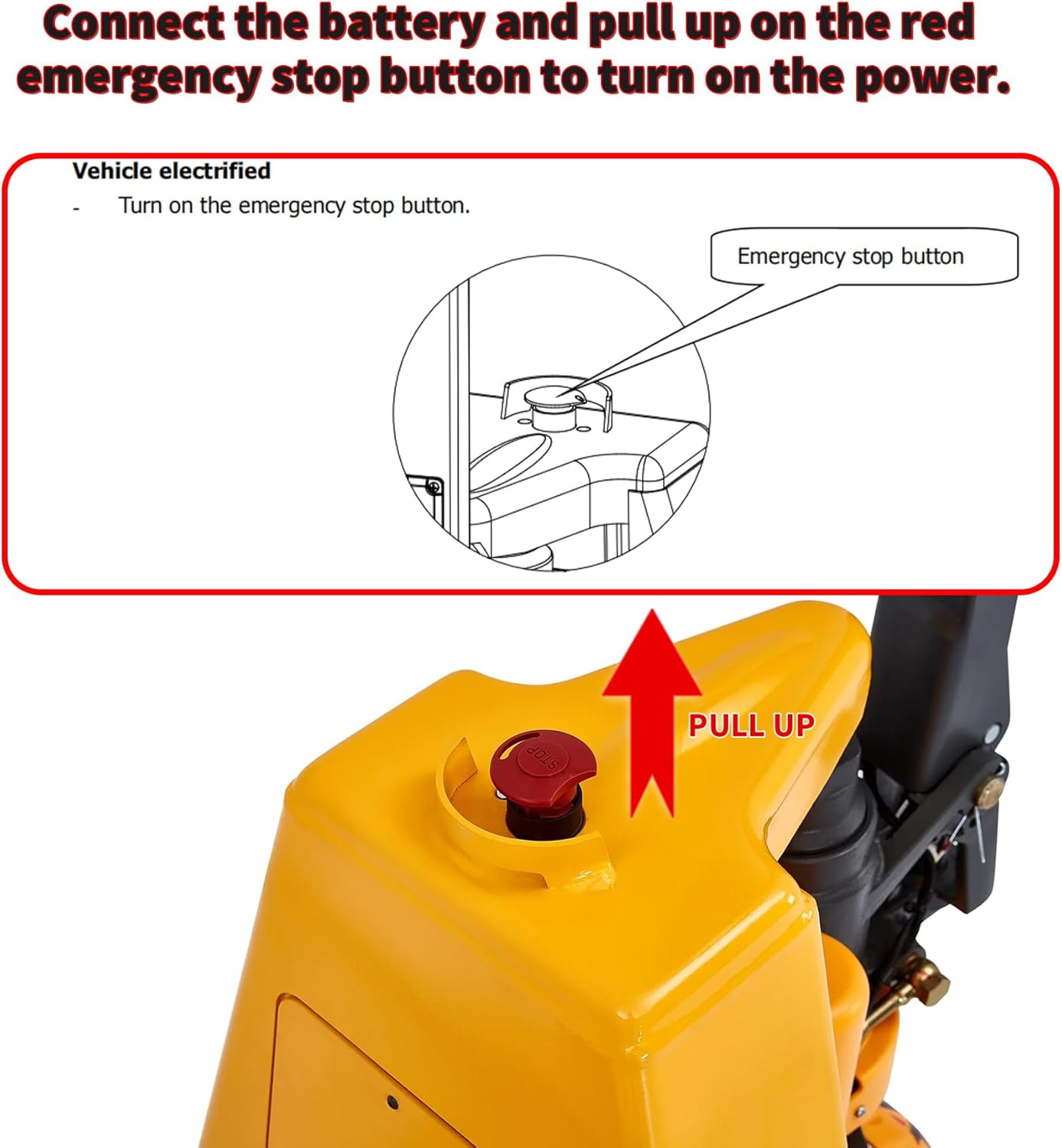

Figure 2: Activating the pallet jack by pulling up the red emergency stop button. This image illustrates the location and action required to engage the emergency stop button, which powers on the unit.
- Ensure the battery is connected.
- Pull up on the red emergency stop button located on the top of the main body. This action electrifies the vehicle and turns on the power.
- The pallet jack is now ready for operation.
4. Operating Instructions
The Xilin CBD15 features an integrated control handle for intuitive operation.
4.1 Control Handle Functions
- Accelerator: Controls forward and reverse movement speed.
- Emergency Reverse Switch: Activates reverse movement immediately to prevent collisions.
- Horn: Used to alert others in the vicinity.
- Lift/Lower Controls: Buttons or levers on the handle to raise or lower the forks.
4.2 Moving the Pallet Jack
- Ensure the forks are in the lowered position when moving without a load.
- Use the accelerator on the control handle to move the pallet jack forward or backward. Adjust speed as needed.
- Steer the pallet jack using the control handle.
4.3 Lifting and Transporting Loads
- Position the pallet jack so the forks are aligned with the pallet openings.
- Drive the pallet jack forward until the forks are fully inserted under the pallet.
- Use the lift control on the handle to raise the forks until the pallet is clear of the ground.
- Transport the load carefully, maintaining a safe speed and being aware of your surroundings.
- To lower the load, position the pallet in the desired location and use the lower control on the handle.
- Once the pallet is on the ground, fully retract the forks from under the pallet.
Figure 3: An operator demonstrating the use of the Xilin Electric Powered Pallet Jack to move a loaded pallet. This image shows the pallet jack in a typical operational environment, emphasizing its maneuverability.
5. Maintenance
Regular maintenance ensures the longevity and safe operation of your Xilin Electric Powered Pallet Jack.
5.1 Daily Checks
- Inspect for any visible damage, loose parts, or leaks.
- Check tire condition and ensure proper inflation if applicable (polyurethane wheels are standard).
- Verify that all controls, including the emergency stop, are functioning correctly.
5.2 Battery Care
The unit is equipped with a 24V/20Ah Lithium Battery.
- Charge the battery after each use or when the charge indicator shows low power.
- Avoid completely draining the battery to prolong its lifespan.
- Store the pallet jack in a dry, temperate environment.
5.3 General Maintenance
- Keep the pallet jack clean, especially the moving parts and electrical components.
- The permanent magnet carbon brush motor is designed for long life and easy maintenance. Refer to specific service instructions for motor maintenance if required.
- Lubricate moving parts as recommended in the detailed service manual (not provided here).
6. Troubleshooting
This section addresses common issues you might encounter with your Xilin Electric Powered Pallet Jack.
| Problem | Possible Cause | Solution |
|---|---|---|
| Pallet jack does not power on. | Emergency stop button is pressed down; battery not connected; battery discharged. | Pull up the emergency stop button; ensure battery is connected; charge the battery. |
| Pallet jack moves intermittently or not at all. | Low battery charge; loose electrical connection; motor issue. | Charge the battery; check all visible connections; contact customer support if motor issue is suspected. |
| Forks do not lift or lower properly. | Overload; hydraulic fluid level low; mechanical obstruction. | Reduce load; check hydraulic fluid (refer to service manual); inspect for obstructions. |
| Unusual noises during operation. | Loose components; worn bearings; motor issue. | Inspect for loose parts and tighten; contact customer support for internal component issues. |
If you encounter issues not listed here or if solutions do not resolve the problem, please contact Xilin customer support for assistance.
7. Specifications
Detailed technical specifications for the Xilin Electric Powered Pallet Jack CBD15.
Figure 4: Key specifications of the Xilin Electric Pallet Truck CBD15, including capacity, fork dimensions, and lift height.
| Feature | Specification |
|---|---|
| Model | CBD15 |
| Brand | Xilin |
| Load Capacity | 3300 lbs (1500 kg) |
| Battery Type | Lithium Battery |
| Battery Capacity | 24V/20Ah |
| Charging Time | Approximately 3 hours |
| Working Time | Approximately 3 hours |
| Fork Size (L x W) | 48" x 27" |
| Fork Width (Individual) | 6.3" |
| Distance Between Forks (Inside) | 14.37" |
| Fork Thickness | 2.1" |
| Lowered Fork Height | 3" |
| Maximum Lift Height | 7.5" (approx. 7.3" as per A+ content) |
| Overall Length | 65" |
| Overall Height | 47.2" |
| Product Dimensions (L x W x H) | 63.8" x 27" x 50.7" |
| Item Weight | 270 lbs |
| Wheel Type | Polyurethane |
| Motor Type | Permanent magnet carbon brush motor |

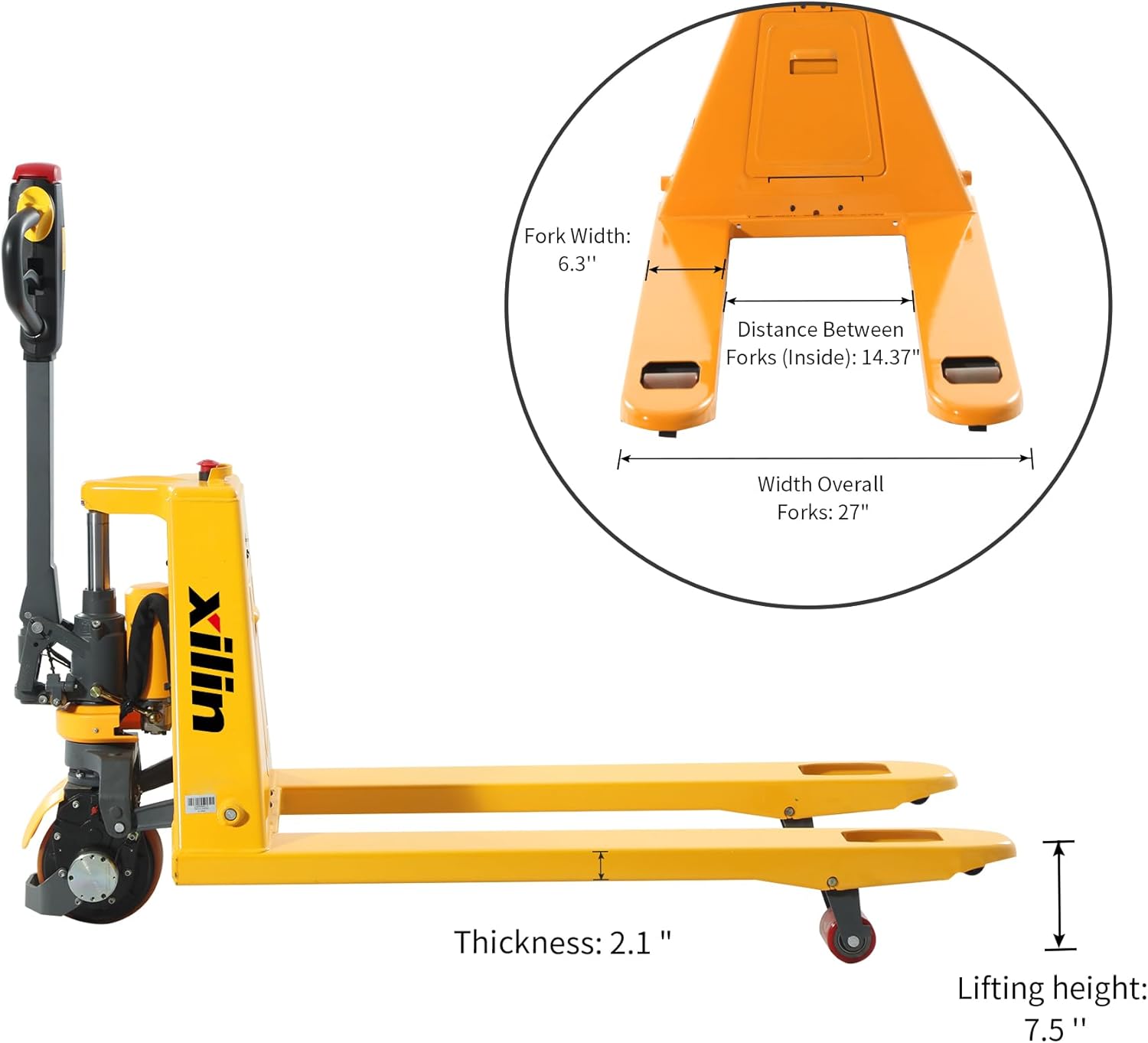

Figure 5: Detailed dimensions of the pallet jack forks, including width and distance between forks.
Figure 6: Overall dimensions of the Xilin Electric Pallet Jack, including fork length, overall length, and overall height.
8. Warranty and Support
For warranty information, please refer to the documentation provided with your purchase or contact Xilin customer support directly. XilinAmerica offers customer support for product inquiries and assistance.
Contact Information: Please refer to your purchase receipt or the Xilin official website for the most current customer support contact details.
