Yard Force GM B46F Lawn Mower User Manual

1. Introduction

This manual provides essential information for the safe and efficient operation, assembly, and maintenance of your Yard Force GM B46F Lawn Mower. Please read this manual thoroughly before using the product and keep it for future reference.

The Yard Force GM B46F is a powerful walk-behind lawn mower designed for effective lawn care. It features a 140cc Briggs & Stratton 475iSi engine with electric start, a 46 cm cutting width, and adjustable cutting heights from 25mm to 75mm.

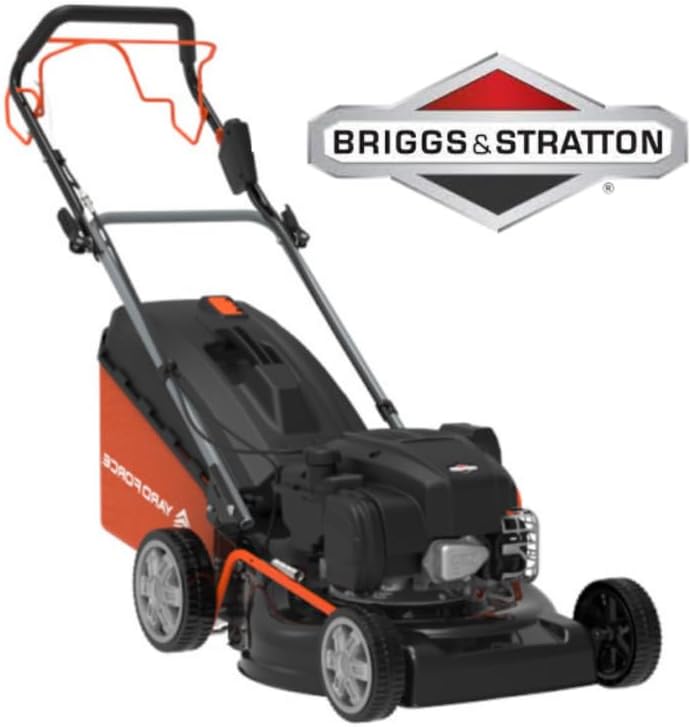

Figure 1.1: The Yard Force GM B46F Lawn Mower, showcasing its robust design and ergonomic handle.

2. Safety Instructions

Always observe basic safety precautions to reduce the risk of fire, electric shock, and personal injury when operating this lawn mower. Failure to follow these instructions may result in serious injury or death.

• Read the Manual: Familiarize yourself with all controls and proper use of the machine.
• Personal Protective Equipment (PPE): Always wear sturdy footwear, long trousers, and eye protection when operating the mower. Avoid loose clothing that could get caught in moving parts.
• Clear the Area: Before mowing, clear the area of objects such as rocks, sticks, wires, bones, and other debris that could be thrown by the blade.
• Keep Bystanders Away: Do not allow children or pets near the mower while it is in operation. Maintain a safe distance of at least 15 meters (50 feet).
• Inspect Before Use: Check the mower for loose parts, damage, or wear before each use. Ensure all guards and safety devices are in place and functioning correctly.
• Fuel Handling: Refuel outdoors only, with the engine off and cool. Do not smoke while refueling. Store fuel in an approved container.
• Slope Operation: Mow across the face of slopes, never up and down. Exercise extreme caution when changing direction on slopes. Avoid excessively steep slopes.
• Engine Off: Stop the engine and disconnect the spark plug wire before performing any adjustments, cleaning, or maintenance.
• Blade Safety: The blade continues to rotate for a short period after the engine is switched off. Do not touch the blade until it has completely stopped.
• Weather Conditions: Do not operate the mower in wet grass or rain.

3. Components Overview

Understanding the main components of your lawn mower is crucial for proper assembly, operation, and maintenance.

• Engine: Briggs & Stratton 475iSi 140cc engine, providing power for cutting and self-propulsion (if applicable).
• Handlebar: Foldable handle for storage and transport, with controls for engine start/stop and blade engagement.
• Grass Collection Bag: 55L capacity bag for collecting grass clippings.
• Cutting Deck: Houses the rotating blade and determines the cutting width (46 cm).
• Height Adjustment Lever: Single lever for central adjustment of cutting height (25mm to 75mm).
• Wheels: Front and rear wheels for maneuverability.
• Spark Plug: Part of the ignition system.
• Air Filter: Protects the engine from dust and debris.
• Fuel Tank: For gasoline.
• Oil Fill Cap/Dipstick: For engine oil.

Figure 3.1: Overview of the lawn mower, highlighting the Briggs & Stratton engine.

4. Setup and Assembly

Follow these steps to assemble your lawn mower before its first use.

4.1 Unpacking

• Carefully remove all components from the packaging.
• Check the contents against the packing list to ensure all parts are present and undamaged.

4.2 Handlebar Assembly

1. Lift the lower handle section until it locks into position.
2. Attach the upper handle section to the lower section using the provided knobs and bolts. Ensure the cables are not pinched.
3. Tighten all fasteners securely.

4.3 Grass Collection Bag Assembly

Assemble the grass collection bag according to the instructions provided with the bag components. Typically, this involves attaching the fabric bag to the frame.

Figure 4.1: The 55L grass collection bag, ready for assembly and attachment to the mower.

4.4 Adding Oil and Fuel

Important: The engine is shipped without oil. You must add engine oil before starting the mower for the first time.

1. Place the mower on a level surface.
2. Remove the oil fill cap/dipstick.
3. Slowly pour the recommended engine oil (refer to engine manual for type and quantity, typically SAE 30 or 10W-30) into the oil fill opening until it reaches the "FULL" mark on the dipstick. Do not overfill.
4. Replace the oil fill cap/dipstick.
5. Fill the fuel tank with fresh, unleaded gasoline (minimum 87 octane). Do not use E85 or E15 fuel. Do not overfill.
6. Securely replace the fuel cap.

5. Operation

Follow these steps for safe and effective operation of your lawn mower.

5.1 Starting the Engine (Electric Start)

1. Ensure the spark plug wire is securely connected.
2. Press the primer bulb (if equipped) 3-5 times, or as recommended by the engine manufacturer.
3. Hold the engine brake lever (bail bar) against the handle. This lever must be held for the engine to start and run.
4. Press the electric start button. The engine should start within a few seconds. Release the button once the engine starts.
5. If the engine does not start, wait a few seconds and try again.

5.2 Adjusting Cutting Height

The Yard Force GM B46F features a central height adjustment lever for quick and easy changes to cutting height.

1. Ensure the engine is off and the blade has stopped rotating.
2. Locate the height adjustment lever, typically near one of the rear wheels.
3. Pull the lever outwards and move it to the desired height setting. The mower offers 7 height positions from 25mm to 75mm.
4. Ensure all wheels are set to the same height for an even cut.

5.3 Mowing Techniques

• For best results, cut no more than one-third of the grass blade length at a time.
• Overlap cutting swaths slightly to ensure complete coverage.
• Vary your mowing pattern each time to prevent matting and promote healthier grass growth.
• Reduce engine speed when mowing in light conditions or when the grass is short to conserve fuel.

5.4 Emptying the Grass Bag

When the grass bag is full, the mower's performance may decrease, and clippings may be left on the lawn.

1. Stop the engine and wait for the blade to stop completely.
2. Lift the rear discharge flap.
3. Grasp the grass bag handle and lift the bag off the mower.
4. Empty the clippings into a compost pile or suitable receptacle.
5. Reattach the grass bag securely.

5.5 Stopping the Engine

To stop the engine, simply release the engine brake lever (bail bar). The engine will shut off automatically.

6. Maintenance

Regular maintenance ensures the longevity and optimal performance of your lawn mower. Always disconnect the spark plug wire before performing any maintenance.

6.1 Cleaning the Mower

• After each use, clean the underside of the cutting deck to prevent grass buildup, which can affect cutting performance. Use a scraper or stiff brush.
• Wipe down the exterior of the mower with a damp cloth. Do not use a pressure washer or hose directly on the engine or electrical components.

6.2 Blade Care

• Inspect the blade regularly for sharpness and damage. A dull blade tears grass, leading to an unhealthy lawn.
• Sharpen or replace the blade as needed. If replacing, ensure you use a genuine Yard Force replacement blade.
• When handling the blade, wear heavy-duty gloves.

6.3 Engine Maintenance

Refer to the separate Briggs & Stratton engine manual for detailed maintenance schedules and procedures. Key maintenance points include:

• Oil Change: Change engine oil after the first 5 hours of operation, then every 25-50 hours or annually.
• Air Filter: Clean or replace the air filter regularly, especially in dusty conditions.
• Spark Plug: Inspect and clean the spark plug annually. Replace if worn or fouled.
• Fuel System: Use a fuel stabilizer if storing the mower for extended periods.

Figure 6.1: The Briggs & Stratton 475iSi engine, requiring regular oil and air filter maintenance.

6.4 Storage

• Clean the mower thoroughly before storing.
• Drain the fuel tank or add a fuel stabilizer.
• Store the mower in a clean, dry area, away from direct sunlight and extreme temperatures.
• The handlebar can be folded for compact storage.

7. Troubleshooting

This section provides solutions to common issues you might encounter with your lawn mower.

8. Specifications

Key technical specifications for the Yard Force GM B46F Lawn Mower:

9. Warranty and Support

Yard Force products are manufactured to high-quality standards and are guaranteed for domestic use against manufacturing defects. Please retain your proof of purchase for any warranty claims.

For warranty service, technical support, or to order replacement parts, please contact Yard Force customer service. Contact details can typically be found on the product packaging or the official Yard Force website.

Note: Warranty terms and conditions may vary by region. Always refer to the specific warranty statement included with your product.
