CCIYU 3000 lbs Electric Winch User Manual

1. General Information

1.1 Product Overview

The CCIYU 3000 lbs Electric Winch is designed for reliable towing and recovery in various applications, including field operations, laboratories, schools, construction, decoration industry, off-road traction, and self-rescue. It features an automatic load-holding brake for maximum safety and a three-stage planetary gear system for fast line speed. The winch includes a wireless remote control for convenient operation and offers positive load control with power-in and power-out capabilities. A free spooling clutch allows for fast wire payout.

1.2 Key Features

• Automatic Load-Holding Brake: Ensures secure load management.
• Three-Stage Planetary Gear System: Provides efficient and fast line speed.
• Wireless Remote Control: For easy and safe operation from a distance.
• Power In and Power Out: Offers positive control over the load.
• Free Spooling Clutch: Enables quick deployment of the wire rope.
• Durable Wire Rope: High tensile force, long life, and reduced breakage.

1.3 Package Contents

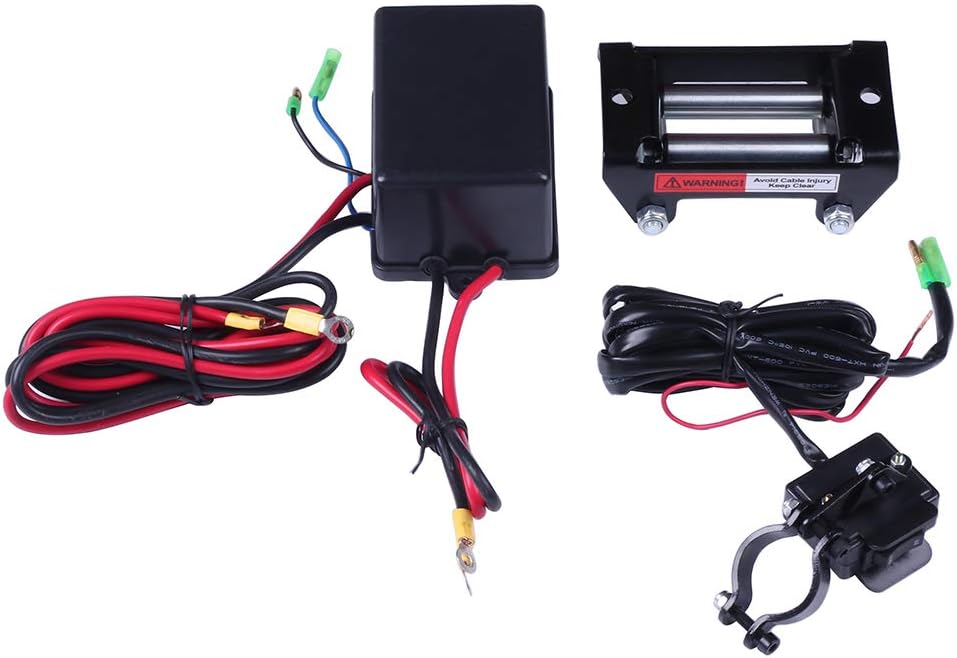

Upon opening your CCIYU 3000 lbs Electric Winch package, you should find the following components:

• 1 x 3,000lb Winch
• 1 x Wireless Remote Control
• 1 x Control Box
• 1 x Roller Fairlead
• 1 x Switch Assembly
• 1 x Users Manual
• Mounting Screws (Included)

2. Safety Instructions

Always prioritize safety when operating the electric winch. Failure to follow these instructions may result in serious injury or property damage.

• Read Manual: Always read and understand the entire user manual before operating the winch.
• Wear Protective Gear: Use gloves, eye protection, and appropriate footwear.
• Keep Clear: Ensure all bystanders are clear of the winch, cable, and load during operation. Never step over a taut cable.
• Inspect Winch: Before each use, inspect the winch, cable, hook, and all connections for damage or wear. Do not use if any components are damaged.
• Proper Anchoring: Always use a secure anchor point capable of withstanding the load.
• Load Capacity: Never exceed the rated line pull of the winch (3000 lbs). Overloading can cause winch failure and injury.
• Cable Care: Do not use the winch cable as a sling. Avoid kinking or fraying the cable.
• Battery Connection: Ensure proper and secure battery connections.
• Avoid Overhead Hoisting: This winch is not designed for overhead hoisting or lifting people.
• Layering: Ensure the wire rope is wound evenly and tightly on the drum. Uneven layering can damage the cable and winch.

3. Specifications

Below are the technical specifications for the CCIYU 3000 lbs Electric Winch:

4. Setup & Installation

4.1 Mounting the Winch

The winch should be securely mounted to a flat, rigid surface capable of supporting the full rated line pull. Use the provided mounting bolts and ensure the mounting bolt pattern (80mm) aligns with your chosen location. For optimal performance and safety, ensure the fairlead is properly aligned with the winch drum.

4.2 Electrical Wiring

Proper wiring is crucial for safe and effective winch operation. Refer to the diagram below and the included wiring video for detailed instructions.

1. Connect Winch to Control Box: The short red and black wires on one side of the solenoid control box are the output wires. Connect these to the corresponding terminals on the electric winch.
2. Connect Control Box to Power Supply: The two long wires on the other side of the solenoid control box are input wires. Connect the long red wire (+) to the positive terminal of your 12V/24V battery and the long black wire (-) to the negative terminal.
3. Connect Switch Assembly: Plug the switch assembly into the designated port on the control box.
4. Connect Wireless Remote Receiver: If using the wireless remote, ensure its receiver is properly connected to the control box.

5. Operating Instructions

5.1 Engaging/Disengaging the Clutch

To manually pull out the wire rope, rotate the clutch knob to the 'Free Spool' position. This disengages the drum, allowing the rope to be pulled out by hand. To engage the clutch for powered operation, rotate the knob to the 'Engaged' position.

5.2 Using the Remote Control

The winch can be operated using either the wired switch assembly or the wireless remote control. For the wireless remote, activate it by pressing the small button for 3-5 seconds until the LED lights up. Use the 'IN' button to retract the cable and the 'OUT' button to extend it. Always ensure the clutch is engaged for powered operation.

5.3 Winching Procedure

1. Prepare the Cable: Disengage the clutch and pull out enough cable to reach your anchor point. Attach the hook securely.
2. Engage Clutch: Rotate the clutch knob to the 'Engaged' position.
3. Clear the Area: Ensure no one is in the path of the cable or load.
4. Begin Winching: Use the remote control or wired switch to slowly retract the cable. Maintain tension and observe the cable winding evenly on the drum.
5. Monitor Load: Do not pull anything that exceeds the winch's load capacity.
6. Stop Operation: Once the recovery is complete, release the control button.
7. Rewind Cable: Carefully rewind the cable onto the drum, ensuring it is tightly and evenly spooled.

6. Maintenance

Regular maintenance will ensure the longevity and safe operation of your CCIYU Electric Winch.

• Cable Inspection: Regularly inspect the wire rope for frays, kinks, or broken strands. Replace the cable if any damage is found.
• Lubrication: Periodically lubricate moving parts as recommended in the full manual (if applicable).
• Electrical Connections: Check all electrical connections for corrosion or looseness. Clean and tighten as necessary.
• Cleanliness: Keep the winch clean from dirt, mud, and debris.
• Storage: Store the winch in a dry, protected area when not in use.

7. Troubleshooting

If you encounter issues with your winch, refer to the following common troubleshooting steps:

• Winch Not Operating:
  • Check battery connections for tightness and corrosion.
  • Ensure the battery is fully charged.
  • Verify the remote control is activated and functioning.
  • Check for tripped circuit breakers or blown fuses.
• Slow Operation or Reduced Power:
  • Battery may be low on charge.
  • Winch may be overloaded; reduce the load.
  • Check for excessive friction in the fairlead or cable.
• Cable Not Spooling Evenly:
  • Ensure the cable is under light tension when rewinding.
  • Manually guide the cable if necessary, wearing gloves.

8. Warranty & Support

For warranty information or technical support, please refer to the contact details provided on the warranty card included in your package. You may also visit the official CCIYU store on Amazon for further assistance or to view additional products.
