Hanwha Techwin LNO-6012R 2MP Outdoor PoE Bullet Camera User Manual

1. Introduction

This manual provides detailed instructions for the installation, operation, and maintenance of the Hanwha Techwin LNO-6012R 2MP IR WDR Outdoor Network PoE Bullet Camera. This camera is designed for outdoor surveillance applications, offering high-resolution video capture and robust features for various security needs. Please read this manual thoroughly before using the product to ensure proper setup and functionality.

2. Safety Information

Observe the following safety precautions to prevent injury or damage to the product:

• Installation must be performed by qualified personnel and comply with all local codes.
• Ensure the power source is stable and meets the camera's requirements (PoE).
• Do not expose the camera to extreme temperatures, humidity, or corrosive environments beyond its specified operating conditions.
• Avoid direct exposure of the lens to strong light sources, such as the sun, as this may damage the image sensor.
• Disconnect power before performing any maintenance or cleaning.

3. Package Contents

Verify that all components are present in the package:

• Hanwha Techwin LNO-6012R Bullet Camera
• Mounting accessories (screws, anchors)
• Quick Start Guide
• Waterproof cap for RJ45 connector

4. Product Overview

The LNO-6012R is a 2-megapixel outdoor bullet camera featuring a 2.8mm fixed lens, providing a wide field of view. It supports Power over Ethernet (PoE) for simplified installation and is rated IP66 for weather resistance. Key features include:

• Resolution: 2 Megapixel (1920 x 1080) at 30 frames per second.
• Lens: Built-in 2.8mm fixed lens.
• Video Compression: H.264, MJPEG codec supported, with WiseStream II for efficient bandwidth usage.
• Day & Night: Automatic Day/Night (ICR) functionality with IR LEDs for up to 30m (98ft) night vision.
• Wide Dynamic Range (WDR): 120dB WDR for clear images in high-contrast lighting.
• Detection: Tampering and Motion detection capabilities.
• Storage: Micro SD/SDHC memory slot (Max. 32GB) for on-board recording.
• Environmental: Weatherproof IP66 rating for outdoor use.
• Special Features: Hallway view support.

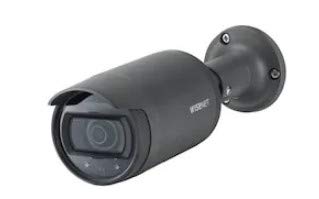

Figure 1: Front view of the LNO-6012R camera, showing the lens and IR illuminators.

Figure 2: Side view of the LNO-6012R camera, illustrating the bullet form factor and integrated mounting bracket.

5. Setup

5.1. Installation

The LNO-6012R camera is designed for outdoor installation. Select a mounting location that provides the desired field of view and is structurally sound to support the camera's weight. The camera's IP66 rating ensures protection against dust and water ingress.

1. Mark the drilling points on the mounting surface using the provided template or the camera's base.
2. Drill pilot holes and insert wall anchors if necessary.
3. Secure the camera's mounting bracket to the surface using the supplied screws.
4. Adjust the camera's angle and orientation for optimal coverage.

5.2. Wiring

The camera supports Power over Ethernet (PoE), allowing both power and data transmission over a single Ethernet cable. This simplifies wiring and installation.

1. Connect a standard RJ45 Ethernet cable from a PoE-enabled switch or injector to the camera's RJ45 port.
2. Ensure the waterproof cap is properly installed over the RJ45 connector to maintain the IP66 rating.
3. Verify that the network connection is active and the PoE source is providing power.

Figure 3: An RJ45 Ethernet cable, used for both data and Power over Ethernet (PoE) connection to the camera.

5.3. Initial Configuration

After physical installation and wiring, access the camera's web interface for initial network configuration and settings adjustment.

1. Use a network scanner tool to discover the camera's IP address on your local network.
2. Open a web browser and enter the camera's IP address.
3. Log in using the default credentials (refer to the Quick Start Guide for default username and password).
4. Change the default password immediately for security purposes.
5. Configure network settings (e.g., static IP, DNS) as required by your network environment.

6. Operating Instructions

6.1. Basic Operation

Once configured, the camera streams video over the network. You can view live footage and access recordings through a compatible Network Video Recorder (NVR), Video Management Software (VMS), or directly via the camera's web interface.

• Live View: Access the camera's web interface or VMS to view real-time video.
• Day/Night Mode: The camera automatically switches between color (day) and monochrome (night) modes based on ambient light, utilizing its IR LEDs for illumination in low-light conditions up to 30 meters.
• Recording: Configure recording schedules and events via the web interface or VMS. Recordings can be stored on an NVR, VMS server, or the camera's local Micro SD/SDHC card (up to 32GB).

6.2. Advanced Features

The LNO-6012R offers several advanced features to enhance surveillance capabilities:

• Motion Detection: Configure specific areas within the camera's view to trigger alerts or recordings when motion is detected.
• Tampering Detection: The camera can detect attempts to obstruct or redirect its view, triggering an alarm.
• WDR (Wide Dynamic Range): This feature balances exposure in scenes with both very bright and very dark areas, ensuring details are visible across the entire image.
• Hallway View: Optimizes the video stream for vertically oriented areas like corridors, maximizing coverage and reducing bandwidth usage.
• WiseStream II: An advanced compression technology that dynamically controls encoding, reducing data size by up to 99% compared to current H.264 technology when combined with H.265, or up to 75% with H.264, without compromising image quality.

7. Maintenance

Regular maintenance ensures optimal performance and longevity of your camera.

• Cleaning: Periodically clean the camera lens and housing with a soft, damp cloth. Do not use harsh chemicals or abrasive materials.
• Firmware Updates: Check the Hanwha Techwin website for the latest firmware updates. Keeping the firmware updated ensures access to new features, performance improvements, and security patches.
• Cable Inspection: Periodically inspect the Ethernet cable and connections for any signs of wear or damage, especially in outdoor environments.

8. Troubleshooting

Refer to the following table for common issues and their solutions:

9. Specifications

Detailed technical specifications for the Hanwha Techwin LNO-6012R camera:

10. Warranty and Support

For warranty information, technical support, or service inquiries, please refer to the official Hanwha Techwin website or contact your authorized dealer. Keep your purchase receipt for warranty claims.
