1. Introduction
Thank you for choosing a Beko appliance. This user manual contains important information regarding the safe installation, operation, and maintenance of your RFNE280E13S No Frost Upright Freezer. Please read this manual thoroughly before using your appliance to ensure proper function and to prevent potential hazards. Keep this manual in a safe place for future reference.
2. Safety Information
Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and injury.
- Electrical Safety: Ensure the appliance is connected to a grounded outlet with the correct voltage (220V). Do not use extension cords or adapters.
- Placement: Place the freezer on a firm, level surface away from direct sunlight, heat sources, and moisture. Ensure adequate ventilation around the appliance.
- Child Safety: Keep packaging materials out of reach of children. Supervise children to ensure they do not play with the appliance.
- Maintenance: Disconnect the appliance from the power supply before cleaning or performing any maintenance.
- Refrigerant: This appliance contains R600a refrigerant. Handle with care and ensure proper disposal according to local regulations.
3. Installation and Setup
3.1 Unpacking
Carefully remove all packaging materials, including protective films and tapes. Inspect the appliance for any damage during transit. Report any damage to your retailer immediately.
3.2 Placement
Position the freezer in a dry, well-ventilated area. Allow sufficient space around the appliance for proper air circulation (at least 10 cm at the back and sides, and 30 cm at the top). Level the appliance using the adjustable feet to ensure stability and proper door closure.
3.3 Electrical Connection
Plug the freezer into a dedicated 220V, 50Hz grounded electrical outlet. Do not switch on the appliance immediately after plugging it in. Allow it to stand upright for at least 4 hours before connecting to power to allow the refrigerant to settle.
3.4 Reversible Door
This freezer features a reversible door, allowing it to open from either the left or right side. If you wish to change the door opening direction, please refer to the detailed instructions provided in the separate installation guide or contact qualified service personnel.
3.5 Initial Startup
After connecting to power, the freezer will begin to cool. It may take several hours for the internal temperature to reach the desired level. Avoid placing food inside until the freezer has reached its operating temperature.
4. Operating Instructions
4.1 Temperature Control
Your Beko RFNE280E13S freezer is equipped with an electronic control system for precise temperature management. The control panel is typically located on the top front of the appliance. Use the buttons to adjust the temperature settings. Refer to the display for the current temperature and selected mode.
4.2 Freezing Fresh Food
To freeze fresh food, place it in the designated freezer drawers. For optimal freezing, spread food items evenly and avoid overloading drawers. Ensure food is properly packaged to prevent freezer burn and odor transfer.

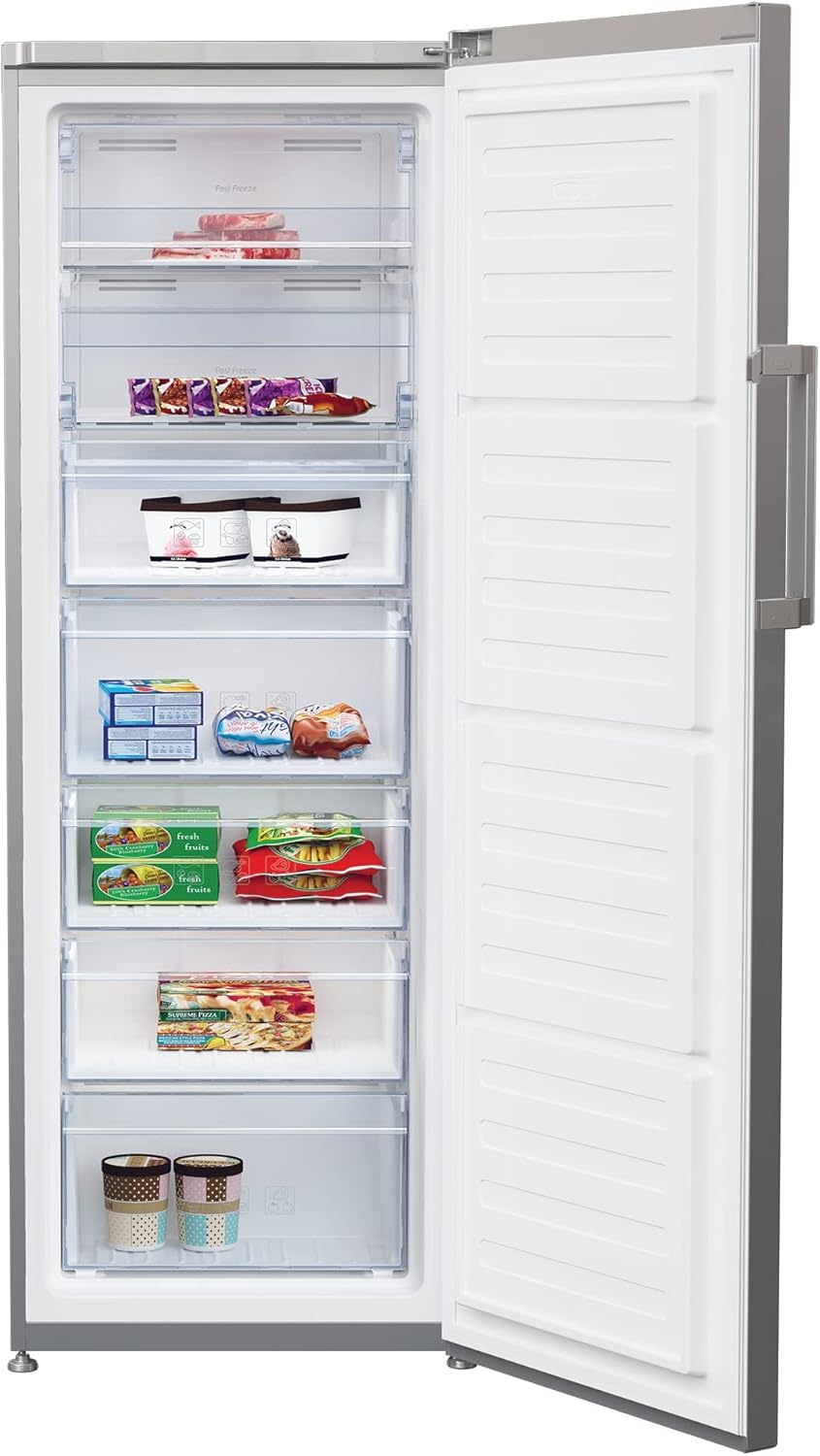

Figure 1: Interior view of the Beko RFNE280E13S upright freezer, showing its seven transparent drawers designed for organized storage of frozen goods.
4.3 Storage Guidelines
Store frozen foods according to their packaging instructions. Do not refreeze thawed food. The freezer compartment includes interior lighting for better visibility of stored items.
4.4 Door Open Alarm
The freezer is equipped with a door open alarm that will sound if the door is left open for an extended period. Close the door promptly to conserve energy and maintain optimal freezing temperatures.
4.5 Ionizer Feature
This appliance includes an ionizer feature, which helps to neutralize odors and maintain a fresh environment inside the freezer.
4.6 Twist Ice Maker
The freezer is equipped with a twist ice maker for convenient ice production. Fill the ice trays with water, allow them to freeze, then twist the mechanism to release the ice cubes into the storage bin.
5. Maintenance and Cleaning
5.1 No Frost System
Your freezer features a No Frost cooling system, which automatically prevents ice buildup. This means manual defrosting is not required, simplifying maintenance.
5.2 Cleaning the Interior
Before cleaning, unplug the freezer. Clean the interior regularly with a solution of mild detergent and warm water. Wipe dry thoroughly. Do not use abrasive cleaners or sharp objects.
5.3 Cleaning the Exterior
Wipe the exterior surfaces with a soft, damp cloth. The door handles are designed with anti-bacterial properties; clean them regularly with a mild disinfectant. Avoid using harsh chemicals that could damage the stainless steel door material.
5.4 Power Failure
In case of a power failure, keep the freezer door closed to maintain the internal temperature for as long as possible. The freezer can typically maintain safe temperatures for several hours without power.
6. Troubleshooting
Before contacting service, check the following common issues:
| Problem | Possible Cause | Solution |
|---|---|---|
| Freezer not cooling | No power, thermostat set too high, door not closed properly. | Check power supply, adjust temperature setting, ensure door is sealed. |
| Excessive noise | Appliance not level, objects touching the back, normal operating sounds. | Level the appliance, move objects away, consult manual for normal sounds. |
| Door alarm sounds | Door left open, door seal damaged. | Close the door fully, check door seal for damage. |
If the problem persists after checking these points, please contact authorized service personnel. Do not attempt to repair the appliance yourself.
7. Specifications
Detailed technical specifications for the Beko RFNE280E13S Upright Freezer:
| Feature | Specification |
|---|---|
| Brand | Beko |
| Model | RFNE280E13S |
| Product Dimensions (D x W x H) | 59.5 x 65 x 171.5 cm |
| Item Weight | 50 kg |
| Net Capacity | 260 Liters |
| Energy Efficiency Class | A+ |
| Annual Energy Consumption | 369 kWh/year |
| Defrost Type | Automatic (No Frost) |
| Door Hinge | Left (Reversible) |
| Door Material | Stainless Steel |
| Voltage | 220V |
| Number of Drawers/Shelves | 7 |
| Climate Class | SN-T |
| Airborne Acoustical Noise Emission | 42 dB(A) |

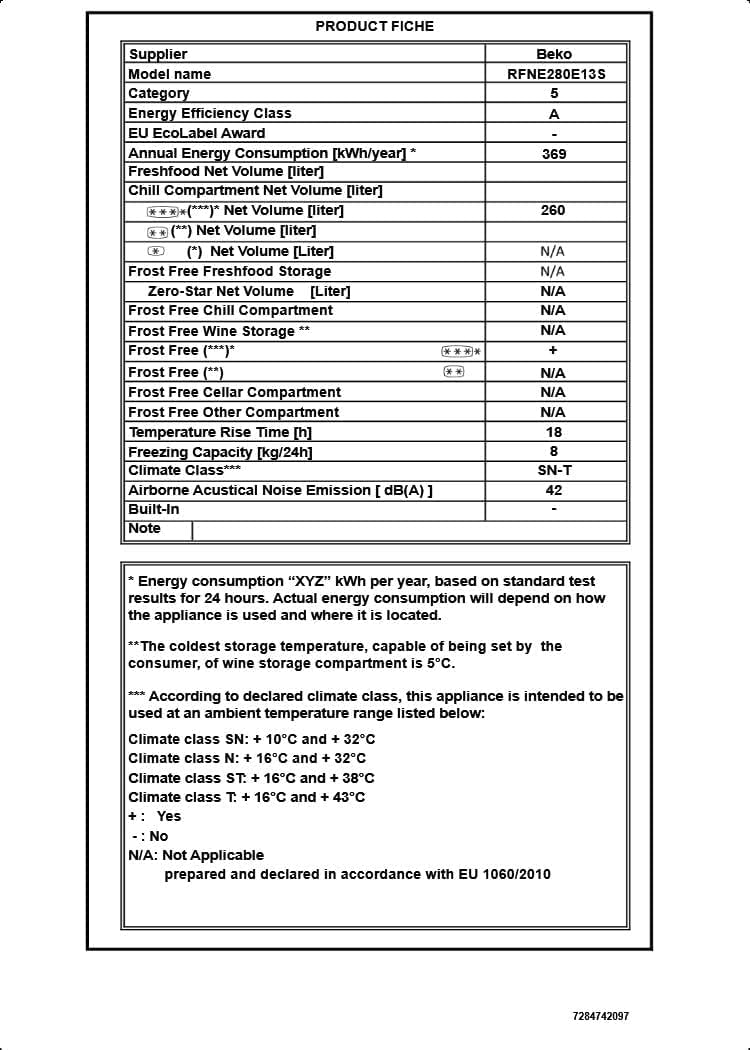

Figure 2: Product Fiche providing detailed technical specifications and energy information for the Beko RFNE280E13S freezer.
Figure 3: Energy Label for the Beko RFNE280E13S freezer, indicating its energy efficiency rating and annual consumption.
8. Warranty and Support
Your Beko RFNE280E13S freezer comes with a standard manufacturer's warranty. Please refer to the warranty card included with your appliance for specific terms and conditions, including the warranty period and coverage details. For technical support, service requests, or to purchase genuine spare parts, please contact Beko customer service or an authorized service center in your region. Always provide your appliance's model number (RFNE280E13S) and serial number when seeking assistance.
For further information, you may visit the official Beko website or consult your local dealer.
