Introduction
Thank you for choosing the Braun BT5070 Beard Trimmer. This manual provides essential information for the safe and effective use, maintenance, and care of your new trimmer. Please read these instructions thoroughly before first use and retain them for future reference.

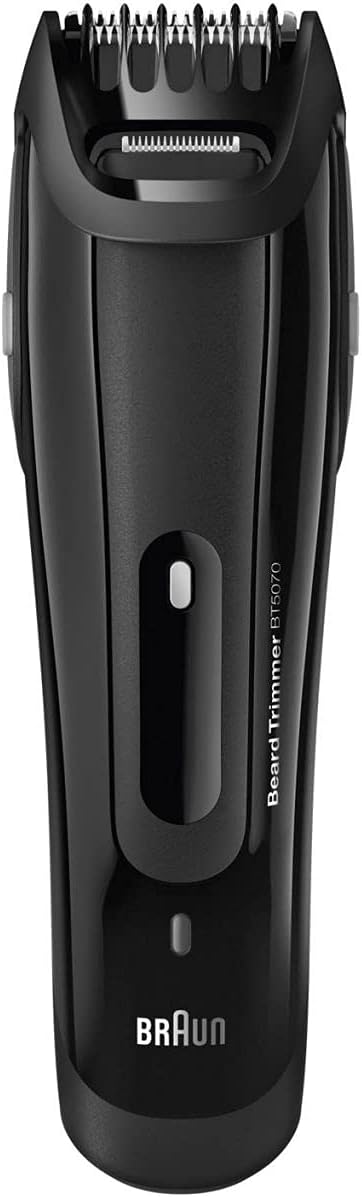

Image: Front view of the Braun BT5070 Beard Trimmer, showcasing its sleek black design and integrated precision dial.
Important Safety Information
Please observe the following safety precautions to reduce the risk of injury or damage:
- Avoid using the trimmer in or near water sources to prevent electrical hazards.
- Keep the appliance dry.
- Do not use the appliance if it is damaged.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
- Children should be supervised to ensure that they do not play with the appliance.
Package Contents
Verify that all items are present in the package:
- Braun BT5070 Beard Trimmer
- Precision Comb (1-10mm)
- Long Beard Comb (10-20mm)
- Charging Cable
- Cleaning Brush
- Appliance Oil
- Soft Storage Bag
Image: All components included with the Braun BT5070 Beard Trimmer: the trimmer unit, two comb attachments, a cleaning brush, appliance oil, and a soft storage bag.
Setup and Charging
Initial Charging
- Before first use, fully charge the trimmer. Connect the charging cable to the trimmer and plug it into a power outlet.
- The charging LED indicator will illuminate. A full charge takes approximately 1 hour, providing up to 50 minutes of cordless operation.
- A 5-minute quick charge is sufficient for one trim.
- Once fully charged, disconnect the trimmer from the power outlet.
Attaching Comb Attachments
- Ensure the trimmer is switched off.
- Select the desired comb attachment: the precision comb (1-10mm) or the long beard comb (10-20mm).
- Align the comb attachment with the trimmer head and push it down until it clicks into place.
- To remove, gently pull the comb attachment upwards from the trimmer head.
Image: Close-up view of the Braun BT5070 trimmer head, showing a comb attachment securely fitted, highlighting the precision cutting elements.
Operating Instructions
Selecting Trim Length
- The precision comb allows for length settings from 1mm to 10mm in 0.5mm steps.
- The long beard comb allows for length settings from 10mm to 20mm.
- Rotate the precision dial on the comb attachment to select your desired trimming length. Ensure the comb is securely locked at the chosen setting.
Trimming Your Beard
- Ensure your beard is clean and dry.
- Switch on the trimmer.
- Hold the trimmer with the comb attachment flat against your skin.
- Move the trimmer against the direction of hair growth, using slow and controlled strokes.
- For precise contours, remove the comb attachment and use the trimmer head directly.
- The ultra-sharp stainless steel trimming elements are designed to cut through long or thick hair efficiently.
Image: A man demonstrating the use of the Braun BT5070 Beard Trimmer to shape his beard, illustrating proper handling and application.
Cleaning and Maintenance
Cleaning the Trimmer
- Ensure the trimmer is switched off and disconnected from the power supply before cleaning.
- Remove the comb attachment.
- Brush away any loose hairs from the trimmer head and comb attachment using the provided cleaning brush.
- The trimmer is fully washable. You can rinse the trimmer head and comb attachments under running water. Do not immerse the entire trimmer body in water unless specified for full immersion.
- Allow all parts to air dry completely before reassembling or storing.
Blade Lubrication
For optimal performance and longevity of the blades, apply a small drop of the provided appliance oil to the trimmer blades after every few uses, or as needed. Switch on the trimmer for a few seconds to distribute the oil evenly.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Trimmer does not turn on. | Battery is depleted. | Charge the trimmer for at least 5 minutes for a quick trim, or 1 hour for a full charge. |
| Poor trimming performance. | Blades are clogged with hair or not lubricated. | Clean the trimmer head and blades thoroughly. Apply a drop of appliance oil to the blades. |
| Trimmer pulls hair. | Blades are dull or unit is not fully charged. | Ensure the trimmer is fully charged. Clean and lubricate the blades. If the issue persists, blade replacement may be necessary (contact support). |
Specifications
- Model: BT5070
- Brand: Braun
- Type: Hair Trimmer
- Power Source: Electric & Battery (Corded and Cordless operation)
- Battery Type: Rechargeable
- Charging Time: 1 hour for full charge, 5 minutes for quick charge
- Cordless Operating Time: Up to 50 minutes
- Blade Material: Stainless Steel
- Comb Attachments: Precision Comb (1-10mm, 0.5mm steps), Long Beard Comb (10-20mm)
- Washable: Fully washable
- Item Weight: 0.48 Kilograms
- Package Dimensions: 23.8 x 15.2 x 5.8 cm
Warranty and Support
For warranty information, service, or support, please refer to the warranty card included in your product packaging or visit the official Braun website. Keep your proof of purchase for warranty claims.
Online Support: www.braun.com
