1. Introduction
This user manual provides comprehensive instructions for the operation, maintenance, and troubleshooting of your NEBO Franklin Swivel 600L Flashlight. Please read this manual thoroughly before using the device to ensure safe and optimal performance. The NEBO Franklin Swivel 600L is a versatile and compact lighting tool designed for various applications, featuring a unique 90-degree swivel head and a powerful 600-lumen output.
2. Product Overview
The NEBO Franklin Swivel 600L is engineered for convenience and performance. Its key features include:
- 600 Lumen Output: Provides bright illumination for various tasks.
- 90-Degree Swivel Head: Allows for flexible light direction, converting from a traditional flashlight to an angled work light.
- Magnetic Base: Enables hands-free operation by attaching to metallic surfaces.
- Rechargeable Design: Equipped with a rechargeable battery for sustained use.
- Compact and Portable: Small enough to fit in a pocket, ideal for everyday carry.
- Durable Steel Clip: For secure attachment to clothing or gear.
Figure 2.1: The NEBO Franklin Swivel 600L Flashlight, showcasing its unique 90-degree swivel head design.
3. Setup
3.1 Battery Installation and Initial Charge
Your NEBO Franklin Swivel 600L comes with a pre-installed rechargeable Lithium Ion battery. Before first use, it is recommended to fully charge the device.
- Check Battery: Ensure the included Lithium Ion battery is properly seated inside the flashlight. The battery compartment is typically accessed by unscrewing the tail cap.
- Connect Charger: Locate the charging port on the flashlight (usually covered by a rubber flap). Connect the provided USB charging cable to the flashlight and then to a compatible USB power source (e.g., wall adapter, computer USB port).
- Charging Indicator: The power button or a dedicated indicator light will illuminate red during charging and turn green when fully charged.
- Charging Time: Allow sufficient time for a full charge, typically a few hours. Refer to the specifications for exact charging times.

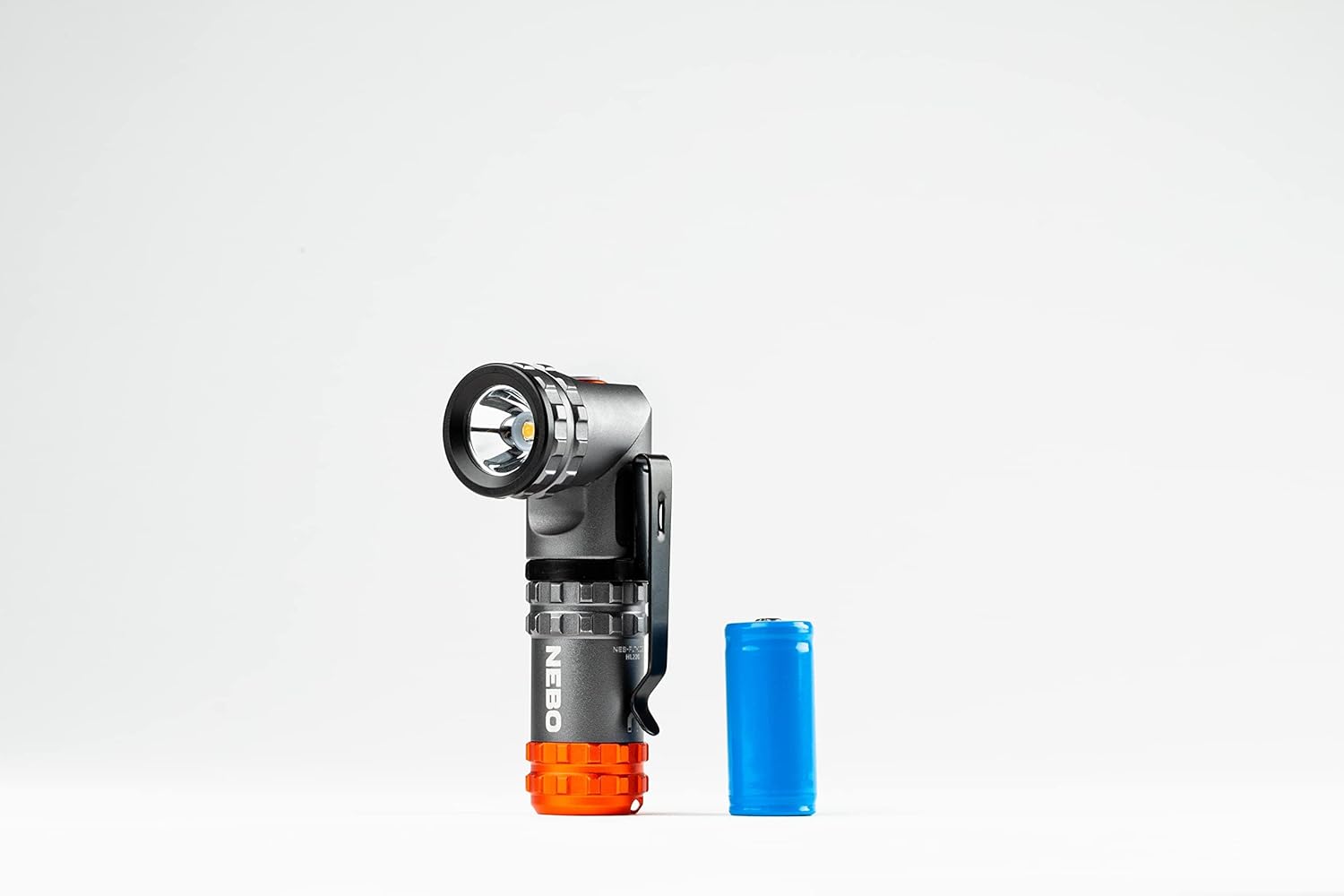

Figure 3.1: The NEBO Franklin Swivel 600L Flashlight shown alongside its rechargeable Lithium Ion battery, illustrating the power source.
4. Operating Instructions
4.1 Power On/Off and Mode Selection
The NEBO Franklin Swivel 600L features a single power button for easy operation.
- To Turn On/Off: Press the power button once to turn the flashlight on. Press it again to turn it off.
- To Cycle Modes: While the flashlight is on, press the power button repeatedly to cycle through available light modes (e.g., High, Medium, Low, Strobe). The order of modes may vary.
4.2 Swivel Head Functionality
The unique 90-degree swivel head allows for versatile lighting angles.
- Gently pivot the head of the flashlight to adjust the beam direction. It can be positioned straight forward like a traditional flashlight or angled at 90 degrees for hands-free work.
4.3 Magnetic Base Usage
The strong magnetic base provides convenient hands-free lighting.
- Attach the magnetic base to any ferrous metal surface (e.g., car hood, metal workbench) to illuminate your work area without holding the flashlight.

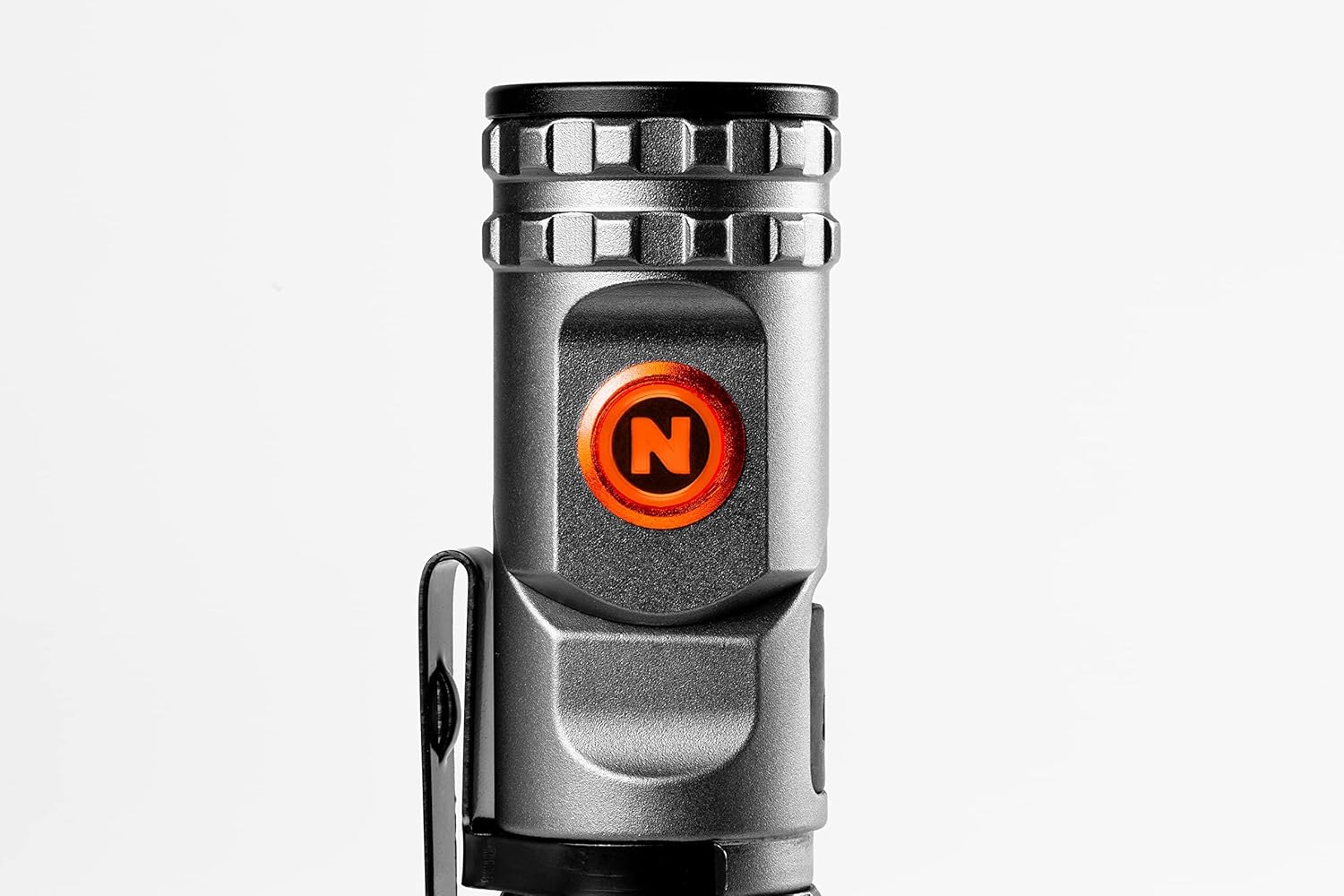

Figure 4.1: A detailed view of the power button and NEBO logo on the Franklin Swivel 600L, indicating the primary control interface.
Figure 4.2: The NEBO Franklin Swivel 600L Flashlight configured in its straight position, functioning as a standard handheld flashlight.
5. Maintenance
5.1 Cleaning
To maintain the performance and appearance of your flashlight:
- Wipe the exterior with a soft, damp cloth. Do not use abrasive cleaners or solvents.
- Keep the lens clean for optimal light output. Use a lens cleaning cloth if necessary.
5.2 Battery Care and Storage
Proper battery care extends the lifespan of your device:
- Recharge the battery regularly, even if not in frequent use, to prevent deep discharge.
- Store the flashlight in a cool, dry place away from direct sunlight and extreme temperatures.
- As the product is Not Water Resistant, avoid exposure to water or high humidity.
6. Troubleshooting
If you encounter issues with your NEBO Franklin Swivel 600L, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Flashlight does not turn on. | Battery is depleted or not properly installed. | Charge the flashlight fully. Ensure the battery is correctly inserted and the tail cap is tightened. |
| Light output is dim. | Low battery charge. | Recharge the flashlight. |
| Flashlight turns off unexpectedly. | Low battery charge or overheating. | Recharge the flashlight. If it feels hot, allow it to cool down before resuming use. |
| Charging indicator light remains red after extended charging. | Faulty charging cable or power source, or battery issue. | Try a different USB cable and power source. If the issue persists, contact customer support. |
7. Specifications
| Feature | Detail |
|---|---|
| Model Name | Franklin |
| Model Number | NEB-FLT-1023 |
| Light Output | 600 Lumens (White Brightness) |
| Light Source Type | LED |
| Power Source | Battery Powered |
| Battery Type | 1 Lithium Ion battery (included) |
| Voltage | 3.6 Volts |
| Material | Plastic |
| Color | Storm Gray |
| Water Resistance Level | Not Water Resistant |
| Item Dimensions (LxWxH) | 2.2 x 4.8 x 8.27 inches |
| Item Weight | Approximately 0.13 Kilograms (Package Weight) |
| UPC | 645397938613 |
8. Warranty and Support
8.1 Manufacturer's Warranty
The NEBO Franklin Swivel 600L Flashlight is covered by a 1-year manufacturer's warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use. It does not cover damage caused by misuse, accidents, unauthorized modifications, or failure to follow the instructions in this manual.
8.2 Customer Support
For technical assistance, warranty claims, or general inquiries, please visit the official NEBO website or contact their customer service department. Refer to the product packaging or the NEBO website for the most current contact information.
