1. Introduction
Thank you for choosing the CaterChef CNS 688164 Induction Cooker. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new appliance. Please read this manual thoroughly before using the induction cooker and keep it for future reference.
The CaterChef CNS 688164 is a powerful 5000W induction cooker designed for professional use, featuring a durable CNS 18/10 metal casing and a precise adjustable power range from 500W to 5000W.
2. Important Safety Instructions
Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and injury.
- Electrical Safety: Ensure the power supply matches the voltage specified on the appliance. Do not use extension cords or adapters unless absolutely necessary and ensure they are rated for the appliance's power.
- Placement: Place the induction cooker on a stable, level, heat-resistant surface. Ensure adequate ventilation around the unit. Do not place near flammable materials.
- Cookware: Use only induction-compatible cookware. Non-induction cookware will not heat.
- Heat: The cooking surface will become hot during and after use. Do not touch hot surfaces. Use handles or oven mitts.
- Cleaning: Disconnect from power before cleaning. Allow the unit to cool completely. Do not immerse the unit in water or other liquids.
- Children and Pets: Keep the appliance out of reach of children and pets.
- Damage: Do not operate the appliance if it has a damaged cord or plug, or if it has been dropped or damaged in any way. Contact qualified service personnel for repair.
- Medical Implants: Individuals with pacemakers or similar medical implants should consult their doctor before using an induction cooker due to potential electromagnetic interference.
3. Product Overview
The CaterChef CNS 688164 Induction Cooker is a robust and efficient cooking appliance. Below is a general representation of the unit and its main components.

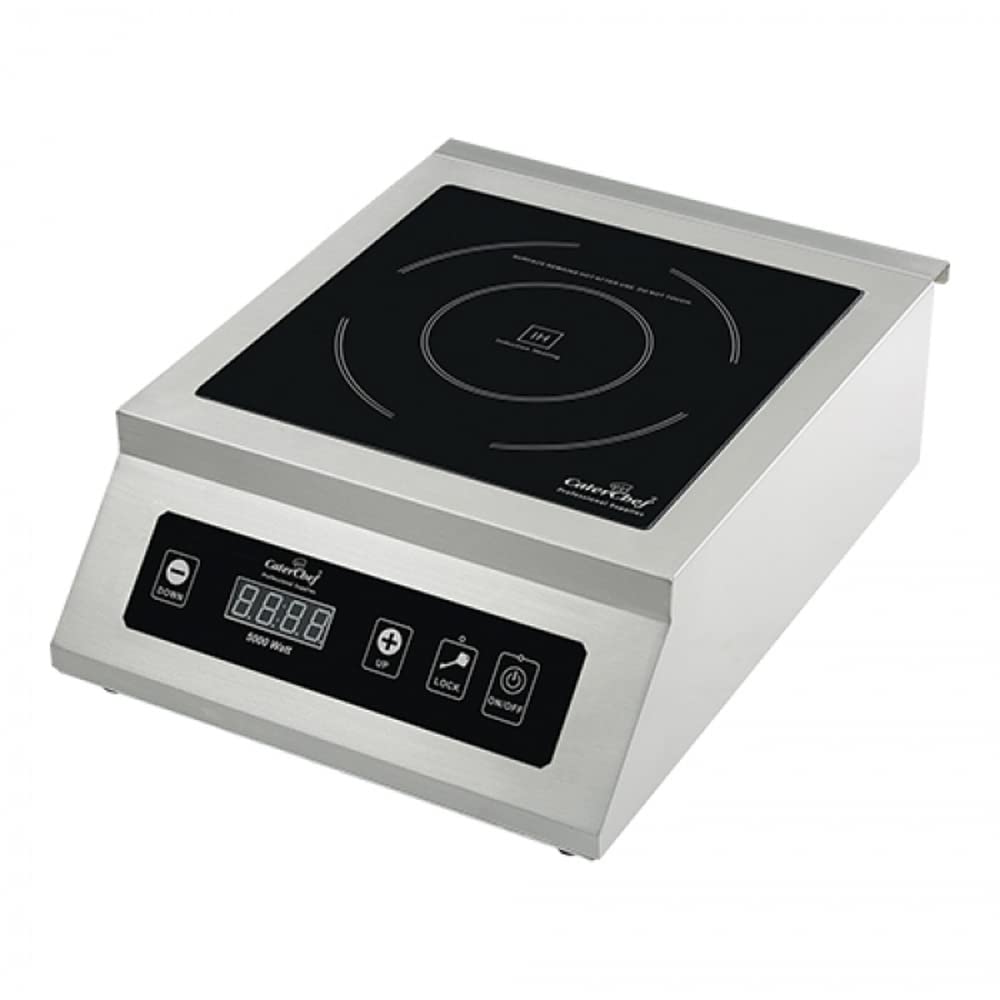

Figure 1: Front view of the CaterChef CNS 688164 Induction Cooker. This image shows the main cooking surface and the integrated control panel at the front, designed for easy access and operation.
Key Components:
- Cooking Surface: The ceramic glass surface where induction-compatible cookware is placed. Diameter of heating surface is 26.5 cm.
- Control Panel: Located at the front, typically includes power buttons, temperature/power adjustment controls, and a display.
- Ventilation Openings: Located on the sides or rear to ensure proper airflow for cooling the internal components.
- Power Cord: For connecting the unit to an electrical outlet.
- Casing: Durable CNS 18/10 metal construction.
4. Setup Instructions
- Unpacking: Carefully remove the induction cooker from its packaging. Retain packaging for future transport or storage.
- Inspection: Inspect the unit for any signs of damage. If damaged, do not operate and contact your supplier.
- Placement: Place the induction cooker on a flat, stable, and heat-resistant surface. Ensure there is at least 10 cm (4 inches) of clear space around all sides for proper ventilation. Do not block the ventilation openings.
- Power Connection: Plug the power cord into a grounded electrical outlet that matches the appliance's voltage and current requirements. Ensure the outlet is easily accessible.
- Initial Cleaning: Before first use, wipe the cooking surface and exterior with a damp cloth. Ensure the unit is completely dry before plugging it in.
5. Operating Instructions
5.1. Basic Operation
- Power On: Plug the unit into a suitable power outlet. Press the Power button on the control panel. The display will illuminate.
- Place Cookware: Place an induction-compatible pot or pan centrally on the cooking surface. The cooker will detect the presence of suitable cookware.
- Select Power/Temperature: Use the '+' and '-' buttons or rotary knob (if present) to adjust the power level or temperature setting. The power is adjustable from 500 W to 5000 W.
- Cooking: The induction cooker will begin heating the cookware. Monitor your cooking process.
- Power Off: After cooking, press the Power button to turn off the unit. The fan may continue to run for a short period to cool down internal components.
- Unplug: Once the unit has cooled, unplug it from the power outlet.
5.2. Cookware Compatibility
Induction cookers require cookware made of ferromagnetic material. To check if your cookware is compatible, hold a magnet to the bottom of the pot or pan. If the magnet sticks, the cookware is suitable for induction cooking.
- Compatible: Cast iron, enamel iron, steel, stainless steel with a magnetic bottom.
- Incompatible: Glass, ceramic, copper, aluminum, non-magnetic stainless steel.
Ensure the bottom of the cookware is flat and has a diameter of at least 12 cm and no more than 26.5 cm for optimal performance.
6. Cleaning and Maintenance
Regular cleaning and maintenance will ensure the longevity and optimal performance of your induction cooker.
- Disconnect Power: Always unplug the appliance from the power outlet and allow it to cool completely before cleaning.
- Cooking Surface: Wipe the ceramic glass cooking surface with a damp cloth and a mild detergent. For stubborn stains, use a non-abrasive ceramic hob cleaner. Rinse with a clean damp cloth and dry thoroughly.
- Exterior Casing: Clean the CNS 18/10 metal casing with a damp cloth. Do not use abrasive cleaners, scouring pads, or harsh chemicals as they can damage the finish.
- Ventilation Openings: Periodically check and clean the ventilation openings to ensure they are free from dust and debris. Use a soft brush or vacuum cleaner to remove any blockages.
- Storage: If storing the unit for an extended period, ensure it is clean and dry. Store in a cool, dry place, preferably in its original packaging.
Do NOT immerse the induction cooker in water or any other liquid. This can cause electric shock or damage to the appliance.
7. Troubleshooting
Before contacting service, please refer to the following troubleshooting guide for common issues.
| Problem | Possible Cause | Solution |
|---|---|---|
| Unit does not power on. | Not plugged in; power outage; faulty outlet; internal fuse. | Check power cord connection. Verify power supply. Try a different outlet. If problem persists, contact service. |
| Cookware not heating. | Cookware is not induction-compatible; cookware is not centered; cookware is too small/large. | Use induction-compatible cookware. Center the cookware on the cooking zone. Ensure cookware diameter is within 12-26.5 cm. |
| Display shows an error code. | Overheating; internal malfunction; voltage fluctuation. | Turn off the unit, unplug, and allow to cool. Check ventilation. If error persists, consult the full service manual or contact support. |
| Fan continues to run after turning off. | Normal cooling process. | This is normal. The fan will stop automatically once the internal components have cooled sufficiently. |
8. Specifications
| Feature | Detail |
|---|---|
| Model Number | 688164 |
| Brand | CaterChef (Manufactured by EMGA International BV) |
| Power | 5000 W (Adjustable from 500 W) |
| Material | CNS 18/10 Metal Casing |
| Product Dimensions (L x W x H) | 40 x 52.7 x 18.3 cm |
| Weight | 12.51 kg |
| Heating Surface Diameter | 26.5 cm |
| Components Included | Induction Cooker (1 unit) |
| Batteries Required | No |
9. Warranty and Support
Information regarding specific warranty terms and conditions is typically provided with your purchase documentation or can be obtained from your retailer or the manufacturer, EMGA International BV.
For technical support, spare parts, or service inquiries, please contact your point of purchase or refer to the contact information provided by EMGA International BV. Availability of spare parts is currently unavailable as per product information.
Please have your model number (688164) and purchase date ready when contacting support.
