Xuulan Xianglaa-Motor 12V-48V 100A DC Motor Drive Module User Manual

1. Introduction

This manual provides essential information for the safe and effective use of the Xuulan Xianglaa-Motor 12V-48V 100A DC Motor Drive Module. This high-frequency H-bridge dual-channel motor drive module is designed for controlling DC motors within a voltage range of 12V to 48V and a maximum rated current of 100A. Its compact design, high integration, and robust heat dissipation make it suitable for various industrial and experimental applications.

The module features a sophisticated board layout with patch elements, ensuring high performance and reliability. It is compatible with both 3.3V and 5V microcontrollers for control.

Figure 1: Angled view of the DC Motor Drive Module, showing the green heatsink and terminal blocks.

2. Key Features

• High Integration: Utilizes patch elements for a compact design (82mm x 70mm).
• Robust Heat Dissipation: Equipped with large heat sinks for stable operation under high current.
• High Current Capacity: Maximum rated current of 100A with a low resistance of 0.0015ohm.
• Wide Voltage Range: Operates with DC 12V to 48V power supply.
• Simple Control Interface: Easy control for forward, reverse, and braking functions.
• PWM Speed Control: Supports Pulse Width Modulation (PWM) for motor speed regulation.
• Microcontroller Compatibility: Compatible with 3.3V and 5V microcontrollers.
• Durability: High temperature resistance, high wear resistance, and strong carrying capacity.

3. Setup and Wiring

Before connecting the module, ensure all power sources are disconnected. Incorrect wiring can damage the module or connected components.

3.1. Power Supply Connection

Connect your DC power supply (12V to 48V) to the designated power input terminals on the module. Observe polarity: connect the positive (+) terminal of the power supply to the '+' terminal on the module and the negative (-) terminal to the '-' terminal.

3.2. Motor Connection

Connect your DC motor to the 'Motor A' and 'Motor B' output terminals. This module supports two-way motor control. For a single motor, use either 'Motor A' or 'Motor B' terminals.

Figure 2: Top view of the module, highlighting the power input and motor output terminals.

3.3. Control Interface Connection

The control interface is designed for connection to microcontrollers (3.3V or 5V logic). The key control pins are:

• A1, A2: Control pins for motor direction and braking.
• PA: PWM wave input for motor speed control.
• G: Common ground pin for the control board.

Ensure the common ground (G) of the control board is connected to the ground of your microcontroller.

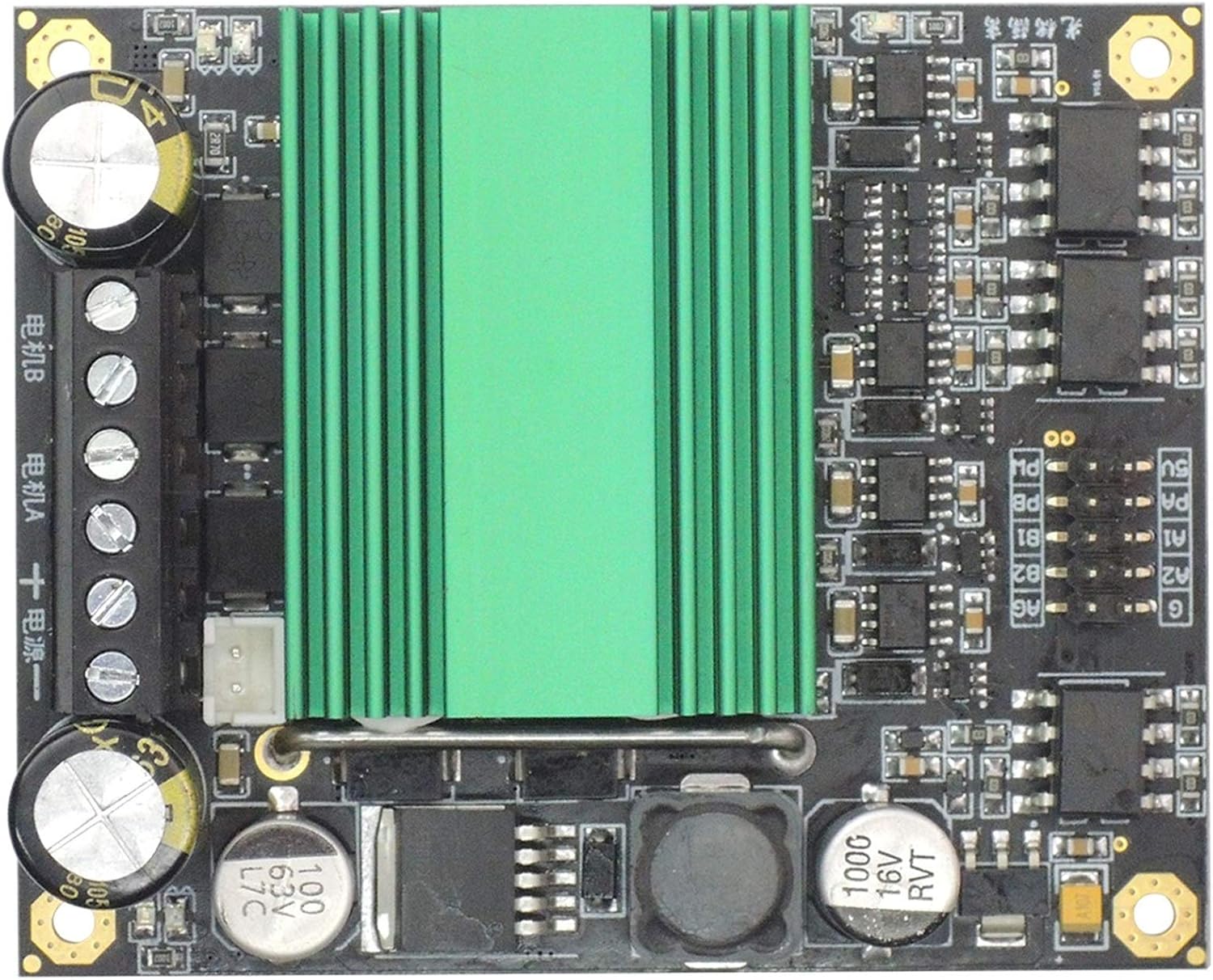

Figure 3: Top view of the module, indicating the control pin header for microcontroller connection.

4. Operating Instructions

The motor drive module offers simple control logic for motor operation.

4.1. Motor Direction and Braking

Control the motor's direction and braking using the A1 and A2 pins:

• Braking: Set A1 = 0 and A2 = 0.
• Forward: Set A1 = 1 and A2 = 0.
• Reverse: Set A1 = 0 and A2 = 1.

Note: '1' typically refers to a HIGH logic level (e.g., 3.3V or 5V) and '0' to a LOW logic level (GND).

4.2. Motor Speed Control (PWM)

To control the motor speed, apply a Pulse Width Modulation (PWM) signal to the PA pin. The duty cycle of the PWM signal will determine the average voltage supplied to the motor, thereby controlling its speed. A higher duty cycle results in higher speed.

5. Maintenance and Care

To ensure the longevity and optimal performance of your motor drive module, follow these maintenance guidelines:

• Heat Management: The module is equipped with large heat sinks. Ensure adequate airflow around the module, especially when operating at high currents, to prevent overheating. Do not obstruct the heat sinks.
• Cleanliness: Keep the module free from dust, dirt, and moisture. Use a soft, dry brush or compressed air for cleaning. Avoid using liquids.
• Connection Integrity: Periodically check all wiring connections to ensure they are secure and free from corrosion. Loose connections can lead to intermittent operation or damage.
• Environmental Conditions: Operate the module within its specified temperature and humidity ranges. Avoid extreme conditions.

6. Troubleshooting

If you encounter issues with your motor drive module, refer to the following common troubleshooting steps:

6.1. Motor Not Responding

• Check Power Supply: Verify that the power supply is connected correctly and providing the specified voltage (12V-48V DC).
• Check Motor Connections: Ensure the motor is securely connected to the 'Motor A' or 'Motor B' terminals.
• Verify Control Signals: Confirm that the A1, A2, and PA pins are receiving the correct logic levels and PWM signals from your microcontroller. Check for proper common ground connection (G).
• Overcurrent Protection: If the module has an overcurrent protection feature (not explicitly detailed in provided data, but common), it might have tripped. Disconnect power, wait a few moments, and reconnect. Reduce motor load if possible.

6.2. Module Overheating

• Ensure Airflow: Make sure the heat sinks are not obstructed and there is sufficient ventilation around the module.
• Reduce Load: Operating the motor at its maximum current for extended periods can generate significant heat. Consider reducing the load or operating time.
• Check Ambient Temperature: Ensure the operating environment's temperature is within acceptable limits.

6.3. Incorrect Motor Direction

• Review A1/A2 Logic: Double-check the logic levels applied to A1 and A2 pins as per the operating instructions.
• Reverse Motor Wires: If the motor spins in the opposite direction of the intended 'forward' or 'reverse' command, you can swap the two wires connected to the motor terminals.

7. Specifications

Figure 4: Side view of the module illustrating its approximate dimensions.

8. Warranty and Support

Information regarding specific warranty terms and direct customer support for the Xuulan Xianglaa-Motor 12V-48V 100A DC Motor Drive Module is not provided in the available product data. For warranty claims or technical assistance, please refer to the retailer or point of purchase.
