Introduction
This manual provides comprehensive instructions for the installation, operation, and maintenance of your Moen Magnetix 82137SRN Graeden Spot Resist Brushed Nickel 1-Handle Bathtub and Shower Faucet with Valve. Please read this manual thoroughly before installation and use to ensure proper function and longevity of your product.
Image: The Moen Magnetix 82137SRN Graeden Spot Resist Brushed Nickel 1-Handle Bathtub and Shower Faucet with Valve, showing the showerhead, handheld shower, hose, handle, and tub spout components.
Safety Information
- Always turn off the main water supply before beginning any installation or repair work.
- Wear appropriate personal protective equipment (PPE) such as safety glasses and gloves during installation.
- Ensure all connections are secure and leak-free before restoring water supply.
- If you are unsure about any step, consult a qualified plumber.
Installation Guide
Professional installation is recommended for optimal performance and to ensure compliance with local plumbing codes. The following steps provide a general overview.
- Prepare the Installation Area: Turn off water supply. Clear the work area.
- Install the Valve Body: Secure the valve body within the wall according to the rough-in dimensions. Ensure it is level and properly aligned with the finished wall surface.
- Connect Water Lines: Connect hot and cold water supply lines to the appropriate inlets on the valve body. Connect the shower outlet and tub spout outlet lines.
- Install Tub Spout: Attach the tub spout to its connection point, ensuring a tight seal.
- Install Trim Plate and Handle: Mount the trim plate over the valve body. Install the handle assembly onto the valve stem.
- Install Showerhead and Handheld Shower: Attach the main showerhead to the shower arm. Connect the hose to the handheld shower and the wall outlet.
- Test for Leaks: Slowly turn on the water supply and check all connections for leaks.
Image: An illustration showing the internal valve body and the external trim plate and handle, emphasizing that professional installation is recommended for the shower valve.

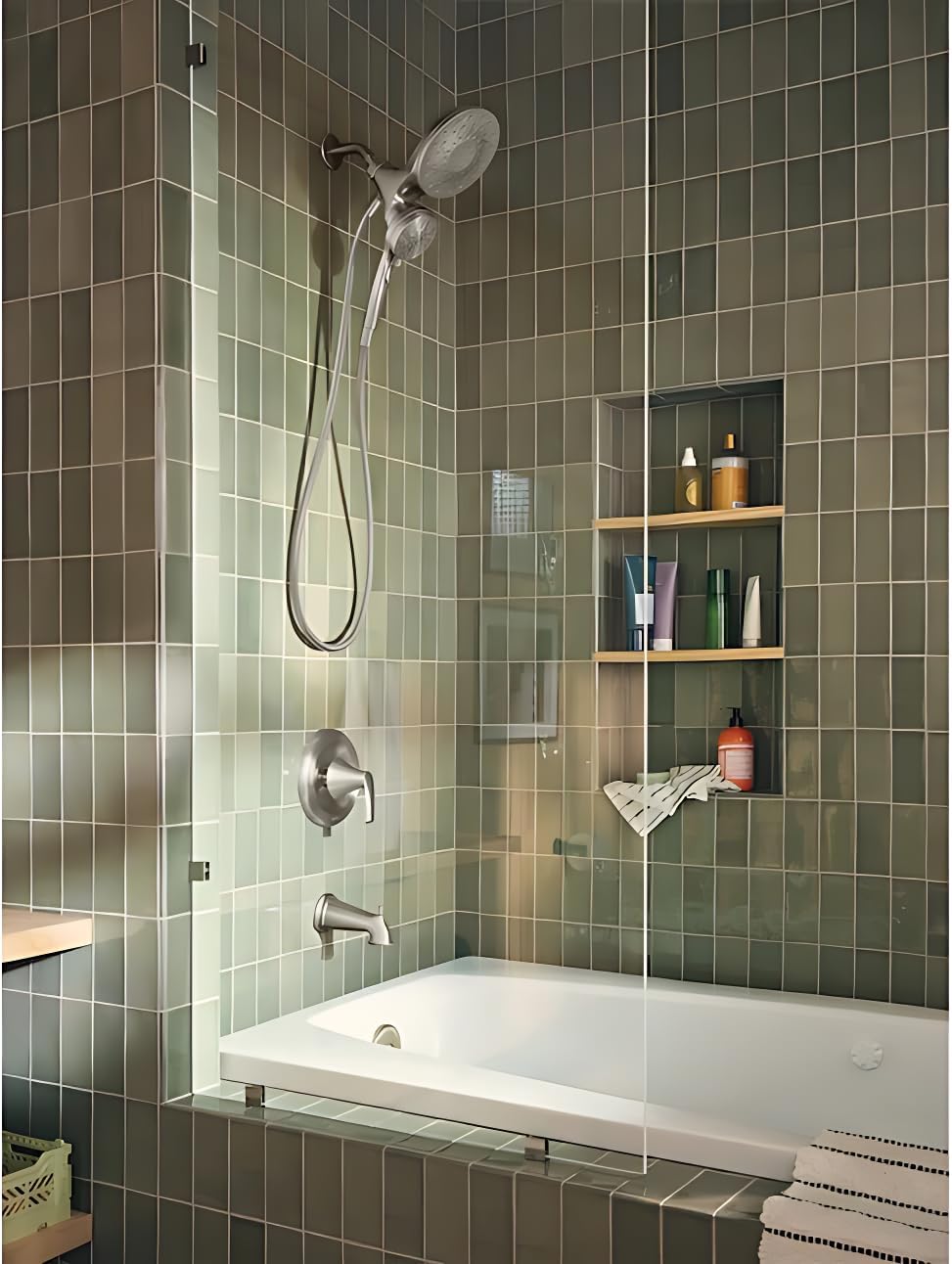

Image: The Moen Magnetix shower system installed in a modern bathroom with green tiled walls and a glass shower partition, demonstrating its appearance in a finished setting.
Operating Instructions
Water Flow and Temperature Control:
The single handle controls both water flow and temperature. Lift the handle to increase water flow. Rotate the handle left for hot water and right for cold water.
Showerhead and Handheld Shower Operation:
This system features a combination rainshower and handheld shower. You can use them together or separately.
Image: A diagram illustrating six unique spray functions available on the showerhead: Rinse, Downpour, Wide Coverage, Massage, Relaxing Massage, and Soothing Massage.
Image: A visual demonstrating the flexibility of the Moen Magnetix system, showing the main showerhead and handheld shower being used simultaneously and individually.
Extended Reach:
The included 60-inch hose for the handheld shower provides extended reach and flexibility for various uses, such as bathing children or pets.
Image: A person using the Moen Magnetix handheld shower with its extended hose to wash a dog, highlighting the flexibility and convenience of the design.
Maintenance and Cleaning
To maintain the finish and performance of your Moen faucet, follow these cleaning guidelines:
- Regular Cleaning: Clean with mild soap and water. Rinse thoroughly and dry with a soft cloth.
- Avoid Harsh Cleaners: Do not use abrasive cleaners, harsh chemicals, or polishes containing alcohol, acids, or abrasives, as these can damage the Spot Resist Brushed Nickel finish.
- Spot Resist Finish: The Spot Resist finish is designed to resist fingerprints and water spots, making cleaning easier.
- Showerhead Nozzles: Periodically clean the rubber nozzles on the showerhead and handheld shower to remove mineral buildup. You can gently rub them with your finger or a soft brush.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Low Water Pressure | Clogged showerhead nozzles; partially closed shut-off valve; mineral buildup in lines. | Clean showerhead nozzles; ensure shut-off valves are fully open; consult a plumber for line cleaning. |
| Leaking Faucet | Worn O-rings or seals; loose connections. | Tighten connections; replace worn parts (consult Moen support or a plumber). |
| Temperature Fluctuations | Issue with water heater; pressure balance valve malfunction. | Check water heater settings; contact a qualified plumber for valve inspection. |
Product Specifications
| Feature | Detail |
|---|---|
| Brand | Moen |
| Material | Nickel |
| Finish Type | Brushed |
| Number of Handles | 1 |
| Handle Material | Stainless Steel |
| Item Weight | 6.4 Pounds |
| Mounting Type | Wall Mount |
| Included Components | Handle |
| UPC | 026508304532 |
| Manufacturer | Moen |
| Part Number | 82137SRN |
| Product Dimensions | 23 x 9.5 x 5.96 inches |
| Item model number | 82137SRN |
| Finish | Brushed |
| Batteries Included? | No |
| Batteries Required? | No |
| ASIN | B08YRYGZ7M |
| Date First Available | March 12, 2021 |
Warranty and Support
Moen products are manufactured with the highest standards of quality and workmanship. For detailed warranty information and customer support, please visit the official Moen website or contact their customer service directly. Keep your proof of purchase for warranty claims.
Moen Official Website: www.moen.com
Customer Service: Refer to the Moen website for current contact information (phone, email, chat).
