Yaheetech Lift-Top Coffee Table Instruction Manual

Introduction

Thank you for purchasing the Yaheetech Lift-Top Coffee Table. This manual provides essential information for the safe assembly, operation, and maintenance of your new coffee table. Please read these instructions carefully before use and retain them for future reference.

Image: The Yaheetech Lift-Top Coffee Table, showcasing its design in a living room environment with the tabletop in the closed position.

Safety Information

WARNING: Failure to follow these safety instructions may result in injury or damage to the product.

• Do not stand on the table.
• Adhere to the recommended maximum weight capacity for safe use. The tabletop supports up to 20 kg (closed) and 10 kg (extended). The storage compartment supports 15 kg, and the bottom shelf supports 18 kg.
• Ensure all screws and fasteners are securely tightened before use. Periodically check and re-tighten as necessary.
• Keep small parts away from children during assembly to prevent choking hazards.
• Use the product on a flat, stable surface to prevent tipping.

Package Contents

Please verify that all components are present before beginning assembly. Refer to the parts list provided in your product packaging for detailed identification of each component and hardware.

Typical components include:

• Tabletop panel
• Side panels and base panels
• Lift mechanism components (pneumatic cylinder, metal brackets)
• Bottom shelf panel
• Hardware pack (screws, dowels, protective pads)

Setup and Assembly

Assembly is required for this product. For detailed, step-by-step instructions, please refer to the dedicated assembly manual included in your product packaging. The following provides a general overview:

1. Unpack: Carefully remove all components from the packaging and lay them out on a clean, soft surface to prevent scratches.
2. Identify Parts: Match all parts against the provided parts list.
3. Assemble Base: Construct the main frame of the coffee table, including the side panels and the bottom shelf, using the provided hardware.
4. Install Lift Mechanism: Attach the pneumatic lift mechanism to the table frame according to the instructions. Ensure it is securely fastened.
5. Attach Tabletop: Secure the tabletop to the lift mechanism. Ensure proper alignment.
6. Apply Protective Pads: Install the 8 foam protective pads between the tabletop and the table legs. These pads cushion impacts and ensure a safe, quiet descent of the tray.

Image: Detail of the robust pneumatic lift mechanism, designed for smooth and quiet operation.

Image: Protective foam pads installed to prevent damage and reduce noise when lowering the tabletop.

Operating Instructions

The Yaheetech Lift-Top Coffee Table features a versatile design for various uses.

Lift-Top Function

• To raise the tabletop: Gently lift the front edge of the tabletop. The pneumatic cylinder will assist in smoothly raising the top to your preferred height.
• To lower the tabletop: Gently push down on the tabletop. The pneumatic cylinder ensures a controlled and quiet descent.
• The lift-top mechanism allows the table to function as a comfortable workstation or dining surface while seated on a sofa.

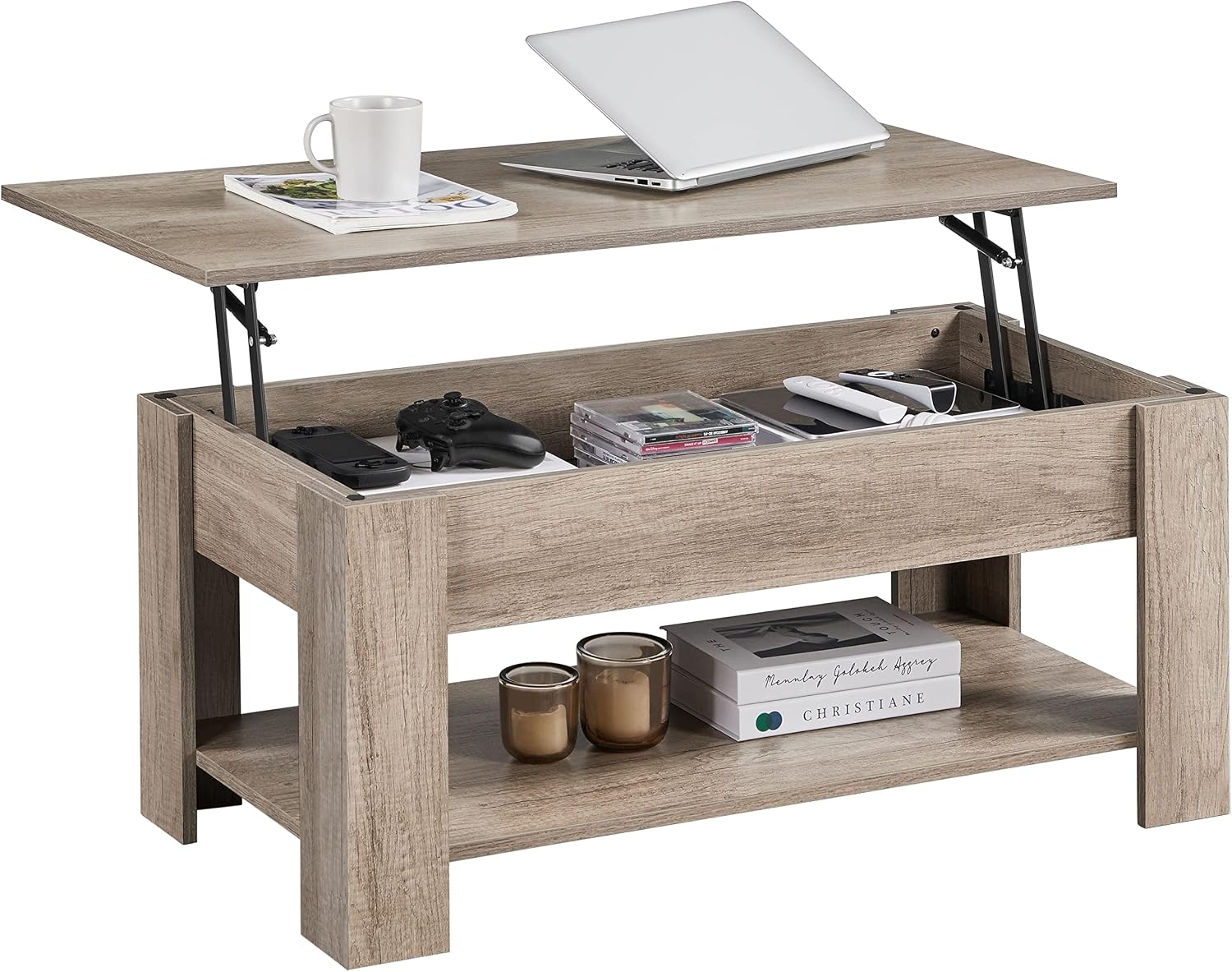

Image: The coffee table with its lift-top extended, providing a convenient surface for a laptop or dining, revealing the hidden storage.

Storage Features

• Hidden Compartment: Beneath the lift-top, a spacious hidden compartment is available for storing items such as remote controls, magazines, books, or small electronics, keeping them dust-free and out of sight.
• Bottom Shelf: An open bottom shelf provides additional storage or display space for larger items, decorative objects, or frequently accessed materials.

Image: A detailed view of the hidden storage area, demonstrating its capacity for organizing various household items.

Maintenance

• Cleaning: Wipe the table surfaces with a soft, damp cloth. Avoid using harsh chemicals or abrasive cleaners, as these can damage the finish.
• Spills: Promptly clean up any spills to prevent staining or damage to the wood material.
• Hardware Check: Periodically inspect all screws and connections to ensure they remain tight. Re-tighten if necessary to maintain stability.
• Avoid Excessive Weight: Do not exceed the specified weight capacities for the tabletop and storage areas.
• Protect from Heat and Moisture: Use coasters for drinks and avoid placing hot items directly on the surface. Keep the table away from direct sunlight and excessive humidity.

Image: A close-up of the engineered wood surface, highlighting its texture and finish.

Troubleshooting

• Table feels wobbly:

  Ensure all assembly screws are fully tightened. Check that the table is placed on a level surface. If necessary, adjust the protective pads or use shims.

• Lift-top mechanism is stiff or noisy:

  Check for any obstructions in the mechanism's path. Ensure all bolts connecting the mechanism are securely fastened but not overtightened. A small amount of silicone lubricant can be applied to moving parts if approved by the manufacturer (consult the original manual). Ensure protective pads are correctly positioned.

• Parts are missing or damaged:

  Contact Yaheetech customer support immediately with your product model number (B08YN5X4CC) and a description of the issue.

Specifications

Image: Dimensional drawing of the coffee table, including height when closed and extended, and various load capacities.

Warranty and Support

For warranty information, product support, or to order replacement parts, please refer to the warranty card included with your purchase or visit the official Yaheetech website. Please have your model number (B08YN5X4CC) ready when contacting support.
