STANLEY 3-in-1 Folding Hand Truck User Manual

1. Introduction

Thank you for choosing the STANLEY FT585 3-in-1 Folding Hand Truck. This versatile tool is designed to assist with various material handling tasks, functioning as both a traditional hand truck and a flatbed platform trolley. Its compact, foldable design ensures easy storage and transport. Please read this manual carefully before use to ensure safe and efficient operation.

2. Key Features

• 2-in-1 Functionality: Easily converts between a hand truck and a platform trolley.
• High Load Capacity: Supports up to 137 kg (302 lbs) as a platform trolley and 70 kg (154 lbs) as a hand truck.
• Foldable Design: Folds compactly for convenient storage and portability.
• Durable Construction: Made from alloy steel with sturdy wheels for reliable performance.
• Four Stable Wheels: Equipped with four wheels for easy maneuverability.

3. Setup and Assembly

The STANLEY FT585 comes pre-assembled and ready for use. Follow these steps to unfold and convert the unit:

3.1. Unfolding from Compact Storage

From its folded position, gently pull the handle upwards. The main frame will begin to extend. Ensure all locking mechanisms click into place for stability.

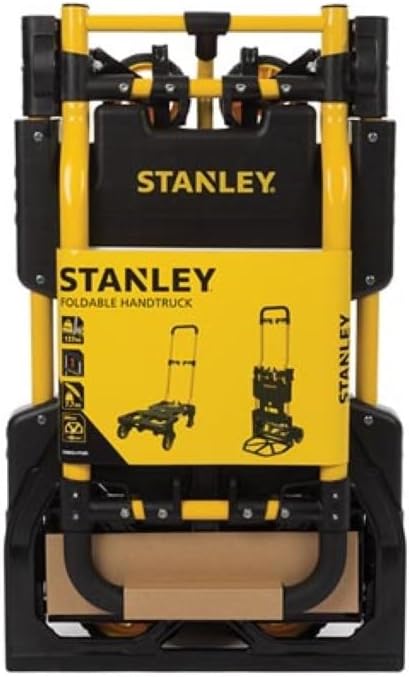

Figure 1: The STANLEY FT585 in its compact, folded configuration for storage or transport.

3.2. Converting to Hand Truck Mode

To use as a hand truck, ensure the main handle is fully extended. The footplate at the bottom should be unfolded and locked into its horizontal position. This mode is ideal for stacking and moving items vertically.

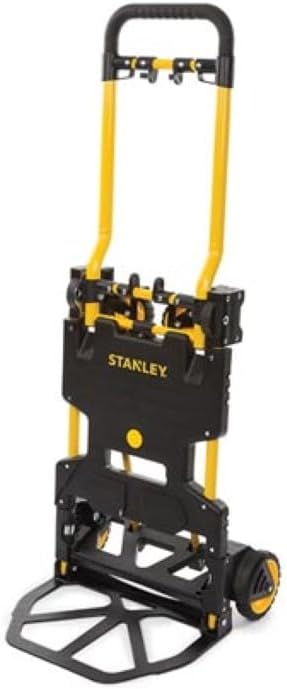

Figure 2: The hand truck configured for upright use, with the footplate extended.

3.3. Converting to Platform Trolley Mode

To convert to a platform trolley, first ensure the hand truck is in its upright position. Locate the release levers near the base of the handle. Press these levers and gently push the handle downwards and forwards. The main body will flatten, and the additional wheels will deploy, forming a flat platform. Ensure all components are securely locked before loading.

Figure 3: The platform trolley configuration, suitable for larger or multiple items.

4. Operating Instructions

4.1. Using as a Hand Truck

In hand truck mode, place items on the extended footplate. Tilt the hand truck back towards you using the handle, ensuring the weight is balanced over the wheels. Push or pull the hand truck to transport items. Always secure tall or unstable loads with straps if necessary.

Figure 4: Demonstrating the hand truck in use, moving heavy items.

4.2. Using as a Platform Trolley

In platform trolley mode, place items centrally on the flat platform. Use the extended handle to push or pull the trolley. The four wheels provide excellent stability and maneuverability for wider or multiple items. Distribute weight evenly across the platform.

Figure 5: The platform trolley in action, transporting a large toolbox.

4.3. Folding for Storage

To fold the unit back into its compact form, reverse the conversion steps. Ensure the footplate is folded up, then press the release levers to collapse the handle and main body. Secure any locking pins to keep it folded.

Figure 6: The hand truck being folded for easy storage or transport in a vehicle.

5. Maintenance

• Cleaning: Wipe down the frame and wheels with a damp cloth to remove dirt and debris. Avoid harsh chemicals.
• Lubrication: Periodically apply a light lubricant to moving parts, such as wheel axles and folding mechanisms, to ensure smooth operation.
• Inspection: Regularly check for loose bolts, damaged wheels, or signs of wear. Tighten any loose fasteners and replace worn parts as needed.
• Storage: Store the hand truck in a dry, clean place when not in use to prevent rust and damage.

6. Troubleshooting

• Difficulty Folding/Unfolding: Ensure all release levers are fully engaged or disengaged. Check for any obstructions or debris in the folding mechanism. Lubricate moving parts if stiff.
• Wheels Not Rolling Smoothly: Inspect wheels for debris (e.g., string, hair) wrapped around the axles. Clean and lubricate the axles if necessary. Check for damaged wheels that may need replacement.
• Unstable Operation: Ensure all parts are fully extended and locked into place before use. Do not exceed the maximum load capacity for the chosen configuration. Distribute loads evenly.

7. Technical Specifications

8. Warranty and Support

For warranty information, technical support, or to inquire about replacement parts, please contact STANLEY customer service directly. Refer to the product packaging or the official STANLEY website for the most current contact details and warranty terms applicable to your region.
